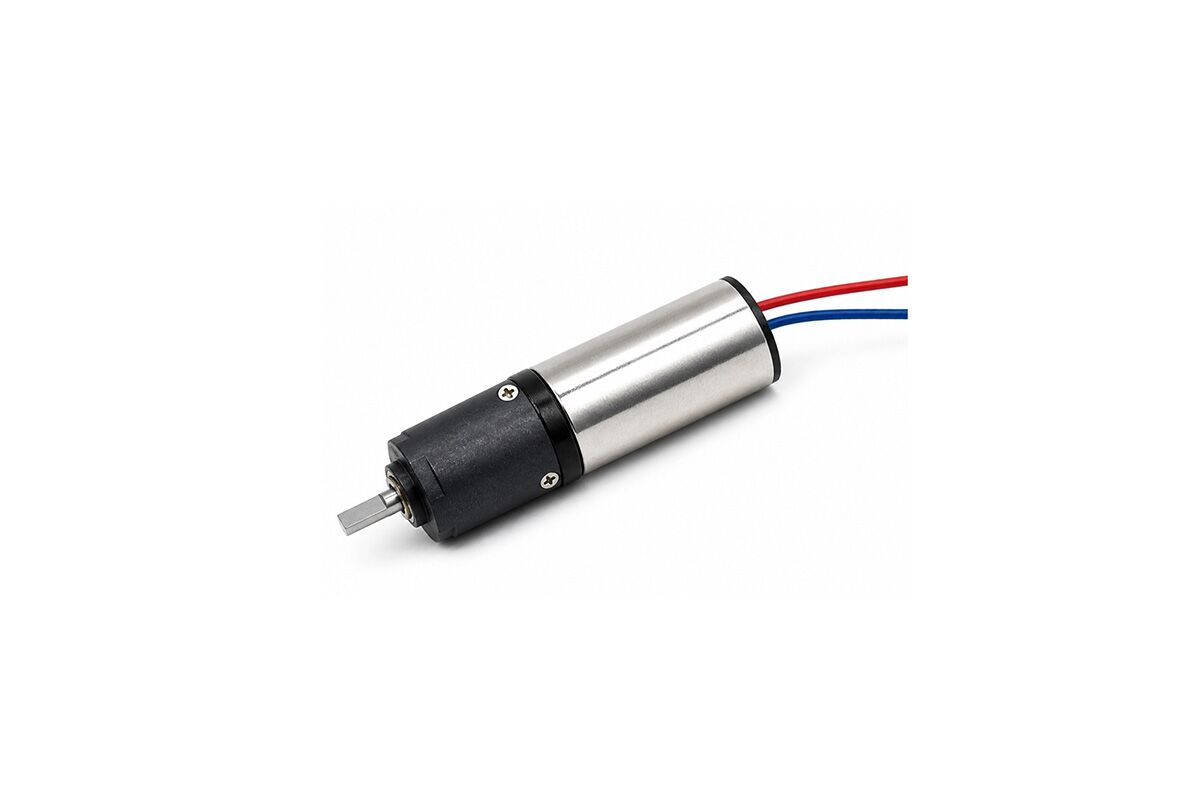

10mm Coreless DC Gear Motor − 37mm Type Model NFP-GM10-1020-151
$39.50
Unlock precision with our 6mm stepper gear motor precise motion. Ideal for various applications, this motor guarantees top performance. Order now!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 19 | $39.50 | 0% |
| 20 - 49 | $36.60 | 7.34% |
| 50 - 99 | $32.20 | 18.48% |
| 100+ | $29.30 | 25.82% |
NFP-GM10-1020-151 Strong Magnetic 10mm Coreless Gear Motor Datasheet
This strong magnetic coreless DC gear motor uses a 10mm coreless motor with an all-metal three-stage gearbox, suitable for compact precision drive applications, small motion control systems, and high-torque miniature geared mechanisms.
| Item | Specification |
|---|---|
| Model | NFP-GM10-1020-151 |
| Rated Voltage | 7.4V DC |
| No-load Speed | 240rpm |
| No-load Current | 110mA |
| Reduction Ratio | 151:1 |
| Reduction Stages | 3 stages |
| Weight | 13.25g including wires |
| Wire Length | 150mm |
| Gearbox | All-metal gear reduction gearbox body |
| Motor Type | Strong magnetic 10mm coreless DC motor |
| Stall Torque at 3.7V | Approx. 1900gf.cm |
| Stall Torque at 7.4V | Approx. 4000gf.cm |
10mm Planetary DC Gear Step Motor Outline Drawing
Elevate your project with our 10mm coreless gear motor precise motion, designed for compact drive applications. Get yours for superior precision!
Keywords:
10mm gear motor, planetary gear motor, high torque low speed gearmotor
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
