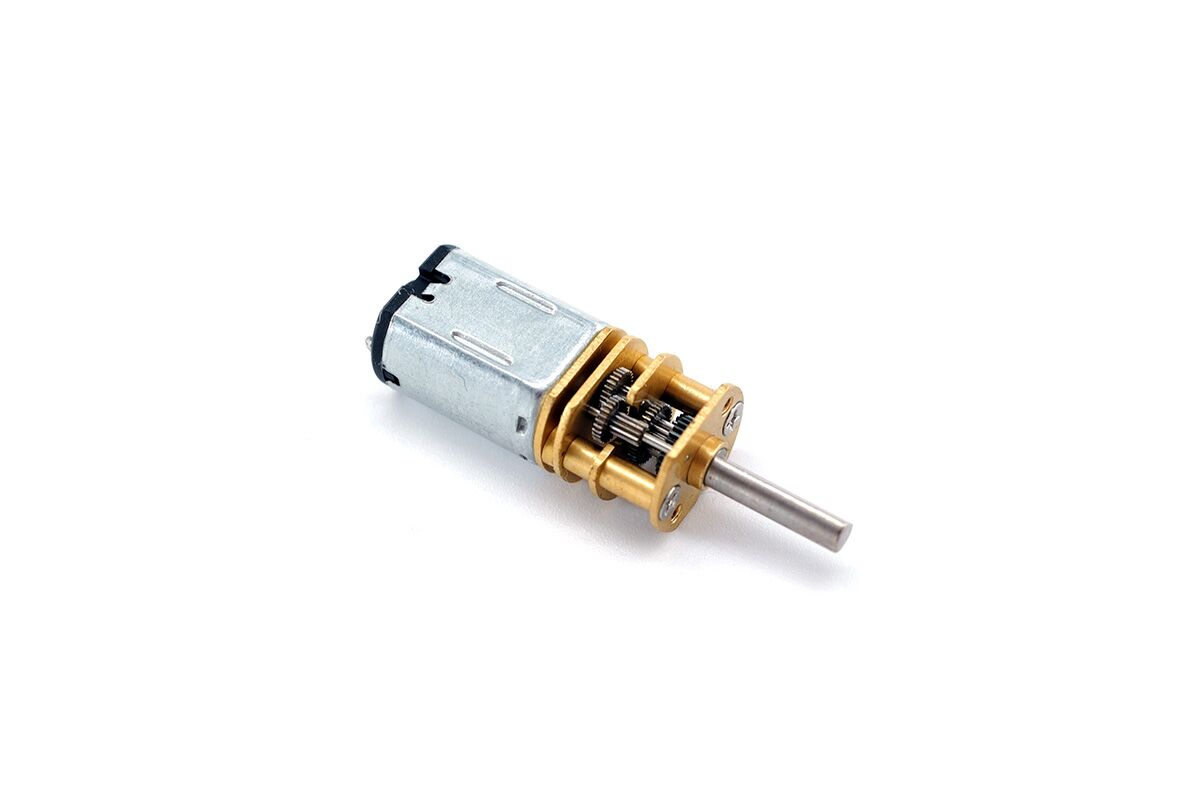

10mm Metal Gear Motor Model NFP-GM10-M20
$10.50
Unlock the potential of your devices with the 10mm spur gear motor PWM. This small yet mighty motor is built for power and reliability. Buy now!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $10.50 | 0% |
| 10 - 19 | $6.95 | 33.81% |
| 20 - 49 | $6.63 | 36.86% |
| 50 - 99 | $6.24 | 40.57% |
| 100+ | $5.12 | 51.24% |
10mm DC Gear Motors Model NFP-GM10-M20 Performance
The NFP-GM10-M20 series is a 10mm DC gear motor line for compact products that need low speed, useful torque, and stable output. It uses a small DC motor with an integrated gearbox.
First, this gear motor has a compact 10mm diameter. Also, it offers 1:250 and 1:100 ratio options. Therefore, it is useful for small devices that need controlled speed in limited space.
In addition, the GM10-M20 motor can provide smooth operation and practical torque. As a result, it can support robotics, small appliances, automation systems, and precision drive products.
Main Product Features
- First, compact size: The 10mm body fits small product spaces.
- In addition, gearbox output: The integrated gearbox helps reduce speed and increase torque.
- Also, ratio options: The series includes 1:250 and 1:100 versions.
- Next, low current: The no-load current is ≤60mA.
- Finally, smooth control: The gear motor can support precise motion in compact devices.
NFP-GM10-M20-74 Performance Data
Next, the table below shows the 1:250 ratio version. Therefore, users can check its speed, torque, current, and power before selecting it for a low-speed application.
| Motor Model | NFP-GM10-M20-74 |
|---|---|
| Voltage | 6V DC |
| Ratio | 1:250 |
| No-load current | ≤ 60mA |
| No-load speed | 74rpm |
| Rated torque | 0.25kg.cm |
| Rated speed | 52rpm |
| Rated current | ≤ 0.15A |
| Stall torque | ≥ 0.9kg.cm |
| Stall current | ≤ 0.4A |
| Max power | 0.4W |
Also, the NFP-GM10-M20-74 provides lower no-load speed and higher rated torque than the 1:100 version. As a result, it is a better choice for slower motion and stronger output.
NFP-GM10-M20-185 Performance Data
In addition, the table below shows the 1:100 ratio version. Therefore, users can compare it with the 1:250 version and choose the right speed range for the final product.
| Motor Model | NFP-GM10-M20-185 |
|---|---|
| Voltage | 6V DC |
| Ratio | 1:100 |
| No-load current | ≤ 60mA |
| No-load speed | 185rpm |
| Rated torque | 0.22kg.cm |
| Rated speed | 130rpm |
| Rated current | ≤ 0.15A |
| Stall torque | ≥ 0.8kg.cm |
| Stall current | ≤ 0.4A |
| Max power | 0.4W |
Also, the NFP-GM10-M20-185 provides higher no-load speed and rated speed. However, the NFP-GM10-M20-74 provides higher rated torque and stall torque.
As a result, users can choose the 185rpm version for faster motion, or choose the 74rpm version for lower speed and stronger torque.

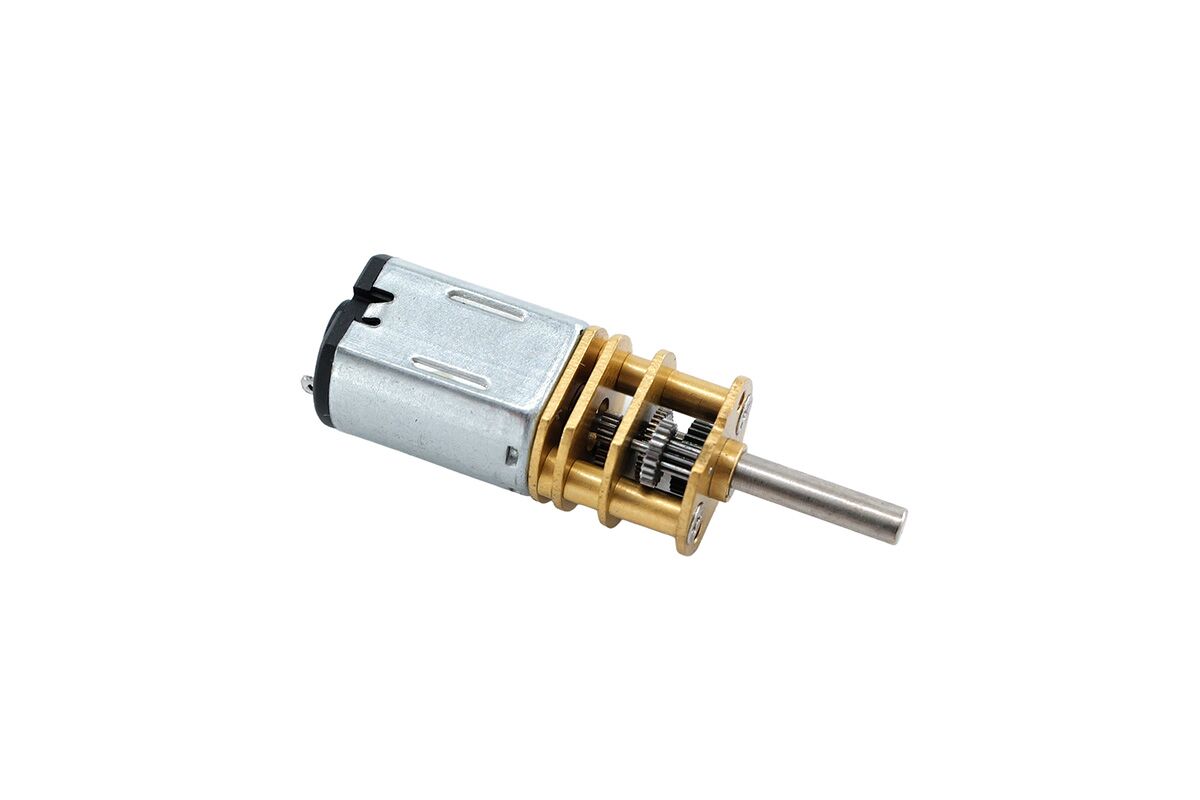

Super Small Metal Gearbox Motor
First, the outline drawing helps users review the NFP-GM10-M20 motor body, gearbox, and output structure. Therefore, it is useful before sample testing and final product design.
In addition, the small metal gearbox helps deliver consistent torque and smooth operation. As a result, this motor is suitable for products where precise motion is important.
Outline Drawing and Design Benefits
- First, small gearbox: The compact gearbox helps save product space.
- In addition, controlled speed: The gearbox reduces motor speed for more useful output.
- Also, practical torque: The motor can support small precision drive tasks.
- Next, smooth operation: Gear reduction helps create stable low-speed motion.
- Finally, easy integration: The compact design can fit many small product layouts.
Typical Applications
Next, this small DC gear motor is suitable for compact products that need low speed, small size, and smooth torque output. For example, it can work in robotics, small appliances, and automation systems.
- Robotics
- Small appliances
- Automation systems
- Precision drive products
- Miniature mechanisms
- Compact gearbox motor projects
Finally, the NFP-GM10-M20 10mm DC gear motor is a good fit for products that need 6V DC power, 1:250 or 1:100 ratio, compact size, low current, and stable gearbox output.
Keywords: small DC motor, gear motor, 10mm, diameter, GM10, gearbox, M20, performance, compact
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
Pumpa Bala –
I used it for a custom-built car, and it’s been running great. The gear mechanism provides smooth motion without too much wear, even after several hours of use.
Jayrn Marques –
Used this for a custom vehicle with low RPM needs, I tested it with two AA batteries, and it run smoothly, but it can slow down further with just one. Perfect for custom electronics.🕹️❤️🔥
Jada Darell –
These are great little gear motors. After testing the motor output shaft and the drive output shaft gears are perfect for the project I’m working on and will help complete the project. Great product!
