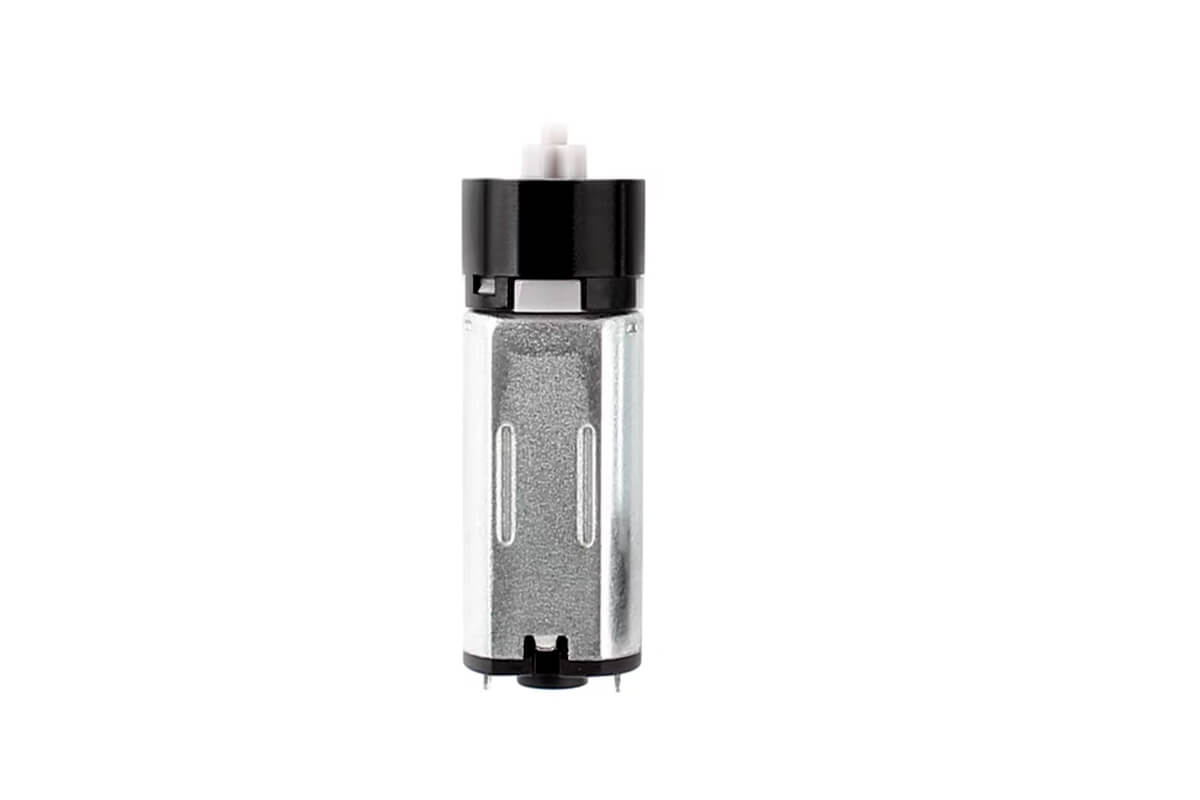

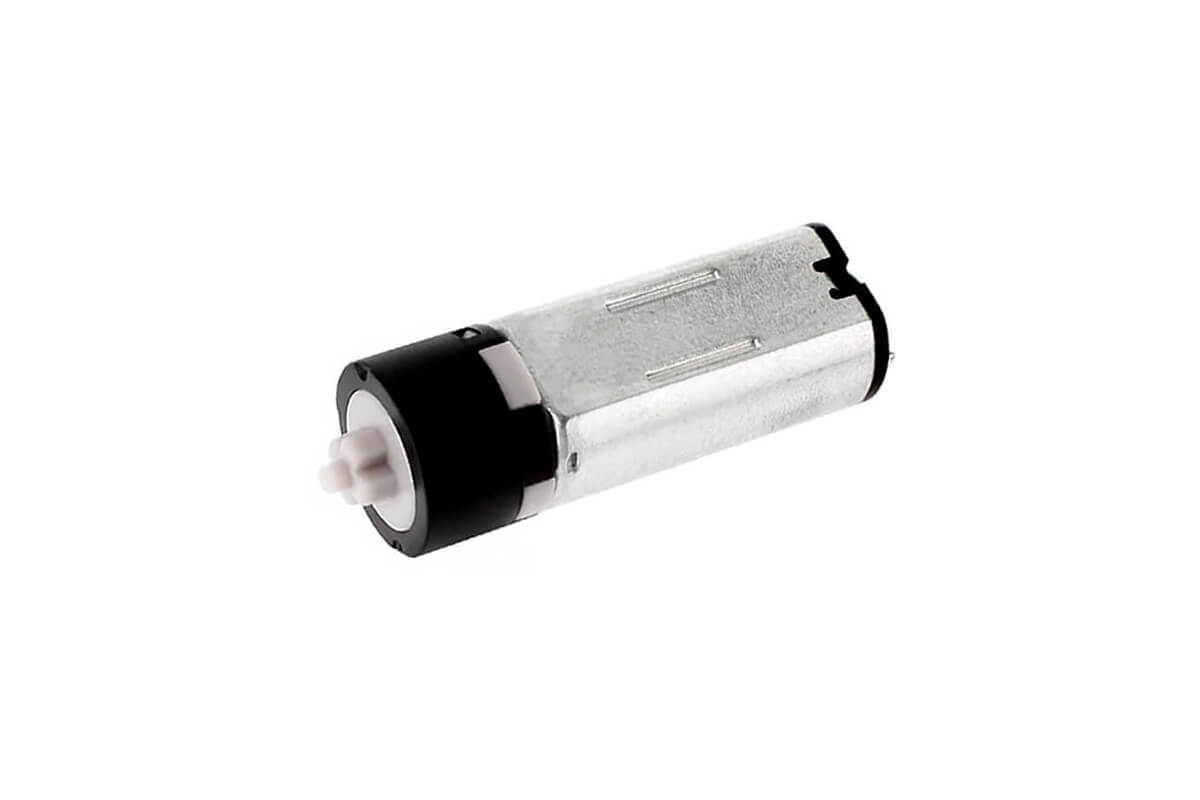

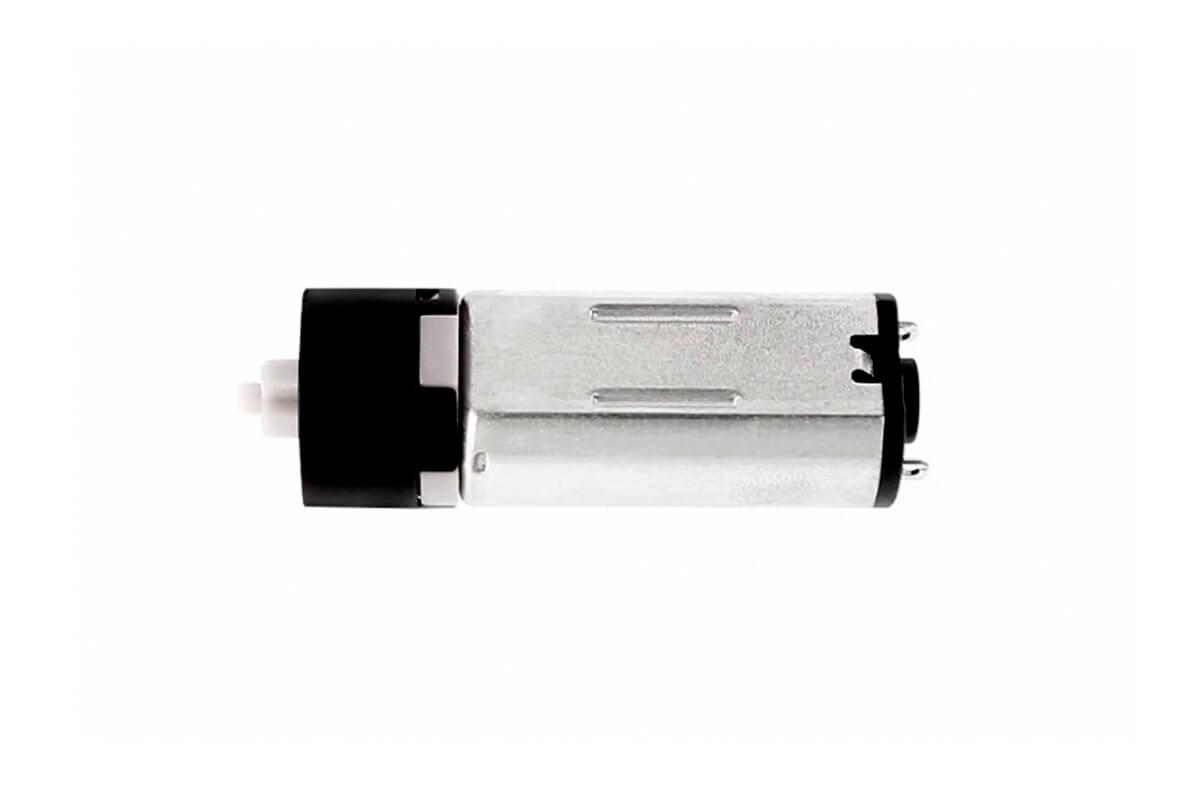

10mm DC Gear Motor Model NFP-10GP-M30

High Performance Micro Planetary Geared Motor Parameters

The NFP-10GP-M30 is a high performance micro planetary geared motor for compact products that need low speed, useful torque, and stable output. It works at 5V DC and uses a 171:1 gear ratio.

First, this motor uses a cross output shaft, planetary gear drive structure, and pure copper wire winding. Also, the gearbox helps reduce speed and increase torque. Therefore, it is useful for small products that need controlled motion.

In addition, the motor is designed for energy efficiency, stable performance, low noise, wear resistance, and long lifetime. As a result, it can support compact drive systems and small automation projects.

Main Product Features

• First, planetary gear drive: The gearbox helps reduce speed and improve torque output.
• In addition, cross output shaft: The shaft structure supports compact mechanical layouts.
• Also, pure copper winding: The motor winding helps support stable electrical performance.
• Next, low noise: The gear structure supports smooth and quiet operation under suitable load.
• Finally, long lifetime: Wear-resistant materials help support long-term use.

NFP-10GP-M30 Planetary Gear Motor Performance Data

Next, the table below helps users check shaft diameter, ratio, voltage, speed, current, torque, rotation, weight, efficiency, and output power. Therefore, it is easier to confirm whether this planetary gear motor fits the final product design.

Note: all reduced no-load speeds have a tolerance of ±15%.


Also, the motor reaches 50rpm at the max efficiency point and 33rpm at the max output power point. As a result, users can choose the working range based on speed, torque, current, and output power needs.

Compact Planetary Gear Motor Mechanical Drawing

First, the mechanical drawing helps users review the motor body, gearbox, and shaft structure. Therefore, it is useful before sample testing and final product design.

In addition, this compact planetary gearbox motor can provide useful torque in a small form factor. As a result, it is suitable for products that need high torque and limited installation space.

Mechanical Drawing and Design Benefits

• First, compact gearbox: The small planetary gearbox helps save product space.
• In addition, useful torque: The 171:1 ratio helps provide low-speed torque output.
• Also, smooth motion: The planetary structure supports stable gear movement.
• Next, battery-friendly use: The 5V DC input can support compact electronic products.
• Finally, flexible integration: The motor can fit prototypes and small OEM designs.

NFP-10GP-M30 Gear Motor Performance Curve

Next, the performance curve helps users review speed, current, torque, efficiency, and output power under load. Therefore, it can support motor selection and sample testing.

Also, custom solutions can be discussed for speed, torque, and dimension needs. As a result, this motor can support prototypes and special compact drive applications.

Performance Curve Benefits

• First, speed review: The curve helps show how speed changes under load.
• In addition, torque review: Users can compare output torque at different working points.
• Also, current review: The curve helps estimate current draw in the final product.
• Next, efficiency review: Engineers can choose a better working range.
• Finally, testing support: The curve can guide prototype testing and product validation.

Customization and Sampling

• First, custom speed: Speed options can be discussed for special product needs.
• In addition, custom torque: Torque requirements can be reviewed based on the final load.
• Also, custom dimensions: Dimension changes can be checked for special projects.
• Next, prototype support: The motor can support prototype testing and validation.
• Finally, fast sampling: Prototype samples are available with international shipping within one week.

Typical Applications

Finally, this micro planetary geared motor is suitable for compact products that need low speed, high torque, low noise, and stable output. For example, it can work in robotics, medical equipment, smart locks, and miniature automation systems.

• Robotics
• Medical equipment
• Smart locks
• Miniature automation systems
• Compact low-backlash drive systems
• Battery-powered devices
• Prototype motor projects

In short, the NFP-10GP-M30 micro planetary geared motor is a good fit for products that need 5V DC power, a 171:1 ratio, 66rpm no-load speed, compact size, and stable planetary gearbox output.
