10mm Stepper Steel Gear Motor – 20mm Type Model NFP-GM12-10BY-SG

Tiny DC Brushless Stepper Gear Reduction Motor Parameters

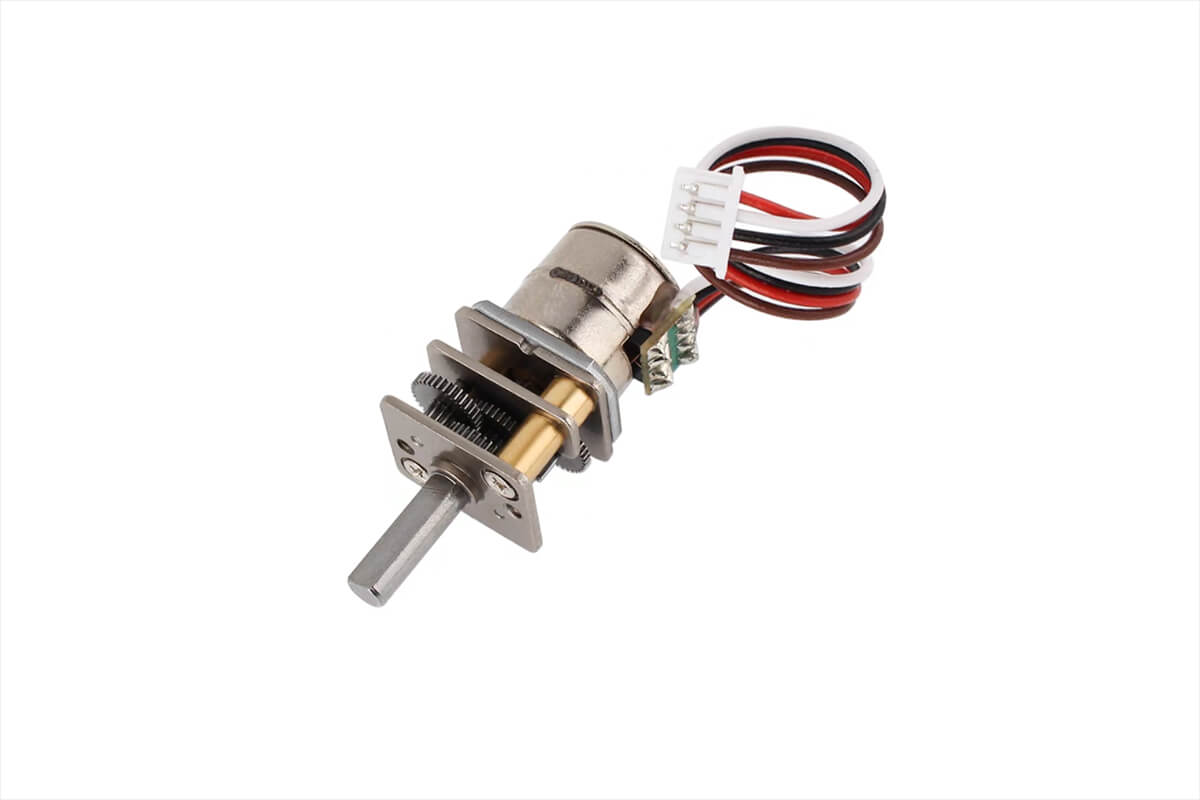

First, the NFP-GM12-10BY-SG is a tiny stepper gear reduction motor for compact motion control systems. Also, it uses a 5V DC drive with 2-phase 4-wire stepper control.

In addition, this motor can convert electrical pulse signals into angular displacement. Therefore, it is useful for smart gimbals, electric selfie sticks, camera tracking equipment, robots, and micro-printing equipment.

Moreover, the steel gear and D-shaped output shaft help improve output stability. As a result, users can reduce slipping, save assembly time, and support stronger torque applications.

Main Product Features

• First, stepper control: The motor converts pulse signals into angular movement for intelligent control.
• In addition, high gear precision: The gearbox supports wear resistance, strong torque resistance, and long life.
• Also, D-shaped output shaft: The shaft is easier to install, less likely to slip, and can save assembly time.
• Next, steel plate structure: The reducer gear shaft is more stable for compact motion systems.
• Moreover, steel gear design: The steel gear can support high torque use under suitable load conditions.
• Finally, compact 10mm body: The small motor size helps fit smart products and micro mechanisms.

Motor Specifications

First, the table below shows the main motor data. Also, it helps users check motor size, shaft size, phase data, step angle, frequency, voltage, weight, and wire sequence before sample testing.

Therefore, this compact stepper DC gear motor is useful when a product needs 5V power, precise step control, and stable gearbox output. In addition, users should confirm the wire sequence before connecting the driver.

Gear Ratio and Step Performance

Next, the table below shows the available gear ratios and output step data. Therefore, users can compare precise ratio, step angle, holding torque, and pull-out torque before choosing a model.

In addition, higher ratios provide smaller output step angles and higher holding torque. As a result, they are useful for fine low-speed positioning tasks.

As a result, lower ratios such as 1: 10 and 1: 20 provide faster output. However, higher ratios such as 1: 298 and 1: 380 provide finer positioning and stronger holding torque.

Ratio Selection Notes

• First, for higher speed: Choose 1: 10, 1: 20, or 1: 30 when faster output is required.
• In addition, for balanced control: Choose 1: 50, 1: 100, or 1: 150 based on the load.
• Also, for finer positioning: Choose 1: 210, 1: 298, or 1: 380 when smaller step angle is needed.
• Next, for higher holding torque: Choose a higher ratio when the product needs stronger holding force.
• Finally, for stable operation: Test speed, torque, step response, noise, and temperature under real load.

Brushless Steel Gear Stepper Reduction Motor Outline Drawing

Motor Outline and Mounting Reference

First, the outline drawing helps users check the stepper gear motor body, gearbox, output shaft, and mounting space. Therefore, it is useful before sample testing and final product design.

In addition, the steel gear structure helps improve gearbox strength. As a result, this motor can support compact systems that need stable step motion and better torque resistance.

Outline Drawing and Design Benefits

• First, compact body: The Φ10mm*12mm*20mm motor size helps fit limited product space.
• In addition, D-cut shaft: The Φ3mm shaft with 2.5mm D-cut helps improve connection stability.
• Also, steel gear design: The gearbox helps support stable output and better torque resistance.
• Next, 10mm shaft length: The output shaft length supports compact transmission layouts.
• Moreover, 2-phase control: The 2-phase 4-wire motor supports precise stepper drive control.
• Finally, clear dimensions: The drawing helps users design brackets, holders, and housings.

10BY Brushless DC Stepping Gear Motors Connection Diagram

Terminal Wiring Sequence

Next, the terminal wiring sequence uses a 1.25-4Y wiring terminal. Also, the wire specification is GB1571 30/UL, AWM, 105°.

Therefore, users should confirm the wiring sequence before power-on. In addition, correct wiring helps prevent wrong step direction or unstable operation.

Connection and Drive Notes

• First, wire sequence: Red A-, White A+, Black B-, and Brown B+ should be checked before wiring.
• In addition, driver IC: The listed rated voltage data refers to 5V DC with Driver IC L6219.
• Also, phase current: The phase current is 128mA / Phase, so the driver should match this value.
• Next, bipolar drive: Use a suitable stepper driver for stable bipolar control.
• Moreover, frequency check: Confirm starting and response frequency under real load.
• Finally, real test: Test step response, torque, heat rise, noise, and wiring stability before production.

Applications and Selection Tips

Typical Applications

Finally, this stepping geared motor is useful for products that need compact size, precise control, and stable low-speed output. For example, it can work in smart gimbals, electric selfie sticks, mobile camera tracking equipment, robots, smart manipulators, and micro-printing equipment.

• First, smart gimbals: The stepper gearbox can support precise angle control.
• In addition, electric selfie sticks: The compact motor can support small rotation or extension modules.
• Also, mobile camera tracking equipment: The motor can help provide controlled pan or tilt movement.
• Next, robots: The motor can support compact joints and small motion parts.
• Moreover, smart manipulators: The geared step output can support small positioning tasks.
• Finally, micro-printing equipment: The motor can support fine movement in compact mechanisms.

How to Choose This Stepper Gear Motor

First, choose the gear ratio based on output speed and step angle. Also, check holding torque and pull-out torque against the real load.

In addition, choose lower ratios for faster output. Therefore, 1: 10, 1: 20, and 1: 30 are better for speed-focused tasks.

Moreover, choose higher ratios for finer positioning and stronger holding torque. As a result, 1: 210, 1: 298, and 1: 380 are better for precise low-speed movement.

Final Selection Notes

• First, check voltage: Use 5V DC with the correct stepper driver.
• In addition, check ratio: Select 1: 10 to 1: 380 based on speed and torque needs.
• Also, check wire sequence: Confirm Red A-, White A+, Black B-, and Brown B+ before power-on.
• Next, check shaft: Confirm Φ3mm shaft diameter, 2.5mm D-cut, and 10mm output shaft length.
• Moreover, check driver settings: Match phase current, drive frequency, and step mode with the controller.
• Finally, test real load: Confirm step response, holding torque, pull-out torque, heat rise, noise, and service life before production.

In short, the NFP-GM12-10BY-SG is a tiny stepper gear reduction motor for products that need 5V DC power, 2-phase 4-wire control, steel gear strength, D-shaped shaft output, and precise low-speed movement.
