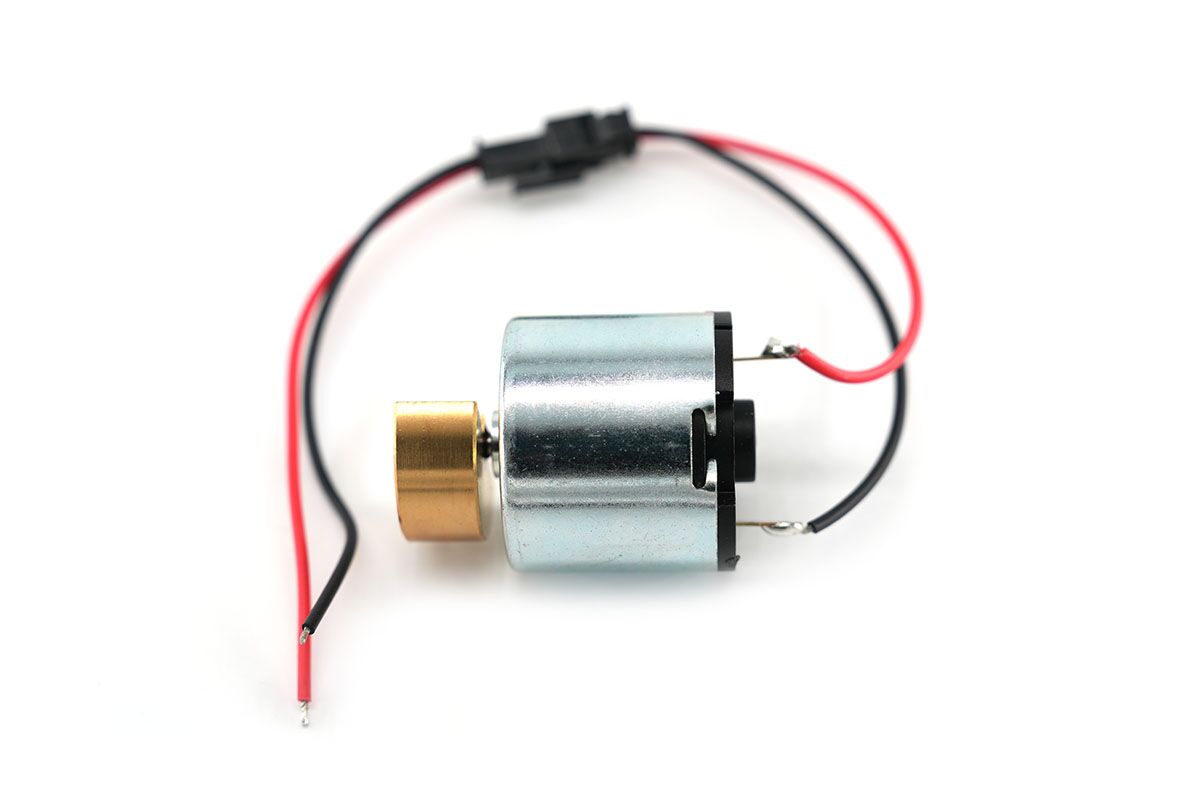

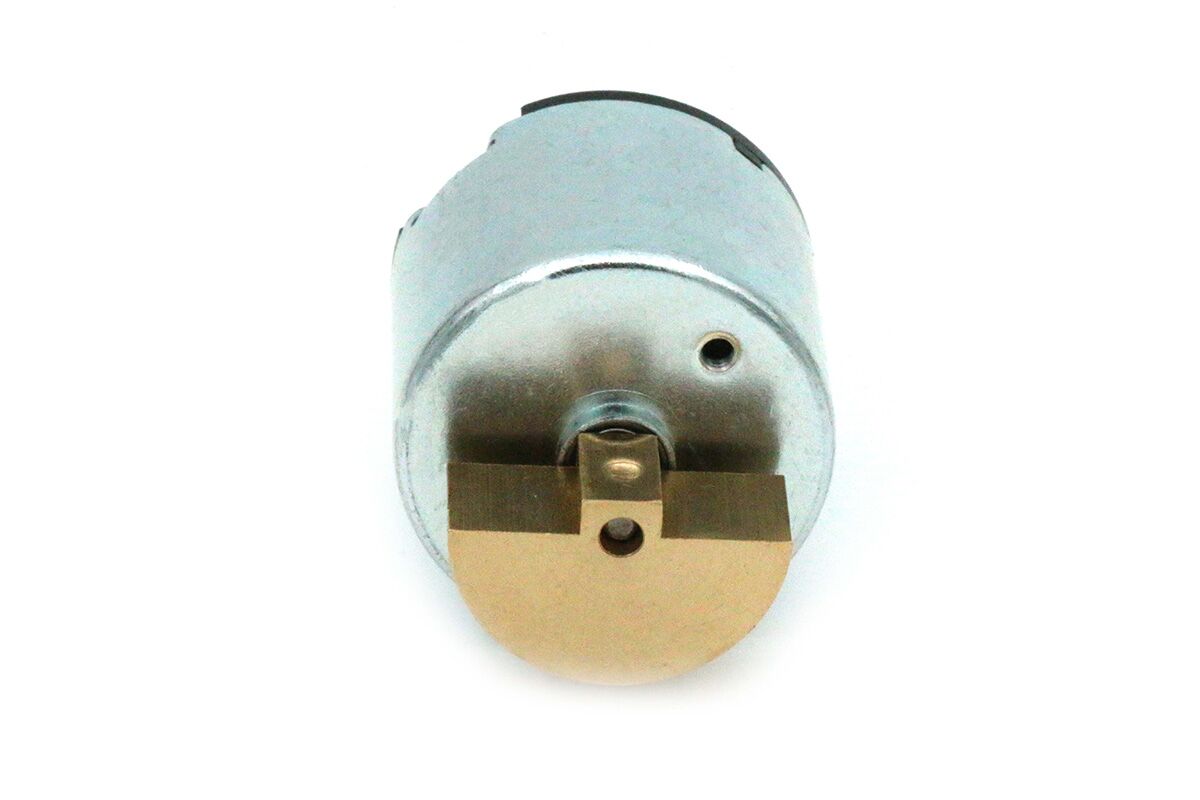

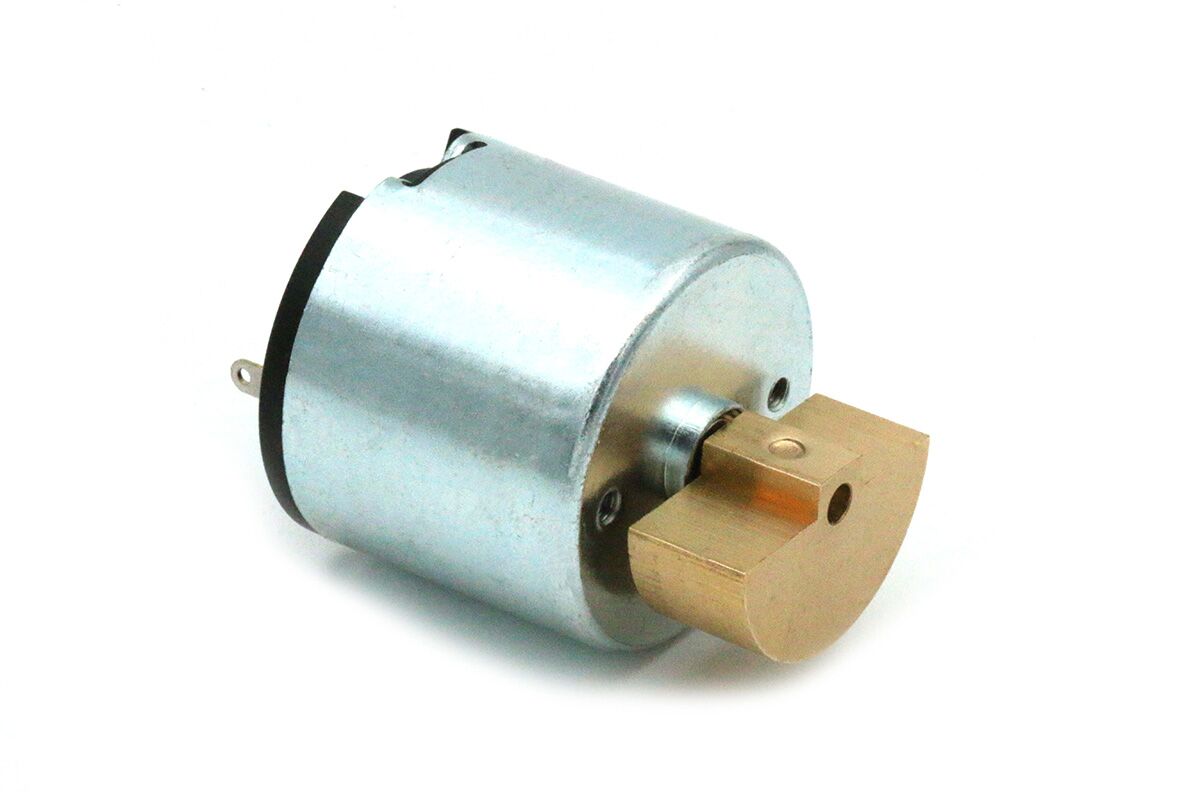

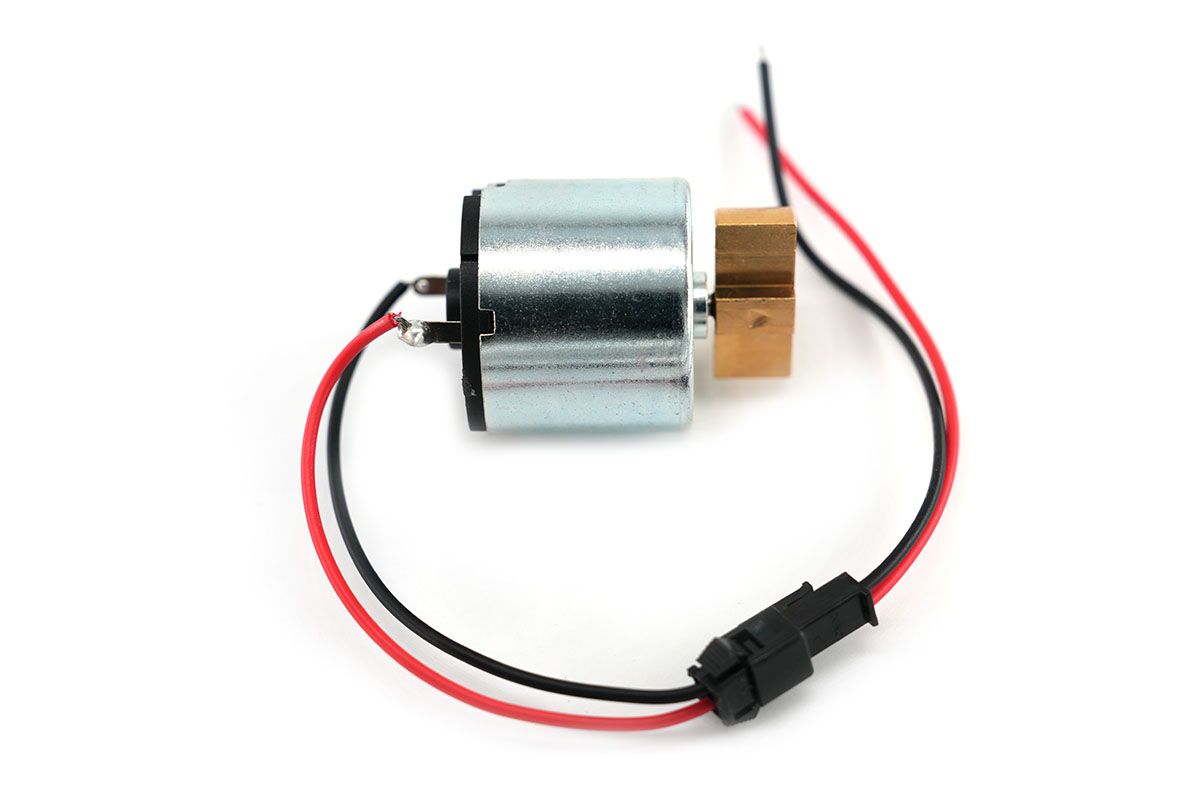

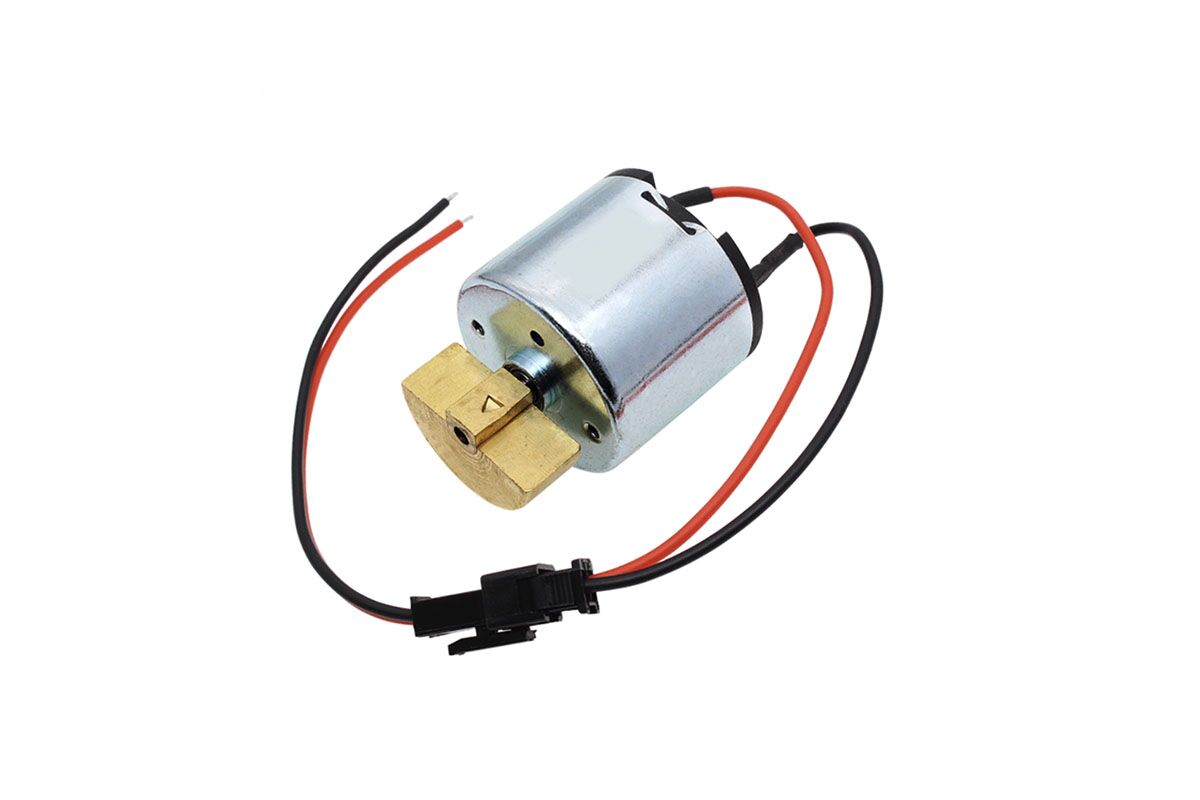

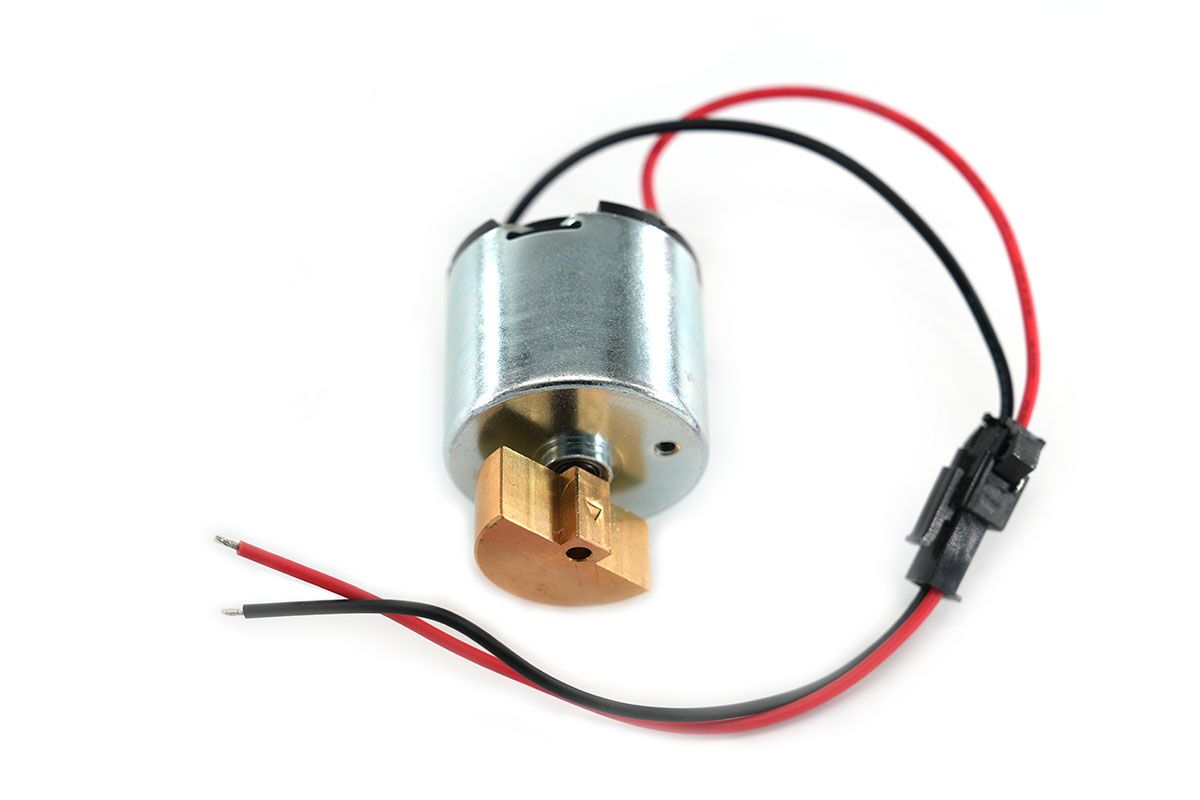

125G Amplitude 24V DC Most Powerfu ERM Vibration Motor Copper Head Dual Ball Bearing Model NFP-3429-334-800

$18.50

(3 customer reviews)

Low Volume Pricing (USD)

QTY BREAK UNIT PRICE
1+ $18.5
10+ $17.5
50+ $15.0
100+ $12.9
500+ $9.85

Contact us for a quotation for production quantities, customizations and integration.

125G Amplitude 24V DC Most Powerfu ERM Vibration Motor Copper Head Key Features


Motor Model: NFP-3429-334-800
Motor Diameter: 34mm
Motor Length: 29.5mm
Ecc. Weight Radius: 12.8mm
Ecc. Weight Length: 10.5mm
Rated Voltage: 24V DC
Rotation: CCW
Rated Speed: 7,200rpm
Resistance: 17.4Ω
Load Current: ≤130mA
Stall Current: 1,800mA
Noise: ≤65dB
Typical Norminal Amplitude: 125G



Big Amplitude Copper Head Vibrating Motor Outline Drawing


precisionmicrodrives-com-334-800-copper-vibration-motor-24V-DC



Strong Vibration ERM Vibrating Motor Mass Production


powerful-electric-erm-vibrating-motor-copper-head-334-800

Powerful Vibration Motors Applications


powerful-vibration-motor-using-in-PAPR

Keywords:
powerful vibration motor, vibrating motor, vibrator motor, eccentric rotating mass vibration motor, ball bearing

Payment:
1.Payment methods : Paypal, T/T

Shipping:
1.Delivery: DHL door to door 3-4 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.

FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.

Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.

Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.

Still can’t find ideal motors?


The electrical parameters of the motor can be adjusted. For example, the two main factors determining the vibration force: the size of the pager motor eccentric mass and the speed requirement. , voltage, current can be adjusted according to customer needs. Some encapsulated vibration motors adding terminals connectors, which are our customized products according to different customers. You can also contact us in the bottom contact form to ask for your needs.

If you want a custom lead wire connection of the water resistant vibration motors. Such as alternate lead wire length & strip lengths, with a connector (e.g. Molex, JST). You can contact us from the footer form, tell us your need. Any problems will be taken seriously and will be answered professionally, so pls do not hesitate to contact us by the footer form.

Free Shipping Site-wide When You Spend More Than $100

Using The Following Coupon When You’re Going To The Checkout

3 reviews for 125G Amplitude 24V DC Most Powerfu ERM Vibration Motor Copper Head Dual Ball Bearing Model NFP-3429-334-800

  1. T Stephens

    The powerful vibration motor appears to be well built. I’m building a guitar pickup winder and it will be perfect. Correct speed, decent Quality, Everything as advertised. I intend on purchasing another if not two or 3 just to have spares around. At this price, why not…right? I definitely recommend this item and this seller.

  2. Hemang Jain

    Fortunately, the erm vibration motor is suitable for me. As I have a bad back and my own massager motor is wearing out, this is exactly what I needed it for.

  3. Anubhav Gupta

    Very good tiny erm vibrating motor, works really well and quietly, with high-quality copper head and big torque.👍👍
