12mm Metal Gear Motor Model NFP-GM12-N10-M4
$13.50
Achieve precision in your projects with our 12mm dc gear motor m4 lead screw. Experience robust torque and durability for all your needs! ⚙️
GM12-N10 Gear Motor with 55mm Threaded Shaft Data Sheet

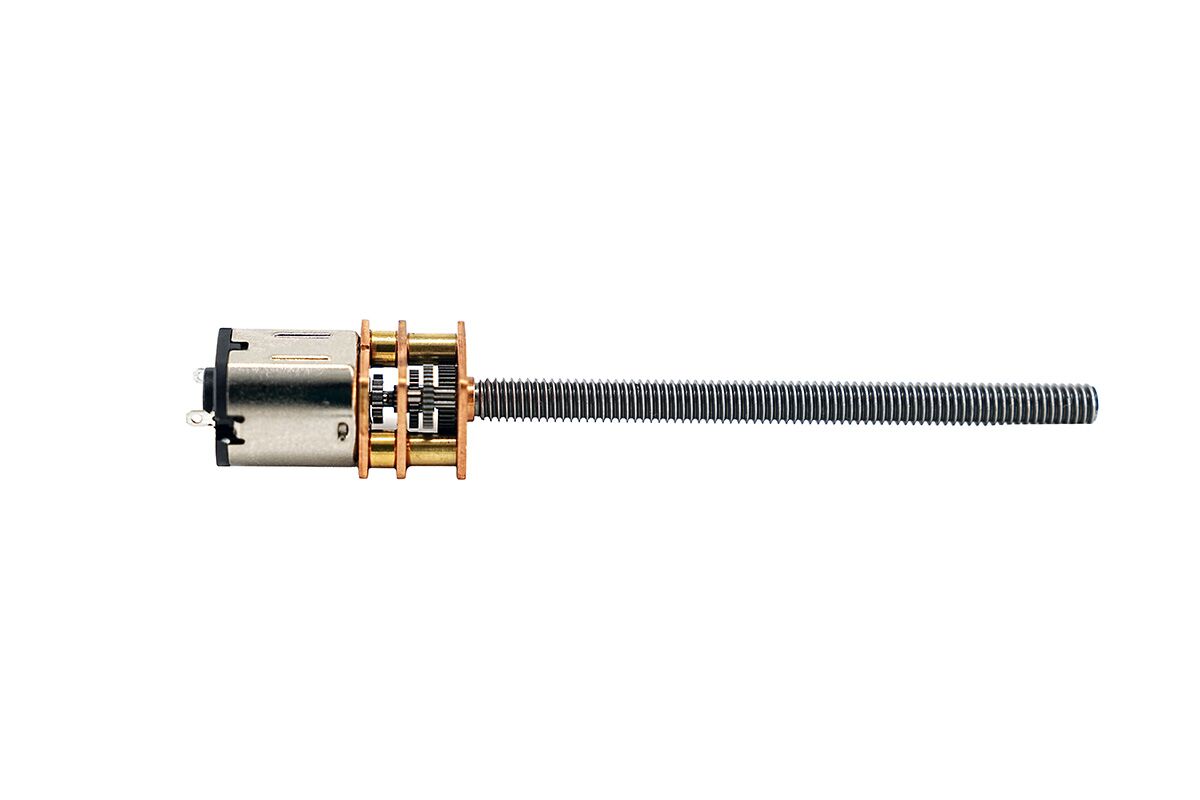

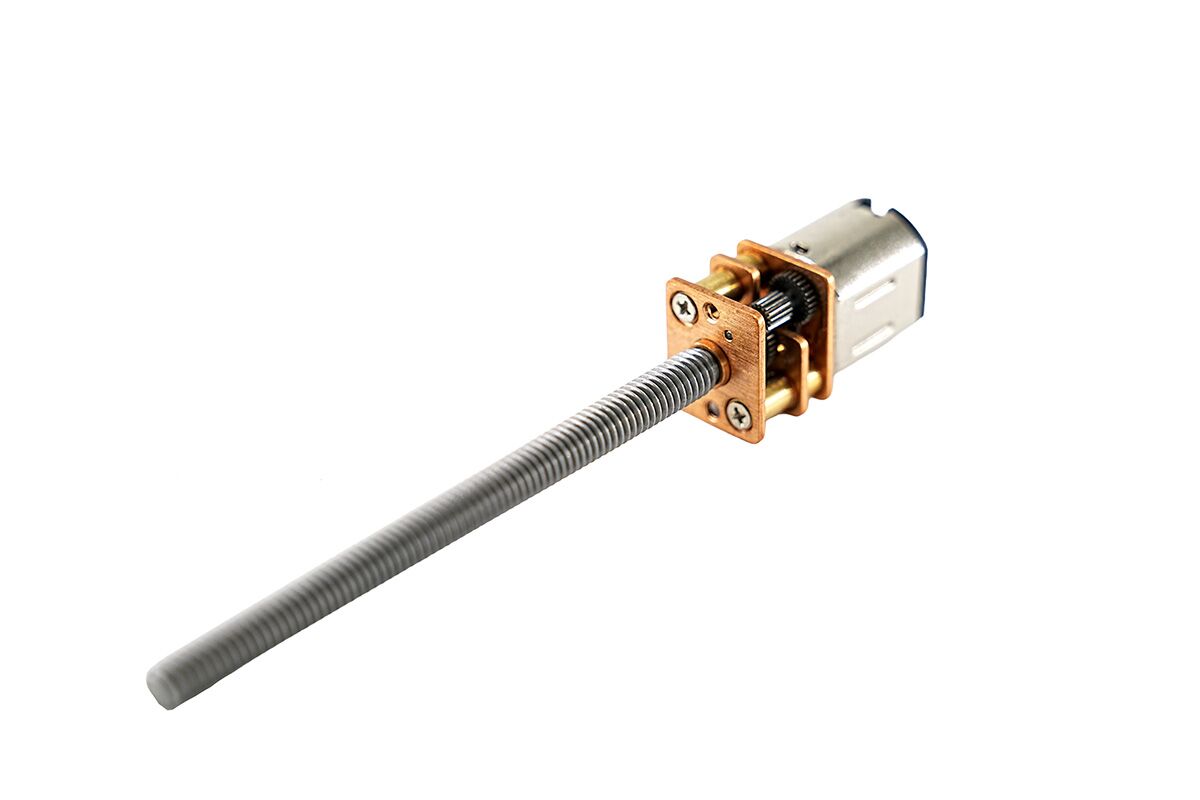

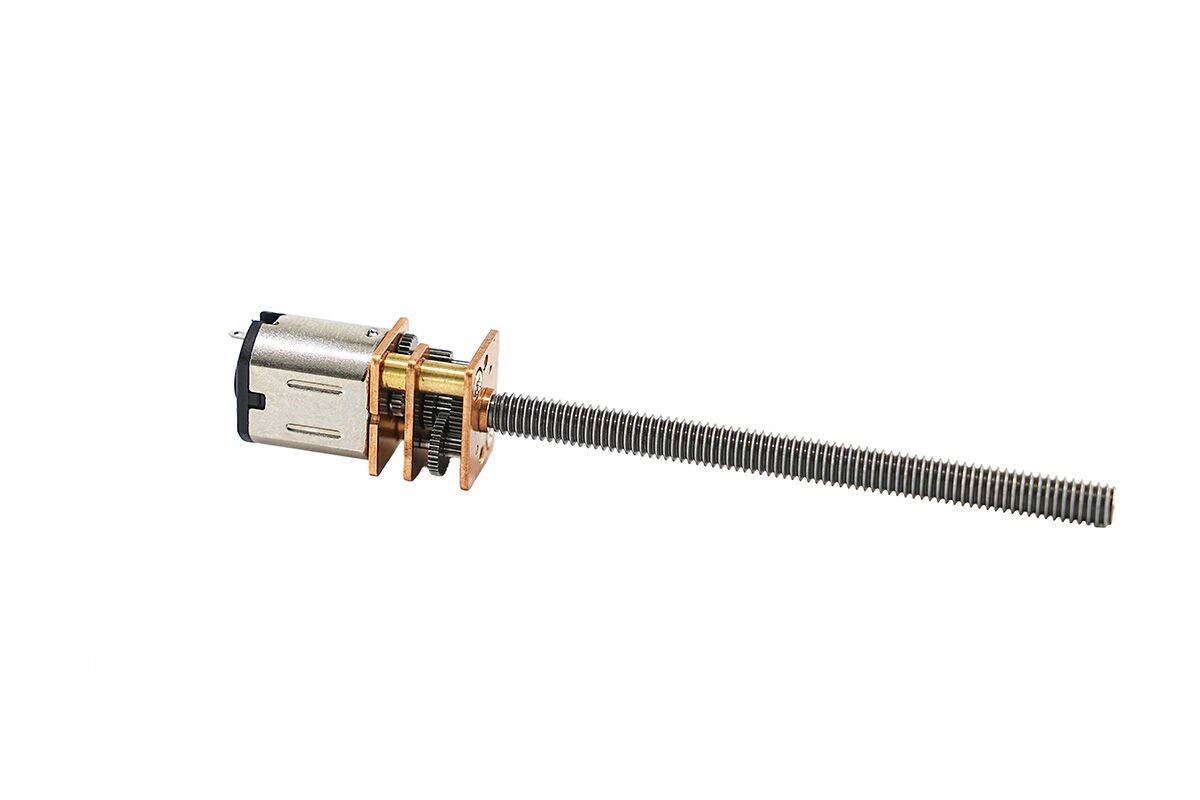

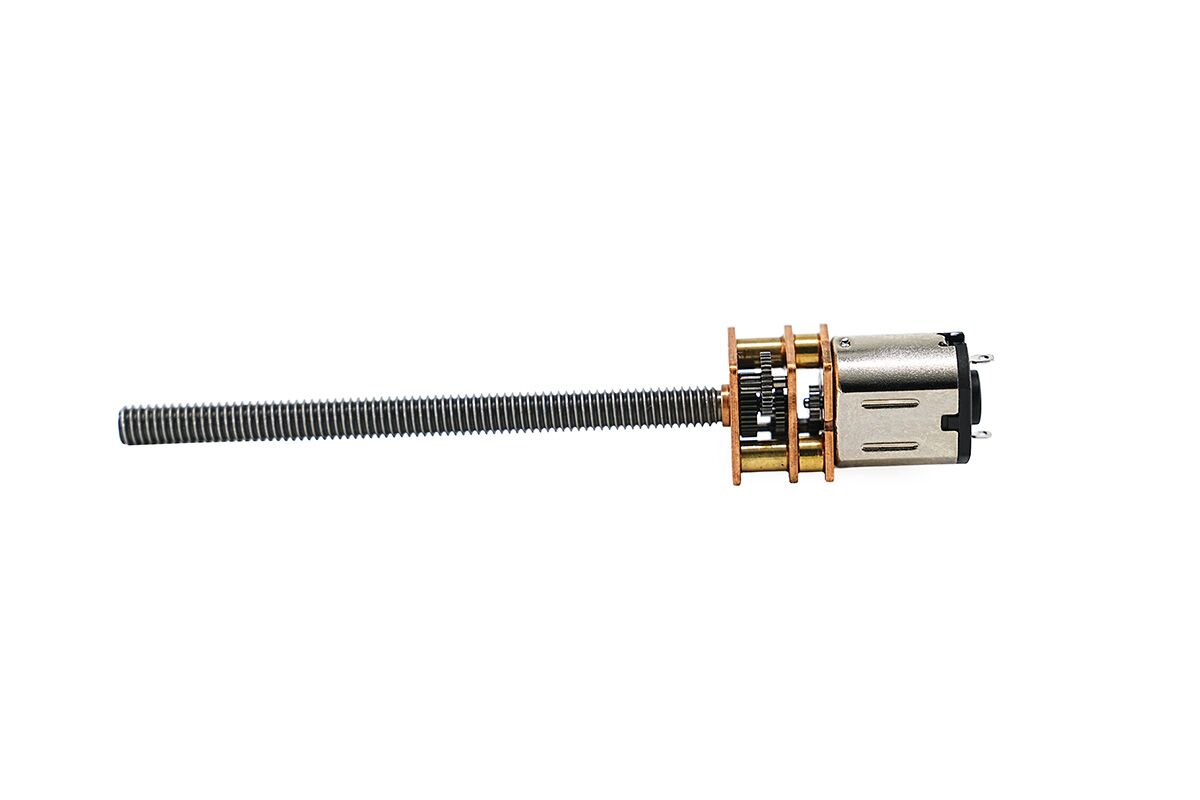

First, the NFP-GM12-N10-M4 gear motor is a small DC motor with a long threaded shaft. Because it has a 55mm M4 shaft, it is useful for small push, pull, and slow drive work.
In addition, this motor can run with 1.5V, 3V, or 6V DC power. Therefore, users can choose the right voltage based on speed, torque, and battery system needs.
Main Product Features
- First, strong output: The gearbox helps increase motor force.
- Also, long shaft: The 55mm threaded shaft is useful for small linear motion.
- In addition, many voltage choices: The motor can use 1.5V, 3V, or 6V DC.
- Next, CW and CCW rotation: The motor can support forward and reverse movement.
- Finally, wide use: It can work in toys, robots, locks, and small tools.
General Motor Data
Next, the table below shows the main data for the NFP-GM12-N10-M4 gear motor. Therefore, users can check voltage, speed, current, torque, shaft length, rotation, and weight before sample testing.
| Motor Model | NFP-GM12-N10-M4 |
|---|---|
| Rated Voltage | 1.5V / 3V / 6V DC |
| No Load Speed | 25rpm – 2,150rpm |
| No Load Current | ≤0.05A / ≤0.065A / ≤0.085A |
| Max Torque | 1.5kg.cm |
| Threaded Shaft Length | 55mm |
| Rotation | CW / CCW |
| Weight | appr. 10g |
Also, the long threaded shaft can convert rotation into small linear movement when matched with the right nut or mechanism. As a result, it is useful for compact push-pull structures.
1.5V DC 92 Type Data
Next, the 1.5V DC 92 type is a low-power choice. Therefore, it is suitable for small battery products and light load tests.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤0.065A | 1,050rpm | ≤0.25A | 500rpm | 0.03kg.cm | ≤0.5A | ≥0.06kg.cm |
| 20:1 | ≤0.065A | 530rpm | ≤0.25A | 250rpm | 0.06kg.cm | ≤0.5A | ≥0.12kg.cm |
| 30:1 | ≤0.065A | 350rpm | ≤0.25A | 165rpm | 0.1kg.cm | ≤0.5A | ≥0.18kg.cm |
| 50:1 | ≤0.065A | 210rpm | ≤0.25A | 100rpm | 0.15kg.cm | ≤0.5A | ≥0.3kg.cm |
| 100:1 | ≤0.065A | 105rpm | ≤0.25A | 50rpm | 0.3kg.cm | ≤0.5A | ≥0.6kg.cm |
| 150:1 | ≤0.065A | 70rpm | ≤0.25A | 33rpm | 0.45kg.cm | ≤0.5A | ≥0.9kg.cm |
| 210:1 | ≤0.065A | 50rpm | ≤0.25A | 23rpm | 0.63kg.cm | ≤0.5A | ≥1.2kg.cm |
| 298:1 | ≤0.065A | 35rpm | ≤0.25A | 16rpm | 0.9kg.cm | ≤0.5A | ≥1.6kg.cm |
| 380:1 | ≤0.065A | 27rpm | ≤0.25A | 13rpm | 1.1kg.cm | ≤0.5A | ≥2.0kg.cm |
Note: In addition, all reduced no-load speeds have a tolerance of ±15%.
Also, the 1.5V version gives low-speed options at higher ratios. As a result, it can support light-duty linear movement with low-voltage power.
3V DC 07 Type Data
Furthermore, the 3V DC 07 type gives a balanced speed range. As a result, it can work well in small robot parts and test builds.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤0.05A | 950rpm | ≤0.13A | 480rpm | 0.03kg.cm | ≤0.25A | ≥0.06kg.cm |
| 20:1 | ≤0.05A | 480rpm | ≤0.13A | 240rpm | 0.06kg.cm | ≤0.25A | ≥0.12kg.cm |
| 30:1 | ≤0.05A | 315rpm | ≤0.13A | 160rpm | 0.1kg.cm | ≤0.25A | ≥0.18kg.cm |
| 50:1 | ≤0.05A | 190rpm | ≤0.13A | 95rpm | 0.15kg.cm | ≤0.25A | ≥0.3kg.cm |
| 100:1 | ≤0.05A | 95rpm | ≤0.13A | 48rpm | 0.3kg.cm | ≤0.25A | ≥0.6kg.cm |
| 150:1 | ≤0.05A | 62rpm | ≤0.13A | 31rpm | 0.45kg.cm | ≤0.25A | ≥0.9kg.cm |
| 210:1 | ≤0.05A | 45rpm | ≤0.13A | 22rpm | 0.63kg.cm | ≤0.25A | ≥1.2kg.cm |
| 298:1 | ≤0.05A | 32rpm | ≤0.13A | 15rpm | 0.9kg.cm | ≤0.25A | ≥1.6kg.cm |
| 380:1 | ≤0.05A | 25rpm | ≤0.13A | 12rpm | 1.1kg.cm | ≤0.25A | ≥2.0kg.cm |
Note: Therefore, all reduced no-load speeds should allow a tolerance of ±15%.
In addition, the 3V DC 07 type has low current values. Therefore, it is useful for small control systems that need steady motion and lower power use.
3V DC 92 Type Data
Meanwhile, the 3V DC 92 type has a higher motor speed before the gearbox. However, the final output speed still depends on the gear ratio.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤0.085A | 2,150rpm | ≤0.50A | 1,050rpm | 0.04kg.cm | ≤1.0A | ≥0.08kg.cm |
| 20:1 | ≤0.085A | 1,080rpm | ≤0.50A | 520rpm | 0.08kg.cm | ≤1.0A | ≥0.16kg.cm |
| 30:1 | ≤0.085A | 720rpm | ≤0.50A | 350rpm | 0.12kg.cm | ≤1.0A | ≥0.24kg.cm |
| 50:1 | ≤0.085A | 430rpm | ≤0.50A | 210rpm | 0.2kg.cm | ≤1.0A | ≥0.4kg.cm |
| 100:1 | ≤0.085A | 215rpm | ≤0.50A | 105rpm | 0.4kg.cm | ≤1.0A | ≥0.8kg.cm |
| 150:1 | ≤0.085A | 145rpm | ≤0.50A | 70rpm | 0.6kg.cm | ≤1.0A | ≥1.2kg.cm |
| 210:1 | ≤0.085A | 105rpm | ≤0.50A | 50rpm | 0.8kg.cm | ≤1.0A | ≥1.7kg.cm |
| 298:1 | ≤0.085A | 72rpm | ≤0.50A | 35rpm | 1.2kg.cm | ≤1.0A | ≥2.2kg.cm |
| 380:1 | ≤0.085A | 57rpm | ≤0.50A | 27rpm | 1.5kg.cm | ≤1.0A | ≥3.0kg.cm |
Note: As a result, all reduced no-load speeds may vary by ±15%.
Also, this 3V DC 92 type gives higher no-load speed across the same ratio range. Therefore, it is useful when a 3V product needs faster output.
6V DC 07 Type Data
Finally, the 6V DC 07 type gives higher speed with a small motor body. For example, it is useful when the product needs more speed and steady force.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤0.065A | 2,100rpm | ≤0.25A | 1,000rpm | 0.04kg.cm | ≤0.6A | ≥0.08kg.cm |
| 20:1 | ≤0.065A | 1050rpm | ≤0.25A | 500rpm | 0.08kg.cm | ≤0.6A | ≥0.16kg.cm |
| 30:1 | ≤0.065A | 700rpm | ≤0.25A | 330rpm | 0.12kg.cm | ≤0.6A | ≥0.24kg.cm |
| 50:1 | ≤0.065A | 420rpm | ≤0.25A | 200rpm | 0.2kg.cm | ≤0.6A | ≥0.4kg.cm |
| 100:1 | ≤0.065A | 210rpm | ≤0.25A | 100rpm | 0.4kg.cm | ≤0.6A | ≥0.8kg.cm |
| 150:1 | ≤0.065A | 140rpm | ≤0.25A | 65rpm | 0.6kg.cm | ≤0.6A | ≥1.2kg.cm |
| 210:1 | ≤0.065A | 100rpm | ≤0.25A | 47rpm | 0.8kg.cm | ≤0.6A | ≥1.7kg.cm |
| 298:1 | ≤0.065A | 70rpm | ≤0.25A | 33rpm | 1.2kg.cm | ≤0.6A | ≥2.2kg.cm |
| 380:1 | ≤0.065A | 55rpm | ≤0.25A | 26rpm | 1.5kg.cm | ≤0.6A | ≥3.0kg.cm |
Note: In addition, all reduced no-load speeds have a tolerance of ±15%.
Also, the 6V DC 07 type gives the highest no-load speed in this page. As a result, it is suitable for small mechanisms that need faster gear motor output.
Micro N10 Full Metal Gearbox Motor Outline Drawing
Next, the outline drawing shows the N10 gear motor and the long screw shaft. Therefore, it can help users check the size before product design.
In addition, the long M4 screw shaft can support small linear motion. As a result, the motor can be used for compact push, pull, and slow movement mechanisms.
Outline Drawing and Design Benefits
- First, compact body: The small gear motor saves space.
- Also, light weight: The motor is about 10g.
- In addition, long screw shaft: The M4 shaft can help with small linear motion.
- Next, gearbox output: The gearbox helps reduce speed and increase torque.
- Finally, easy use: CW and CCW rotation are both available.
Typical Applications
For example, this motor can be used in toys, small electronics, RC vehicles, robot arms, and small auto systems. Also, users should test the motor with the real load before bulk orders.
- Toys
- Small electronics
- RC vehicles
- Robot arms
- Small automation systems
- Mini linear motion devices
- Compact push-pull mechanisms
Finally, the NFP-GM12-N10-M4 gear motor is a good fit for products that need 1.5V, 3V, or 6V DC power, a 55mm threaded shaft, small size, CW/CCW rotation, and compact gearbox output.
Keywords: micro gear motor, miniature gear motor, small dc gear motor, metal gear motor, 12mm gear motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
