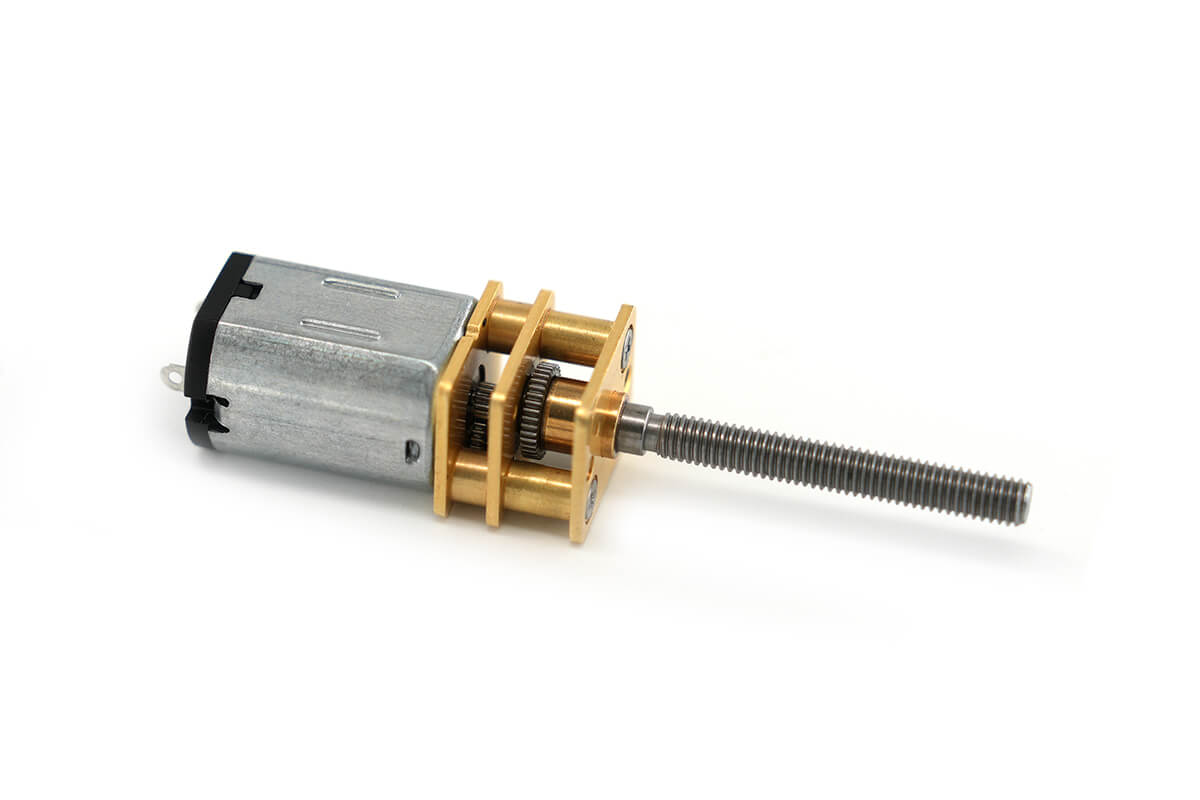

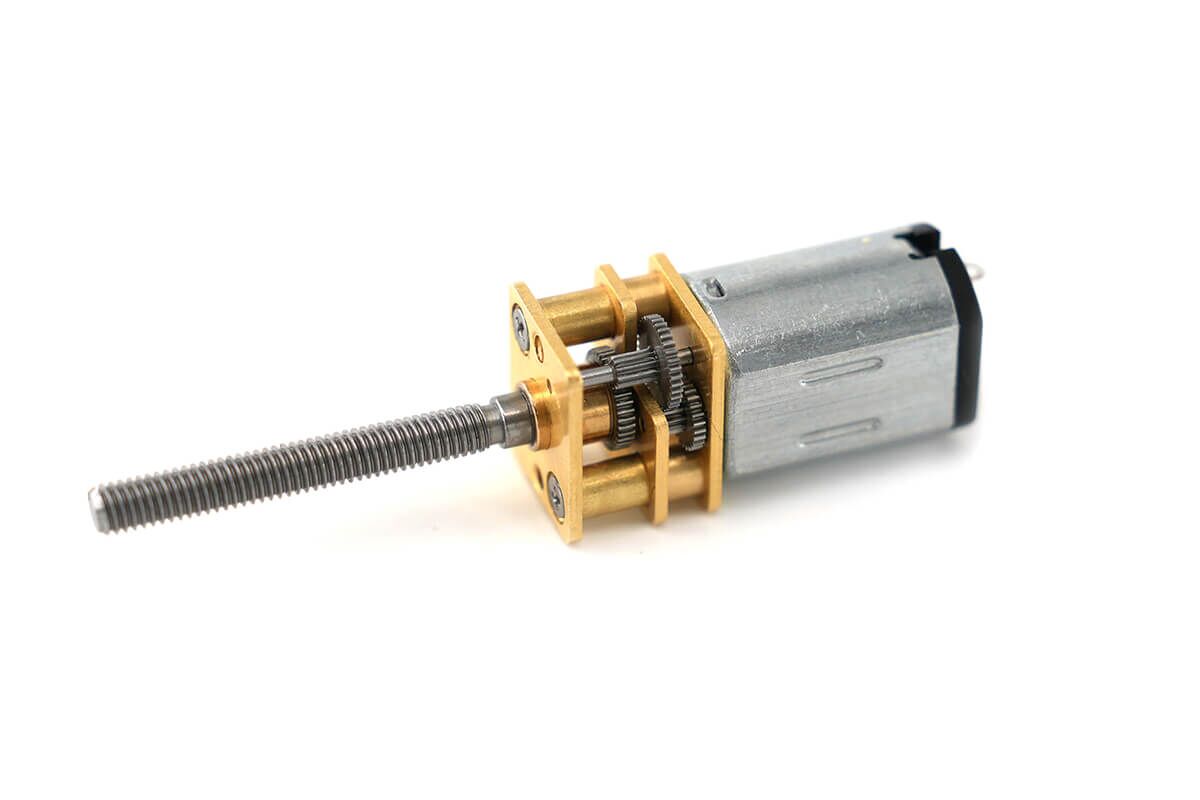

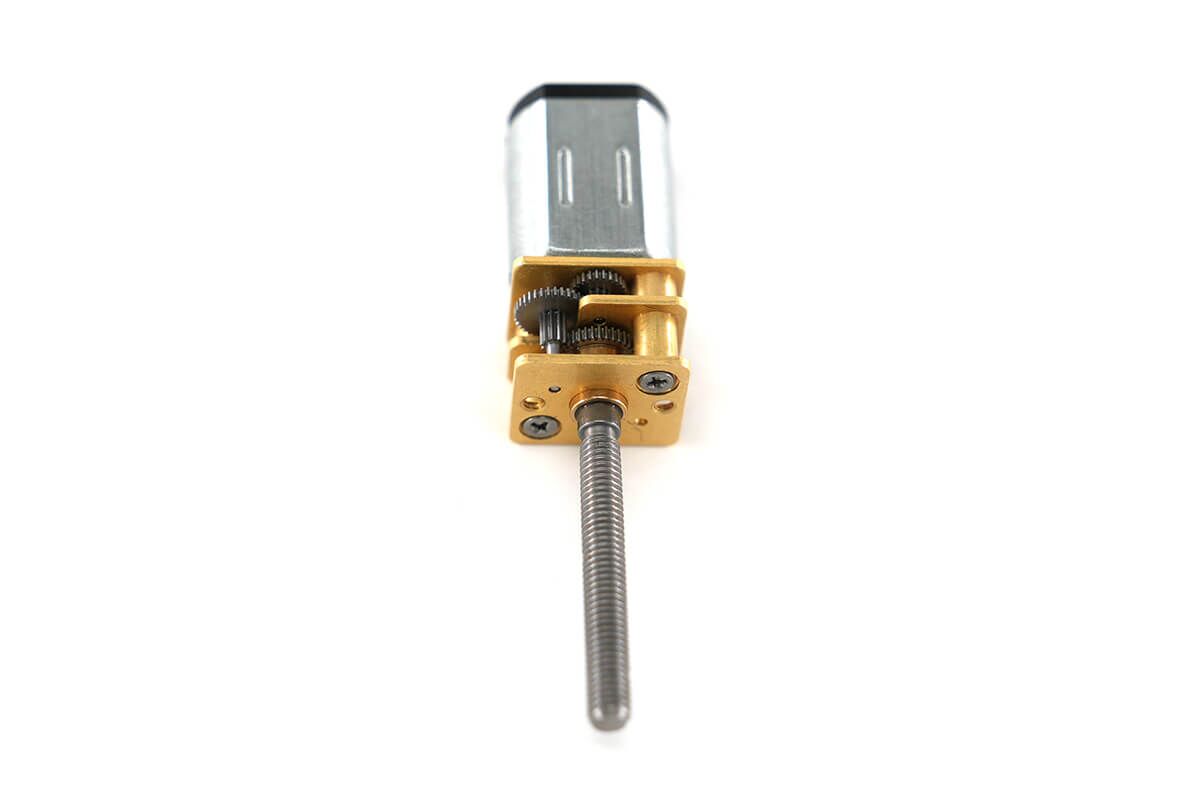

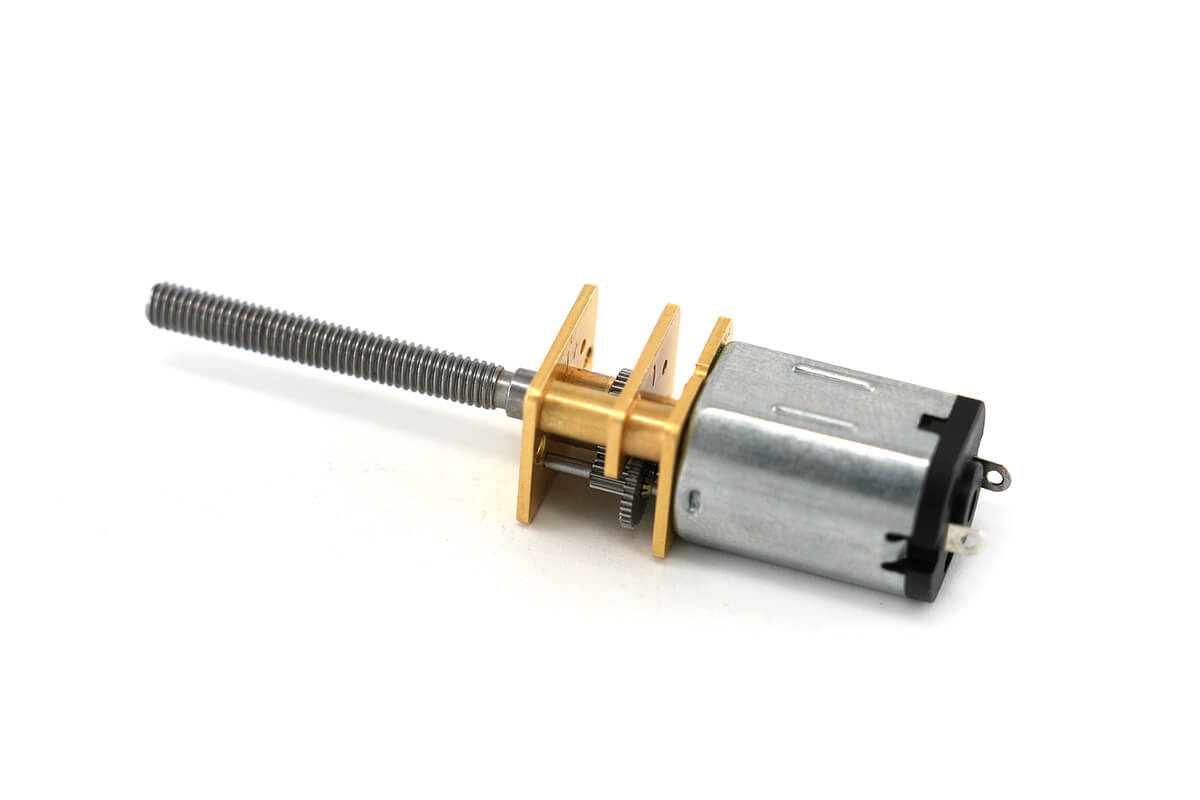

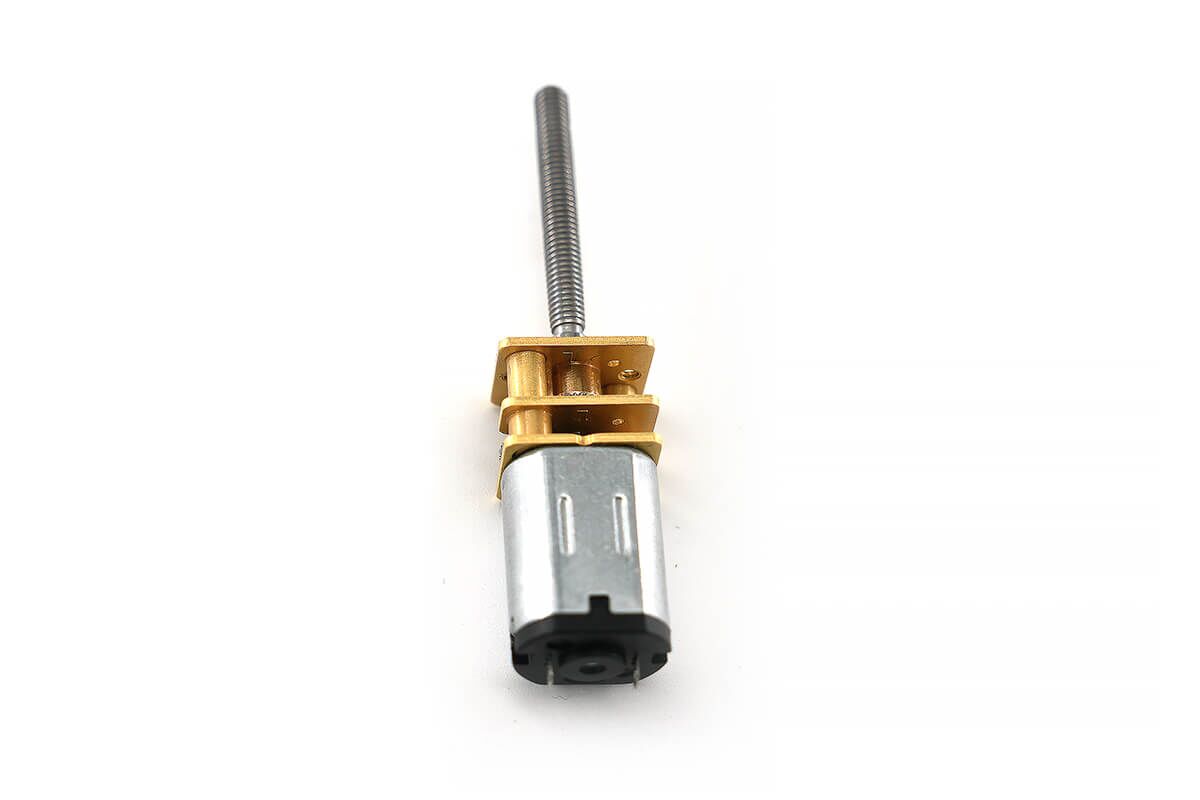

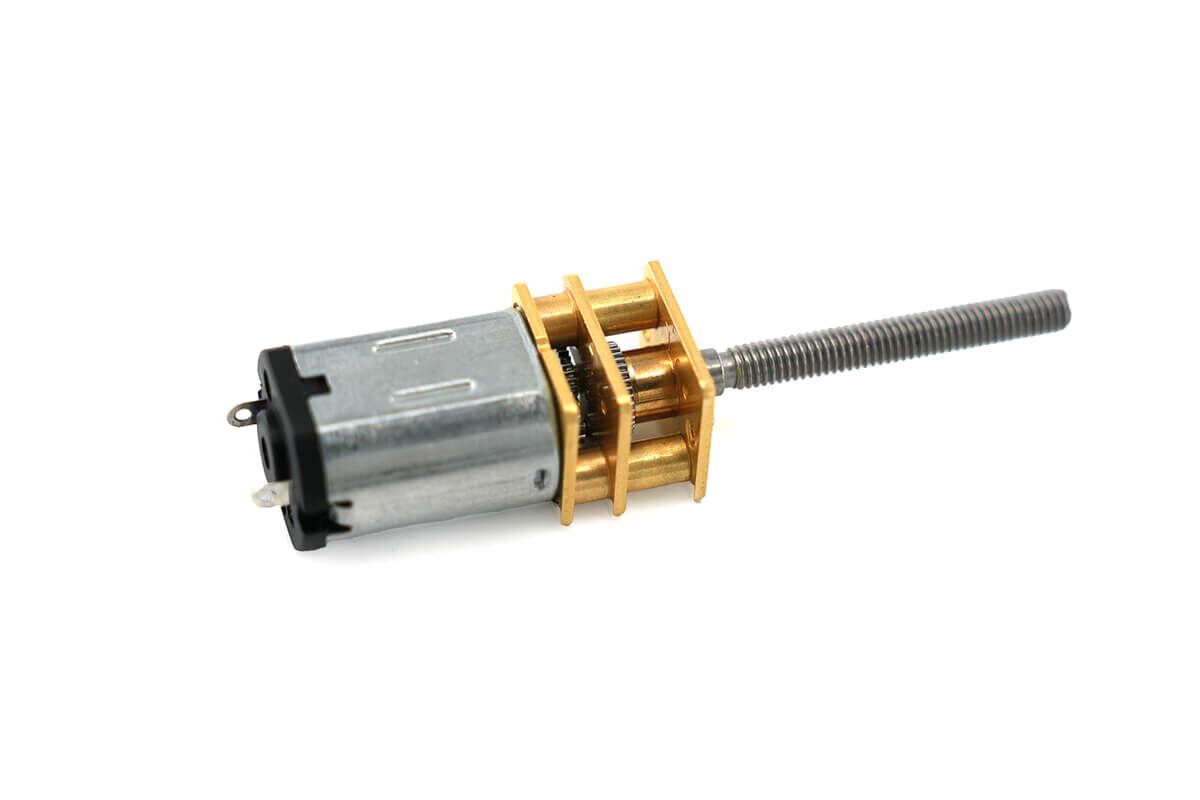

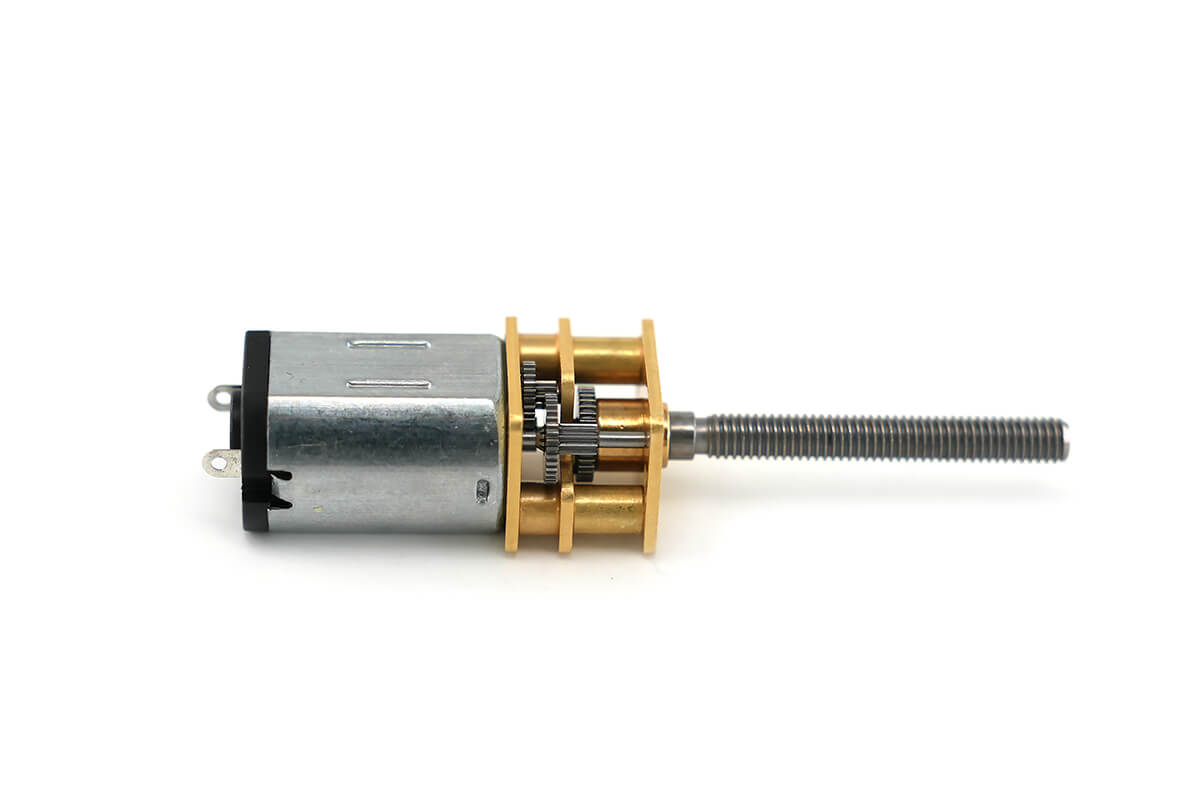

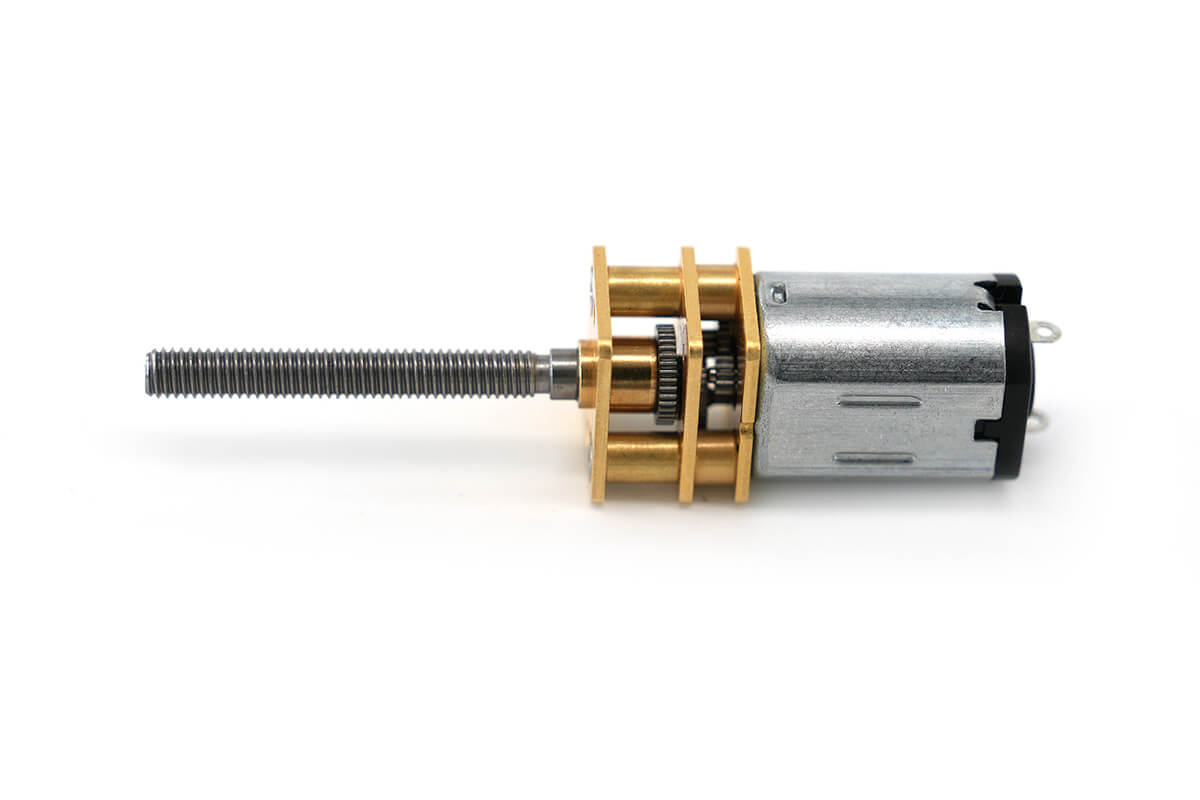

12mm Metal Gear Motor Model NFP-GM12-N20-M3
$13.50
Unlock your potential with the N20 gear motor M3 shaft, ensuring long-lasting performance for various applications. Order yours while supplies last!
Small N20 Gear Motor Ratio 298:1 Data Sheet
The NFP-GM12-N20-M3 is a small N20 gear motor with a 298:1 gear ratio and M3 screw shaft. It supports 3V, 6V, and 12V DC power options.
First, this lightweight mini metal gear motor provides high torque in a compact body. Also, the 20mm shaft length helps support small screw-drive and linear motion structures. Therefore, it is useful for intelligent robotics projects and compact mechanisms.
In addition, the motor has good stall torque characteristics. As a result, it can support small climbing, pushing, and slow drive applications when the load is within the correct range.
Main Product Features
- First, 298:1 ratio: The gearbox provides low-speed and high-torque output.
- In addition, M3 screw shaft: The shaft can support small linear motion designs.
- Also, voltage options: The motor supports 3V, 6V, and 12V DC versions.
- Next, compact weight: The motor weighs approximately 10g.
- Finally, CW and CCW rotation: The motor supports forward and reverse rotation.
General Motor Data
Next, the table below helps users check voltage, speed, current, shaft length, rotation, and weight. Therefore, it is easier to confirm whether this N20 gear motor fits the final product design.
| Motor Model | NFP-GM12-N20-M3 |
|---|---|
| Voltage | 3V / 6V / 12V DC |
| No-load Speed | 27rpm – 72rpm |
| No-load Current | ≤0.03A / ≤0.035A / ≤0.04A / ≤0.045A / ≤0.05A / ≤0.2A |
| Shaft Length | 20mm |
| Rotation | CW / CCW |
| Weight | Approx. 10g |
Also, the 20mm M3 screw shaft can help convert motor rotation into small linear movement. As a result, it is useful for compact push-pull structures and precision screw-drive systems.
Ratio: 298:1 Parameters Sheet
First, the 298:1 ratio gives low-speed output with useful torque. Therefore, users can compare different 3V, 6V, and 12V motor options before sample testing.
| Operating Voltage | Motor Model | No-load Speed | No-load Current | Rated Torque | Rated Speed | Rated Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|---|
| 3V | A26 | 27rpm | ≤0.035A | 1.2kg.cm | 15rpm | ≤0.18A | 2.5kg.cm | ≤0.35A |
| 3V | A45 | 40rpm | ≤0.045A | 1.2kg.cm | 26rpm | ≤0.27A | 3kg.cm | ≤0.65A |
| 3V | A15 | 50rpm | ≤0.05A | 1.2kg.cm | 30rpm | ≤0.33A | 3kg.cm | ≤0.75A |
| 6V | A05 | 26rpm | ≤0.03A | 0.6kg.cm | 10rpm | ≤0.08A | 1.3kg.cm | ≤0.2A |
| 6V | A35 | 36rpm | ≤0.04A | 1.2kg.cm | 18rpm | ≤0.15A | 2.3kg.cm | ≤0.3A |
| 6V | A26 | 55rpm | ≤0.05A | 1.5kg.cm | 32rpm | ≤0.25A | 3kg.cm | ≤0.6A |
| 6V | K100 | 105rpm | ≤0.2A | 2.4kg.cm | 56rpm | ≤0.9A | 3kg.cm | ≤2A |
| 12V | A05 | 50rpm | ≤0.04A | 1.2kg.cm | 28rpm | ≤0.10A | 2.6kg.cm | ≤0.3A |
| 12V | A35 | 72rpm | ≤0.05A | 1.5kg.cm | 45rpm | ≤0.20A | 3kg.cm | ≤0.6A |
Note: All reduced no-load speeds have a tolerance of ±15%.
Also, the 6V K100 version gives the highest no-load speed and rated torque in this table. However, it also has higher current than the other 6V options.
As a result, users can choose the K100 version for stronger output, or choose the A05, A26, A35, and A45 versions for lower-current operation.
DC Gear Motor M3 Screw Axis Outline Drawing
First, the outline drawing helps users review the NFP-GM12-N20-M3 gear motor body, M3 screw shaft, and installation size. Therefore, it is useful before sample testing and final product design.
In addition, the M3 output shaft uses all-metal wear-resistant gears and pure copper wire windings for increased torque. As a result, it can support compact linear motion and precision drive applications.
Outline Drawing and Design Benefits
- First, M3 screw shaft: The threaded shaft helps create small linear motion.
- In addition, metal gears: The all-metal gearbox helps improve wear resistance.
- Also, pure copper winding: The winding supports stable electrical performance and torque output.
- Next, compact body: The N20 size helps save installation space.
- Finally, reversible output: CW and CCW rotation can support forward and reverse movement.
Typical Applications
Next, this M3 threaded N20 motor is suitable for compact products that need small screw motion, low speed, and high torque. For example, it can work in intelligent manipulators, furniture systems, focusing systems, and miniature pan/tilt devices.
- Intelligent manipulators
- Furniture systems
- Focusing systems
- Miniature pan/tilt devices
- Robotics projects
- Small linear motion systems
- Precision screw-drive products
Finally, the NFP-GM12-N20-M3 gear motor is a good fit for products that need 3V, 6V, or 12V DC power, 298:1 ratio, M3 threaded shaft, compact N20 size, and stable high-torque gearbox output.
Keywords: M3 threaded N20 motor, micro gear motor with M3 screw shaft, precision gear motor with M3 thread, N20 motor for linear motion, small screw shaft gear motor
