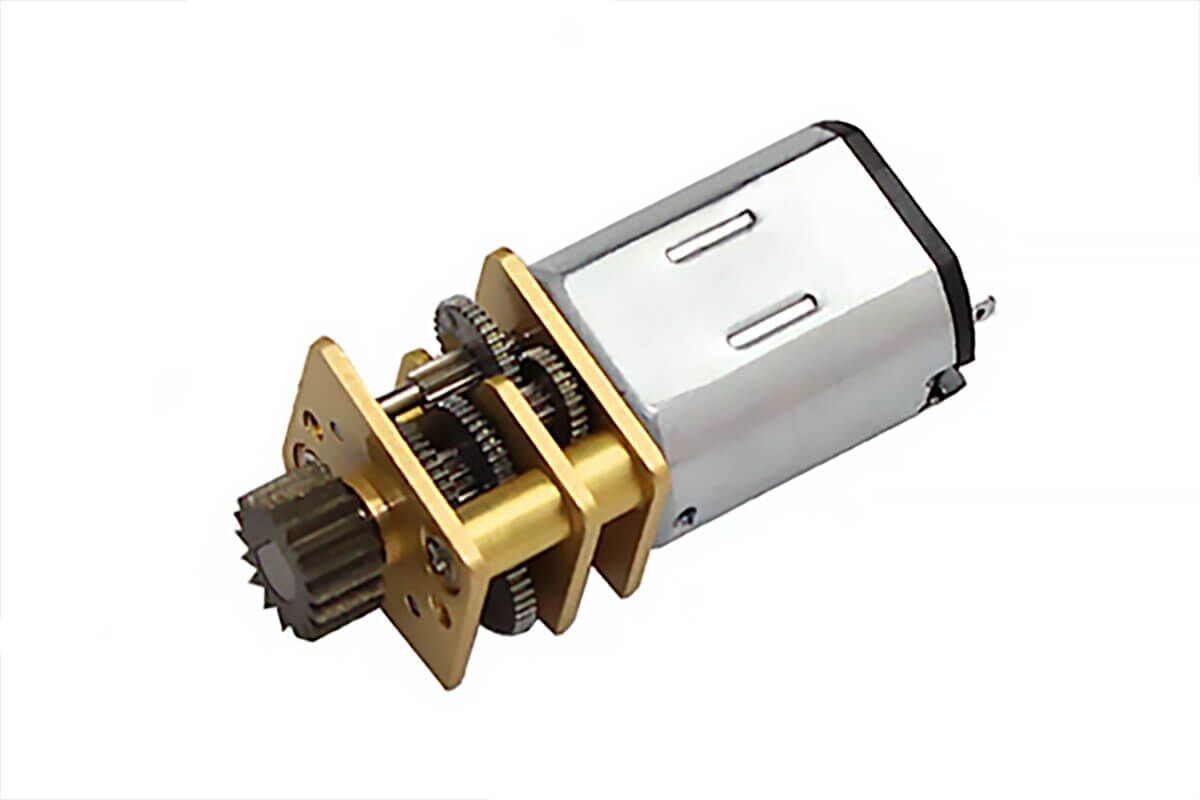

12mm Metal Gear Motor Model NFP-GM12-N20G
$13.50
Power your projects effectively with the 12mm metal gear motor with drive gear; its robust construction ensures incredible wear resistance. Buy yours!
Slow Rotating Motor Technical Sheet
The NFP-GM12-N20G is a slow rotating N20 gear motor for compact products that need low speed, stable torque, and durable gearbox output. It supports 3V, 6V, and 12V DC power options.
First, this N20 motor is manufactured with precision molds. Also, its durable construction helps improve wear resistance, high-temperature resistance, and vibration resistance. Therefore, it can support a long service life under suitable load conditions.
In addition, this motor is commonly used in 3D drawing pens and smart printing pens. As a result, it is useful for compact feeding and slow drive mechanisms.
Main Product Features
- First, slow rotation: The motor provides low-speed output for controlled movement.
- In addition, voltage options: The motor supports 3V, 6V, and 12V DC versions.
- Also, compact size: The N20 gearbox body fits small product spaces.
- Next, durable structure: Precision mold manufacturing helps improve wear resistance.
- Finally, CW and CCW rotation: The motor supports forward and reverse rotation.
General Motor Data
Next, the table below helps users check voltage, speed, current, shaft size, rotation, and weight. Therefore, it is easier to confirm whether this slow rotating motor fits the final product design.
| Motor Model | NFP-GM12-N20G |
|---|---|
| Rated Voltage | 3V / 6V / 12V DC |
| No Load Speed | 21rpm – 72rpm |
| No Load Current | ≤0.03A / ≤0.035A / ≤0.04A / ≤0.045A / ≤0.05A |
| Shaft Diameter | Φ3mm x L4.4mm |
| Rotation | CW / CCW |
| Weight | appr. 10g |
Also, the Φ3mm x L4.4mm shaft is suitable for small output connections. As a result, the motor can support compact low-speed drive systems.
Ratio: 150:1 Parameters Sheet
First, the 150:1 ratio provides a balanced output between speed and torque. Therefore, it is suitable for small mechanisms that need moderate low-speed movement.
| Operating Voltage | Motor Model | No Load Speed | No Load Current | Rated Load Torque | Rated Load Speed | Rated Load Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|---|
| 3V | A26 | 53rpm | ≤0.035A | 0.6kg.cm | 30rpm | ≤0.18A | 1.2kg.cm | ≤0.35A |
| 3V | A45 | 80rpm | ≤0.045A | 0.6kg.cm | 52rpm | ≤0.27A | 1.5kg.cm | ≤0.65A |
| 3V | A15 | 100rpm | ≤0.05A | 0.6kg.cm | 60rpm | ≤0.33A | 1.5kg.cm | ≤0.75A |
| 6V | A05 | 51rpm | ≤0.03A | 0.3kg.cm | 20rpm | ≤0.08A | 0.6kg.cm | ≤0.2A |
| 6V | A35 | 72rpm | ≤0.04A | 0.6kg.cm | 35rpm | ≤0.15A | 1.1kg.cm | ≤0.3A |
| 6V | A26 | 110rpm | ≤0.05A | 0.7kg.cm | 63rpm | ≤0.25A | 1.5kg.cm | ≤0.6A |
| 12V | A05 | 100rpm | ≤0.04A | 0.6kg.cm | 55rpm | ≤0.1A | 1.2kg.cm | ≤0.3A |
| 12V | A35 | 142rpm | ≤0.05A | 0.7kg.cm | 90rpm | ≤0.2A | 1.5kg.cm | ≤0.6A |
Note: All reduced no-load speeds have a tolerance of ±15%.
Also, the 150:1 ratio gives the highest speed among the three ratio tables. As a result, it is a good choice when the product needs slower motion than a direct motor but still needs practical speed.
Ratio: 298:1 Parameters Sheet
Next, the 298:1 ratio provides lower speed and stronger torque than the 150:1 ratio. Therefore, it is useful for compact products that need more force and slower movement.
| Operating Voltage | Motor Model | No Load Speed | No Load Current | Rated Load Torque | Rated Load Speed | Rated Load Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|---|
| 3V | A26 | 27rpm | ≤0.035A | 1.2kg.cm | 15rpm | ≤0.18A | 2.5kg.cm | ≤0.35A |
| 3V | A45 | 40rpm | ≤0.045A | 1.2kg.cm | 26rpm | ≤0.27A | 3.0kg.cm | ≤0.65A |
| 3V | A15 | 50rpm | ≤0.05A | 1.2kg.cm | 30rpm | ≤0.33A | 3.0kg.cm | ≤0.75A |
| 6V | A05 | 26rpm | ≤0.03A | 0.6kg.cm | 10rpm | ≤0.08A | 1.3kg.cm | ≤0.2A |
| 6V | A35 | 36rpm | ≤0.04A | 1.2kg.cm | 18rpm | ≤0.15A | 2.3kg.cm | ≤0.3A |
| 6V | A26 | 55rpm | ≤0.05A | 1.5kg.cm | 32rpm | ≤0.25A | 3.0kg.cm | ≤0.6A |
| 12V | A05 | 50rpm | ≤0.04A | 1.2kg.cm | 28rpm | ≤0.1A | 2.6kg.cm | ≤0.3A |
| 12V | A35 | 72rpm | ≤0.05A | 1.5kg.cm | 45rpm | ≤0.2A | 3.0kg.cm | ≤0.6A |
Note: All reduced no-load speeds have a tolerance of ±15%.
In addition, the 298:1 ratio provides higher stall torque values than the 150:1 ratio in many options. As a result, it is suitable for slow feeding and small high-torque mechanisms.
Ratio: 381:1 Parameters Sheet
Finally, the 381:1 ratio gives the lowest speed and strongest torque range on this page. Therefore, it is useful for slow rotating applications that need stable force.
| Operating Voltage | Motor Model | No Load Speed | No Load Current | Rated Load Torque | Rated Load Speed | Rated Load Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|---|
| 3V | A26 | 21rpm | ≤0.035A | 1.5kg.cm | 12rpm | 0.18A | 2.8kg.cm | ≤0.35A |
| 3V | A45 | 31rpm | ≤0.045A | 1.5kg.cm | 20rpm | 0.27A | 3.5kg.cm | ≤0.65A |
| 3V | A15 | 39rpm | ≤0.05A | 1.5kg.cm | 23rpm | 0.33A | 3.5kg.cm | ≤0.75A |
| 6V | A05 | 20rpm | ≤0.03A | 0.75kg.cm | 8rpm | 0.08A | 1.8kg.cm | ≤0.2A |
| 6V | A35 | 28rpm | ≤0.04A | 1.5kg.cm | 14rpm | 0.15A | 2.8kg.cm | ≤0.3A |
| 6V | A26 | 43rpm | ≤0.05A | 1.9kg.cm | 25rpm | 0.25A | 3.5kg.cm | ≤0.6A |
| 12V | A05 | 39rpm | ≤0.04A | 1.5kg.cm | 22rpm | 0.1A | 3.0kg.cm | ≤0.3A |
| 12V | A35 | 56rpm | ≤0.05A | 1.9kg.cm | 35rpm | 0.2A | 3.5kg.cm | ≤0.6A |
Note: All reduced no-load speeds have a tolerance of ±15%.
Also, the 381:1 ratio is suitable for products that need slow speed and strong output. As a result, it can support 3D pen feeding, small printing mechanisms, and compact low-speed drive modules.
Rotating Gear Motor Outline Drawing
First, the outline drawing shows the NFP-GM12-N20G gear motor body and shaft structure. Therefore, users can check the motor fit before product design.
In addition, the micro N20 gearhead motor provides useful power in a compact package. As a result, it can support small products that need slow rotation and stable gearbox output.
Outline Drawing and Design Benefits
- First, compact gearbox: The N20 structure helps save installation space.
- In addition, low-speed output: The gear ratios help provide slow rotation.
- Also, useful torque: Higher ratios can support stronger output force.
- Next, durable body: The precision mold construction helps improve wear resistance.
- Finally, easy integration: The Φ3mm x L4.4mm shaft supports small drive layouts.
Typical Applications
Next, this slow rotating gear motor is suitable for compact products that need stable low-speed output. For example, it can work in 3D drawing pens, smart printing pens, feeding mechanisms, and small automation systems.
- 3D drawing pens
- Smart printing pens
- Small feeding mechanisms
- Low-speed drive modules
- Compact automation systems
- Small electronic devices
- Mini gear motor projects
Finally, the NFP-GM12-N20G slow rotating motor is a good fit for products that need 3V, 6V, or 12V DC power, low RPM output, compact size, CW/CCW rotation, and reliable N20 gearbox performance.
Keywords: gear reduction motor, variable speed electric motor, low rpm electric motor, mini dc gear motor, high torque gear motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
