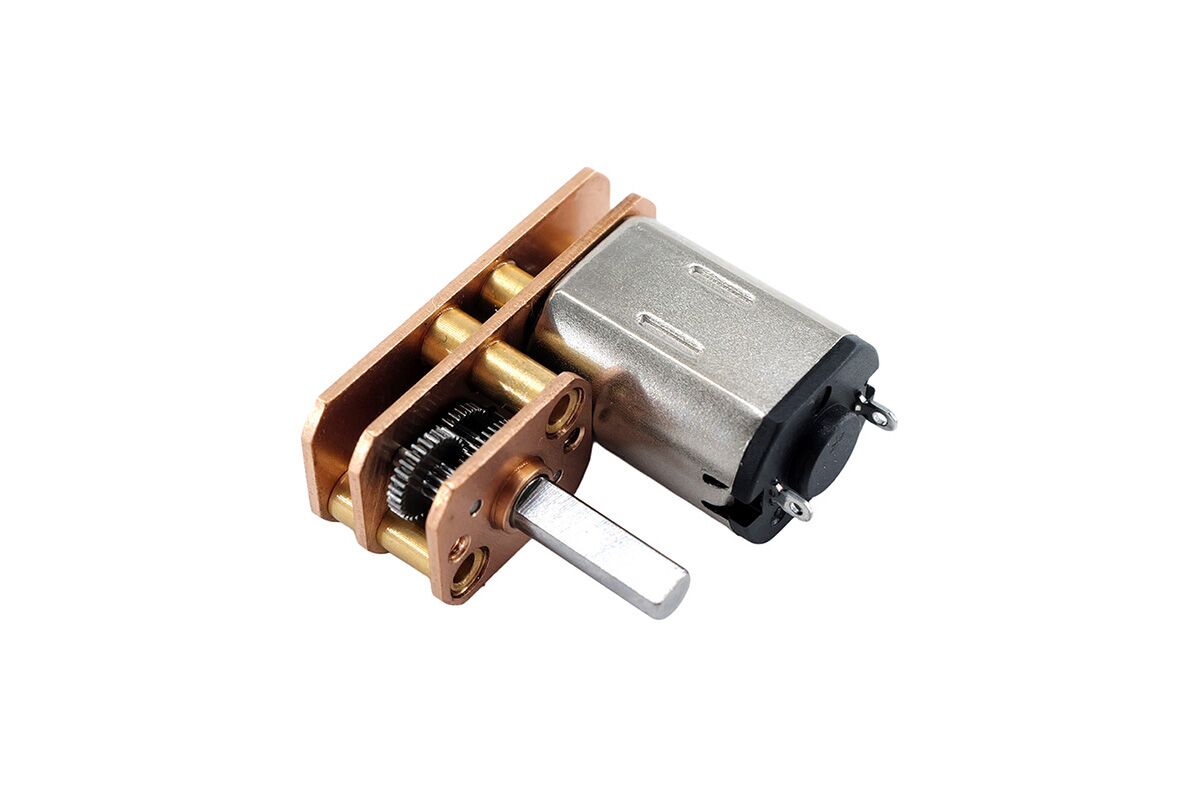

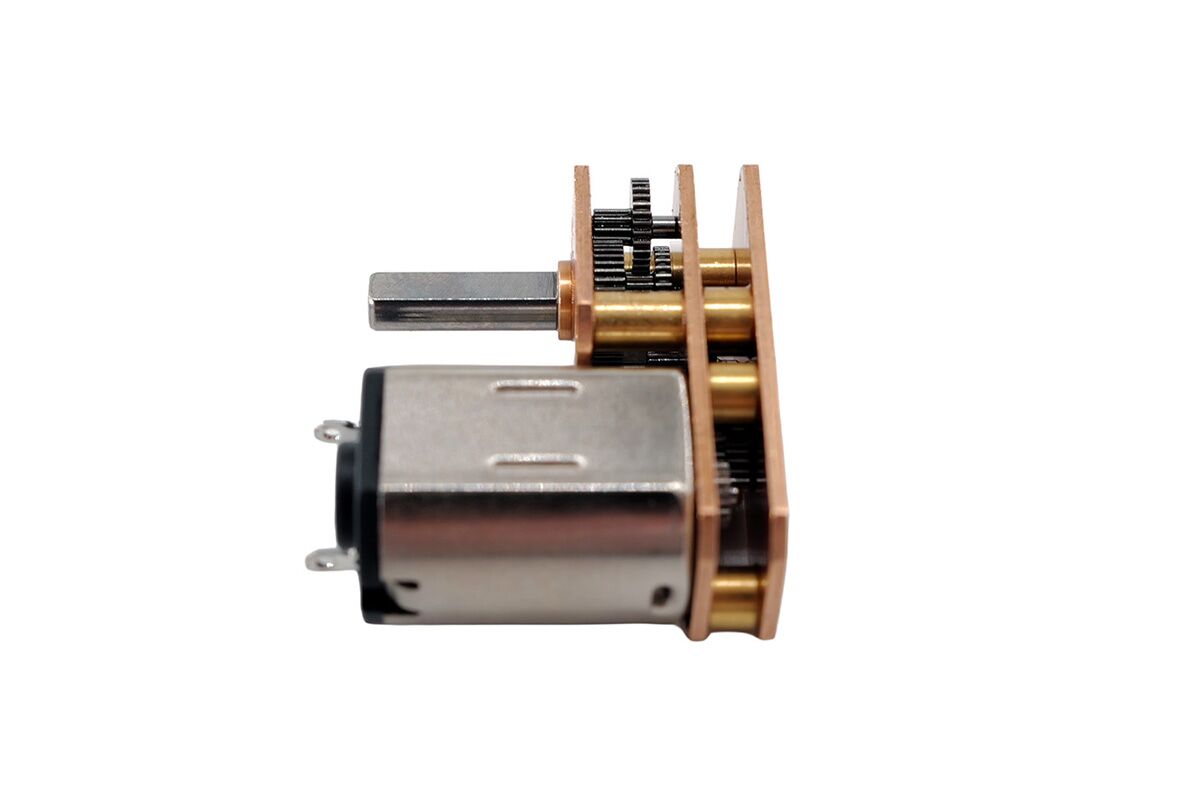

12mm Metal Gear Motor Model NFP-GM1024-N20
$12.50
Transform high speed into low speed effectively using the U-Type metal gearbox N20 motor. Designed for durability, it is perfect for all your needs!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $12.50 | 0% |
| 10 - 19 | $11.70 | 6.40% |
| 20 - 49 | $10.90 | 12.80% |
| 50 - 99 | $9.50 | 24% |
| 100 - 499 | $6.40 | 48.80% |
| 500+ | $5.90 | 52.80% |
Miniature N20 Gear Motor Specifications
The NFP-GM1024-N20 is a miniature N20 gear motor for compact products that need low speed, useful torque, and stable gearbox output. It supports 3V, 6V, and 12V DC power options.
First, gear motors transform high-speed input into low-speed output. Also, the gear train helps increase torque. Therefore, this motor is useful for small products that need controlled movement in limited space.
In addition, full metal construction helps improve durability and service life. As a result, the motor can provide strong torque, smoother output, and quieter operation under suitable load conditions.
Main Product Features
- First, compact N20 size: The small body fits tight product layouts.
- In addition, metal gearbox: The gearbox helps improve durability and torque output.
- Also, multiple voltage options: The motor supports 3V, 6V, and 12V DC systems.
- Next, wide speed range: The no-load speed range is 16rpm to 430rpm.
- Finally, reversible rotation: CW and CCW rotation support forward and reverse movement.
General Motor Data
Next, the table below helps users check shaft size, voltage, speed range, current, power, rotation, and weight. Therefore, it is easier to confirm whether this gear motor fits the final product design.
| Model | NFP-GM1024-N20 |
|---|---|
| Shaft Diameter | 3mm |
| Shaft Length | 10mm |
| Rated Voltage | 3V / 6V / 12V DC |
| No-load Speed | 16rpm – 430rpm |
| No-load Current | ≤0.03A / ≤0.04A / ≤0.045A / ≤0.055A |
| Power | 0.2W / 0.4W / 0.5W / 0.6W / 0.8W / 1.4W |
| Rotation | CW / CCW |
| Weight | appr. 11g |
Also, the 3mm shaft and 10mm shaft length support compact mechanical connection. As a result, this motor is suitable for small mechanisms, miniature drive modules, and low RPM products.
Model: NFP-GM1024-N20, 3V DC, 26 Type
First, the 3V DC 26 type version is useful for low-voltage battery-powered products. Also, the table below shows how each ratio changes speed, current, torque, and stall data.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 50:1 | ≤0.045A | 160rpm | ≤0.18A | 90rpm | 0.2kg.cm | ≤0.3A | 0.35kg.cm |
| 100:1 | ≤0.045A | 80rpm | ≤0.18A | 45rpm | 0.4kg.cm | ≤0.3A | 0.7kg.cm |
| 150:1 | ≤0.045A | 55rpm | ≤0.18A | 30rpm | 0.6kg.cm | ≤0.3A | 1kg.cm |
| 200:1 | ≤0.045A | 40rpm | ≤0.18A | 21rpm | 0.8kg.cm | ≤0.3A | 1.3kg.cm |
| 350:1 | ≤0.045A | 23rpm | ≤0.18A | 12rpm | 1.4kg.cm | ≤0.3A | 2.2kg.cm |
| 380:1 | ≤0.045A | 21rpm | ≤0.18A | 12rpm | 1.5kg.cm | ≤0.3A | ≤3kg.cm |
| 500:1 | ≤0.045A | 16rpm | ≤0.18A | 9rpm | 2kg.cm | ≤0.3A | ≤3kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
Also, the 500:1 ratio gives the lowest no-load speed in this 3V 26 type table. Therefore, it is useful for slow and strong low-voltage motion.
Model: NFP-GM1024-N20, 3V DC, 45 Type
Next, the 3V DC 45 type version provides higher speed than the 3V 26 type version. As a result, it is suitable for low-voltage products that need faster gearbox output.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 50:1 | ≤0.045A | 240rpm | ≤0.27A | 150rpm | 0.2kg.cm | ≤0.65A | 0.5kg.cm |
| 100:1 | ≤0.045A | 120rpm | ≤0.27A | 80rpm | 0.4kg.cm | ≤0.65A | 1kg.cm |
| 150:1 | ≤0.045A | 80rpm | ≤0.27A | 52rpm | 0.6kg.cm | ≤0.65A | 1.5kg.cm |
| 200:1 | ≤0.045A | 60rpm | ≤0.27A | 39rpm | 0.8kg.cm | ≤0.65A | 2kg.cm |
| 350:1 | ≤0.045A | 34rpm | ≤0.27A | 22rpm | 1.4kg.cm | ≤0.65A | ≤3kg.cm |
| 380:1 | ≤0.045A | 31rpm | ≤0.27A | 20rpm | 1.5kg.cm | ≤0.65A | ≤3kg.cm |
| 500:1 | ≤0.045A | 24rpm | ≤0.27A | 15rpm | 2kg.cm | ≤0.65A | ≤3kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In addition, the 3V 45 type version provides stronger stall torque values at several ratios. Therefore, it can support compact products that need more output under 3V DC power.
Model: NFP-GM1024-N20, 6V DC, 35 Type
Also, the 6V DC 35 type version gives balanced speed, current, and torque. Therefore, it is useful for small 6V products that need controlled motion with moderate power use.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 50:1 | ≤0.04A | 210rpm | ≤0.15A | 150rpm | 0.2kg.cm | ≤0.25A | ≥0.35kg.cm |
| 100:1 | ≤0.04A | 105rpm | ≤0.15A | 75rpm | 0.4kg.cm | ≤0.25A | ≥0.7kg.cm |
| 150:1 | ≤0.04A | 70rpm | ≤0.15A | 50rpm | 0.6kg.cm | ≤0.25A | ≥1kg.cm |
| 200:1 | ≤0.04A | 55rpm | ≤0.15A | 37rpm | 0.8kg.cm | ≤0.25A | ≥1.3kg.cm |
| 350:1 | ≤0.04A | 30rpm | ≤0.15A | 21rpm | 1.4kg.cm | ≤0.25A | ≥2.2kg.cm |
| 380:1 | ≤0.04A | 29rpm | ≤0.15A | 20rpm | 1.5kg.cm | ≤0.25A | ≤3kg.cm |
| 500:1 | ≤0.04A | 22rpm | ≤0.15A | 15rpm | 2kg.cm | ≤0.25A | ≤3kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 6V 35 type version is a practical choice for stable and efficient output. Also, it keeps current low while offering useful torque at higher ratios.
Model: NFP-GM1024-N20, 6V DC, 26 Type
Next, the 6V DC 26 type version provides a wider speed range than the 6V 35 type version. Therefore, it is suitable for compact systems that need higher speed and stronger output.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 50:1 | ≤0.045A | 330rpm | ≤0.23A | 190rpm | 0.25kg.cm | ≤0.5A | ≥0.5kg.cm |
| 100:1 | ≤0.045A | 160rpm | ≤0.23A | 100rpm | 0.5kg.cm | ≤0.5A | ≥1kg.cm |
| 150:1 | ≤0.045A | 110rpm | ≤0.23A | 65rpm | 0.7kg.cm | ≤0.5A | ≥1.5kg.cm |
| 200:1 | ≤0.045A | 80rpm | ≤0.23A | 48rpm | 1kg.cm | ≤0.5A | ≥2kg.cm |
| 350:1 | ≤0.045A | 45rpm | ≤0.23A | 28rpm | 1.5kg.cm | ≤0.5A | ≤3kg.cm |
| 380:1 | ≤0.045A | 42rpm | ≤0.23A | 26rpm | 1.7kg.cm | ≤0.5A | ≤3kg.cm |
| 500:1 | ≤0.045A | 32rpm | ≤0.23A | 20rpm | 2kg.cm | ≤0.5A | ≤3kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In addition, the 6V 26 type version reaches 330rpm at 50:1 ratio. As a result, it is useful for 6V systems that need faster gear motor output.
Model: NFP-GM1024-N20, 12V DC, 05 Type
Also, the 12V DC 05 type version provides low current for 12V systems. Therefore, it is a good option for compact products that need controlled energy use.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 50:1 | ≤0.03A | 300rpm | ≤0.07A | 150rpm | 0.1kg.cm | ≤0.25A | ≥0.45kg.cm |
| 100:1 | ≤0.03A | 150rpm | ≤0.07A | 75rpm | 0.2kg.cm | ≤0.25A | ≥0.9kg.cm |
| 150:1 | ≤0.03A | 100rpm | ≤0.07A | 50rpm | 0.3kg.cm | ≤0.25A | ≥1.2kg.cm |
| 200:1 | ≤0.03A | 75rpm | ≤0.07A | 37rpm | 0.4kg.cm | ≤0.25A | ≥1.8kg.cm |
| 350:1 | ≤0.03A | 43rpm | ≤0.07A | 21rpm | 0.7kg.cm | ≤0.25A | ≥2.2kg.cm |
| 380:1 | ≤0.03A | 40rpm | ≤0.07A | 20rpm | 0.8kg.cm | ≤0.25A | ≤3kg.cm |
| 500:1 | ≤0.03A | 30rpm | ≤0.07A | 15rpm | 1kg.cm | ≤0.25A | ≤3kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
Also, the 12V 05 type version keeps the no-load current at ≤0.03A. As a result, it is suitable for 12V applications that need lower current operation.
Model: NFP-GM1024-N20, 12V DC, 35 Type
Finally, the 12V DC 35 type version gives the highest no-load speed in this product page. Therefore, it is suitable for compact systems that need faster output and stronger torque.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 50:1 | ≤0.055A | 430rpm | ≤0.2A | 290rpm | 0.25kg.cm | ≤0.45A | ≥0.65kg.cm |
| 100:1 | ≤0.055A | 215rpm | ≤0.2A | 145rpm | 0.5kg.cm | ≤0.45A | ≥1.3kg.cm |
| 150:1 | ≤0.055A | 143rpm | ≤0.2A | 95rpm | 0.7kg.cm | ≤0.45A | ≥2kg.cm |
| 200:1 | ≤0.055A | 105rpm | ≤0.2A | 72rpm | 1kg.cm | ≤0.45A | ≥2.6kg.cm |
| 350:1 | ≤0.055A | 61rpm | ≤0.2A | 40rpm | 1.5kg.cm | ≤0.45A | ≤3kg.cm |
| 380:1 | ≤0.055A | 56rpm | ≤0.2A | 38rpm | 1.7kg.cm | ≤0.45A | ≤3kg.cm |
| 500:1 | ≤0.055A | 43rpm | ≤0.2A | 29rpm | 2kg.cm | ≤0.45A | ≤3kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In addition, the 12V 35 type version reaches 430rpm at 50:1 ratio. As a result, it is a good choice when the design needs faster output from a compact N20 gear motor.
N20 Reduction Gear Motor Outline Drawing
First, the outline drawing helps users review the NFP-GM1024-N20 gear motor body, gearbox, shaft, and mounting size. Therefore, it is useful before sample testing and final product design.
In addition, RPM control on N20 micro metal gear motors usually requires a speed controller or a motor driver with PWM input. As a result, users can adjust motor speed by changing the PWM duty cycle.
RPM Control and Design Notes
- First, use PWM control: A motor driver with PWM input can adjust motor speed.
- In addition, check voltage: The driver must match the selected motor voltage.
- Also, check current: The driver should support the working and stall current range.
- Next, select ratio carefully: Lower ratios provide higher speed, while higher ratios provide more torque.
- Finally, test under load: Real speed and current should be checked in the final product.
Typical Applications
Finally, this N20 geared motor is suitable for compact products that need low speed, small size, and useful torque. For example, it can work in small robots, smart locks, toys, instruments, and miniature automation systems.
- Small robots
- Smart locks
- Toys
- Miniature automation systems
- Battery-powered devices
- Low RPM drive modules
- Compact gearbox motor projects
- Small instruments
In short, the NFP-GM1024-N20 miniature N20 gear motor is a good fit for products that need 3V, 6V, or 12V DC power, metal gearbox output, compact size, multiple ratio options, and stable low-speed torque.
Keywords: n20 motor gearbox, n20 geared motor, n20 micro gear motor, n20 dc gear motor, micro speed reduction gear box motor, 100rpm gear motor, 6v gear motor
