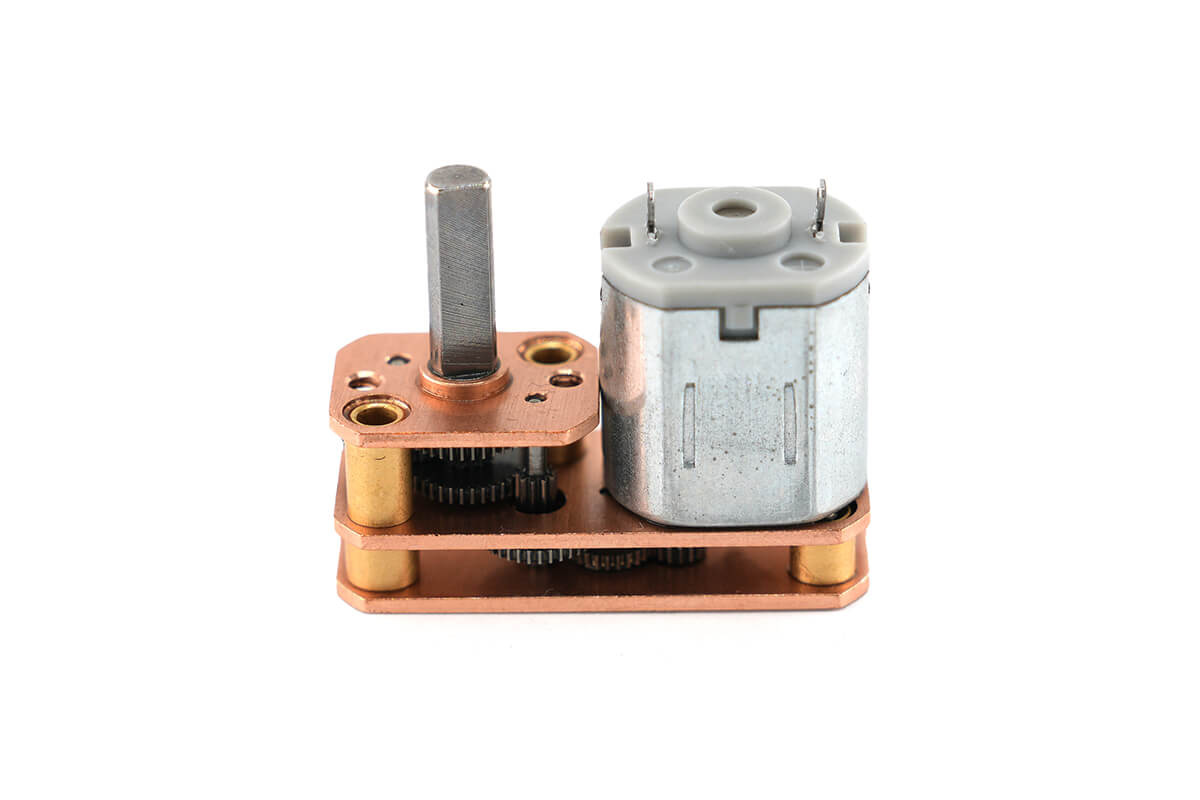

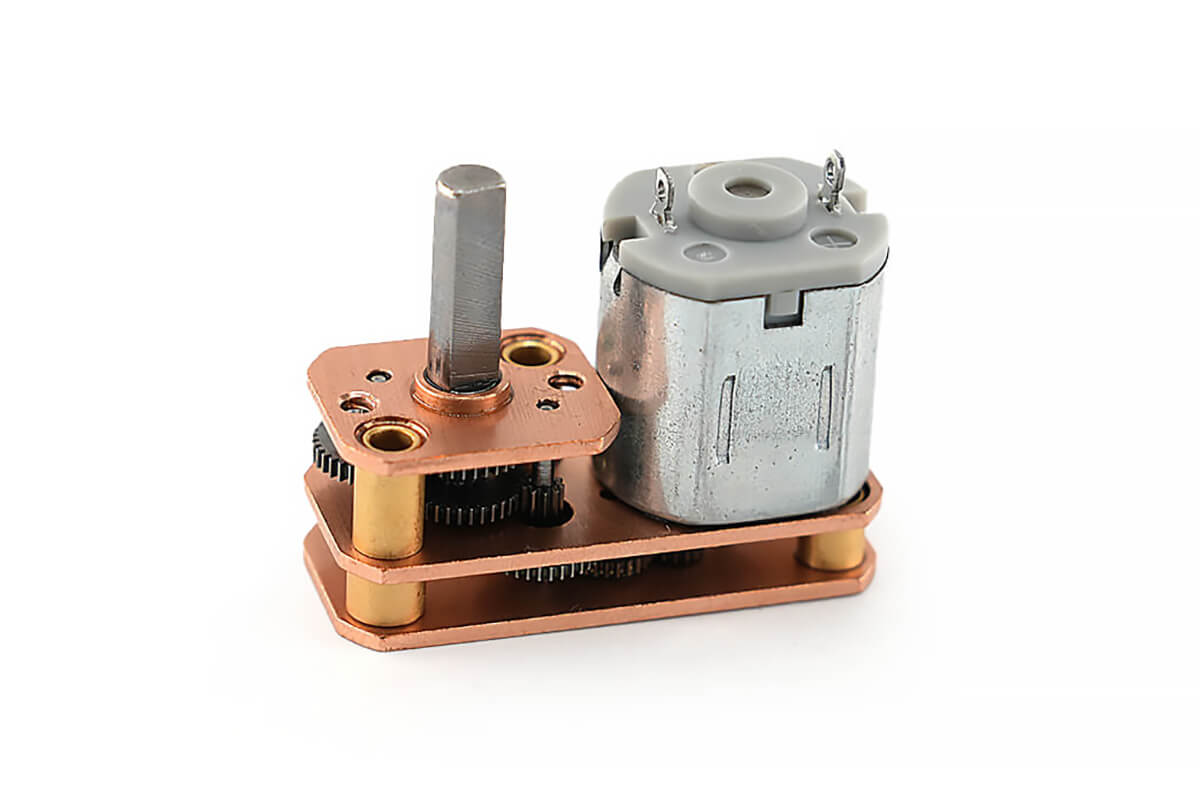

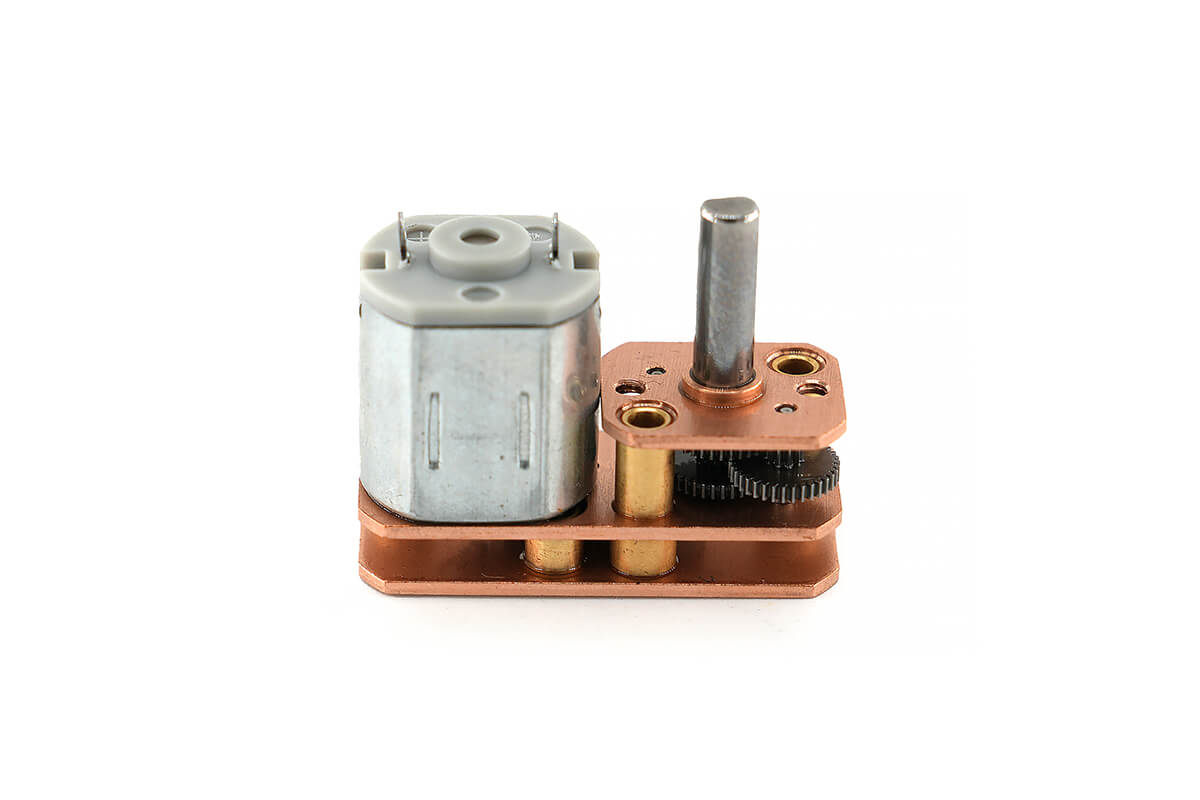

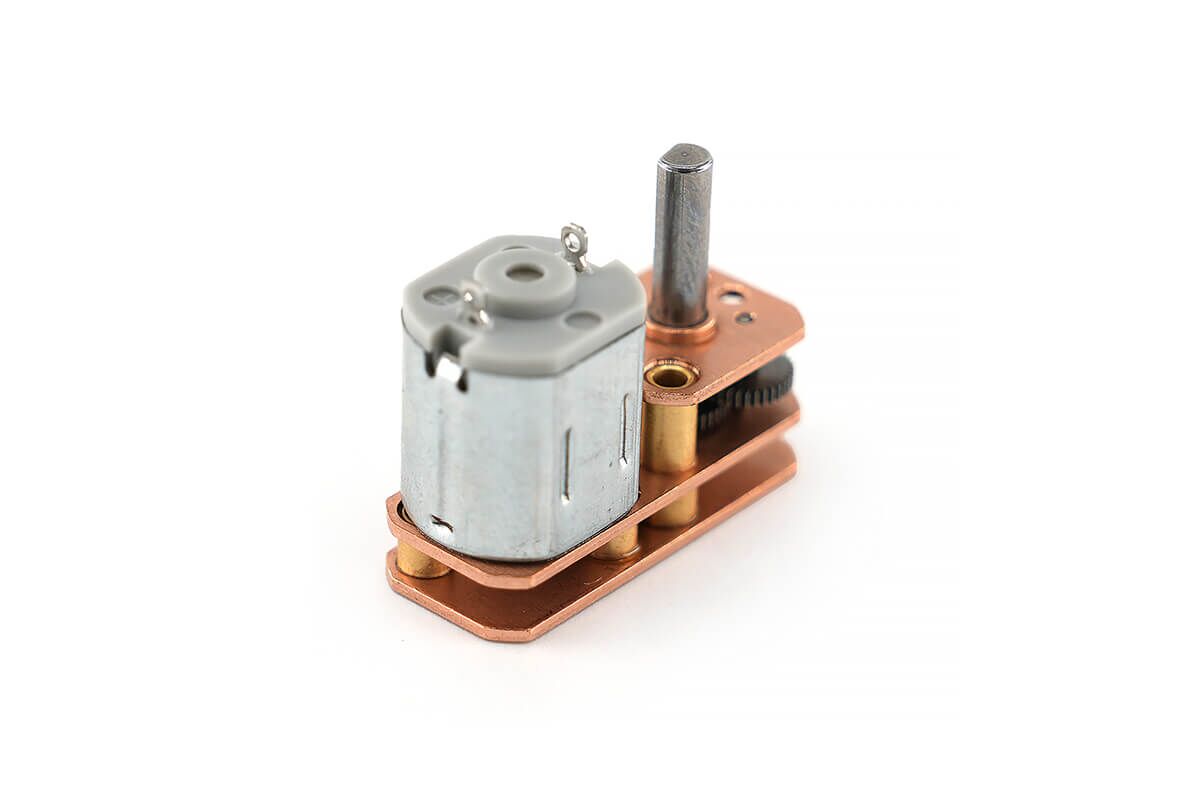

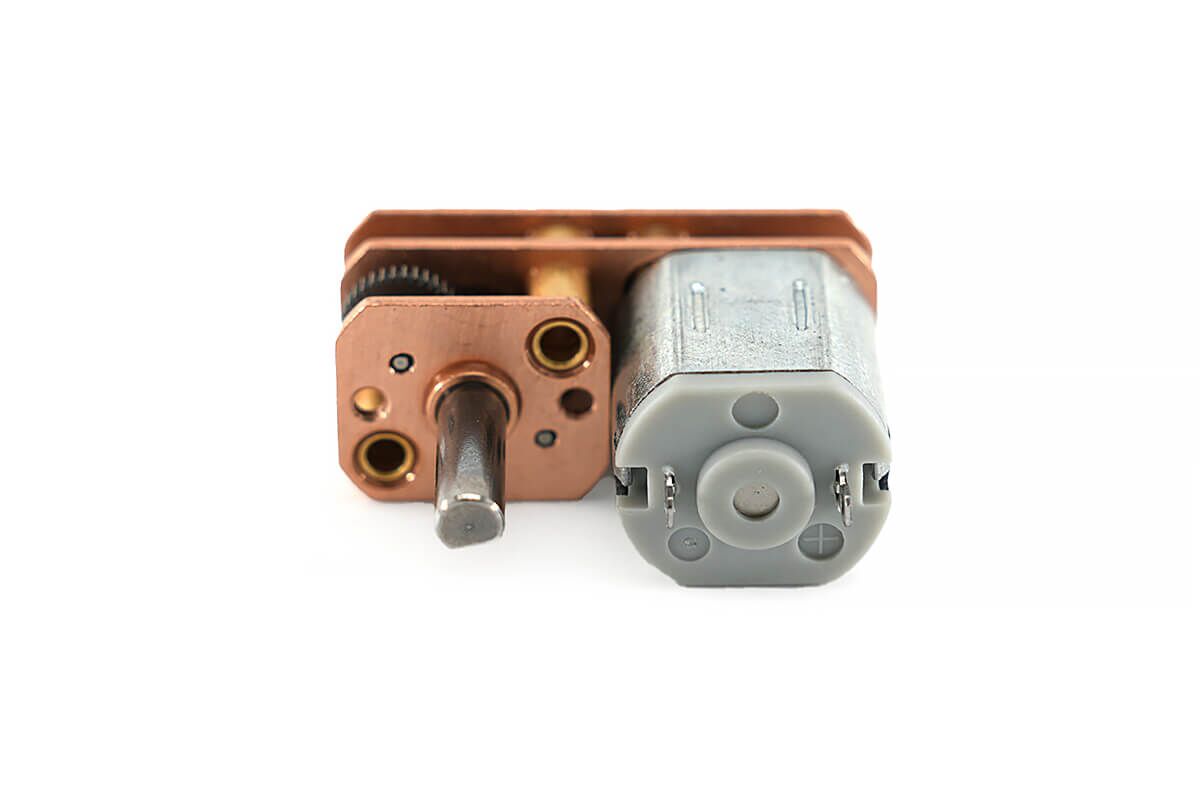

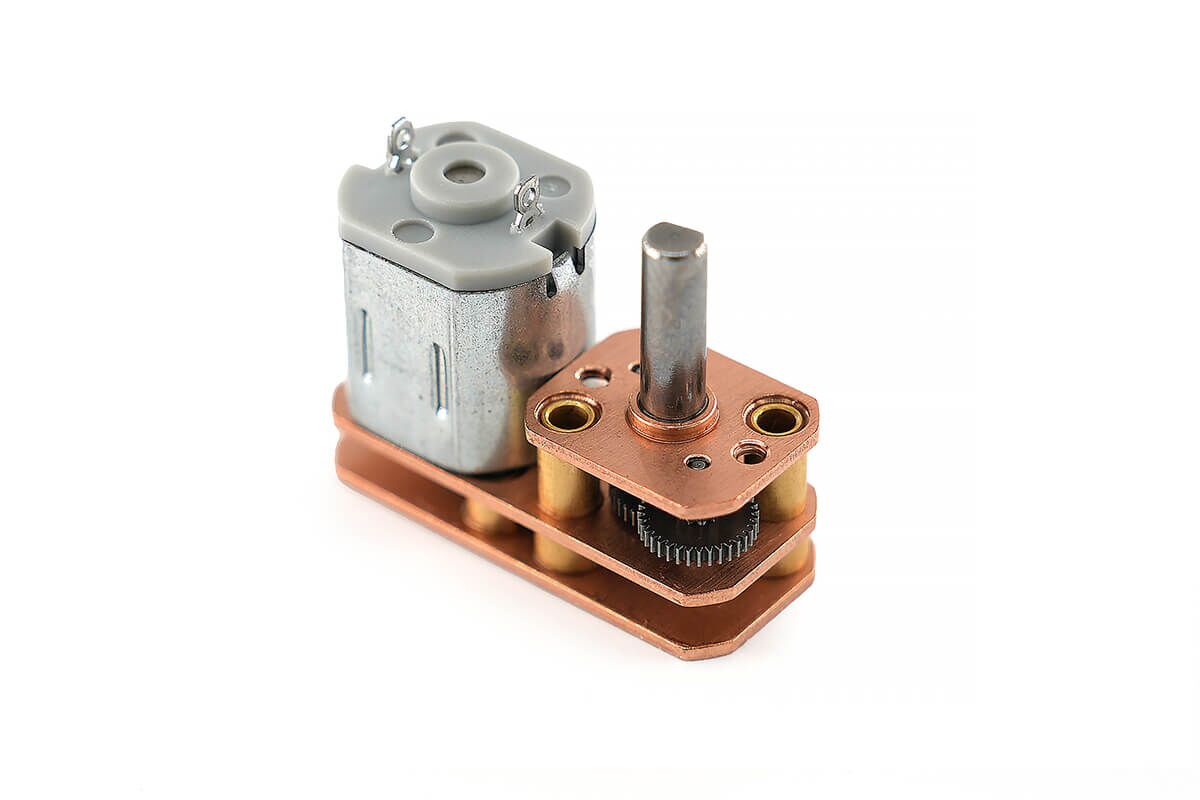

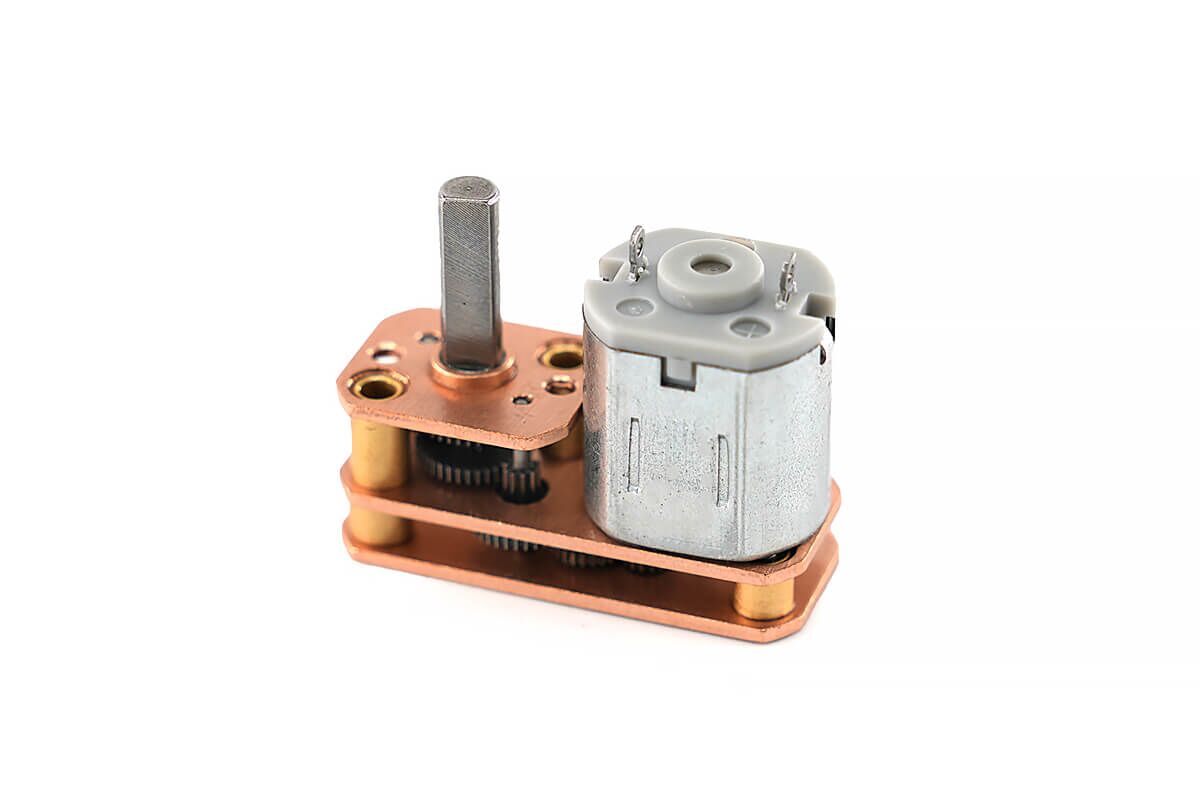

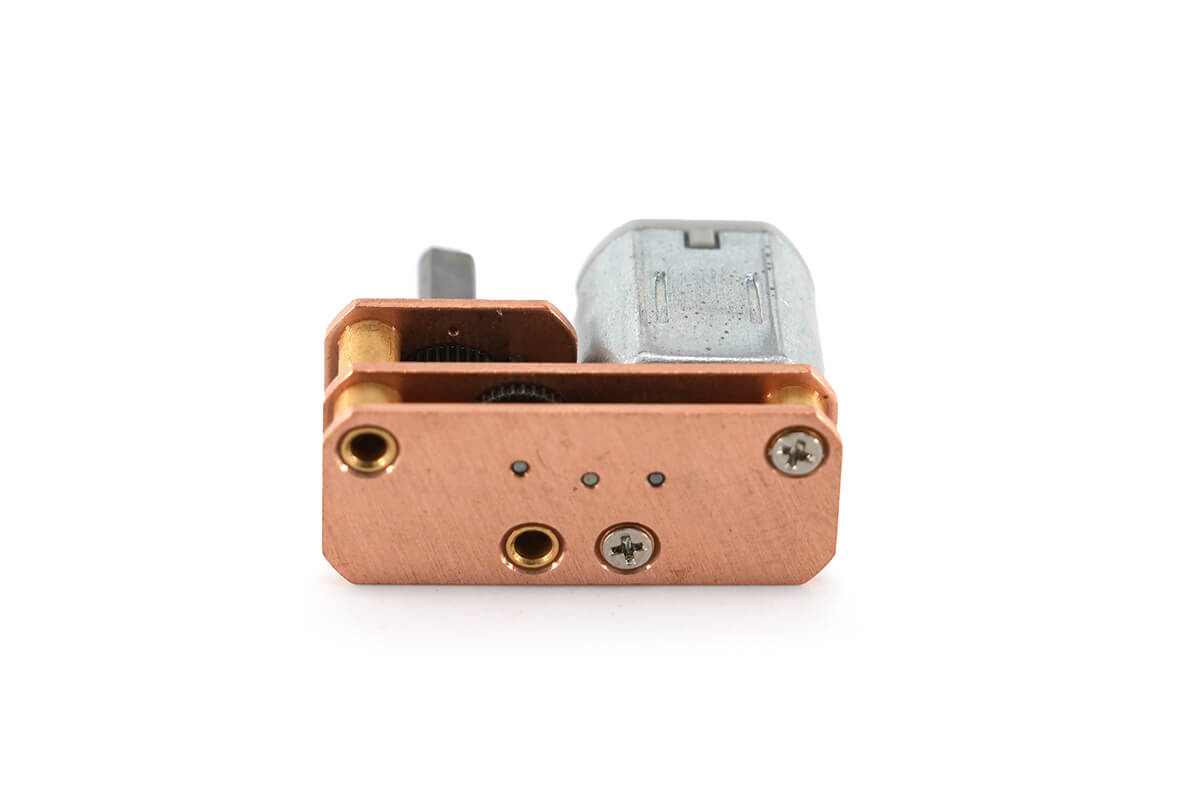

12mm Metal Gear Motor Model NFP-GM1024-N10
$14.50
Upgrade to the silent efficiency of the u type n10 dc gear motor. Perfectly balanced for demanding loads, it is ready for any challenge! ⚙️
N10 Micro Metal Gear Motor Specifications
Product Overview
The NFP-GM1024-N10 is a compact N10 micro metal gear motor. Therefore, it is suitable for small mechanisms that require low speed, stable torque, and compact installation.
In addition, this motor supports 3V and 6V DC options. As a result, it can meet different speed and torque requirements in small electric devices.
Main Features
- High-quality gears: Precision-cut gears help provide smooth operation. Therefore, the motor can deliver consistent torque under demanding loads.
- Efficient performance: The motor balances speed and power. As a result, it is suitable for a wide range of compact applications.
- Ultra-quiet operation: The gear motor runs with low noise. Moreover, it can support products that require quiet movement.
- Reversible rotation: The motor supports CW and CCW rotation. Therefore, it is easy to integrate into bidirectional drive systems.
- Compact structure: The small N10 gearbox saves installation space. In addition, it is useful for miniature mechanisms and precision products.
General Motor Parameters
The following table shows the basic parameters of the NFP-GM1024-N10 gear motor. Therefore, engineers can check the voltage, shaft size, speed range, current, power, rotation direction, and weight before selection.
| Model | NFP-GM1024-N10 |
|---|---|
| Shaft Diameter | 3mm |
| Shaft Length | 10mm |
| Voltage | 3V / 6V DC |
| No-load Speed | 19rpm – 430rpm |
| No-load Current | ≤0.05A / ≤0.065A / ≤0.085A |
| Power | 0.15W / 0.35W / 0.42W |
| Rotation | CW / CCW |
| Weight | appr. 10g |
3V DC 22,000rpm 92 Type Performance Data
This 3V 92 type version provides higher motor speed. Therefore, it is suitable for applications that need a wider output speed range.
Model: NFP-GM1024-N10, 3V DC, 22,000rpm, 92 type
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 50:1 | ≤0.085A | 430rpm | ≤0.42A | 300rpm | 0.15kg.cm | ≤1A | ≥0.3kg.cm |
| 100:1 | ≤0.085A | 215rpm | ≤0.42A | 150rpm | 0.3kg.cm | ≤1A | ≥0.7kg.cm |
| 150:1 | ≤0.085A | 140rpm | ≤0.42A | 100rpm | 0.45kg.cm | ≤1A | ≥0.9kg.cm |
| 200:1 | ≤0.085A | 105rpm | ≤0.42A | 75rpm | 0.6kg.cm | ≤1A | ≥1.5kg.cm |
| 350:1 | ≤0.085A | 60rpm | ≤0.42A | 42rpm | 1kg.cm | ≤1A | ≥2.4kg.cm |
| 500:1 | ≤0.085A | 42rpm | ≤0.42A | 30rpm | 1.5kg.cm | ≤1A | ≥3kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
3V DC 10,000rpm 07 Type Performance Data
This 3V 07 type version provides lower current and lower speed. Therefore, it is useful for applications that need lower power consumption.
Model: NFP-GM1024-N10, 3V DC, 10,000rpm, 07 type
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 50:1 | ≤0.05A | 190rpm | ≤0.11A | 125rpm | 0.1kg.cm | ≤0.25A | ≥0.2kg.cm |
| 100:1 | ≤0.05A | 95rpm | ≤0.11A | 63rpm | 0.2kg.cm | ≤0.25A | ≥0.4kg.cm |
| 150:1 | ≤0.05A | 63rpm | ≤0.11A | 42rpm | 0.3kg.cm | ≤0.25A | ≥0.6kg.cm |
| 200:1 | ≤0.05A | 47rpm | ≤0.11A | 31rpm | 0.4kg.cm | ≤0.25A | ≥0.8kg.cm |
| 350:1 | ≤0.05A | 27rpm | ≤0.11A | 18rpm | 0.7kg.cm | ≤0.25A | ≥1.5kg.cm |
| 500:1 | ≤0.05A | 19rpm | ≤0.11A | 12rpm | 1kg.cm | ≤0.25A | ≥2kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
6V DC 21,000rpm 07 Type Performance Data
This 6V 07 type version provides higher voltage operation. As a result, it can deliver higher output speed while keeping compact gearbox dimensions.
Model: NFP-GM1024-N10, 6V DC, 21,000rpm, 07 type
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 50:1 | ≤0.065A | 400rpm | ≤0.25A | 280rpm | 0.15kg.cm | ≤0.6A | ≥0.3kg.cm |
| 100:1 | ≤0.065A | 200rpm | ≤0.25A | 140rpm | 0.3kg.cm | ≤0.6A | ≥0.7kg.cm |
| 150:1 | ≤0.065A | 133rpm | ≤0.25A | 92rpm | 0.45kg.cm | ≤0.6A | ≥0.9kg.cm |
| 200:1 | ≤0.065A | 100rpm | ≤0.25A | 70rpm | 0.6kg.cm | ≤0.6A | ≥1.5kg.cm |
| 350:1 | ≤0.065A | 57rpm | ≤0.25A | 40rpm | 1kg.cm | ≤0.6A | ≥2.4kg.cm |
| 500:1 | ≤0.065A | 40rpm | ≤0.25A | 28rpm | 1.5kg.cm | ≤0.6A | ≥3kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
Quiet Small Geared Motor Dimension
Mechanical Design
The N10 gearhead motor has a compact footprint. Therefore, it can fit into small equipment without reducing the required power and precision.
In addition, the gearbox is built with durable materials. As a result, it can support long-term reliability in miniature drive systems.
Dimension Advantages
- Compact design: The small body size helps save space. Therefore, it is suitable for intricate mechanisms.
- Robust construction: The motor is engineered with reliable materials. As a result, it can improve service life in equipment.
- Quiet running: The gear structure helps reduce operating noise. Moreover, it is suitable for products that need quiet movement.
Keywords:
reduction gearbox 20/40/60rpm, 3v geared motor, reversible gear motor 3mm shaft, brushed motor electric motor, micro low speed high torque gear motor, compact gear motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
