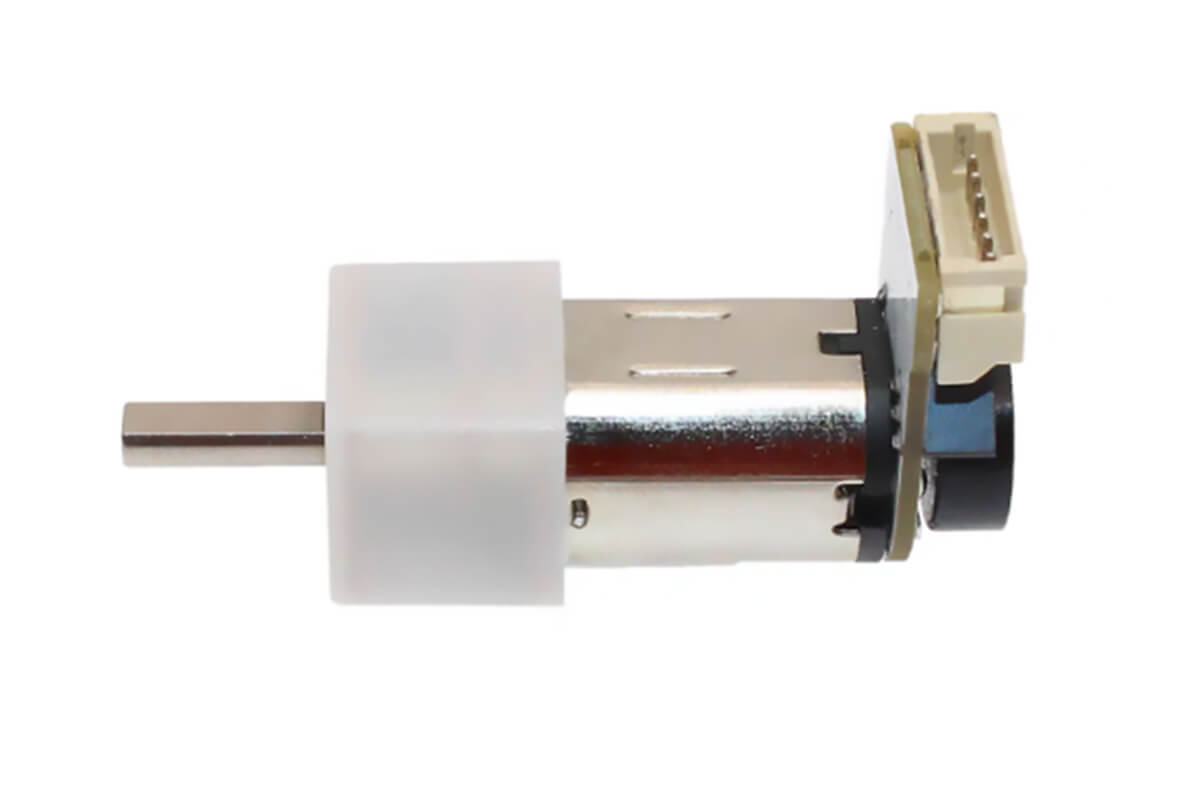

12mm Metal Gear Motor Model NFP-GM12-N20V-EN
$15.00
Experience longevity with our N20 reduction motor with encoder, designed for high-temperature environments. Enjoy energy efficiency and quiet operation!
Geared DC Motor with Dust Cover Technical Specifications

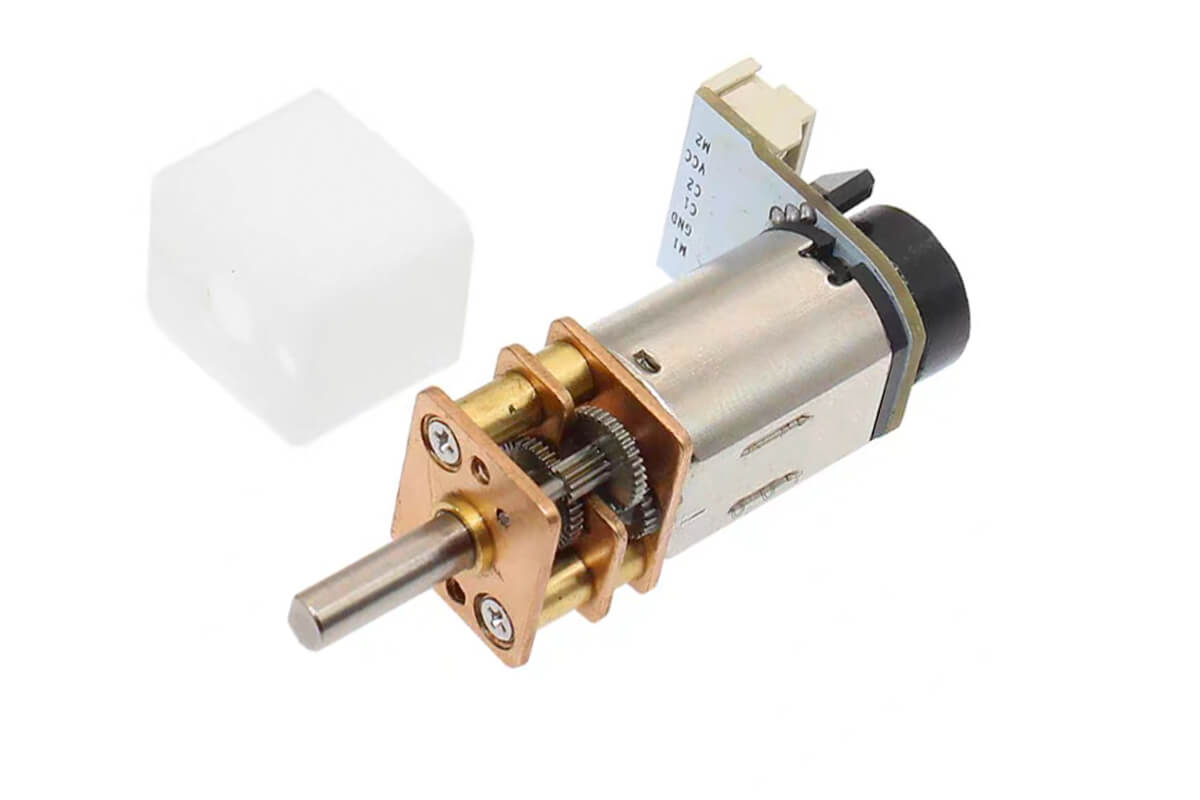

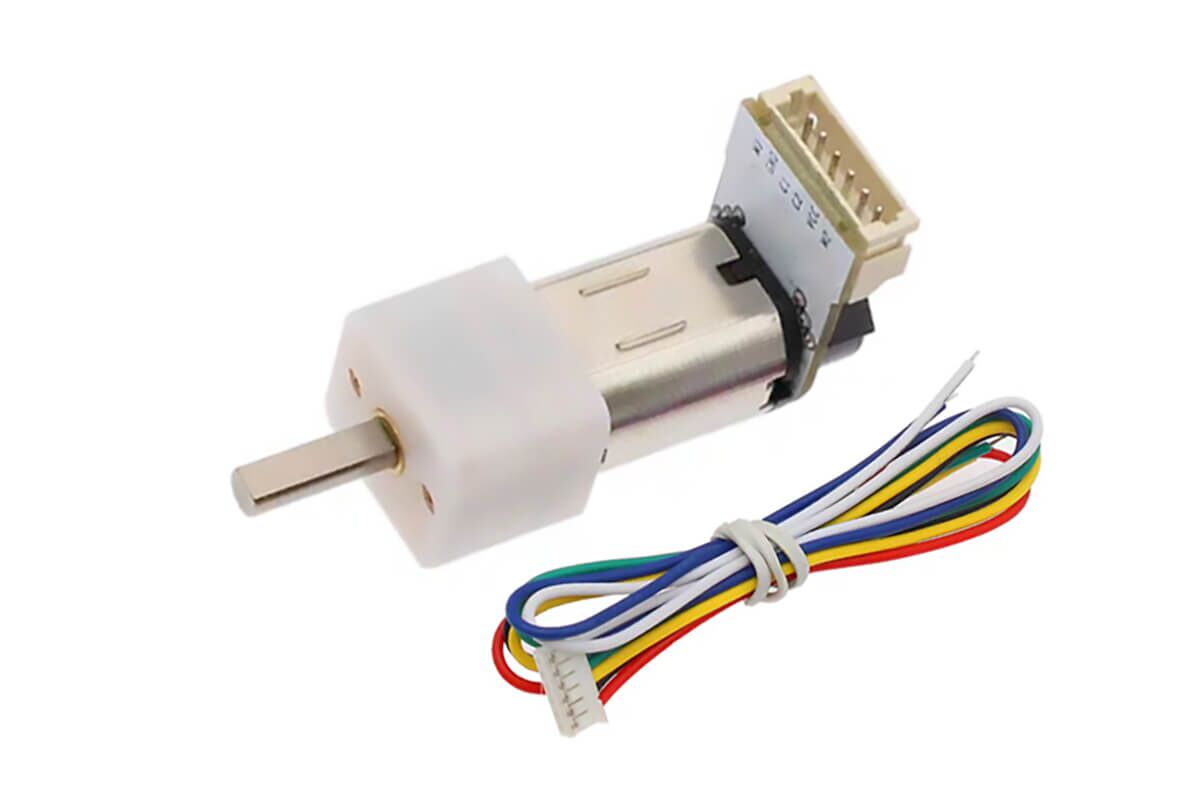

The NFP-GM12-N20V-EN is a geared DC motor with dust cover and encoder feedback. It includes 3V DC and 6V DC versions for compact products that need low speed, stable torque, and signal output.
First, this motor uses all-metal gears for high-temperature resistance and abrasion resistance. Also, the dust cover helps protect the gearbox and encoder area. Therefore, it is useful for small products that need reliable performance under demanding conditions.
In addition, the motor operates with low energy use and low noise. As a result, it is suitable for battery-powered devices, compact mechanisms, and quiet control systems.
Main Product Features
- First, all-metal gears: The gear structure helps improve wear resistance and long service life.
- In addition, dust cover design: The cover helps protect the gear motor during use.
- Also, encoder feedback: The signal output after deceleration is 1,468.3 pulses per cycle.
- Next, low-speed output: The motor provides 31rpm or 63rpm no-load speed options.
- Finally, compact shaft: The 4mm shaft diameter and 10mm shaft length support small product layouts.
Geared DC Motor Specification Data
Next, the table below helps users compare the 3V and 6V versions. Therefore, it is easier to check shaft data, speed, current, torque, and signal output before sample testing.
| Motor Model | NFP-GM12-N20V-EN-3V | NFP-GM12-N20V-EN-6V |
|---|---|---|
| Shaft Diameter | 4mm | 4mm |
| Shaft Length | 10mm | 10mm |
| Rated Voltage | 3V DC | 6V DC |
| No Load Speed | 31rpm ± 10% | 63rpm ± 10% |
| No Load Current | ≤0.035A | ≤0.045A |
| Rated Torque | 0.5kg.cm | 1.0kg.cm |
| Rated Speed | 19rpm | 40rpm |
| Rated Current | ≤0.11A | ≤0.22A |
| Stall Torque | ≥1.2kg.cm | ≥2.5kg.cm |
| Stall Current | ≤0.2A | ≤0.4A |
| Signal Output After Deceleration | 1,468.3Pulse/cycle | 1,468.3Pulse/cycle |
Also, the 6V version provides higher speed, rated torque, and stall torque than the 3V version. However, the 3V version has lower current values.
As a result, users can choose the 6V model for stronger output, or choose the 3V model for lower-voltage and lower-current designs.
Low Speed N20 Gear Motor Dimension
First, the dimension drawing helps users review the N20 gear motor body, dust cover, encoder area, and output shaft. Therefore, it is useful before sample testing and final product design.
In addition, this N20 gear motor offers high torque output in a compact and lightweight design. As a result, it can support small mechanisms that need low speed and reliable force.
Dimension Drawing and Design Benefits
- First, compact body: The N20 gear motor size helps save installation space.
- In addition, low-speed output: The gearbox provides controlled rotation for compact mechanisms.
- Also, high torque: The 6V version provides up to ≥2.5kg.cm stall torque.
- Next, encoder output: The signal output helps support speed or position feedback.
- Finally, dust cover: The protective cover helps improve use in exposed gearbox layouts.
Micro Gear Motor with Encoder Wiring Method
Next, the encoder wiring image helps users check the connection method before testing. Therefore, it can reduce wiring mistakes during motor setup.
In addition, the premium metal output shaft is made from high-hardness material. As a result, it offers good toughness and impact resistance for compact drive applications.
Encoder Wiring and Shaft Benefits
- First, encoder wiring: The wiring image helps users connect the motor and encoder correctly.
- In addition, signal feedback: Encoder output helps support speed detection and control.
- Also, metal output shaft: The shaft structure supports durable mechanical connection.
- Next, low-noise use: The motor can support quiet operation in small devices.
- Finally, compact integration: The motor can fit many small product layouts.
Typical Applications
Finally, this geared DC motor with dust cover is suitable for compact products that need low speed, encoder feedback, and stable torque. For example, it can work in smart locks, small robots, meters, and battery-powered devices.
- Smart locks
- Small robots
- Battery-powered devices
- Compact control systems
- Small meters
- Low-speed drive modules
- Encoder feedback gear motor projects
In short, the NFP-GM12-N20V-EN geared DC motor is a good fit for products that need 3V or 6V DC power, low-speed output, dust cover protection, encoder feedback, and compact N20 gearbox performance.
