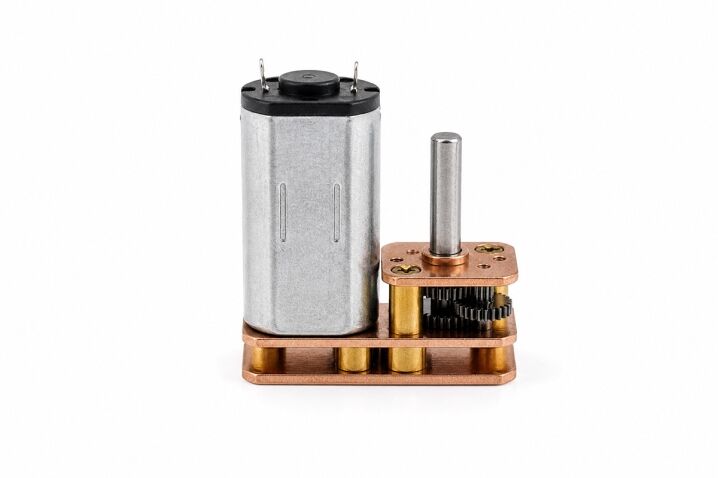

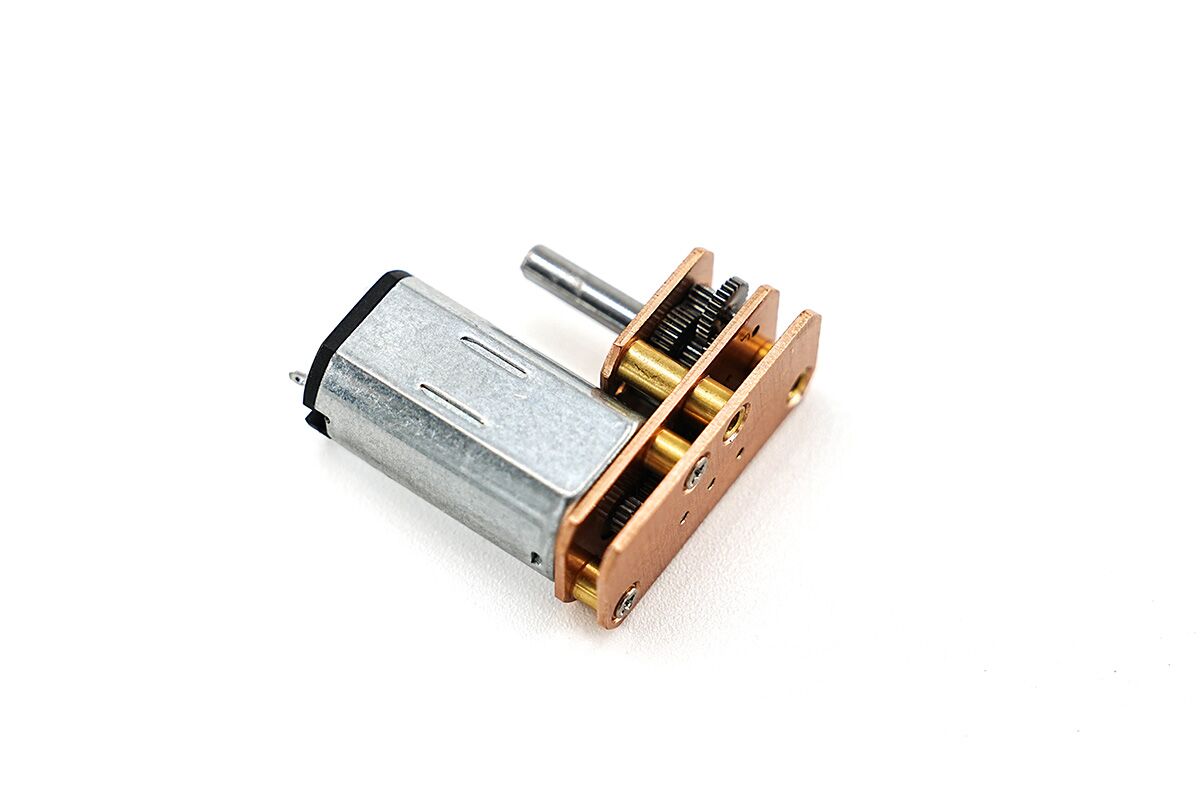

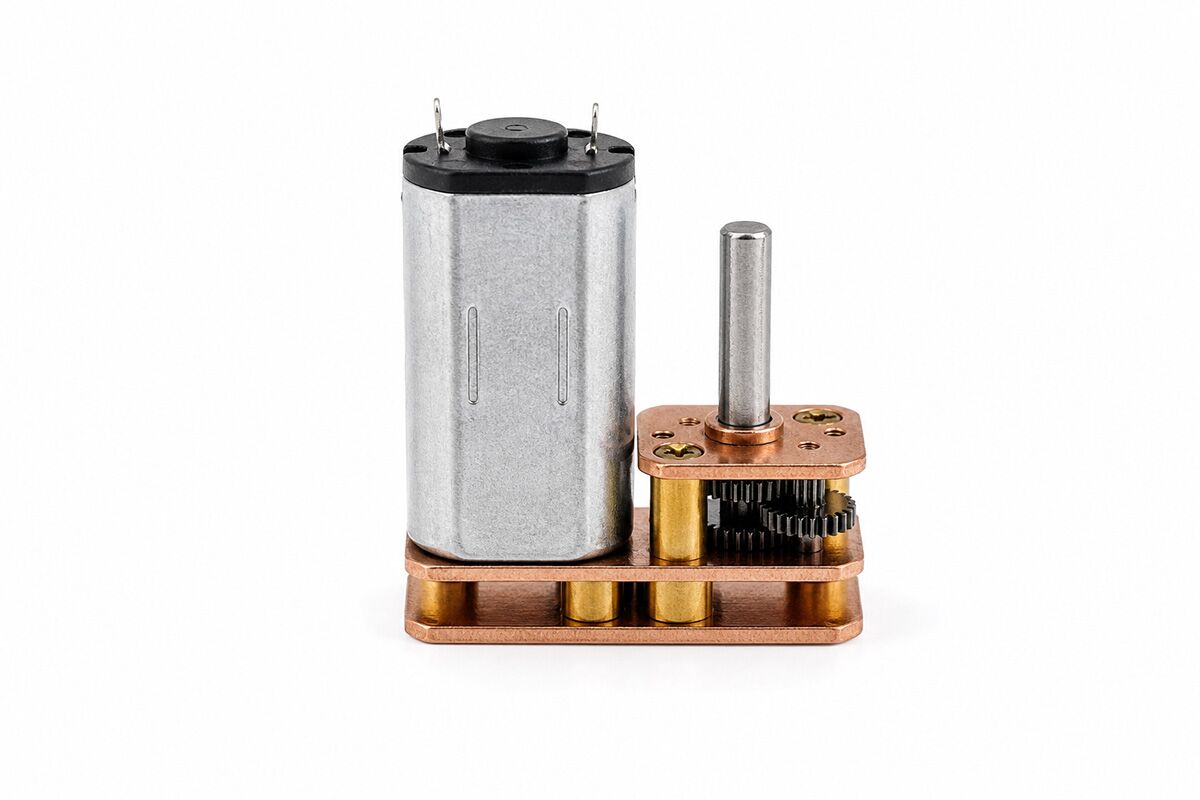

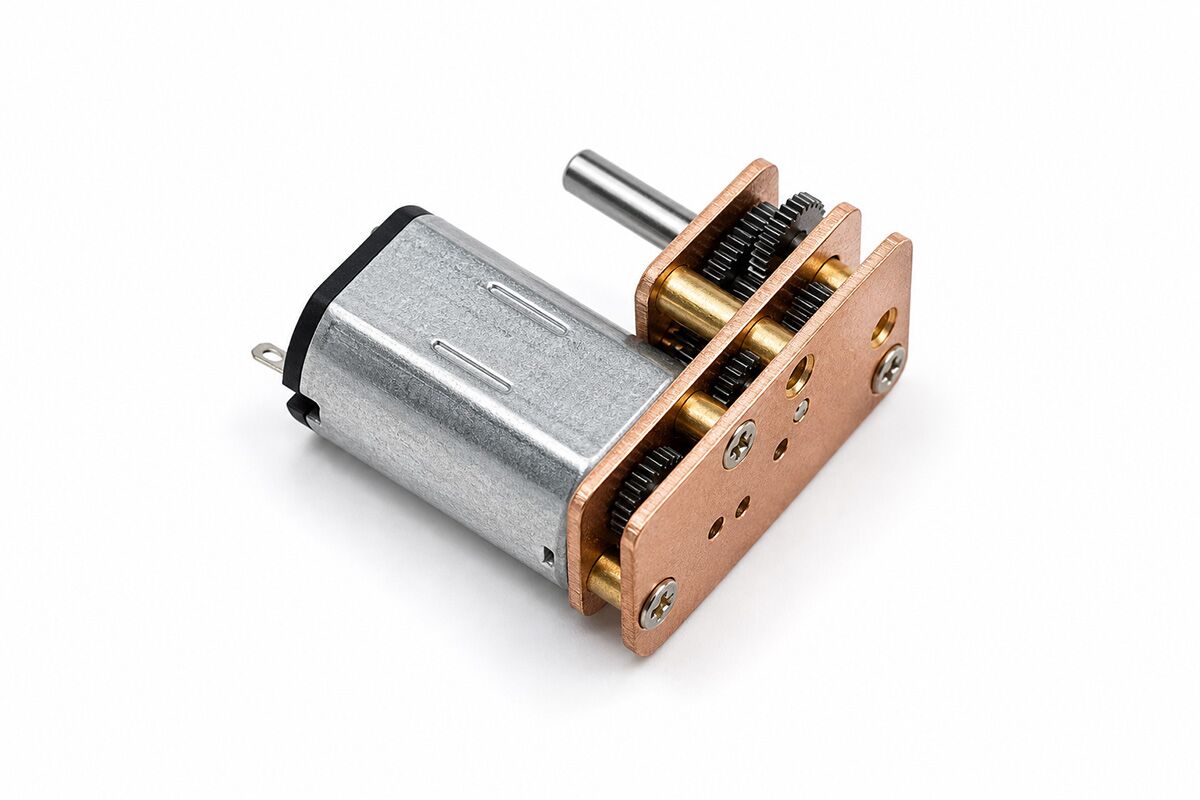

12mm Metal Gear Motor Model NFP-GM1024-N30
$14.50
Elevate your projects with our premium 12mm metal gear motor supplier products. Enjoy exceptional quality and durability for all applications.
N30 Micro Speed Reduction Gear Motor Specifications
Product Overview
The NFP-GM1024-N30 is a compact N30 micro speed reduction gear motor. Therefore, it works well in small devices that need low speed, stable torque, and reliable motion.
In addition, this miniature gear motor uses durable materials. As a result, it supports practical performance in compact mechanical systems.
Main Features
- Durable construction: Premium materials improve the motor structure. Therefore, the motor supports long-term use in compact equipment.
- Metal gearbox: The gear reducer increases output torque. As a result, the motor works well in low-speed drive applications.
- Compact size: The N30 body saves installation space. In addition, it fits miniature mechanisms easily.
- Reversible rotation: The motor supports CW and CCW rotation. Therefore, engineers can use it in bidirectional drive systems.
- Voltage options: The motor supports 6V and 12V DC versions. Moreover, this gives engineers more flexibility during product design.
General Motor Parameters
The following table shows the basic specifications of the NFP-GM1024-N30 motor. Therefore, engineers can check the shaft size, voltage, speed range, current, rotation direction, and weight before selection.
| Motor Model | NFP-GM1024-N30 |
|---|---|
| Shaft Diameter | 3mm |
| Shaft Length | 10mm |
| Rated Voltage | 6V / 12V DC |
| No Load Speed | 15rpm – 320rpm |
| No Load Current | ≤0.045A / ≤0.065A |
| Rotation | CW / CCW |
| Weight | appr. 15g |
6V DC Performance Data
This 6V DC version provides stable low-speed output. Therefore, it works well in battery-powered equipment, compact actuators, and small automation devices.
Moreover, the 6V option helps reduce current demand in many compact systems. As a result, engineers can use it for low-power drive designs.
Model: NFP-GM1024-N30, 6V DC
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 50:1 | 9.0mm | ≤0.045A | 155rpm | ≤0.15A | 100rpm | 0.17kg.cm | ≤0.3A | ≥0.6kg.cm |
| 100:1 | 9.0mm | ≤0.045A | 78rpm | ≤0.15A | 50rpm | 0.35kg.cm | ≤0.3A | ≥1.2kg.cm |
| 150:1 | 9.0mm | ≤0.045A | 52rpm | ≤0.15A | 33rpm | 0.5kg.cm | ≤0.3A | ≥1.8kg.cm |
| 200:1 | 9.0mm | ≤0.045A | 38rpm | ≤0.15A | 25rpm | 0.7kg.cm | ≤0.3A | ≥2.4kg.cm |
| 350:1 | 9.0mm | ≤0.045A | 22rpm | ≤0.15A | 14rpm | 1.2kg.cm | ≤0.3A | ≤3.0kg.cm |
| 500:1 | 9.0mm | ≤0.045A | 15rpm | ≤0.15A | 10rpm | 2.5kg.cm | ≤0.3A | ≤3.0kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
12V DC Performance Data
This 12V DC version provides higher no-load speed than the 6V version. As a result, it works well in applications that need higher output speed with the same compact gearbox structure.
In addition, the 12V version gives engineers more speed options. Therefore, it can support small automation devices, compact drive modules, and precision mechanisms.
Model: NFP-GM1024-N30, 12V DC
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 50:1 | 9.0mm | ≤0.065A | 320rpm | ≤0.25A | 220rpm | 0.35kg.cm | ≤0.6A | ≥1.2kg.cm |
| 100:1 | 9.0mm | ≤0.065A | 160rpm | ≤0.25A | 110rpm | 0.7kg.cm | ≤0.6A | ≥2.4kg.cm |
| 150:1 | 9.0mm | ≤0.065A | 105rpm | ≤0.25A | 72rpm | 1.0kg.cm | ≤0.6A | ≤3.0kg.cm |
| 200:1 | 9.0mm | ≤0.065A | 80rpm | ≤0.25A | 55rpm | 1.4kg.cm | ≤0.6A | ≤3.0kg.cm |
| 350:1 | 9.0mm | ≤0.065A | 45rpm | ≤0.25A | 31rpm | 2.5kg.cm | ≤0.6A | ≤3.0kg.cm |
| 500:1 | 9.0mm | ≤0.065A | 32rpm | ≤0.25A | 22rpm | 3.0kg.cm | ≤0.6A | ≤3.0kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
N30 Full Metal Gearbox Motor Mini Gearbox Motor Outline Drawing
Mechanical Design
The N30 gear motor has a compact size and high efficiency. Therefore, it supports applications that require precise speed reduction and increased torque.
In addition, the full metal gearbox improves durability. As a result, the motor can provide reliable movement in small mechanical assemblies.
Typical Applications
- Robotics: The motor provides compact torque output for small robot mechanisms. Therefore, it helps save installation space.
- Automated machinery: The motor supports low-speed motion in compact automation systems. As a result, it improves controlled movement.
- CNC machines: Engineers can use it in small positioning or auxiliary drive structures. Moreover, its compact gearbox helps simplify assembly.
- Office automation systems: The motor provides quiet and reliable movement. Therefore, it works well in compact office devices.
- Aerospace components: The motor suits compact mechanisms that require small size and stable torque. In addition, the metal gearbox supports durability.
