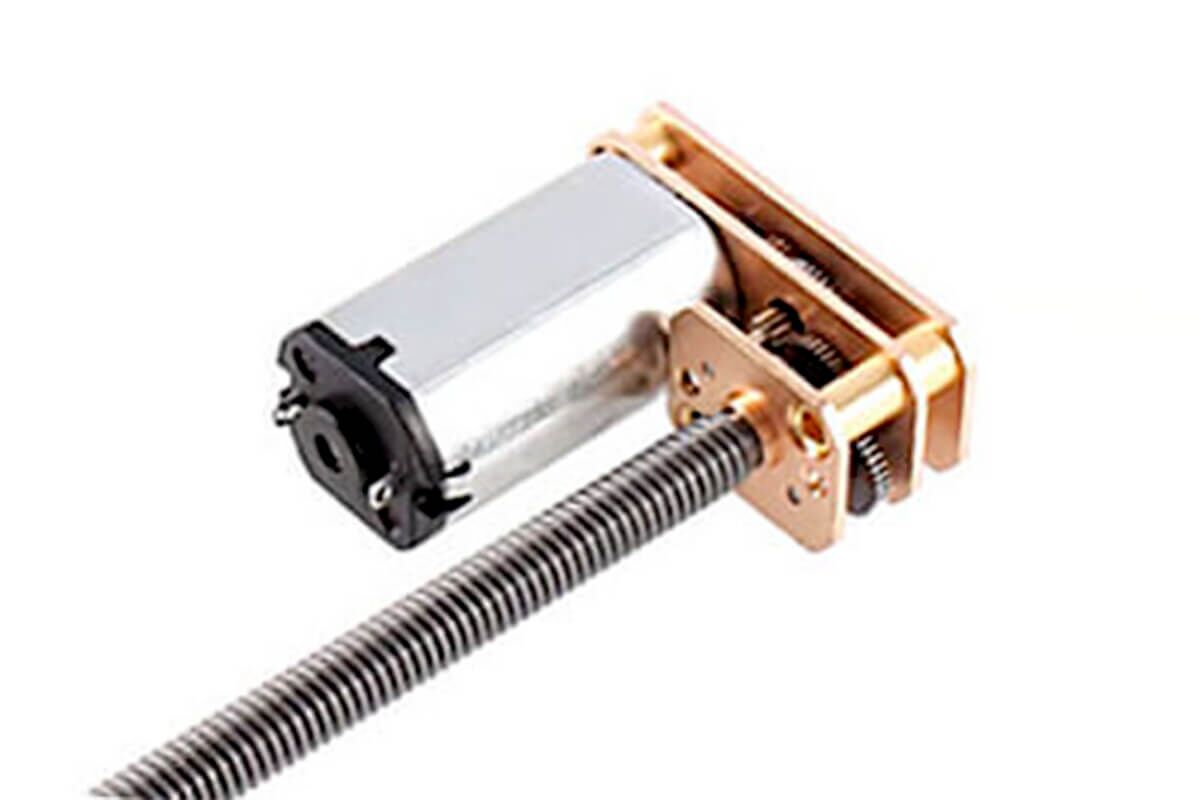

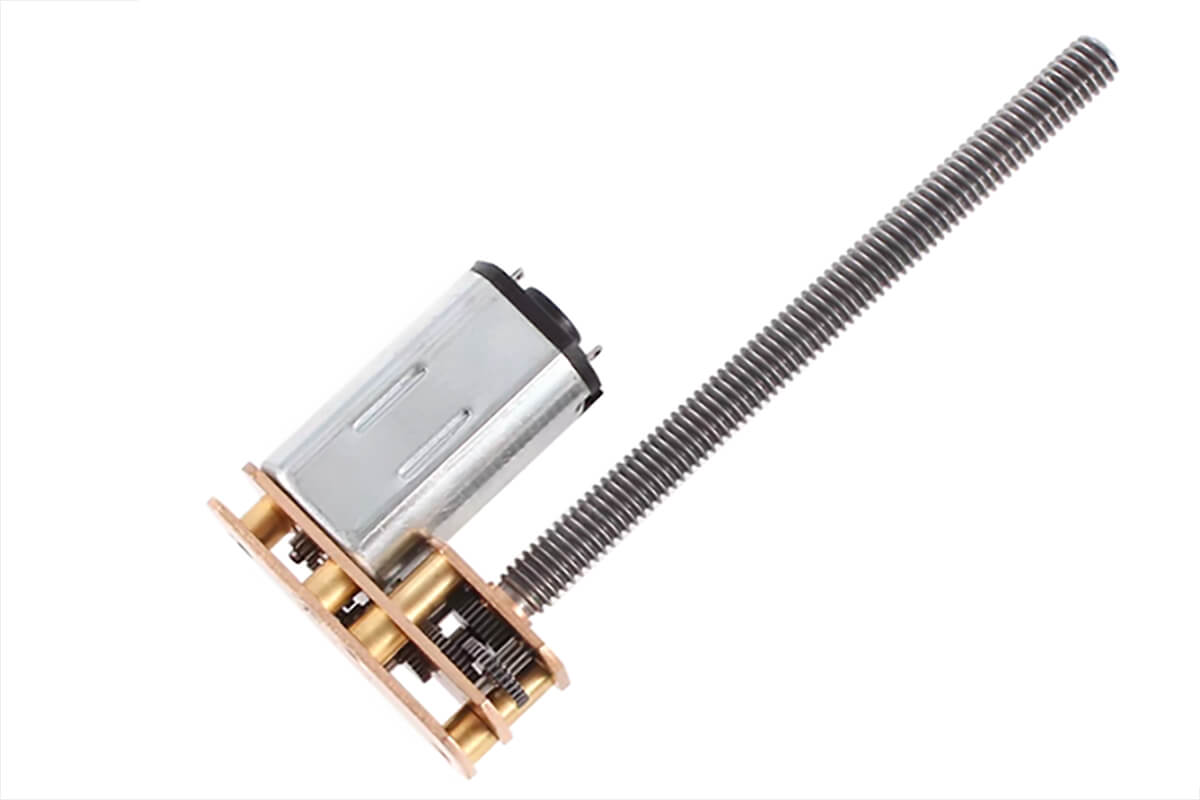

12mm Metal Gear Motor Model NFP-GM1024-N30-M4
$15.00
Unlock new possibilities in robotics with our 12mm U type gear motor m4 lead screw. Designed for both hobbyists and professionals alike. Order now!
Precision Metal Gear Motor with Screw Threaded Shaft Technical Data
The NFP-GM1024-N30-M4 is a precision metal gear motor with a screw threaded shaft for compact motion control projects. It supports 6V and 12V DC power options.
First, this motor is suitable for robotics, model cars, and automation projects. Also, the metal gearbox helps reduce speed and increase torque. Therefore, it can support both hobby projects and professional product designs.
In addition, the motor supports CW and CCW rotation. As a result, it can provide forward and reverse movement in compact drive systems.
Main Product Features
- First, metal gearbox: The gear structure helps provide stable low-speed torque.
- In addition, voltage options: The motor supports 6V and 12V DC systems.
- Also, compact body: The small N30 size helps save installation space.
- Next, reversible rotation: CW and CCW rotation support forward and reverse movement.
- Finally, high torque output: Higher ratios can provide stronger output for small mechanisms.
General Motor Data
Next, the table below helps users check shaft size, voltage, speed range, current, rotation, and weight. Therefore, it is easier to confirm whether this N30 gear motor fits the final product design.
| Motor Model | NFP-GM1024-N30-M4 |
|---|---|
| Shaft Diameter | 3mm |
| Shaft Length | 10mm |
| Rated Voltage | 6V / 12V DC |
| No Load Speed | 15rpm – 320rpm |
| No Load Current | ≤0.045A / ≤0.065A |
| Rotation | CW / CCW |
| Weight | appr. 18g |
Also, the 3mm shaft and compact weight support small drive layouts. As a result, this motor is useful for miniature mechanisms, robots, and compact automation devices.
Model: NFP-GM1024-N30-M4, 6V DC
First, the 6V DC version provides low-speed output with controlled current. Also, the table below shows how each ratio changes gearbox length, speed, current, torque, and stall data.
| Ratio | Gearbox Length | No Load Current | No Load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 50:1 | 9.0mm | ≤0.045A | 155rpm | ≤0.15A | 100rpm | 0.17kg.cm | ≤0.3A | ≥0.6kg.cm |
| 100:1 | 9.0mm | ≤0.045A | 78rpm | ≤0.15A | 50rpm | 0.35kg.cm | ≤0.3A | ≥1.2kg.cm |
| 150:1 | 9.0mm | ≤0.045A | 52rpm | ≤0.15A | 33rpm | 0.5kg.cm | ≤0.3A | ≥1.8kg.cm |
| 200:1 | 9.0mm | ≤0.045A | 38rpm | ≤0.15A | 25rpm | 0.7kg.cm | ≤0.3A | ≥2.4kg.cm |
| 350:1 | 9.0mm | ≤0.045A | 22rpm | ≤0.15A | 14rpm | 1.2kg.cm | ≤0.3A | ≤3.0kg.cm |
| 500:1 | 9.0mm | ≤0.045A | 15rpm | ≤0.15A | 10rpm | 2.5kg.cm | ≤0.3A | ≤3.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
Also, the 500:1 ratio gives the lowest speed and highest rated torque in the 6V table. Therefore, it is useful for slow and strong compact motion.
Model: NFP-GM1024-N30-M4, 12V DC
Next, the 12V DC version provides higher speed and stronger torque than the 6V version. As a result, it is suitable for compact systems that need more output from the same motor structure.
Typical Applications
Finally, this precision metal gear motor is suitable for compact products that need low speed, high torque, and reliable gearbox output. For example, it can work in robotics, model cars, automation equipment, and small mechanical systems.
- Robotics
- Model cars
- Automation equipment
- Small mechanical systems
- Miniature drive modules
- Compact gearbox motor projects
- Low-speed high-torque devices
Related Motor Models & Options
If you are exploring other motor sizes or alternative gear mechanisms for your project, consider these options:
- Looking for a standard N30 motor without the M4 screw shaft? Check out the 12mm Metal Gear Motor Model NFP-GM1024-N30.
- For standard 12mm gearbox options, see the 12mm Standard Gear Motor Model NFP-GM1024-N20VA.
- Need a larger frame for higher output? Explore the 16mm Metal Gear Motor Model NFP-GM13-050-M3-L.
- For ultra-compact micro step applications, check the 10mm Micro Step Gear Motor – 20mm Type Model NFP-GM12-10-20.
- If your project requires linear drive control, view the 9V DC Linear Stepper Motor Actuator Model NFP-SM1545.
In short, the NFP-GM1024-N30-M4 precision metal gear motor is a good fit for products that need 6V or 12V DC power, compact N30 size, metal gearbox output, ratio selection, and stable low-speed torque.
Keywords: small gear motor, N30 motor specifications, N30 motor for robotics, compact gear motor, buy N30 gear motor
