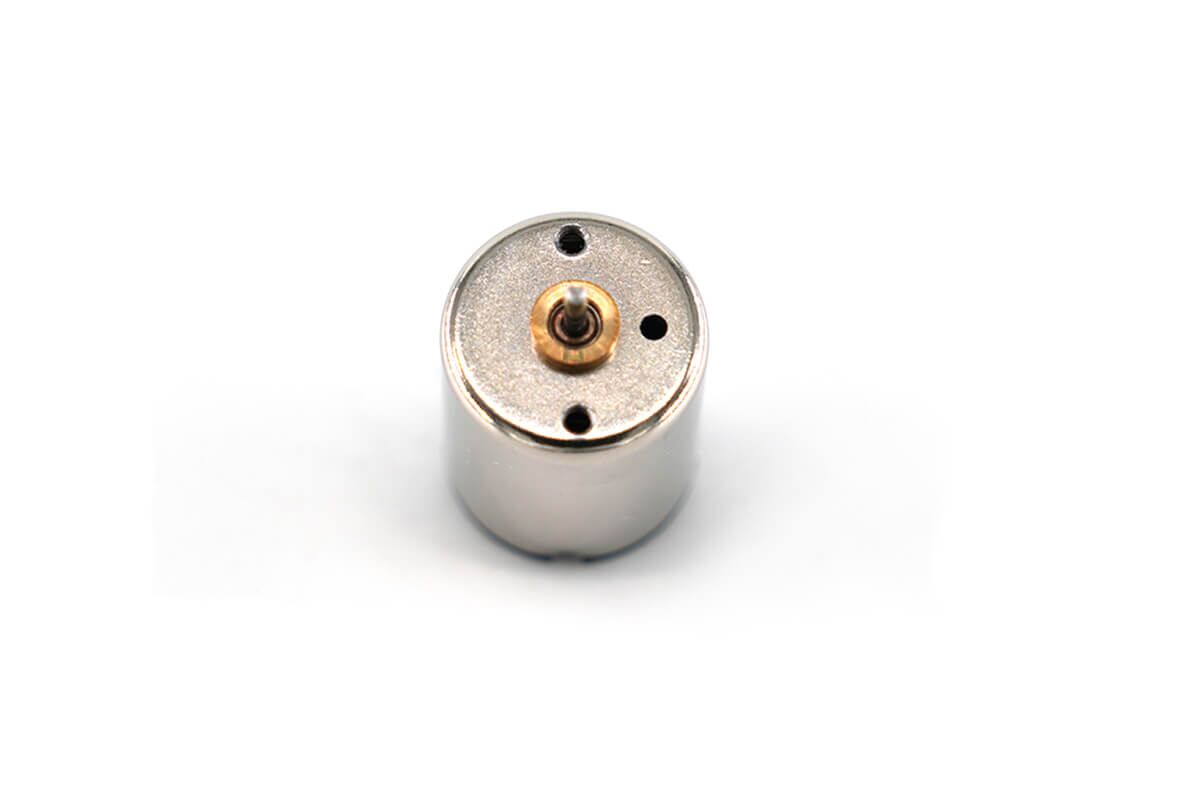

12mm Coreless DC Motor – 15mm Type Model NFP-D1215C
$8.00
Discover the precision and reliability of our 12mm Coreless DC Motor, designed for efficient performance in compact applications. Order yours today!
| Quantity | Price | Discount |
|---|---|---|
| 20 - 99 | $8.00 | 0% |
| 100 - 999 | $2.95 | 63.13% |
| 1000+ | $2.65 | 66.88% |
12mm Small Coreless Motor Parameters
The NFP-D1215C is a 12mm small coreless motor for compact and high-speed products. It works at 12V DC and provides fast output in a small body.
First, this motor has a 12mm diameter and 15.2mm body length. Also, it provides 55,000rpm no-load speed. Therefore, it is useful for compact products that need high speed and strong output.
In addition, the coreless structure helps reduce rotor inertia. As a result, the motor can start quickly and run smoothly in small drive systems.
Main Product Features
- First, compact size: The 12mm diameter body fits small product spaces.
- In addition, high speed: The no-load speed reaches 55,000rpm ± 10%.
- Also, low start voltage: The motor can start at 0.8V max.
- Next, strong torque: The stall torque reaches 100g.cm.
- Finally, CW rotation: The motor is designed for clockwise rotation.
Main Specifications
Next, the table below helps users check voltage, size, shaft data, current, speed, torque, rotation, and terminal resistance. Therefore, it is easier to confirm whether this motor fits the final product design.
| Motor Model | NFP-D1215C |
|---|---|
| Voltage | 12V DC |
| Body Length – A | 15.2 ± 0.2mm |
| Motor Diameter – B | 12 ± 0.05mm |
| Output Shaft Length – C | 4.6 ± 0.3mm / 7.9 ± 0.3mm |
| Output Shaft Diameter – D | 1.0 ± 0.005mm |
| Copper Ring Outer Diameter – E | 4.0 ± 0.03mm |
| Copper Ring Thickness – F | 0.95mm |
| Pitch | 8.5 ± 0.1mm |
| Positioning Hole | 1.2mm |
| Positioning Hole Position | 3.5 ± 0.1mm |
| Pin Length | 2.2 ± 0.3mm |
| Screw Hole | M1.4mm |
| Metal Pin Spacing | 5.8mm |
| No Load Current at Room Temperature | 180mA max |
| No Load Speed | 55,000 ± 10%rpm |
| Starting Voltage | 0.8V max |
| Stall Current | 5,800mA max |
| Rotation | CW |
| Stall Torque | 100g.cm |
| Terminal Resistance | 2.35 ± 15%Ω |
Also, the NFP-D1215C has two output shaft length options. As a result, users can choose the shaft style based on the product structure and mounting space.
12mm Coreless DC Motor Outline Drawing
First, the outline drawing shows the NFP-D1215C motor body, shaft, pin spacing, and mounting details. Therefore, users can check the motor fit before product design.
In addition, the compact 12mm body helps save space in small devices. As a result, this motor can support products that need high speed and limited installation space.
Outline Drawing and Design Benefits
- First, compact body: The 12mm x 15.2mm size helps save space.
- In addition, shaft options: The output shaft length can be 4.6mm or 7.9mm.
- Also, easy mounting: The M1.4 screw hole helps with product assembly.
- Next, high-speed output: The motor can reach 55,000rpm ± 10%.
- Finally, stable structure: The positioning hole and pin spacing help support accurate fitting.
Typical Applications
Next, this motor is suitable for products that need compact size, high speed, and low power use. For example, it can work in miniature pumps, optical devices, and robotics.
- Miniature pumps
- Optical devices
- Robotics
- Medical devices
- Portable electronic products
- Compact high-speed drive systems
Finally, the NFP-D1215C 12mm coreless motor is a good fit for compact products that need high speed, strong torque, low start voltage, and smooth coreless motor output.
Keywords: 12mm coreless motor, NFP-D1215S, high speed coreless motor, low consumption motor, precision coreless motor, 15mm coreless motor
