12mm Metal Gear Motor Model NFP-GM1024-N20-EN
$13.90
Discover the efficiency of the U-type N20 gear motor encoder type. With multiple voltage options and excellent performance, enhance your projects today!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $13.90 | 0% |
| 10 - 19 | $12.40 | 10.79% |
| 20 - 49 | $10.40 | 25.18% |
| 50 - 99 | $9.70 | 30.22% |
| 100 - 499 | $9.00 | 35.25% |
| 500+ | $8.30 | 40.29% |
Miniature N20 Gear Motor With Encoder Specifications
Product Overview

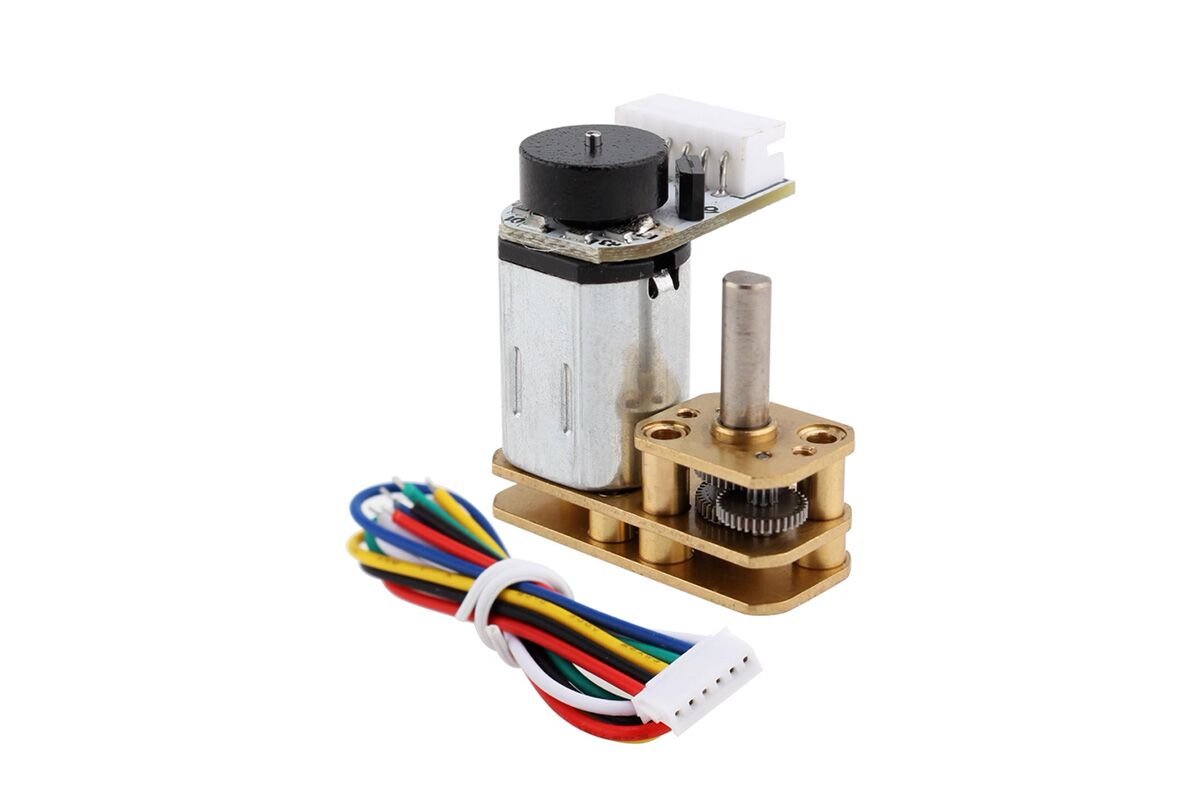

The NFP-GM1024-N20-EN is a miniature N20 DC gear motor with encoder support. Therefore, it is suitable for compact drive systems that need speed feedback, direction control, and stable low-speed output.
In addition, this motor supports 3V, 6V, and 12V DC options. As a result, users can choose a suitable voltage and gear ratio for different motion control projects.
Main Features
- Compact N20 gearbox: The small gearbox body helps save installation space. Therefore, it fits miniature equipment and compact mechanisms.
- Encoder support: The encoder can provide feedback for speed or position control. As a result, it helps improve motion accuracy.
- Multiple voltage options: Users can choose 3V, 6V, or 12V DC versions. In addition, this helps match different power systems.
- CW and CCW rotation: The motor supports forward and reverse rotation. Therefore, it works well for two-way drive systems.
- Multiple gear ratios: The available ratios include 50:1, 100:1, 150:1, 200:1, 350:1, and 500:1. Moreover, users can balance speed and torque by selecting the right ratio.
Basic Motor Data
The table below shows the main motor data. Therefore, users can check shaft size, voltage, rotation, and weight before testing.
| Model | NFP-GM1024-N20-EN |
|---|---|
| Shaft Diameter | 3mm, 2.5mm D-Cut |
| Shaft Length | 10mm ± 0.3mm |
| Rated Voltage | 3V / 6V / 12V DC |
| Rotation | CW / CCW |
| Weight | appr. 13g |
3V DC 06Type Performance Data
The table below shows the 3V DC 06Type version. Therefore, users can compare speed, current, torque, and stall data before choosing a ratio.
Model: NFP-GM1024-N20-EN, 3V DC, 06Type
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 50:1 | ≤0.05A | 155rpm | ≤0.11A | 90rpm | 0.17kg.cm | ≤0.3A | ≥0.4kg.cm |
| 100:1 | ≤0.05A | 77rpm | ≤0.11A | 45rpm | 0.35kg.cm | ≤0.3A | ≥0.8kg.cm |
| 150:1 | ≤0.05A | 50rpm | ≤0.11A | 30rpm | 0.5kg.cm | ≤0.3A | ≥1.2kg.cm |
| 200:1 | ≤0.05A | 38rpm | ≤0.11A | 22rpm | 0.7kg.cm | ≤0.3A | ≥1.6kg.cm |
| 350:1 | ≤0.05A | 22rpm | ≤0.11A | 12rpm | 1.2kg.cm | ≤0.3A | ≥2.8kg.cm |
| 500:1 | ≤0.05A | 15rpm | ≤0.11A | 9rpm | 1.7kg.cm | ≤0.3A | ≤3kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
3V DC K100 Performance Data
The table below shows the 3V DC K100 version. In addition, this version provides higher no-load speed than the 3V 06Type option.
Model: NFP-GM1024-N20-EN, 3V DC, K100
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 50:1 | ≤0.15A | 300rpm | ≤0.45A | 150rpm | 0.2kg.cm | ≤1.1A | ≥0.5kg.cm |
| 100:1 | ≤0.15A | 150rpm | ≤0.45A | 80rpm | 0.4kg.cm | ≤1.1A | ≥1kg.cm |
| 150:1 | ≤0.15A | 100rpm | ≤0.45A | 52rpm | 0.6kg.cm | ≤1.1A | ≥1.5kg.cm |
| 200:1 | ≤0.15A | 72rpm | ≤0.45A | 38rpm | 0.8kg.cm | ≤1.1A | ≤3kg.cm |
| 350:1 | ≤0.15A | 42rpm | ≤0.45A | 22rpm | 1.5kg.cm | ≤1.1A | ≤3kg.cm |
| 500:1 | ≤0.15A | 30rpm | ≤0.45A | 15.5rpm | 2kg.cm | ≤1.1A | ≤3kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
6V DC 06Type Performance Data
The table below shows the 6V DC 06Type version. Therefore, users can choose this option when they need a 6V low-current gear motor.
Model: NFP-GM1024-N20-EN, 6V DC, 06Type
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 50:1 | ≤0.065A | 310rpm | ≤0.17A | 180rpm | 0.17kg.cm | ≤0.6A | ≥0.8kg.cm |
| 100:1 | ≤0.065A | 155rpm | ≤0.17A | 90rpm | 0.35kg.cm | ≤0.6A | ≥1.5kg.cm |
| 150:1 | ≤0.065A | 105rpm | ≤0.17A | 60rpm | 0.5kg.cm | ≤0.6A | ≥2.2kg.cm |
| 200:1 | ≤0.065A | 77rpm | ≤0.17A | 45rpm | 0.7kg.cm | ≤0.6A | ≥2.7kg.cm |
| 350:1 | ≤0.065A | 44rpm | ≤0.17A | 25rpm | 1.2kg.cm | ≤0.6A | ≤3kg.cm |
| 500:1 | ≤0.065A | 31rpm | ≤0.17A | 18pm | 1.7kg.cm | ≤0.6A | ≤3kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
6V DC K100 Performance Data
The table below shows the 6V DC K100 version. Moreover, this option provides higher speed and higher rated torque than the 6V 06Type version.
Model: NFP-GM1024-N20-EN, 6V DC, K100
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 50:1 | ≤0.2A | 600rpm | ≤0.9A | 300rpm | 0.4kg.cm | ≤2.1A | ≥1kg.cm |
| 100:1 | ≤0.2A | 300rpm | ≤0.9A | 160rpm | 0.8kg.cm | ≤2.1A | ≥2kg.cm |
| 150:1 | ≤0.2A | 200rpm | ≤0.9A | 105rpm | 1.2kg.cm | ≤2.1A | ≤3kg.cm |
| 200:1 | ≤0.2A | 145rpm | ≤0.9A | 76rpm | 1.5kg.cm | ≤2.1A | ≤3kg.cm |
| 350:1 | ≤0.2A | 85rpm | ≤0.9A | 44rpm | 3kg.cm | ≤2.1A | ≤3kg.cm |
| 500:1 | ≤0.2A | 60rpm | ≤0.9A | 31rpm | 3kg.cm | ≤2.1A | ≤3kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
12V DC A12Type Performance Data
The table below shows the 12V DC A12Type version. Therefore, users can choose this option for 12V drive systems that need compact size and encoder feedback.
Model: NFP-GM1024-N20-EN, 12V DC, A12Type
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 50:1 | ≤0.065A | 440rpm | ≤0.22A | 230rpm | 0.4kg.cm | ≤0.6A | ≥0.6kg.cm |
| 100:1 | ≤0.065A | 220rpm | ≤0.22A | 130rpm | 0.8kg.cm | ≤0.6A | ≥1.2kg.cm |
| 150:1 | ≤0.065A | 145rpm | ≤0.22A | 85rpm | 1.2kg.cm | ≤0.6A | ≥1.7kg.cm |
| 200:1 | ≤0.065A | 110rpm | ≤0.22A | 60rpm | 1.5kg.cm | ≤0.6A | ≥2.3kg.cm |
| 350:1 | ≤0.065A | 62rpm | ≤0.22A | 32rpm | 2.8kg.cm | ≤0.6A | ≤3kg.cm |
| 500:1 | ≤0.065A | 44rpm | ≤0.22A | 27pm | 3kg.cm | ≤0.6A | ≤3kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
N20 Reduction Gear Motor Outline Drawing
Motor Outline
The outline drawing below shows the N20 reduction gear motor with encoder structure. Therefore, users can check the shaft size, gearbox shape, and mounting space before product design.
Typical Applications
This miniature N20 gear motor works well in compact motion control systems. For example, users can apply it to smart products, small automation modules, and precision adjustment devices.
- Intelligent robots: The motor can support compact wheel drive or small joint movement.
- Intelligent manipulators: The encoder helps improve motion feedback and control accuracy.
- Smart furniture: The motor can drive small adjustment mechanisms.
- Intelligent focusing systems: The gearbox supports precise low-speed motion.
- Miniature pan/tilt heads: The motor can support compact angle adjustment systems.
Keywords:
n20 motor gearbox, n20 geared motor, n20 micro gear motor, n20 dc gear motor, micro speed reduction gear box motor, 100rpm gear motor, 6v gear motor
