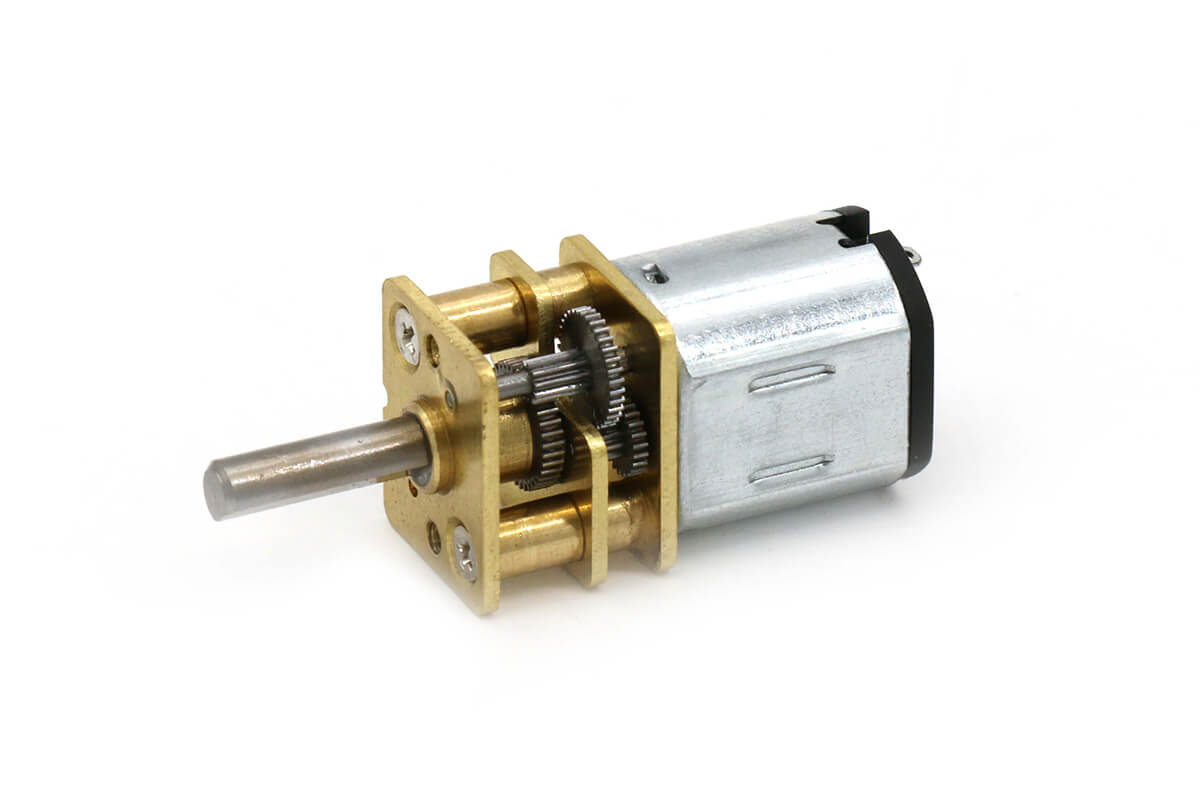

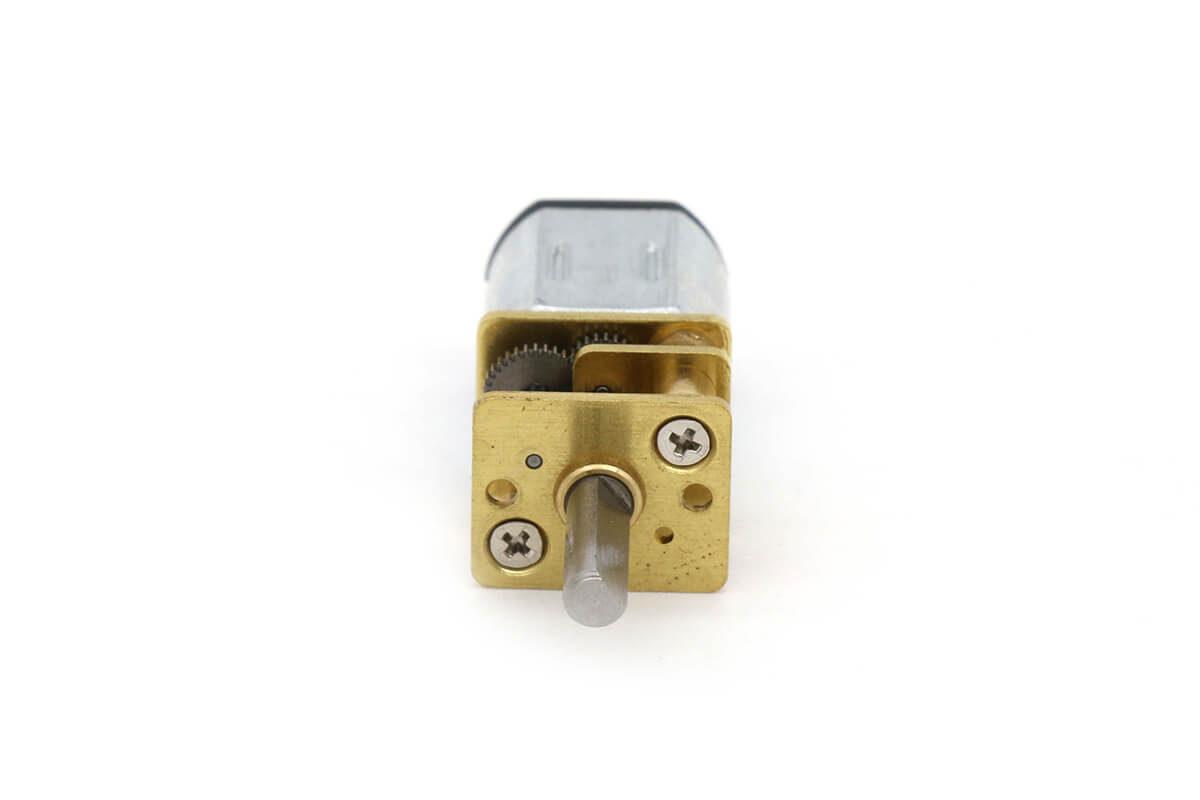

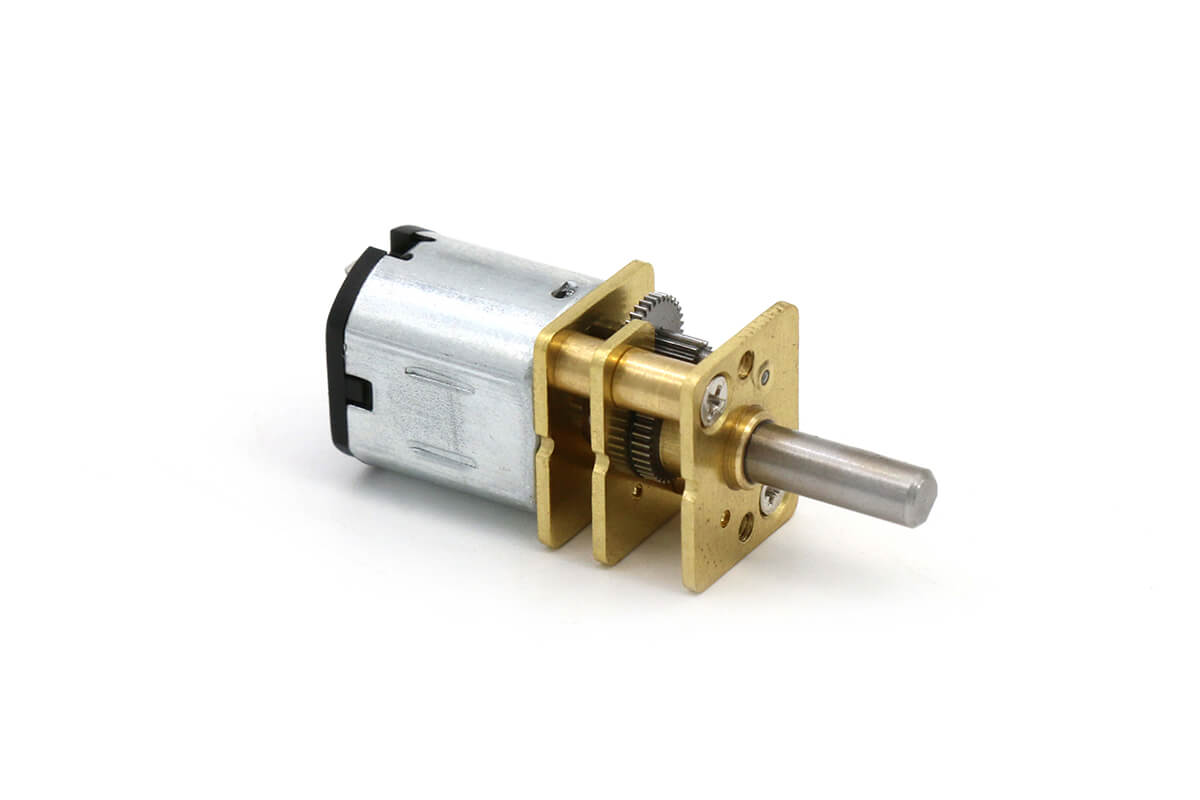

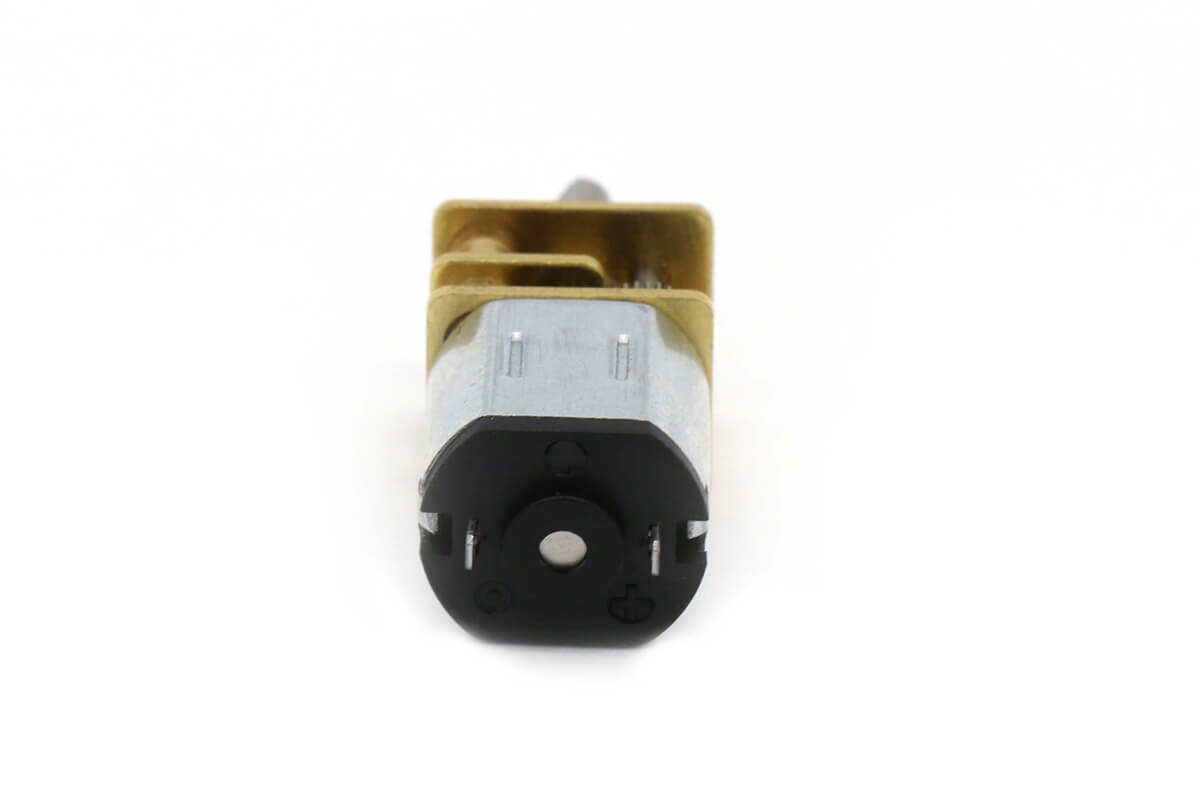

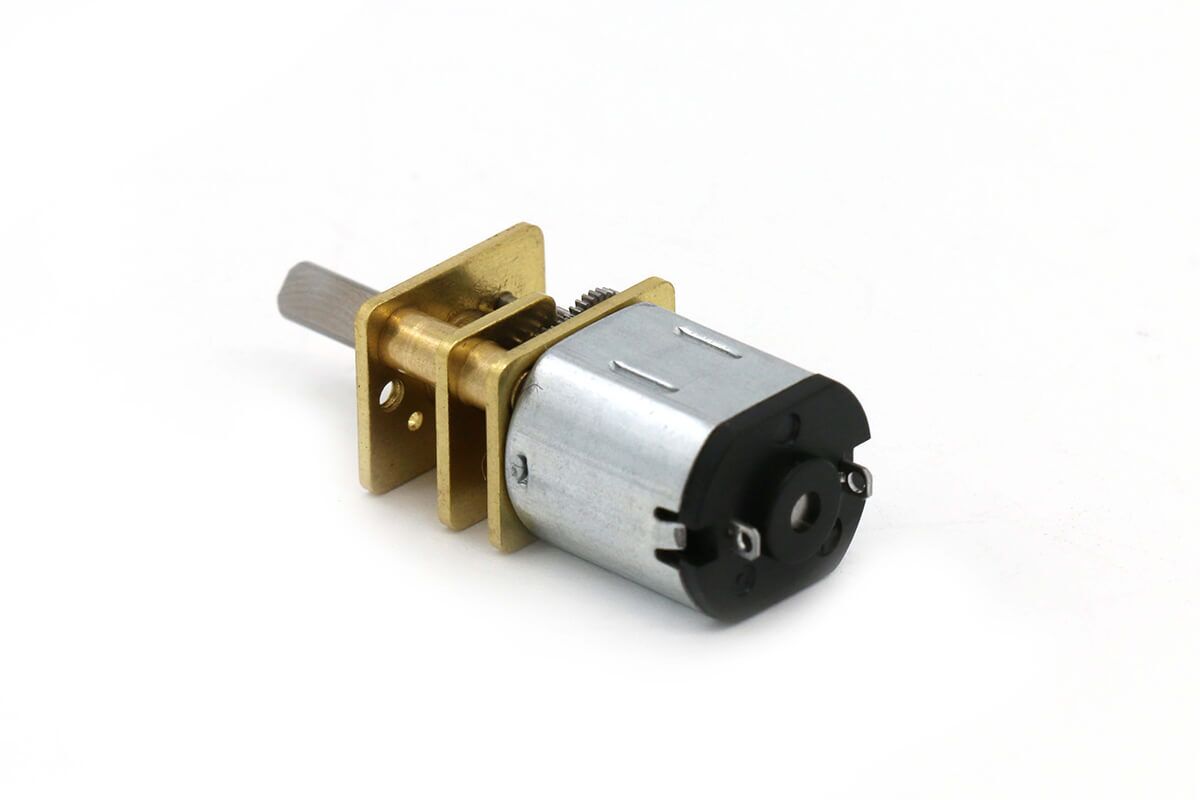

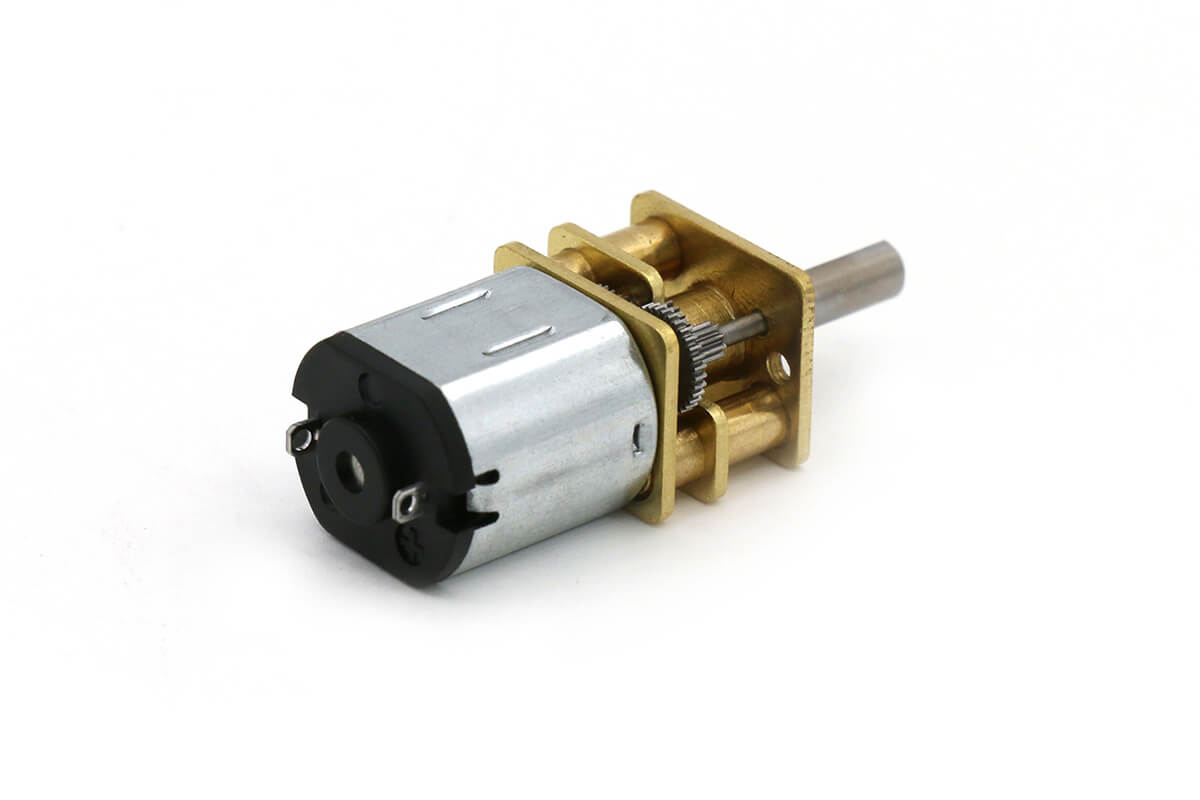

12mm Metal Gear Motor Model NFP-GM12-N10
$9.50
Elevate your small projects with the compact 12mm N10 gear motor dc 3v. Perfect for high torque needs in robotics and DIY applications! ⚙️
12mm Miniature DC Gear Performance
Product Overview
The NFP-GM12-N10VA is a small DC gear motor with a compact 12mm gearbox. Therefore, it is suitable for precision applications in robotics, automation, and small DIY projects.
In addition, this motor series provides several voltage and speed options. As a result, users can choose the right balance between output speed and torque.
Moreover, the metal gearbox helps increase torque in a small body. Therefore, it is useful for compact mechanical designs that need low speed and stable output.
Main Features
- Compact 12mm gearbox: The small gearbox saves installation space. Therefore, it fits miniature devices and tight layouts.
- Multiple gear ratios: Users can choose ratios from 10:1 to 380:1. As a result, the motor can match different speed and torque needs.
- Low-voltage operation: The motor supports 1.5V, 3V, and 6V DC options. In addition, it suits small battery-powered systems.
- High torque output: The gearbox increases torque at lower speed. Therefore, it works well for small drive mechanisms.
- Easy integration: The motor can work with shafts, couplings, and speed controller modules. Moreover, users can build compact motion systems more easily.
1.5V DC 92Type Performance Data
The table below shows the 1.5V DC 92Type version. Therefore, users can compare speed, current, torque, and stall data before choosing a ratio.
Model: NFP-GM12-N10VA-15105, 1.5V DC, 92Type
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤65mA | 1,050rpm | ≤0.25A | 500rpm | 30g.cm | ≤0.5A | ≥0.06kg.cm |
| 20:1 | ≤65mA | 530rpm | ≤0.25A | 250rpm | 60g.cm | ≤0.5A | ≥0.12kg.cm |
| 30:1 | ≤65mA | 350rpm | ≤0.25A | 165rpm | 100g.cm | ≤0.5A | ≥0.18kg.cm |
| 50:1 | ≤65mA | 210rpm | ≤0.25A | 100rpm | 150g.cm | ≤0.5A | ≥0.3kg.cm |
| 100:1 | ≤65mA | 105rpm | ≤0.25A | 50rpm | 300g.cm | ≤0.5A | ≥0.6kg.cm |
| 150:1 | ≤65mA | 70rpm | ≤0.25A | 33rpm | 450g.cm | ≤0.5A | ≥0.9kg.cm |
| 210:1 | ≤65mA | 50rpm | ≤0.25A | 23rpm | 630g.cm | ≤0.5A | ≥1.2kg.cm |
| 298:1 | ≤65mA | 35rpm | ≤0.25A | 16rpm | 900g.cm | ≤0.5A | ≥1.6kg.cm |
| 380:1 | ≤65mA | 27rpm | ≤0.25A | 13rpm | 1,100g.cm | ≤0.5A | ≥2kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
3V DC 07Type Performance Data
The table below shows the 3V DC 07Type version. In addition, this option provides stable output for low-current compact motor systems.
Model: NFP-GM12-N10VA-0310-12, 3V DC, 07Type
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤50mA | 950rpm | ≤0.13A | 480rpm | 30g.cm | ≤0.25A | ≥0.06kg.cm |
| 20:1 | ≤50mA | 480rpm | ≤0.13A | 240rpm | 60g.cm | ≤0.25A | ≥0.12kg.cm |
| 30:1 | ≤50mA | 315rpm | ≤0.13A | 160rpm | 100g.cm | ≤0.25A | ≥0.18kg.cm |
| 50:1 | ≤50mA | 190rpm | ≤0.13A | 95rpm | 150g.cm | ≤0.25A | ≥0.3kg.cm |
| 100:1 | ≤50mA | 95rpm | ≤0.13A | 48rpm | 300g.cm | ≤0.25A | ≥0.6kg.cm |
| 150:1 | ≤50mA | 62rpm | ≤0.13A | 31rpm | 450g.cm | ≤0.25A | ≥0.9kg.cm |
| 210:1 | ≤50mA | 45rpm | ≤0.13A | 22rpm | 630g.cm | ≤0.25A | ≥1.2kg.cm |
| 298:1 | ≤50mA | 32rpm | ≤0.13A | 15rpm | 900g.cm | ≤0.25A | ≥1.6kg.cm |
| 380:1 | ≤50mA | 25rpm | ≤0.13A | 12rpm | 1,100g.cm | ≤0.25A | ≥2kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
3V DC 92Type Performance Data
The table below shows the 3V DC 92Type version. Moreover, this option provides higher speed and higher torque than the 3V 07Type version.
Model: NFP-GM12-N10VA-0322-42, 3V DC, 92Type
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤85mA | 2,150rpm | ≤0.5A | 1,050rpm | 40g.cm | ≤1A | ≥0.08kg.cm |
| 20:1 | ≤85mA | 1,080rpm | ≤0.5A | 520rpm | 80g.cm | ≤1A | ≥0.16kg.cm |
| 30:1 | ≤85mA | 720rpm | ≤0.5A | 350rpm | 120g.cm | ≤1A | ≥0.24kg.cm |
| 50:1 | ≤85mA | 430rpm | ≤0.5A | 210rpm | 200g.cm | ≤1A | ≥0.4kg.cm |
| 100:1 | ≤85mA | 215rpm | ≤0.5A | 105rpm | 400g.cm | ≤1A | ≥0.8kg.cm |
| 150:1 | ≤85mA | 145rpm | ≤0.5A | 70rpm | 600g.cm | ≤1A | ≥1.2kg.cm |
| 210:1 | ≤85mA | 105rpm | ≤0.5A | 50rpm | 800g.cm | ≤1A | ≥1.7kg.cm |
| 298:1 | ≤85mA | 72rpm | ≤0.5A | 35rpm | 1,200g.cm | ≤1A | ≥2.2kg.cm |
| 380:1 | ≤85mA | 57rpm | ≤0.5A | 27rpm | 1,500g.cm | ≤1A | ≥3kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
6V DC 07Type Performance Data
The table below shows the 6V DC 07Type version. Therefore, users can choose this version for 6V products that need higher speed in a compact gearbox.
Model: NFP-GM12-N10VA-0621-35, 6V DC, 07Type
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤65mA | 2,100rpm | ≤0.25A | 1,000rpm | 40g.cm | ≤0.6A | ≥0.08kg.cm |
| 20:1 | ≤65mA | 1,050rpm | ≤0.25A | 500rpm | 80g.cm | ≤0.6A | ≥0.16kg.cm |
| 30:1 | ≤65mA | 700rpm | ≤0.25A | 330rpm | 120g.cm | ≤0.6A | ≥0.24kg.cm |
| 50:1 | ≤65mA | 420rpm | ≤0.25A | 200rpm | 200g.cm | ≤0.6A | ≥0.4kg.cm |
| 100:1 | ≤65mA | 210rpm | ≤0.25A | 100rpm | 400g.cm | ≤0.6A | ≥0.8kg.cm |
| 150:1 | ≤65mA | 140rpm | ≤0.25A | 65rpm | 600g.cm | ≤0.6A | ≥1.2kg.cm |
| 210:1 | ≤65mA | 100rpm | ≤0.25A | 47rpm | 800g.cm | ≤0.6A | ≥1.7kg.cm |
| 298:1 | ≤65mA | 70rpm | ≤0.25A | 33rpm | 1,200g.cm | ≤0.6A | ≥2.2kg.cm |
| 380:1 | ≤65mA | 55rpm | ≤0.25A | 26rpm | 1,500g.cm | ≤0.6A | ≥3kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
N20 Motor With Metal Gearbox Dimensions
Gearbox and Shaft Options
This gearbox can be equipped with other micro DC motors when users have different torque and size requirements. Therefore, it is flexible for custom mechanical designs.
In addition, this small DC gear motor provides low speed and high torque. As a result, it works well in compact drive systems.
Moreover, users can choose from 11 reduction ratios. We can also provide custom gearbox motor options for mechanical design projects.
Output Shaft Options
- Default output shaft: The default output shaft length is 10mm.
- Optional short shaft: We can provide a 4.4mm output shaft length.
- Optional standard shaft: We can also provide a 10mm output shaft length.
- Custom motor matching: The gearbox can match other micro DC motors when torque or size requirements change.
- Ratio selection: Users can choose different reduction ratios to balance speed and torque.
DC Motor Stepless Speed Controller Module
Speed Controller Option
The DC motor stepless speed controller module can help adjust motor speed during testing. Therefore, users can check different speed levels before final product design.
In addition, speed control helps match the motor output with the target load. As a result, users can improve motion performance during prototype testing.
3mm Flange Coupling DC Gear Motor Dimension
Flange Coupling Option
The 3mm flange coupling can help connect the motor shaft to other mechanical parts. Therefore, it is useful for small transmission and linkage designs.
Moreover, the coupling option can simplify assembly in compact motion systems. As a result, users can build a cleaner mechanical structure.
Typical Applications
- Robotics: The motor can drive small wheels, grippers, and linkage systems.
- Automation: It can support compact motion in small machines and control modules.
- DIY projects: Users can use it for small tools, models, and test devices.
- Smart devices: The compact gearbox helps fit tight product spaces.
- Precision mechanisms: The low-speed output supports small adjustment systems.
Keywords:
gear motors, gear motor manufacturers, dc gear motors, 6v geared motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
