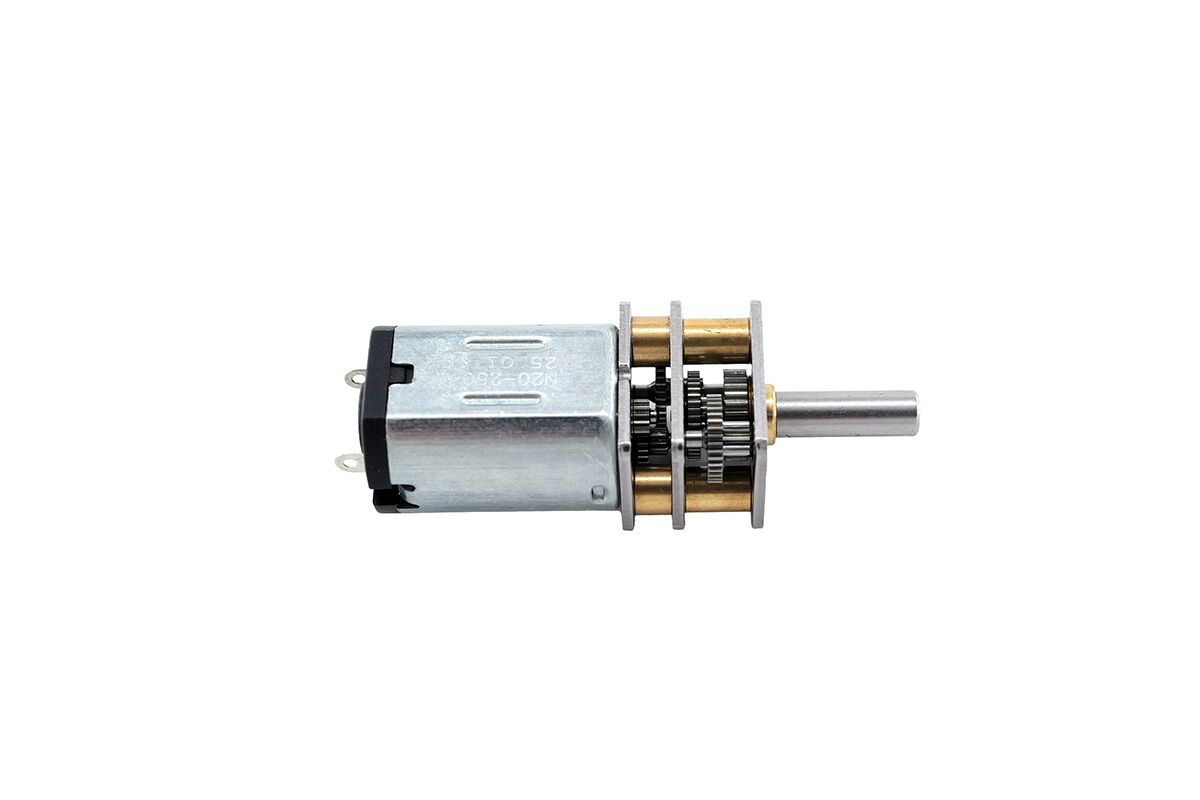

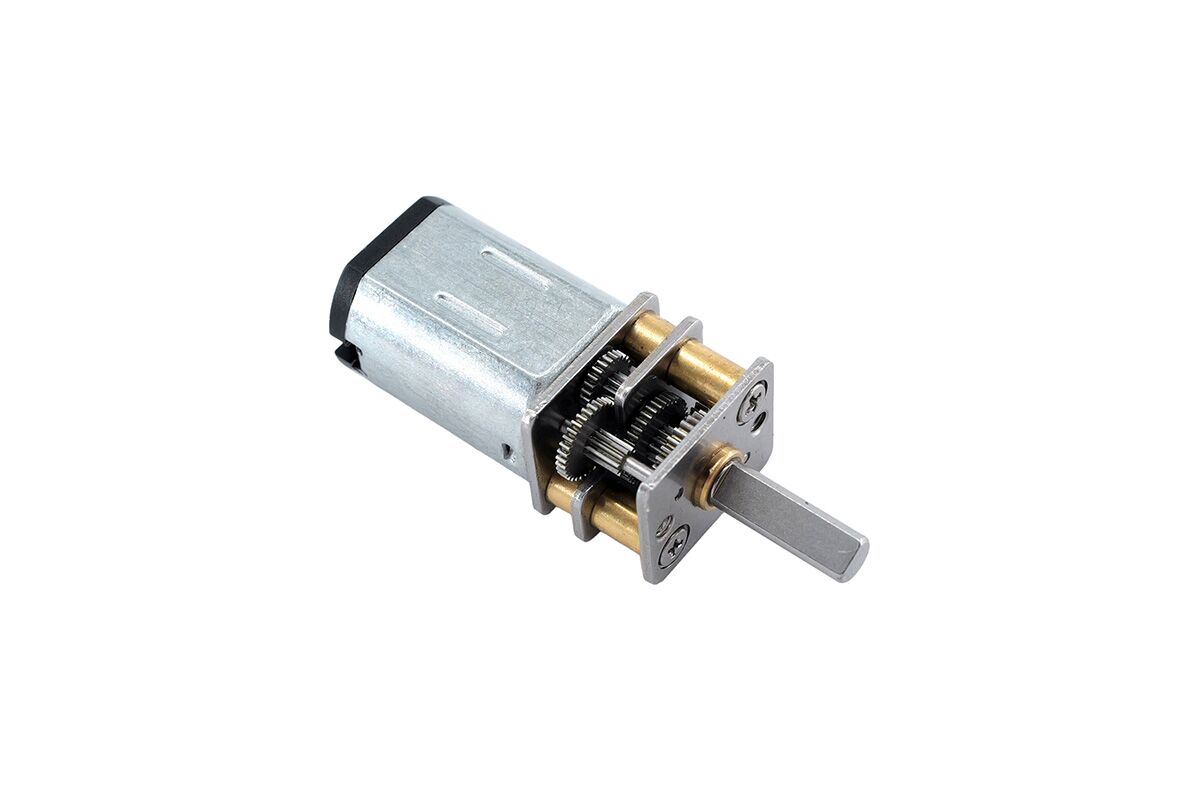

12mm Metal Gear Motor Model NFP-GM12-N20-02501-10D-12V
Original price was: $9.90.$8.50Current price is: $8.50.
Experience the reliability of our 12mm steel gearbox motor. Ideal for rigorous applications, this compact motor offers impressive torque. Get it now!
147 in stock
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $8.50 | 14.14% |
| 10 - 19 | $7.90 | 20.20% |
| 20 - 99 | $5.20 | 47.47% |
| 100 - 499 | $4.80 | 51.52% |
| 500+ | $3.60 | 63.64% |
Steel Gearbox Classic N20 Gear Motor Upgrade Durable Parameters
The NFP-GM12-N20-02501-10D-12.0V is a 12mm metal gear motor for compact products that need high torque, precise control, and durable gearbox output. It works at 12V DC and provides 128rpm no-load speed.
First, this N20 gear motor uses a compact steel gearbox structure. Also, it provides strong stall torque and stable load speed. Therefore, it is useful for demanding applications that need reliable low-speed output.
In addition, the motor has a 10.0mm output shaft length and CW rotation direction. As a result, users can review the shaft and direction data before sample testing.
Main Product Features
- First, steel gearbox: The durable gearbox helps support long-term gear motor operation.
- In addition, high torque: Stall torque reaches ≥3,600g.cm.
- Also, stable load speed: The motor runs at 114rpm ±10% under rated load.
- Next, low starting voltage: The starting voltage is 1.8V max.
- Finally, compact N20 structure: The motor fits small products that need precise movement.
N20 Steel Gear Motor Specification Data
Next, the table below helps users check voltage, speed, current, torque, shaft length, rotation, noise, test condition, and max efficiency data. Therefore, it is easier to confirm whether this motor fits the final product design.
| Parameter | Specification |
|---|---|
| Model | NFP-GM12-N20-02501-10D-12.0V |
| Nominal Voltage | 12 V DC |
| No-load Speed | 128 rpm ± 10% |
| No-load Current | 125 mA max |
| Rated Load | 200 g.cm |
| Load Speed | 114 rpm ±10% |
| Load Current | 215 mA max |
| Stall Torque | ≥ 3,600 g.cm |
| Stall Current | 1.4 A |
| Starting Voltage | 1.8 V max |
| Output Shaft Length | 10.0 mm ±0.1 mm |
| Rotation Direction | CW |
| Noise | 50 dB |
| Test Temperature | 25 °C |
| Humidity | 40 %RH |
| Maximum Efficiency Torque | 836.4 gf.cm |
| Maximum Efficiency Speed | 98.3 rpm |
| Maximum Efficiency Current | 321.6 mA |
| Maximum Efficiency Power | 0.86 W |
| Maximum Efficiency | 22.3 % |
Note: All reduced no-load speeds have a tolerance of ±15%.
Also, the motor provides 836.4gf.cm torque at the maximum efficiency point. As a result, it can support compact mechanisms that need useful torque with controlled speed.
High Precision Steel Gear N20 Gear Motor For Precise Control Outline Drawing
First, the outline drawing helps users review the N20 gear motor body, gearbox, and output shaft. Therefore, it is useful before sample testing and final product design.
In addition, this electric gearbox motor can support many compact products. For example, it can work in small locks, toys, label printers, robots, medical equipment, and intelligent switches.
Outline Drawing and Design Benefits
- First, compact gearbox: The N20 structure helps save installation space.
- In addition, steel gear upgrade: The durable gearbox helps improve wear resistance.
- Also, precise output: The 128rpm speed supports controlled low-speed motion.
- Next, low noise: The test noise value is 50dB.
- Finally, high-torque output: The motor can support demanding small mechanisms.
Typical Applications
Next, this N20 steel gear motor is suitable for compact products that need strong torque, small size, and precise movement. Also, users should test the motor with the real load before bulk orders.
- Small locks
- Toys
- Adult products
- Shared power banks
- Label printers
- Barcode printers
- Robots
- Security monitoring facilities
- Medical equipment
- Intelligent switches
- Steam hair straighteners
- Intelligent wearables
- 3D printing equipment
- Curling devices
- Safes
- Electric screwdrivers
- Display frames
Finally, the NFP-GM12-N20-02501-10D-12.0V steel gearbox motor is a good fit for products that need 12V DC power, 128rpm no-load speed, high torque, compact N20 size, and durable metal gearbox output.
Keywords: gear motors, gear motor manufacturers, dc gear motors, 12v geared motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
