12mm Worm Gear Motor Model NFP-WG1218D-N20
$12.50
Experience the precision and durability of the 12mm metal gear motor, model NFP-N20-GM1218D. This motor delivers high torque and accurate performance, making it ideal for applications requiring compact and reliable operation. Perfect for robotics, automation, and other high-performance tasks.
Dual Output Versatility DC Gear Motor Performance

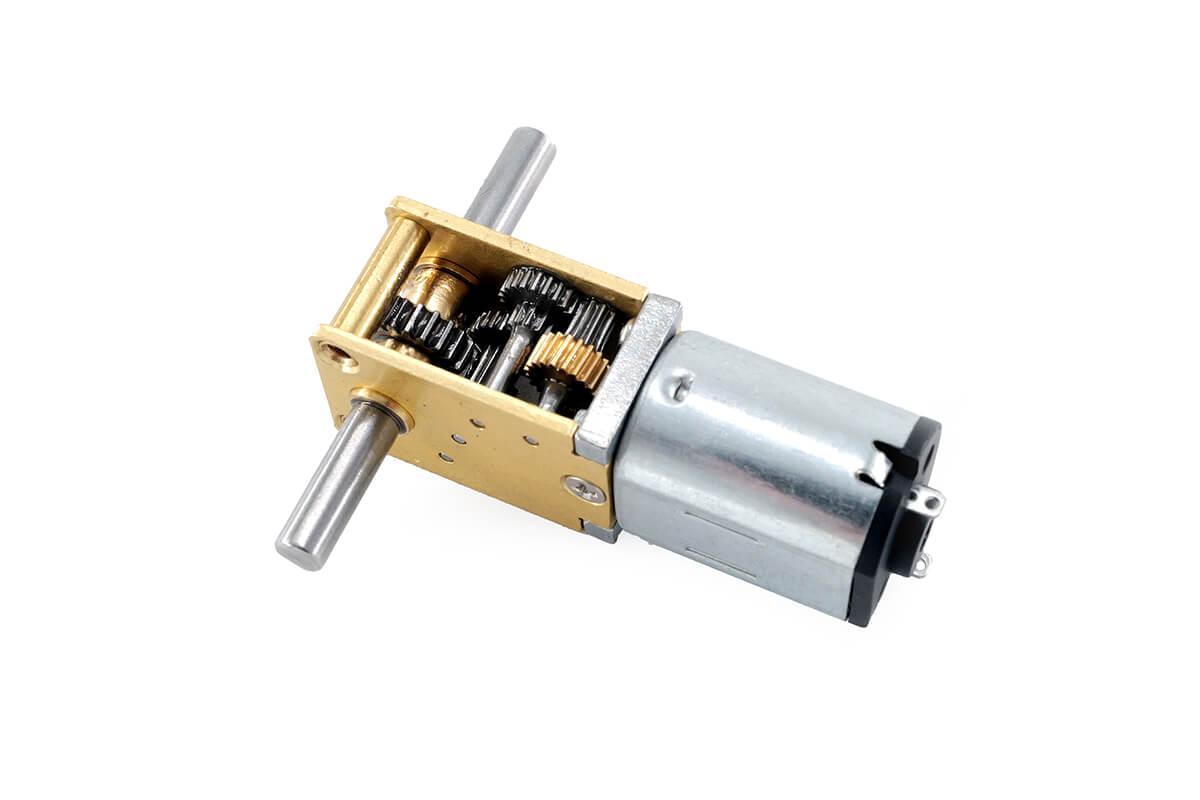

First, the NFP-WG1218D-N20 is a compact dual output DC worm gear motor. Also, it uses a turbine worm gearbox design for small drive systems that need controlled motion.
In addition, the dual output shaft design gives this gear motor more layout flexibility. Therefore, it can support two-side mechanical output in compact products.
Moreover, the worm gearbox helps reduce speed and increase usable torque. As a result, this motor is suitable for smart locks, valves, small robots, meters, toys, and compact automation modules.
Main Product Features
- First, dual output shaft: The two-side shaft design supports flexible mechanical layouts.
- In addition, compact worm gearbox: The gearbox helps save installation space.
- Also, 6V and 12V options: Users can match different low-voltage systems.
- Next, wide ratio range: Ratios from 42:1 to 1030:1 support different speeds.
- Finally, CW and CCW rotation: The motor supports flexible two-way movement.
DC Worm Gear Motor Performance Data
Model: NFP-WG1218D-N20, 6V DC
First, the 6V DC table below helps users compare ratio, current, speed, torque, and stall data. Also, it gives a clear view of the low-voltage performance range.
In addition, lower ratios provide higher output speed. However, higher ratios provide lower speed and stronger torque for slow drive tasks.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 42:1 | ≤20mA | 190rpm | 60mA | 143rpm | 22g.cm | 350mA | 73.5gf.cm |
| 118:1 | ≤20mA | 68rpm | 60mA | 51rpm | 62g.cm | 350mA | 206.5gf.cm |
| 236:1 | ≤20mA | 34rpm | 60mA | 25rpm | 124g.cm | 350mA | 413gf.cm |
| 302:1 | ≤20mA | 26rpm | 60mA | 20rpm | 159g.cm | 350mA | 528gf.cm |
| 603:1 | ≤20mA | 13rpm | 60mA | 10rpm | 317g.cm | 350mA | 1055.3gf.cm |
| 1030:1 | ≤20mA | 8rpm | 60mA | 6rpm | 541g.cm | 350mA | 1802.5gf.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 6V DC version covers speeds from 8rpm to 190rpm. Moreover, the 1030:1 ratio gives the strongest rated torque in this table.
Model: NFP-WG1218D-N20, 12V DC
Next, the 12V DC table shows higher speed and stronger output than the 6V version. Therefore, it is useful for compact 12V drive systems.
Also, this version gives speed options from 16rpm to 381rpm. As a result, users can choose either faster movement or stronger low-speed output.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 42:1 | 30mA | 381rpm | 85mA | 333rpm | 71gf.cm | 700mA | 235.2gf.cm |
| 118:1 | 30mA | 136rpm | 85mA | 119rpm | 142gf.cm | 700mA | 472gf.cm |
| 236:1 | 30mA | 68rpm | 85mA | 59rpm | 283gf.cm | 700mA | 944gf.cm |
| 302:1 | 30mA | 53rpm | 85mA | 46rpm | 362gf.cm | 700mA | 1208gf.cm |
| 603:1 | 30mA | 27rpm | 85mA | 23rpm | 579gf.cm | 700mA | 1929gf.cm |
| 1030:1 | 30mA | 16rpm | 85mA | 14rpm | 989gf.cm | 700mA | 3296gf.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In conclusion, the 12V DC version covers speeds from 16rpm to 381rpm. Also, the 1030:1 ratio gives the strongest rated torque and stall torque in this table.
High Precision DC Worm Gear Motor Design
Speed and Torque Control
First, this geared motor uses a high-quality DC motor with a worm gearbox. Therefore, it can provide useful control over output speed and torque.
In addition, the reduction ratio helps lower speed and increase usable output force. As a result, it is suitable for products that need exact movement and reliable performance.
Compact and Efficient Design
Also, the compact design allows this DC motor with gearbox to fit into tight spaces. Therefore, it can work well in small products where installation space is limited.
Moreover, the efficient low-voltage operation helps reduce power use under suitable load. In short, it is a practical choice for energy-sensitive projects.
DC Motor With Worm Gearbox Dimension
Durable Construction for Long-Lasting Performance
First, the turbine worm dual output shaft geared motor is built with high-quality materials. Therefore, it can support durable performance in compact mechanisms.
In addition, the metal gearbox structure helps improve wear resistance. As a result, the motor can work in demanding small-drive applications under suitable load.
Next, the outline drawing helps users check gearbox size, motor body, dual output shafts, and mounting space. Therefore, it is useful before sample testing and mechanical design.
Outline Drawing and Design Benefits
- First, dual output shafts: The shaft layout supports two-side drive structures.
- In addition, compact body: The small gearbox helps save product space.
- Also, metal gearbox: The gearbox helps improve strength and wear resistance.
- Next, worm gearbox layout: The structure supports slow and controlled output.
- Finally, clear dimensions: The drawing helps reduce design changes before production.
Typical Applications
Finally, this compact dual output DC worm gear motor is useful for products that need low speed, small size, and stable control. For example, it can work in smart locks, valves, robots, toys, meters, and small automation modules.
- First, smart locks: The motor can drive compact locking mechanisms.
- In addition, electric valves: The worm gearbox supports slow movement.
- Also, small robots: The compact gearbox helps save internal space.
- Next, smart devices: The motor can move small mechanical parts.
- Moreover, toys and models: The low-voltage design is easy to use.
- Finally, compact automation modules: The motor supports controlled low-speed movement.
Selection Notes
First, users should choose voltage and ratio based on speed, torque, current, product space, and load. Also, users should confirm the dual output shaft structure before mechanical design.
- First, for 6V systems: Choose the 6V DC version when the product uses a 6V power supply.
- In addition, for 12V systems: Choose the 12V DC version when the product uses a 12V power supply.
- Also, for higher speed: Choose a lower ratio such as 42:1 or 118:1.
- Next, for higher torque: Choose a higher ratio such as 603:1 or 1030:1.
- Moreover, for two-side output: Check the dual shaft direction and available mounting space.
- Finally, for stable use: Keep the motor within rated load and avoid long stall conditions.
In short, the NFP-WG1218D-N20 dual output DC worm gear motor is a good fit for products that need 6V or 12V DC power, compact worm gearbox size, dual output shafts, low speed, and stable torque output.
