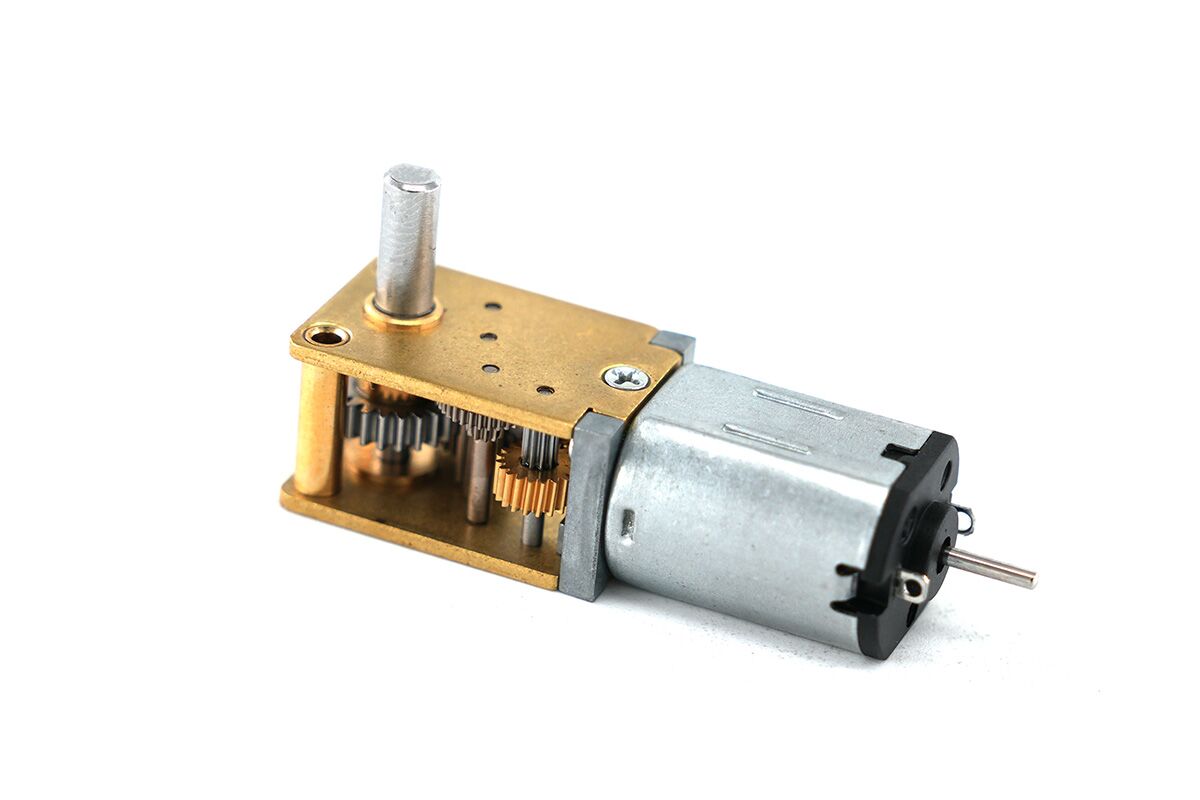

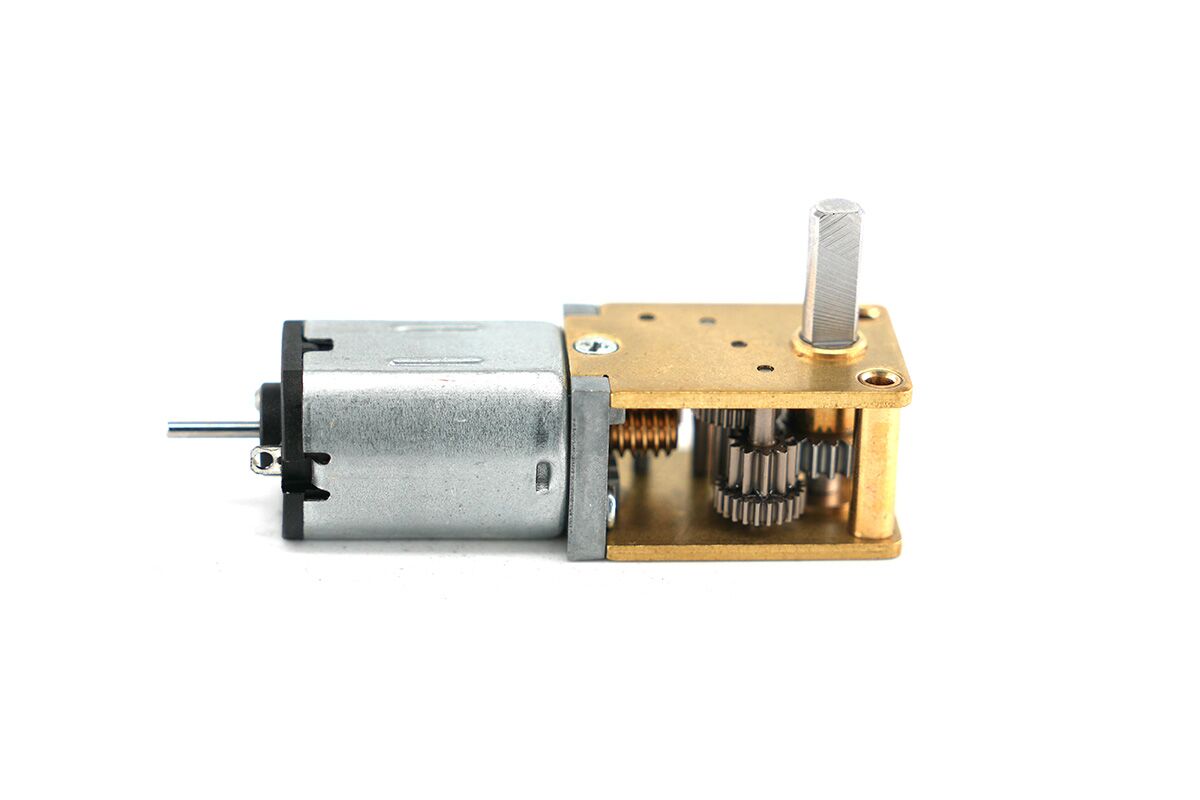

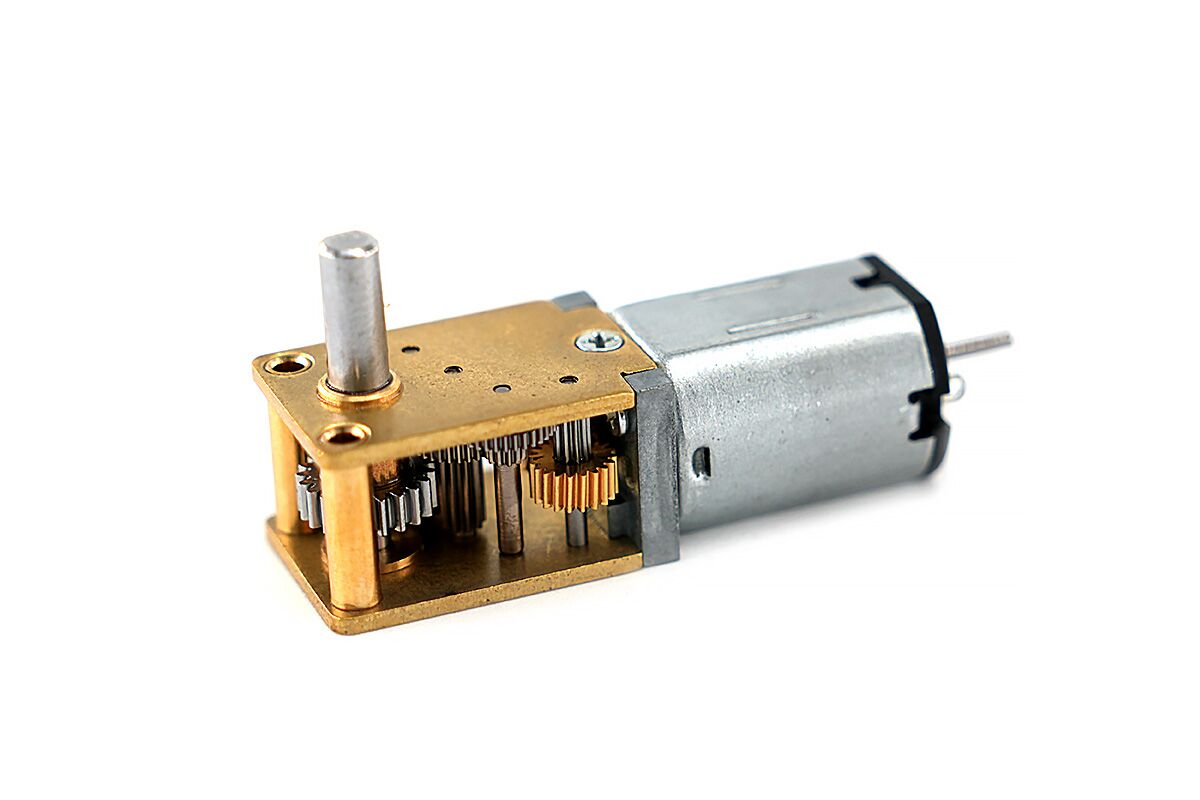

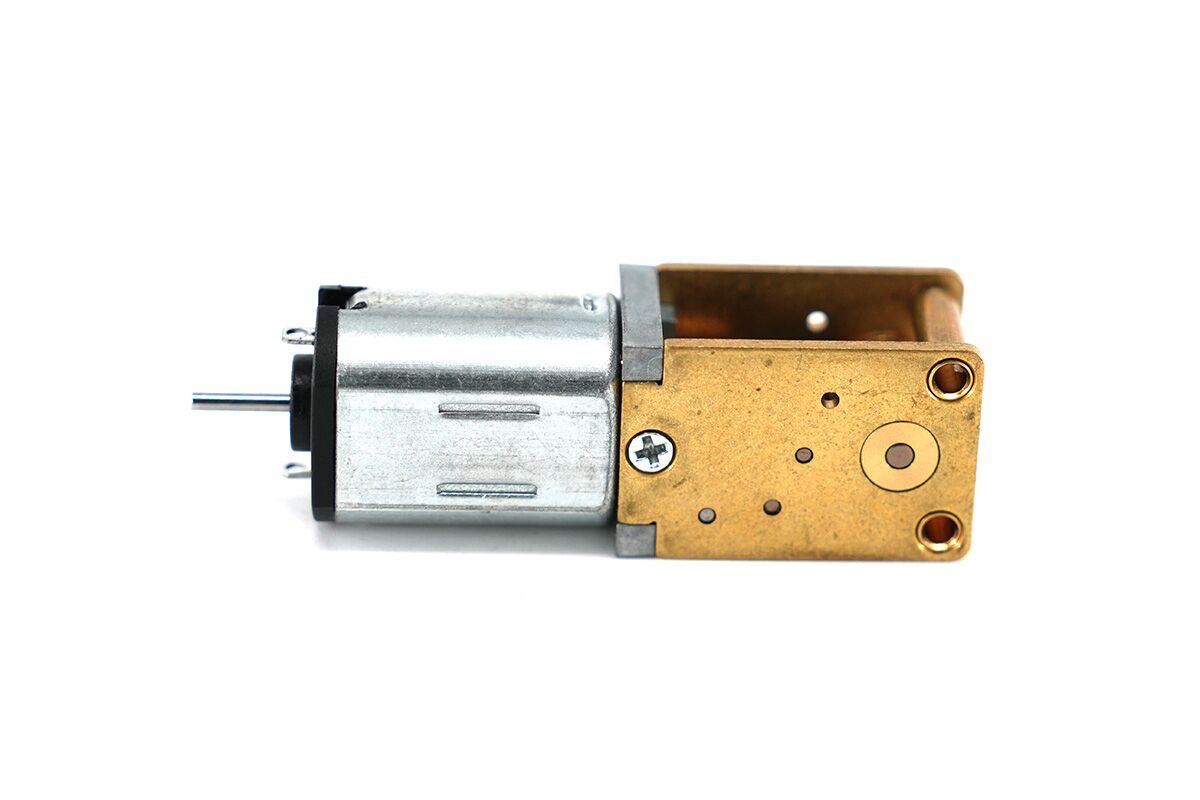

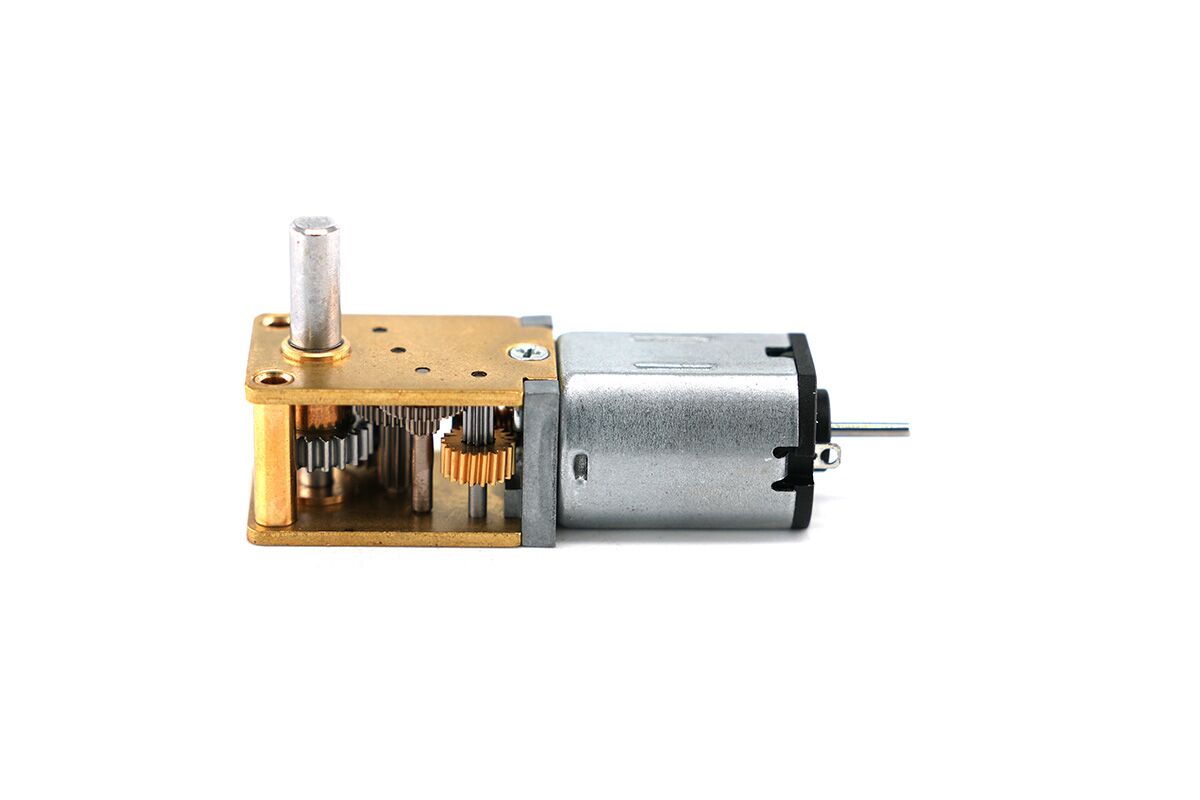

12mm Worm Gear Motor Model NFP-WG1218S-N20
$12.50
Elevate your mechanical design with this efficient 12mm worm gear motor. Suitable for synchronous movements and versatile applications. Buy today!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $12.50 | 0% |
| 10 - 19 | $11.00 | 12% |
| 20 - 49 | $9.70 | 22.40% |
| 50 - 99 | $8.30 | 33.60% |
| 100 - 499 | $5.50 | 56% |
| 500+ | $4.30 | 65.60% |
Single Output Versatility DC Gear Motor Performance
First, the NFP-GW12T-N20VA is a compact DC worm gear motor with a 12mm metal gearbox. Also, it supports 3V, 6V, and 12V DC power for small drive systems.
In addition, the worm gearbox design helps provide low-speed output in a compact structure. Therefore, this motor is useful for small mechanisms that need controlled motion and stable torque.
Moreover, the 3mm output shaft and light 13g body make this motor easy to install. As a result, it can fit small robots, smart devices, locks, valves, and compact control modules.
Main Product Features
- First, compact gearbox: The 12mm worm gearbox helps save installation space.
- In addition, voltage options: The motor supports 3V, 6V, and 12V DC systems.
- Also, wide speed range: Users can choose 11rpm to 550rpm output speed.
- Next, 3mm shaft: The output shaft helps connect small gears, levers, and wheels.
- Finally, CW and CCW rotation: The motor supports flexible two-way motion.
Single Motor Technical Data
First, the table below shows the main motor data. Also, it helps users check voltage, speed, current, power, shaft size, rotation, and weight before choosing a ratio.
| Model | NFP-GW12T-N20VA |
|---|---|
| Rated Voltage | 3V / 6V / 12V DC |
| No-load Speed | 11rpm – 550rpm |
| No-load Current | ≤0.035A / ≤0.065A / ≤0.08A |
| Rated Load Power | 0.1W / 0.15W / 0.2W / 0.6W |
| Shaft Diameter | 3mm |
| Shaft Length | 8mm |
| Rotation | CW / CCW |
| Weight | appr. 13g |
As a result, this model gives a compact worm gear motor solution for small products. Moreover, the low current options help support battery-powered and low-power designs.
DC Worm Gear Motor Performance Data
Model: NFP-GW12T-N20VA, 3V DC, B45 Type
First, this 3V DC B45 type is useful for low-voltage systems that need compact output. Also, the table below helps users compare speed, current, torque, and ratio before sample testing.
In addition, lower ratios provide higher speed. However, higher ratios provide lower speed and stronger torque for slow drive tasks.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 42:1 | ≤0.035A | 260rpm | ≤0.15A | 195rpm | 0.03kg.cm | ≤0.35A | ≤0.07kg.cm |
| 118:1 | ≤0.035A | 90rpm | ≤0.15A | 65rpm | 0.08kg.cm | ≤0.35A | ≤0.2kg.cm |
| 236:1 | ≤0.035A | 45rpm | ≤0.15A | 33rpm | 0.16kg.cm | ≤0.35A | ≤0.4kg.cm |
| 302:1 | ≤0.035A | 35rpm | ≤0.15A | 26rpm | 0.2kg.cm | ≤0.35A | ≤0.5kg.cm |
| 603:1 | ≤0.035A | 18rpm | ≤0.15A | 13rpm | 0.4kg.cm | ≤0.35A | ≤1kg.cm |
| 1,030:1 | ≤0.035A | 11rpm | ≤0.15A | 7rpm | 0.65kg.cm | ≤0.35A | ≤1.5kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 3V B45 type covers speeds from 11rpm to 260rpm. Moreover, the 1,030:1 ratio gives the strongest rated torque in this table.
Model: NFP-GW12T-N20VA, 6V DC, B45 Type
Next, this 6V DC B45 type provides higher speed and stronger torque than the 3V version. Therefore, it is useful for compact 6V drive systems.
Also, the B45 type gives speed options from 22rpm to 530rpm. As a result, users can choose either faster movement or stronger low-speed output.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 42:1 | ≤0.08A | 530rpm | ≤0.2A | 390rpm | 0.06kg.cm | ≤0.65A | ≤0.16kg.cm |
| 118:1 | ≤0.08A | 190rpm | ≤0.2A | 140rpm | 0.16kg.cm | ≤0.65A | ≤0.4kg.cm |
| 236:1 | ≤0.08A | 94rpm | ≤0.2A | 70rpm | 0.32kg.cm | ≤0.65A | ≤0.8kg.cm |
| 302:1 | ≤0.08A | 74rpm | ≤0.2A | 55rpm | 0.4kg.cm | ≤0.65A | ≤1.1kg.cm |
| 603:1 | ≤0.08A | 37rpm | ≤0.2A | 27rpm | 0.8kg.cm | ≤0.65A | ≤2kg.cm |
| 1,030:1 | ≤0.08A | 22rpm | ≤0.2A | 15rpm | 1.2kg.cm | ≤0.65A | ≤3kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
Therefore, the 6V B45 type is a practical choice for faster compact drive systems. In addition, the 1,030:1 ratio gives the strongest rated torque in this group.
Model: NFP-GW12T-N20VA, 6V DC, A35 Type
Furthermore, this 6V DC A35 type offers a lower-current option for compact devices. Also, it is useful when the design needs lower power use and stable speed.
In addition, the A35 type keeps the same ratio choices. Therefore, users can compare it with the B45 type before choosing a final version.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 42:1 | ≤0.035A | 275rpm | ≤0.08A | 195rpm | 0.02kg.cm | ≤0.2A | ≤0.07kg.cm |
| 118:1 | ≤0.035A | 98rpm | ≤0.08A | 70rpm | 0.07kg.cm | ≤0.2A | ≤0.2kg.cm |
| 236:1 | ≤0.035A | 49rpm | ≤0.08A | 35rpm | 0.15kg.cm | ≤0.2A | ≤0.4kg.cm |
| 302:1 | ≤0.035A | 37rpm | ≤0.08A | 27rpm | 0.2kg.cm | ≤0.2A | ≤0.5kg.cm |
| 603:1 | ≤0.035A | 19rpm | ≤0.08A | 13rpm | 0.4kg.cm | ≤0.2A | ≤1kg.cm |
| 1,030:1 | ≤0.065A | 11rpm | ≤0.15A | 7rpm | 0.6kg.cm | ≤0.4A | ≤1.5kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 6V A35 type is useful for energy-sensitive projects. Moreover, it can still provide low-speed torque through high reduction ratios.
Model: NFP-GW12T-N20VA, 12V DC, A35 Type
Finally, this 12V DC A35 type provides the highest voltage option in this series. Therefore, it can match 12V control boards and compact 12V power systems.
Also, the 12V version gives no-load speeds from 22rpm to 550rpm. As a result, it can support both faster output and low-speed worm gearbox drive.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 42:1 | ≤0.065A | 550rpm | ≤0.15A | 390rpm | 0.05kg.cm | ≤0.4A | ≤0.16kg.cm |
| 118:1 | ≤0.065A | 200rpm | ≤0.15A | 140rpm | 0.15kg.cm | ≤0.4A | ≤0.4kg.cm |
| 236:1 | ≤0.065A | 100rpm | ≤0.15A | 70rpm | 0.3kg.cm | ≤0.4A | ≤0.8kg.cm |
| 302:1 | ≤0.065A | 78rpm | ≤0.15A | 55rpm | 0.4kg.cm | ≤0.4A | ≤1.1kg.cm |
| 603:1 | ≤0.065A | 39rpm | ≤0.15A | 27rpm | 0.8kg.cm | ≤0.4A | ≤2kg.cm |
| 1,030:1 | ≤0.065A | 22rpm | ≤0.15A | 15rpm | 1.2kg.cm | ≤0.4A | ≤3kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In conclusion, the 12V A35 type gives the fastest speed range in this page. Also, the 1,030:1 ratio gives the strongest rated torque in this table.
High Precision DC Worm Gear Motor Design
Speed and Torque Control
First, this geared motor provides useful control over speed and torque. Therefore, it is a good fit for small products that need repeatable movement.
In addition, the compact DC motor with gearbox helps keep the drive system small. As a result, it can fit tight spaces without giving up basic performance.
Moreover, the worm gearbox design supports slow output and compact torque transfer. Therefore, it is suitable for projects that need precise and reliable movement.
Compact and Efficient Design
First, the compact design allows this motor to fit into tight product layouts. Also, its efficient operation helps reduce power use in small devices.
In addition, the motor can support energy-sensitive projects when the load is suitable. As a result, users can balance voltage, ratio, speed, and current more easily.
DC Motor With Worm Gearbox Dimension
Durable Construction for Long-Lasting Performance
First, the turbine worm output shaft geared motor is built with high-quality materials. Therefore, it can support durable performance in compact mechanisms.
Also, the metal gearbox structure helps improve wear resistance. As a result, the motor can work in demanding small-drive applications under suitable load.
Next, the outline drawing helps users check gearbox size, motor body, output shaft, and mounting space. Therefore, it is useful before sample testing and mechanical design.
Outline Drawing and Design Benefits
- First, compact body: The small gearbox helps save product space.
- In addition, 3mm output shaft: The shaft helps connect small drive parts.
- Also, metal gearbox: The gearbox helps improve strength and wear resistance.
- Next, worm gearbox layout: The structure supports slow and controlled output.
- Finally, lightweight design: The approx. 13g weight helps fit compact products.
Typical Applications
Finally, this compact DC worm gear motor is useful for products that need low speed, small size, and stable control. For example, it can work in smart locks, valves, robots, toys, meters, and small automation modules.
- First, smart locks: The motor can drive small locking mechanisms.
- In addition, electric valves: The high-ratio options support slow movement.
- Also, small robots: The compact gearbox helps save internal space.
- Next, smart devices: The motor can move small mechanical parts.
- Moreover, toys and models: The low-voltage options are easy to use.
- Finally, compact automation modules: The motor supports small controlled-motion tasks.
Selection Notes
First, users should choose voltage and ratio based on speed, torque, current, product space, and load. Also, users should confirm the 3mm shaft size before mechanical design.
- First, for 3V systems: Choose the 3V B45 type when the product uses a 3V power supply.
- In addition, for 6V systems: Choose the 6V B45 type or 6V A35 type based on current and torque needs.
- Also, for 12V systems: Choose the 12V A35 type when the product uses a 12V power supply.
- Next, for higher speed: Choose a lower ratio such as 42:1 or 118:1.
- Moreover, for higher torque: Choose a higher ratio such as 603:1 or 1,030:1.
- Finally, for stable use: Keep the motor within rated load and avoid long stall conditions.
In short, the NFP-GW12T-N20VA DC worm gear motor is a good fit for products that need 3V, 6V, or 12V DC power, compact 12mm gearbox size, 3mm shaft, low speed, and stable torque output.
