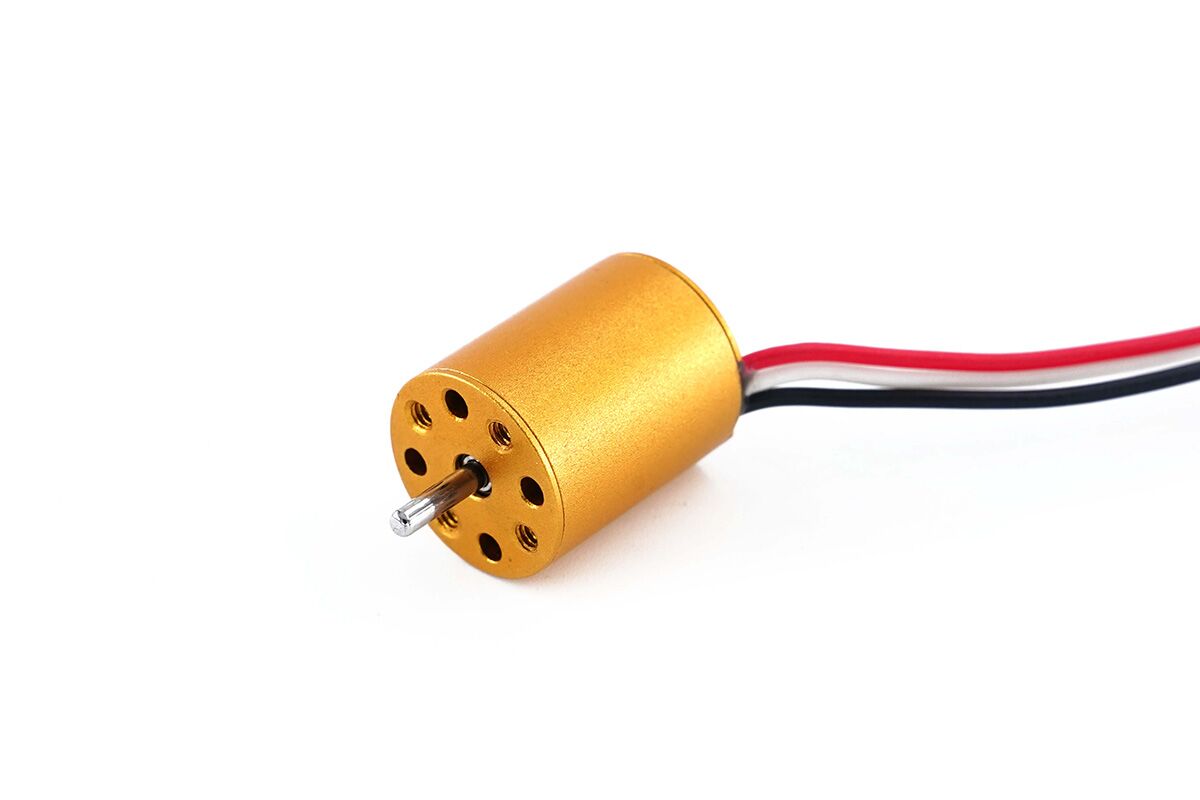

12mm Small Brushless DC Motor Model NFP-1215-712-100

$25.00

(3 customer reviews)

Small Brushless Motor Volume Price (USD)

QTY BREAK UNIT PRICE
1+ $25.00
10+ $23.50
50+ $22.00
100+ $18.00
500+ $13.40

Contact us for a quotation for production quantities, customizations and integration.

DATA SHEET

12mm Small Brushless DC Motor Model NFP-1215-712-100 Parameters


Long lifetime 12mm diameter brushless vibration motor, super big amplitude. 5V ERM vibration motor works request a driver, such as the driver M10-400.

Motor Model: NFP-1215-712-100/
NFP-1215ZWW-06-21
Motor Diameter: 12mm
Motor Length: 15 ± 0.15mm
Rated Voltage: 3.7V DC
Number of Phase: 3 Phase
KV Value: 5,500rpm
Rated Load: 5g.cm
Operating Voltage: 3.5V – 4.2V DC
Working Temperature: -10°C~50°C
No Load Speed: 20,000rpm
No Load Current: 200mA
Rated Speed: 14,500rpm
Rated Current: 480mA
Stall Current: 1.5A
Start Voltage: 3.5V DC
Wire Length: 90mm



912-101 12mm Brushless Vibration Motor 15mm Type Outline Drawing


12mm-miniature-brushless-motor-712-100

If you want to buy the controller of this brushless dc motor, you can click here!

Keywords:
12v brushless dc motor, advantages of brushless dc motor, miniature brushless motor, small brushless dc motor, small brushless motor

Payment:
1.Payment methods : Paypal, T/T

Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.

FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.

Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.

Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
