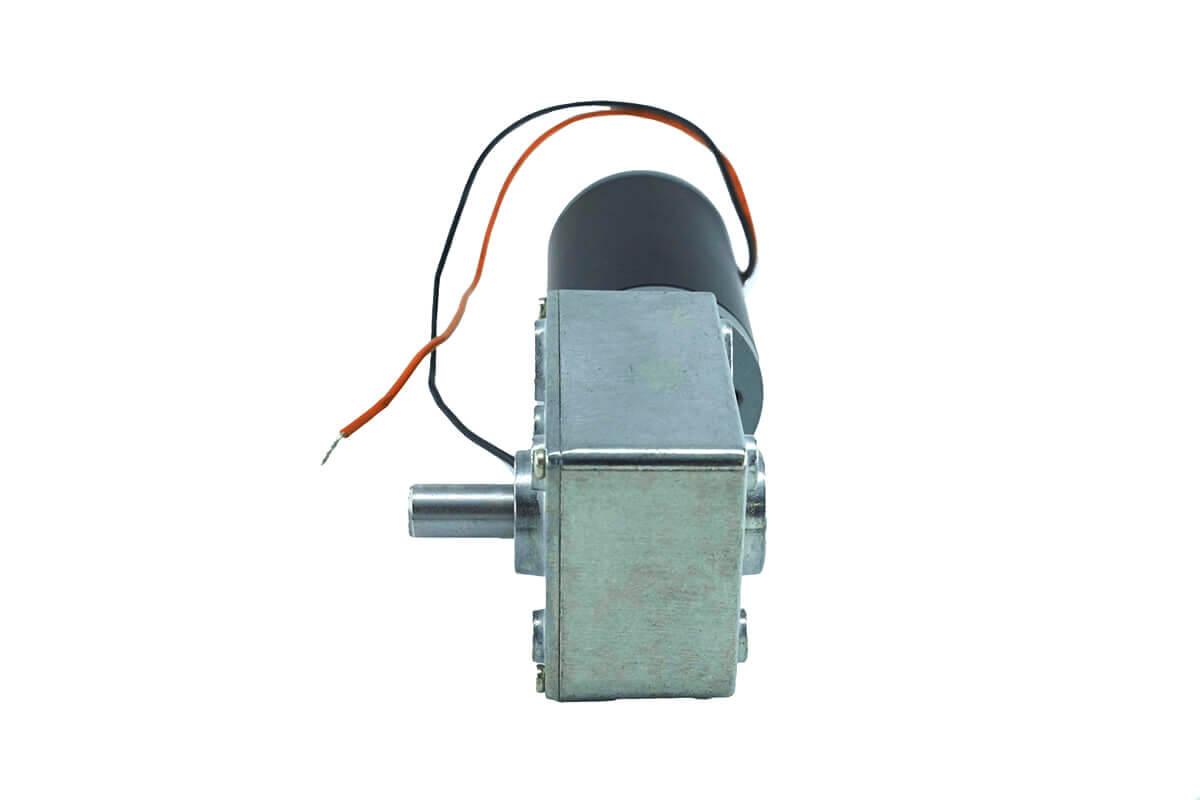

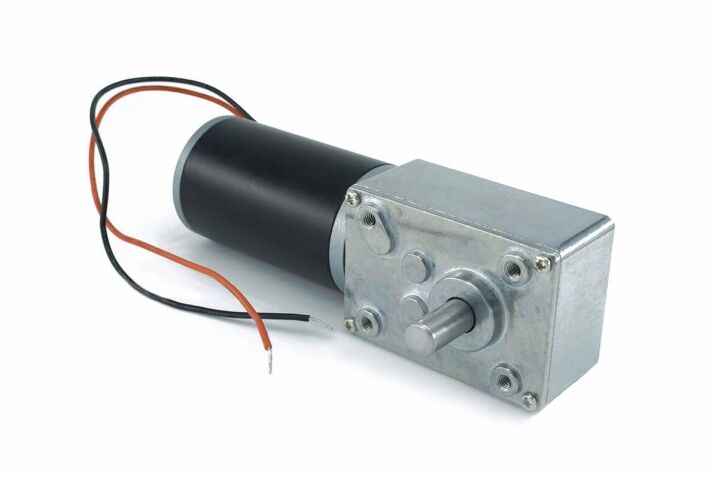

36mm Worm Gear Motor Model NFP-5840-36ZY

DC High Torque Worm Gear Motor Key Parameters

First, the NFP-5840-36ZY is a high torque DC worm gear motor for compact drive systems. Also, it supports 12V and 24V DC power options.

In addition, this motor provides low-speed output with strong torque. Therefore, it is suitable for systems that need controlled movement, position holding, and compact high-power drive.

Moreover, the 8mm output shaft helps support strong mechanical connection. As a result, this motor can fit automation equipment, electric actuators, robotics, industrial tools, and custom drive units.

Main Product Features

• First, high torque output: The motor provides strong torque for low-speed drive tasks.
• In addition, voltage options: The motor supports 12V and 24V DC systems.
• Also, worm gear reducer: The gearbox helps provide low speed and strong output force.
• Next, reversible rotation: CW and CCW rotation support two-way movement.
• Moreover, 8mm output shaft: The shaft supports stronger mechanical coupling.
• Finally, compact weight: The approximate 435g body fits many compact mechanisms.

Basic Motor Specifications

First, the table below shows the main motor data. Also, it helps users check voltage, current, speed, torque, power, shaft size, rotation, and weight before selecting a ratio.

As a result, this model gives a strong worm gear motor solution for high-torque drive needs. Moreover, the wide rated speed and torque range helps users match the motor to different loads.

High Torque Worm Gear Motor Performance Data

Model: NFP-5840-36ZY-1280, 12V DC, 8,000rpm

First, the 12V 8,000rpm version provides high speed in the lower ratio range. Therefore, it is useful for 12V systems that need fast output and high torque.

In addition, lower ratios provide faster output speed. However, higher ratios provide slower output and stronger torque for heavy-load drive tasks.

Note: All reduced no-load speeds have a tolerance of ±15%.

As a result, the 12V 8,000rpm version covers no-load speeds from 6rpm to 470rpm. Moreover, the 1,000:1 and 1,340:1 ratios provide the strongest rated torque in this table.

12V 8,000rpm Selection Notes

• First, for higher speed: Choose 17:1, 31:1, or 49:1.
• In addition, for balanced output: Choose 100:1, 200:1, or 290:1 based on the load.
• Also, for higher torque: Choose 500:1, 670:1, 1,000:1, or 1,340:1.
• Finally, for 12V systems: Use this version when the product uses a 12V DC power supply.

Model: NFP-5840-36ZY-2480, 24V DC, 8,000rpm

Next, the 24V 8,000rpm version provides similar no-load speed with lower no-load current than the 12V version. Therefore, it is useful for 24V drive systems.

Also, this version provides up to 100kg.cm rated torque in the highest ratio options. As a result, it can support stronger 24V drive tasks in compact machines.

Note: All reduced no-load speeds have a tolerance of ±15%.

In conclusion, the 24V 8,000rpm version covers no-load speeds from 6rpm to 470rpm. Also, the 1,000:1 and 1,340:1 ratios provide the strongest rated torque in this table.

24V 8,000rpm Selection Notes

• First, for higher speed: Choose 17:1, 31:1, or 49:1.
• In addition, for balanced output: Choose 100:1, 200:1, or 290:1.
• Also, for higher torque: Choose 500:1, 670:1, 1,000:1, or 1,340:1.
• Finally, for 24V systems: Use this version when the product uses a 24V DC power supply.

High Torque Turbine Reducer Outline Drawing

Motor Outline and Mounting Reference

First, the outline drawing helps users check the motor body, gearbox shape, 8mm output shaft, and mounting space. Therefore, it is useful before sample testing and mechanical design.

In addition, the high torque turbine reducer structure helps provide low-speed output in a compact layout. As a result, it can fit small products that need strong drive force.

Moreover, the reversible CW and CCW rotation supports two-way motion control. Therefore, the motor can work in electric actuators, robots, industrial tools, and custom drive systems.

Outline Drawing and Design Benefits

• First, compact reducer: The gearbox helps reduce output speed and increase torque.
• In addition, 8mm shaft: The shaft supports stable coupling and mechanical connection.
• Also, high torque output: The motor supports heavy-load compact drive tasks.
• Next, reversible rotation: CW and CCW control supports two-way movement.
• Moreover, clear dimensions: The drawing helps users design brackets and housings.
• Finally, wide ratio range: The motor can support speed or torque-focused designs.

Applications and Selection Tips

Typical Applications

Finally, this DC high torque worm gear motor is useful for products that need compact mounting, high torque, and controlled low-speed movement. For example, it can work in automation equipment, electric actuators, robots, lifting systems, industrial tools, and custom machinery.

• First, automation equipment: The motor can drive slow and strong movement parts.
• In addition, electric actuators: Higher ratios can support stronger output force.
• Also, robots: The compact gearbox can drive joints, arms, wheels, and lifting parts.
• Next, lifting systems: The high-torque ratios help move heavier loads.
• Moreover, industrial tools: The motor can provide strong drive in compact machines.
• Finally, custom machinery: The 8mm shaft supports flexible mechanical connection.

How to Choose the Right Version

First, choose the voltage based on the power supply and controller. Also, choose the ratio based on output speed and torque needs.

In addition, lower ratios provide faster output speed. Therefore, they are better for faster movement and lighter loads.

Moreover, higher ratios provide slower output and stronger torque. As a result, they are better for heavy loads, lifting, locking, and force-driven mechanisms.

Final Selection Notes

• First, check voltage: Choose 12V or 24V based on the power supply.
• In addition, check speed: Choose lower ratios when faster output is required.
• Also, check torque: Choose higher ratios when stronger output torque is required.
• Next, check current: Make sure the driver can handle the listed rated and stall current.
• Moreover, check shaft fit: Confirm the 8mm shaft and 15mm shaft length before mechanical design.
• Finally, test real load: Confirm current, temperature, torque, and service life before production.

In short, the NFP-5840-36ZY DC high torque worm gear motor is a strong option for products that need 12V or 24V DC power, 8mm shaft, compact reducer layout, reversible rotation, low-speed control, and high-torque output.
