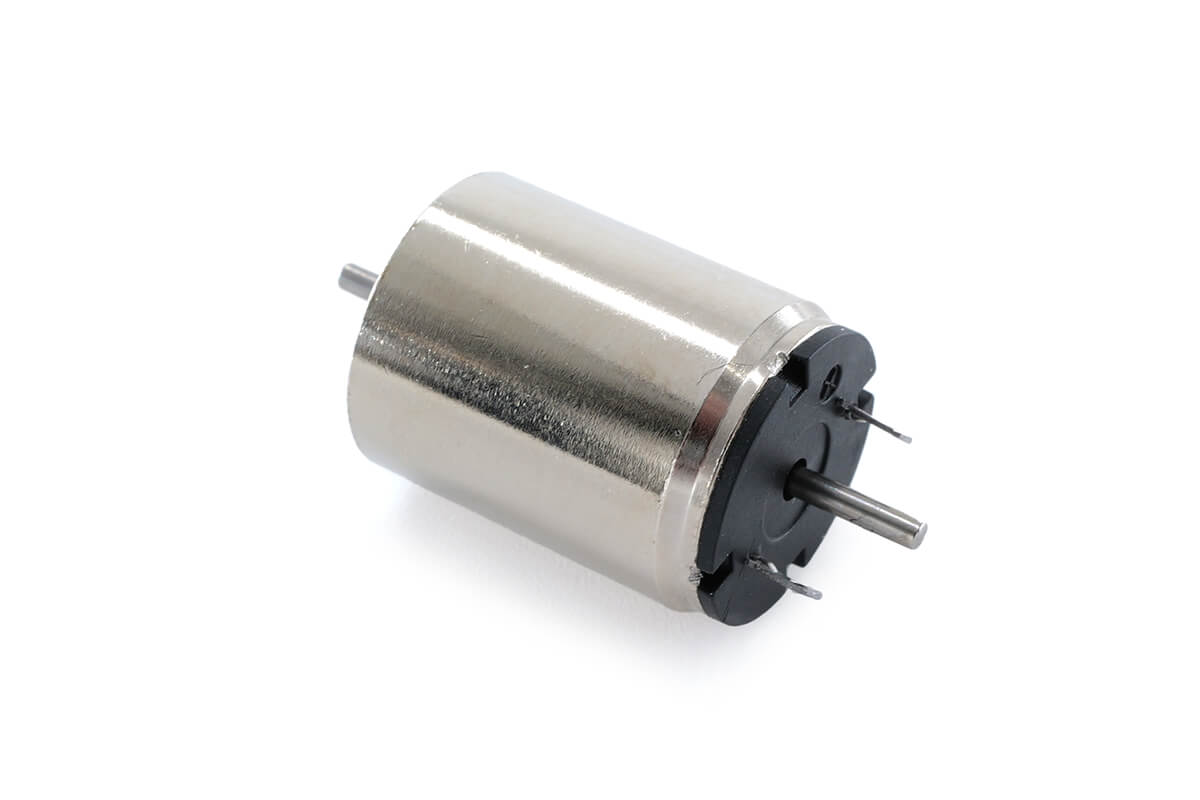

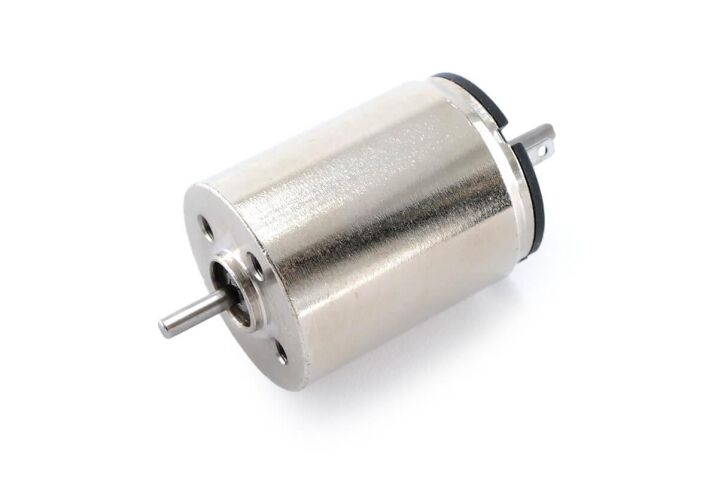

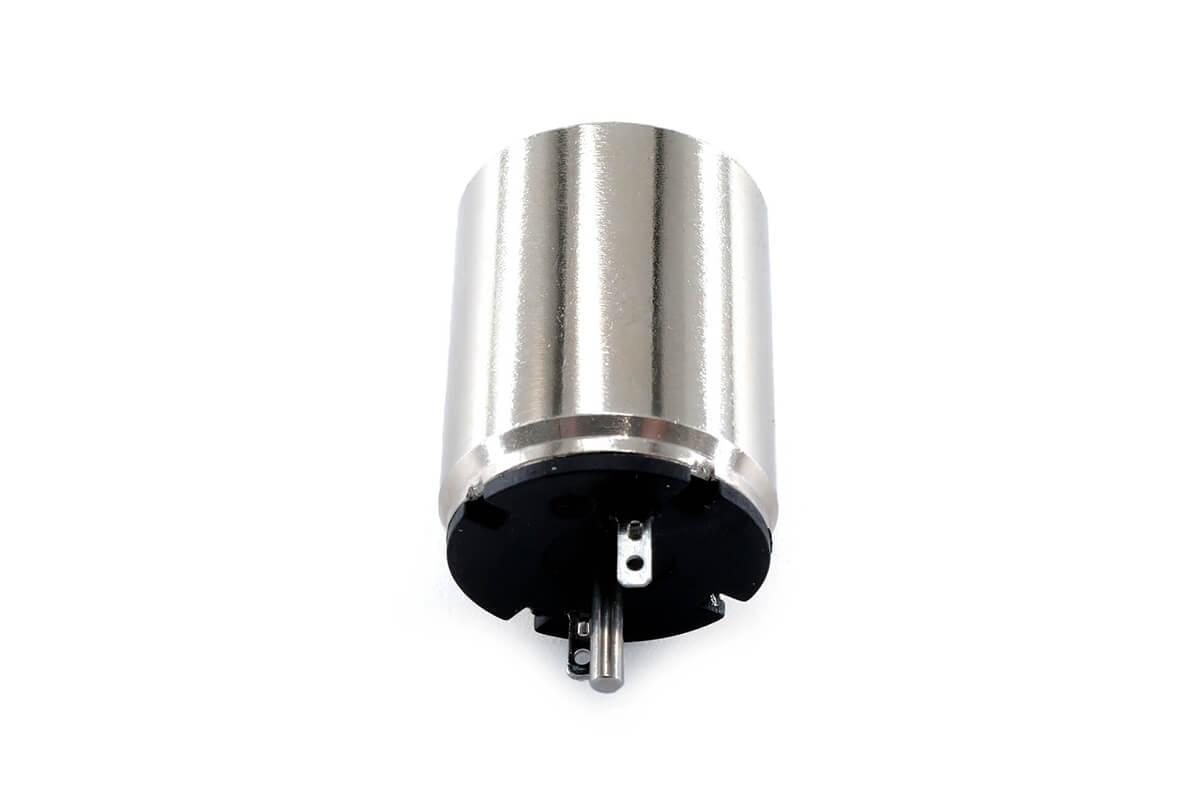

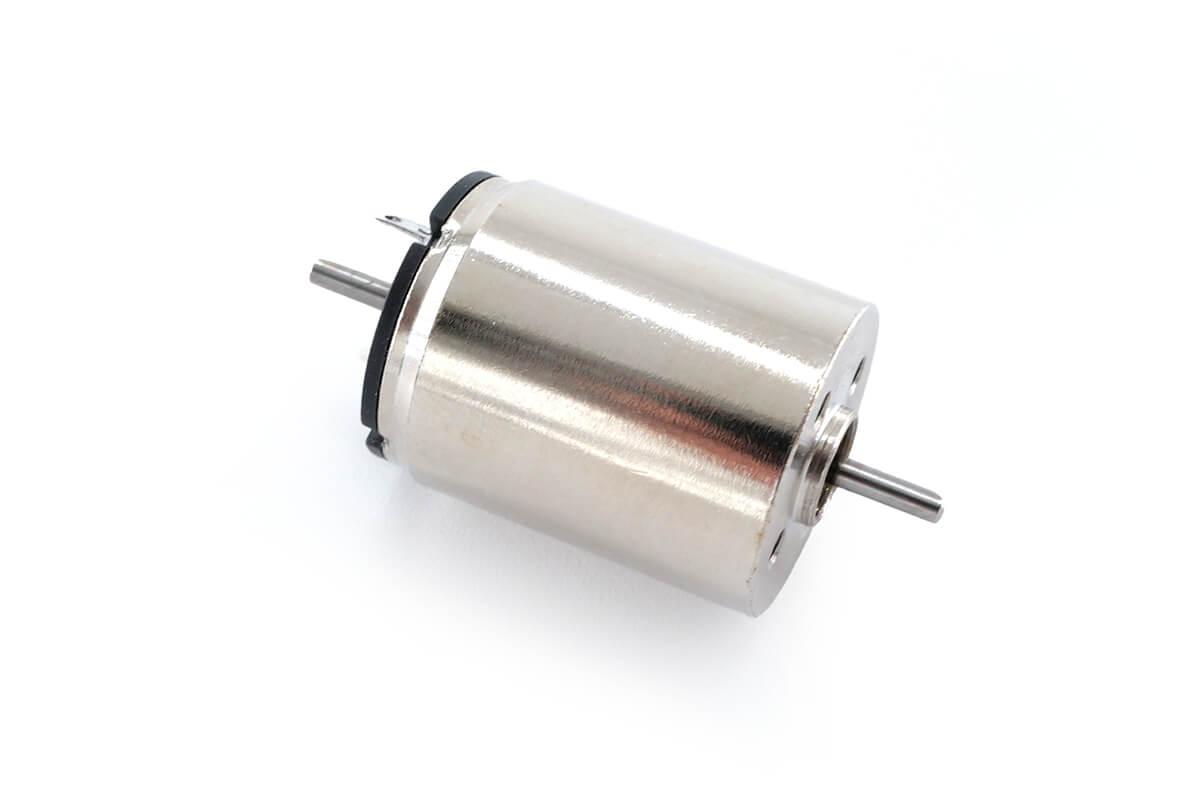

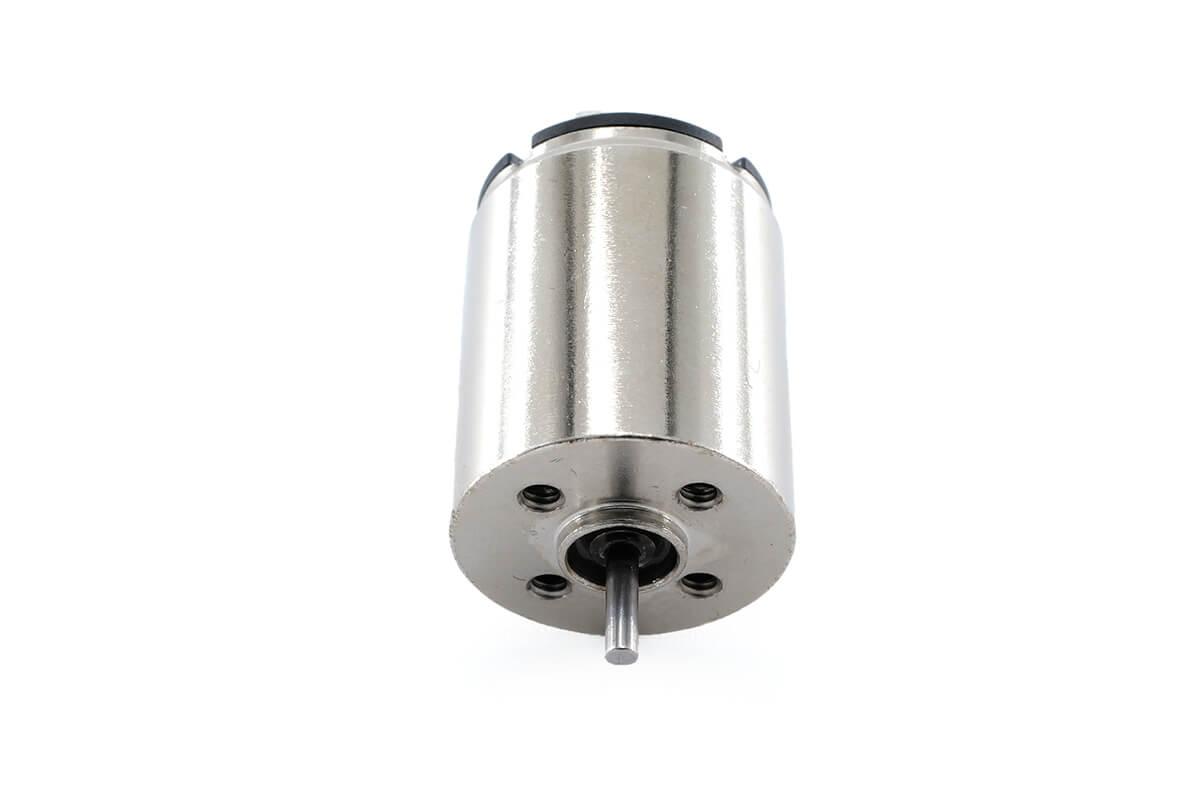

16mm Micro Coreless Motor – 20mm Type Model NFP-D1620
$28.00
Elevate your designs with our customizable 16mm coreless motor manufacturer. Create unique solutions that exceed your application needs now!
Notice: this motor model need to make new ones that would take extra 2-3 weeks.
| Quantity | Price | Discount |
|---|---|---|
| 20 - 109 | $13.80 | 50.71% |
| 110 - 499 | $13.80 | 50.71% |
| 500+ | $9.50 | 66.07% |
Low Electromagnetic Interference 12V Coreless Motor Parameters
Product Overview
The NFP-D1620 is a 16mm 12V coreless DC motor for compact and high-performance drive systems. Therefore, it is suitable for applications that need low electromagnetic interference, smooth rotation, and fast response.
In addition, this motor supports customization for different project needs. As a result, engineers can adjust motor specifications, connectors, wires, and accessories for custom product designs.
Moreover, the coreless structure helps reduce rotor inertia. Therefore, the motor can start quickly and provide stable performance in precision devices.
Main Features
- 16mm coreless design: The compact body helps save space. Therefore, it fits small devices and tight mechanical layouts.
- 12V DC operation: The motor works with a 12V DC power supply. As a result, it can match many industrial and battery-powered systems.
- Low electromagnetic interference: The coreless structure helps improve smooth operation. In addition, it can support sensitive electronic products.
- Custom options: Users can request different wires, connectors, torque settings, and accessories. Therefore, the motor can fit special project requirements.
- Fast response: The low-inertia rotor helps the motor start and stop quickly. Moreover, this improves control in precision applications.
Customization Benefits
- Connector customization: Users can choose suitable connectors for their control board or product assembly.
- Wire customization: Wire length and wire type can be adjusted according to the product layout.
- Performance tuning: Motor parameters can be adjusted for speed, current, torque, and efficiency needs.
- Application matching: The motor can support custom projects, innovative devices, and small mechanical systems.
Technical Specifications
The table below shows the main motor data. Therefore, users can check voltage, speed, current, torque, size, shaft data, mounting data, and electrical performance before testing.
| Model | NFP-D1620 |
|---|---|
| Voltage | 12.0V DC |
| No-load Speed | 18,000rpm |
| No-load Current | ≤45mA |
| Rated Torque | 160g.cm |
| Motor body length – A | 20.0±0.2mm |
| Motor diameter – B | 16±0.03mm |
| Output shaft length – C | 6.5±0.3mm |
| Output shaft diameter – D | 1.5 +0/-0.008mm |
| Boss diameter – E | 5.8 +0/-0.03mm |
| Boss height – F | 1.0mm |
| Mounting screw pitch – H | 10.0±0.1mm |
| Terminal pin length – L | 2.5±0.3mm |
| Screw hole – N | M2.0 |
| Terminal pitch – P | 8.4mm |
| No-load current at room temperature | 70mA max |
| No-load speed | 8,400±10%rpm |
| Starting voltage | 0.8V max |
| Stall current | 2450mA max |
| Rotation direction | CW |
| Abnormal noise | No abnormal noise / no tone variation |
| Stall torque | Approx. 70.0g·cm |
| Terminal resistance | 1.30Ω±10% |
Outline Drawing
The outline drawing below shows the motor body, shaft, boss, mounting hole, and terminal layout. Therefore, users can check the installation space before product design.
In addition, the 16mm diameter and short body length help support compact equipment designs. As a result, this motor can fit small tools, control modules, and portable devices.
Precision Engineered 16mm Coreless Motor Dimensions
Energy-Efficient Motor Design
The NFP-D1620 supports efficient operation for compact drive systems. Therefore, it is useful for battery-operated devices, solar-powered systems, and energy-conscious equipment.
Moreover, the motor can reduce energy use while keeping stable output. As a result, it helps designers build products that need both performance and lower power consumption.
Recommended Applications
- Battery-powered devices: The 12V coreless motor can support compact products that need efficient drive performance.
- Precision instruments: The smooth output helps improve control in small precision mechanisms.
- Medical equipment: The compact body can fit handheld and portable medical tools.
- Robotics: The fast response helps support small robot motion systems.
- Industrial equipment: The motor can support compact automation and control modules.
- Custom product projects: Users can request suitable wires, connectors, and performance adjustments.
Keywords:
torque of 12v dc motor, high torque small dc motor, 12v small dc motor, high-quality micro brush motor, 12v brushed dc motor, mini coreless dc motor, dc motor micro, high torque small dc motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
