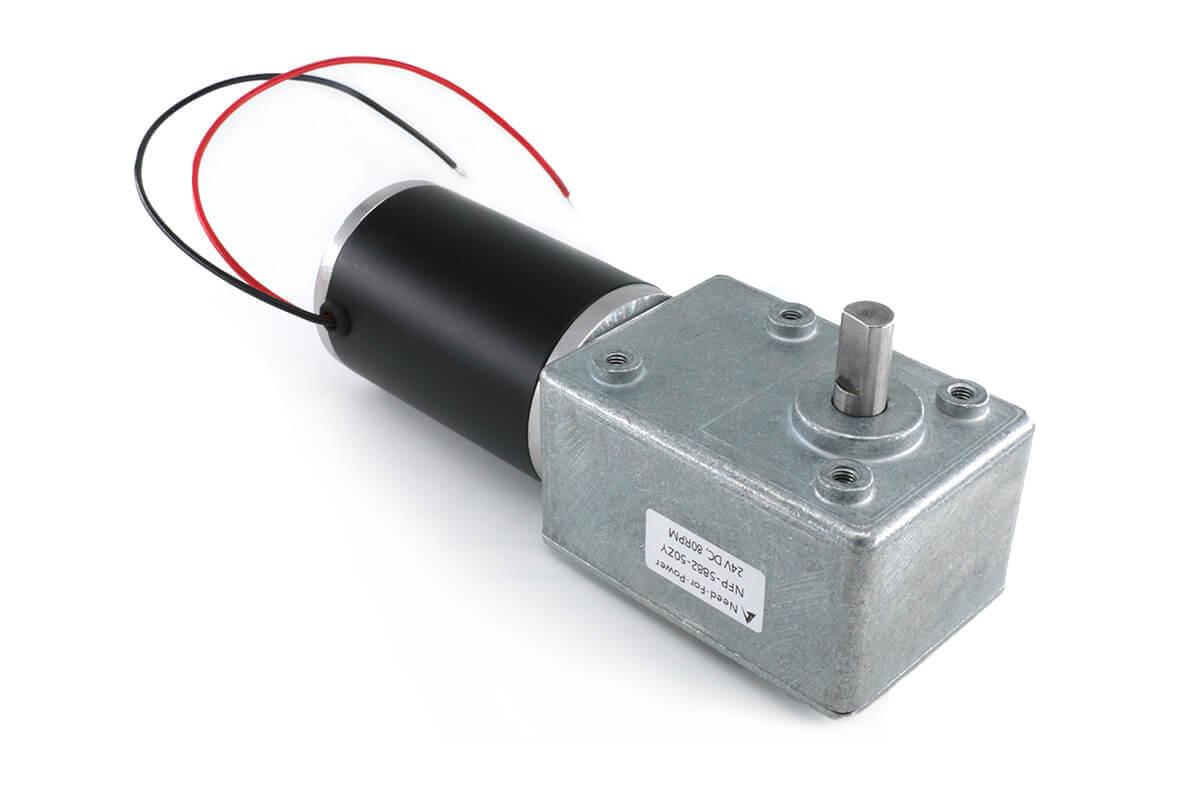

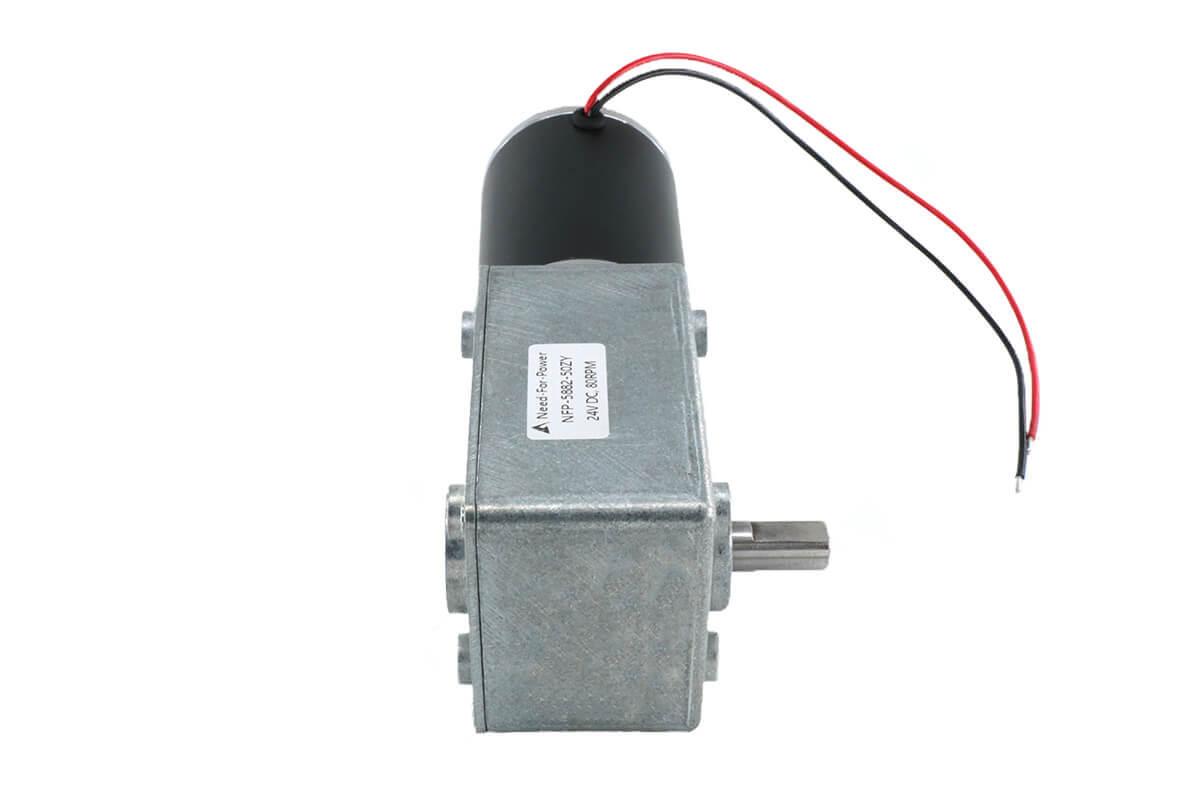

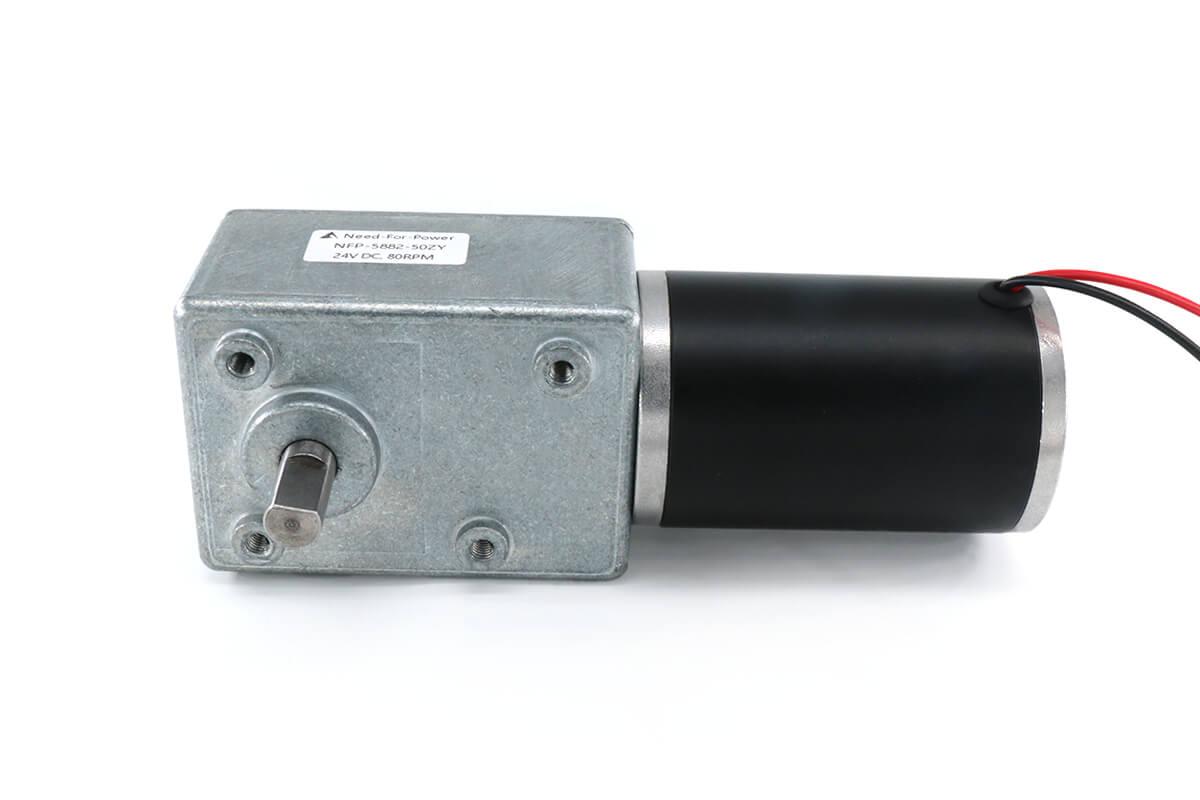

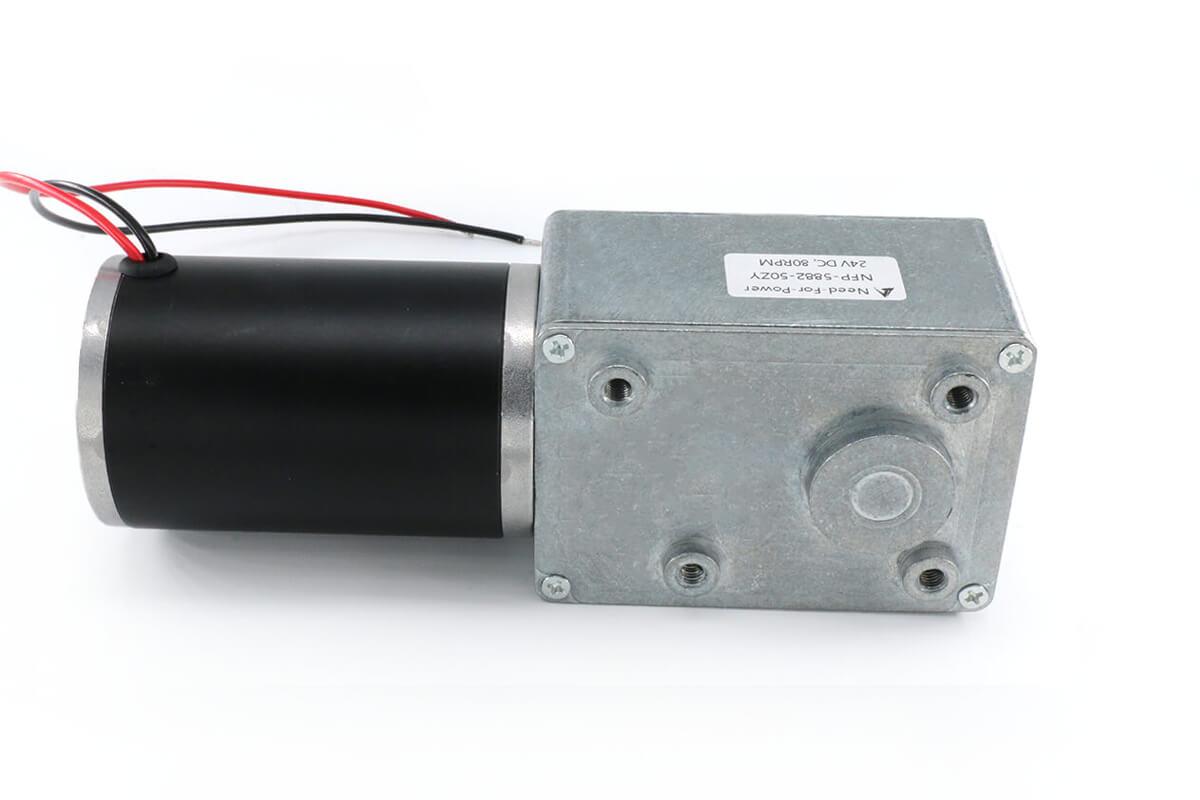

50mm Worm Gear Motor Model NFP-WG5882-50ZY

12V 24V Biggest Torque Worm Gear DC Motor NFP-WG5882-50ZY

First, the NFP-WG5882-50ZY is a 12V and 24V high torque worm gear DC motor. Also, it is designed for applications that need strong output, low speed, and stable position holding.

In addition, this motor provides up to 200kg.cm rated torque. Therefore, it is suitable for heavy-duty drive systems, industrial machinery, robotics, automation equipment, and security devices.

Moreover, the worm gear structure supports self-locking performance. As a result, the motor can help hold position when power is removed under suitable load conditions.

Main Product Features

• First, extremely high torque: The motor delivers up to 200kg.cm rated torque for heavy-duty applications.
• In addition, voltage options: The motor supports both 12V and 24V DC power supplies.
• Also, self-locking mechanism: The worm gear helps hold position when power is cut off.
• Next, low noise operation: The lubricated gearbox helps support quiet and smooth operation.
• Moreover, durable construction: The robust gearbox and metal gears help extend service life.
• Finally, reversible rotation: CW and CCW rotation support two-way motion control.

Basic Motor Specifications

First, the table below shows the main motor data. Also, it helps users check voltage, current, speed, torque, power, shaft size, rotation, and weight before choosing a ratio.

As a result, this model gives a strong worm gear reduction motor solution for demanding drive systems. Moreover, the 10mm output shaft helps support strong mechanical connection.

High Torque Worm Gear Motor Performance Data

Model: NFP-WG5882-50ZY, 12V DC

First, the 12V DC version provides a wide speed range from 1.5rpm to 440rpm. Therefore, users can choose faster output or stronger low-speed torque based on the final load.

In addition, lower ratios provide higher output speed. However, higher ratios provide lower speed and stronger torque for heavy-load drive tasks.

Note: All reduced no-load speeds have a tolerance of ±15%.

As a result, the 12V version covers no-load speeds from 1.5rpm to 440rpm. Moreover, the 510:1, 694:1, and 1,015:1 options provide the strongest rated torque in this table.

12V DC Selection Notes

• First, for higher speed: Choose 16:1, 32:1, or 48:1.
• In addition, for balanced output: Choose 89:1 or 169:1 based on the load.
• Also, for high torque: Choose 255:1, 392:1, 510:1, 694:1, or 1,015:1.
• Finally, for safe use: Do not run the motor in a stalled state when the table says Forbid Stall.

Model: NFP-WG5882-50ZY, 24V DC

Next, the 24V DC version provides high torque with lower current in many speed options. Therefore, it is useful for stronger 24V drive systems.

Also, this version reaches 200kg.cm rated torque in several high-ratio options. As a result, it can support heavy loads, lifting systems, gates, and industrial mechanisms.

Note: All reduced no-load speeds have a tolerance of ±15%.

In conclusion, the 24V version covers no-load speeds from 1.5rpm to 440rpm. Also, ratios from 392:1 to 1,015:1 provide the strongest rated torque in this table.

24V DC Selection Notes

• First, for higher speed: Choose 16:1, 32:1, or 48:1.
• In addition, for balanced output: Choose 89:1 or 169:1 based on current and load.
• Also, for high torque: Choose 255:1, 392:1, 510:1, 694:1, or 1,015:1.
• Finally, for safe use: Follow the Forbid Stall limits and avoid long overload use.

Extremely High Torque Worm Gear Box Reduction Motor Outline Drawing

Motor Outline and Mounting Reference

First, the outline drawing helps users check the motor body, gearbox size, 10mm output shaft, and mounting layout. Therefore, it is useful before sample testing and mechanical design.

In addition, the NFP-WG5882-50ZY worm gear motor offers extreme torque output and durable construction. As a result, it is a reliable choice for demanding drive systems.

Moreover, the self-locking mechanism and low noise operation help improve stability and user experience. Therefore, engineers and hobbyists can use this motor for heavy-duty projects that need strong and controlled movement.

Outline Drawing and Design Benefits

• First, large gearbox: The structure supports high-torque output for heavy loads.
• In addition, 10mm output shaft: The shaft supports strong mechanical connection.
• Also, worm gear reduction: The gearbox helps reduce speed and increase torque.
• Next, self-locking support: The gear structure helps hold position after power-off.
• Moreover, robust body: The 1,100g motor body supports demanding drive systems.
• Finally, clear dimensions: The drawing helps users design brackets, housings, and fixtures.

Applications, Lifetime, and Selection Tips

Typical Applications

Finally, this biggest torque worm gear DC motor is useful for products that need very high torque, low speed, and stable position holding. For example, it can work in industrial machinery, robotics, automation systems, medical equipment, and security systems.

• First, industrial machinery: The motor can drive conveyor belts, automated systems, and heavy-duty mechanisms.
• In addition, robotics: It provides controlled movement for robotic arms, mobile robots, and robotic mechanisms.
• Also, automation systems: The motor supports equipment that needs high torque and reliable output.
• Next, medical equipment: It can support patient lifts and automated diagnostic tools.
• Finally, security systems: The motor is useful for heavy-duty locks, gates, and strong access devices.

Lifetime Notes

First, lifetime depends strongly on load, duty cycle, start-stop frequency, rotation direction changes, and stall use. Therefore, users should test the motor under the real working condition before production.

In addition, under the most ideal use environment, normal use, no overload, no stalling, no frequent forward and reverse rotation, and no frequent start and stop, the motor has a life of about 500 – 700 hours. Also, the gearbox has a life of about 800 hours.

How to Choose the Right Version

First, choose the voltage based on the power supply and controller. Also, choose the ratio based on the required speed, torque, current, and stall restriction.

In addition, lower ratios provide faster output speed. Therefore, they are better for faster motion and lighter loads.

Moreover, higher ratios provide slower output and stronger torque. As a result, they are better for heavy-load movement, lifting, gates, locking, and holding tasks.

Final Selection Notes

• First, check voltage: Choose 12V or 24V based on the power supply.
• In addition, check speed: Choose lower ratios when faster output is required.
• Also, check torque: Choose higher ratios when stronger output torque is required.
• Next, check stall limits: Do not stall the motor when the table says Forbid Stall.
• Moreover, check current: Make sure the driver and power supply can handle the listed current.
• Finally, test real load: Confirm current, temperature, torque, noise, and service life before production.

In short, the NFP-WG5882-50ZY high torque worm gear DC motor is a strong option for products that need 12V or 24V DC power, 10mm output shaft, 200kg.cm rated torque, self-locking support, low-speed control, and heavy-duty drive performance.
