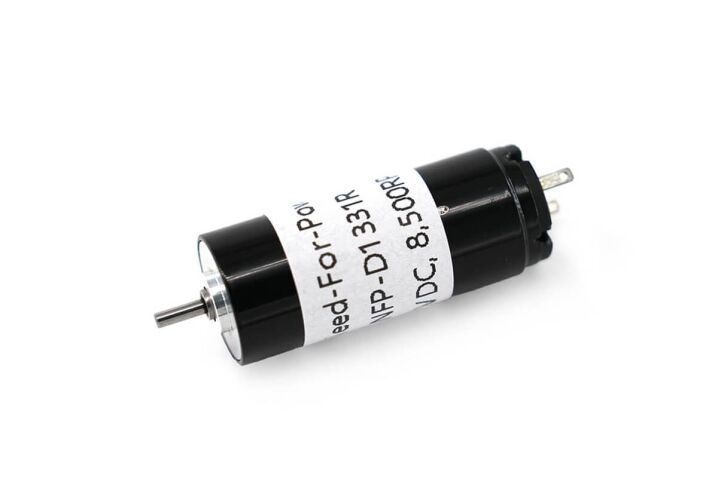

13mm Coreless DC Motor – 32mm Type Model NFP-D1331R
$25.00
Upgrade your projects with our efficient 13mm coreless dc motor high efficiency. Experience exceptional speed in a lightweight package. Order today!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $25.00 | 0% |
| 10 - 99 | $15.00 | 40% |
| 100 - 999 | $11.60 | 53.60% |
| 1000+ | $9.50 | 62% |
Efficient Coreless Brushed DC Motor Parameters
The NFP-D1331R is a 13mm coreless brushed DC motor for compact and low-noise products. It works at 12V DC and provides stable output in a small body.
First, this motor has a 13mm diameter and 32mm body length. Also, it has a low no-load current of 0.02A max. Therefore, it is useful for compact products that need low current and smooth motion.
In addition, the coreless design helps reduce rotor inertia and improve response. As a result, the motor can run smoothly in precision devices and small drive systems.
Main Product Features
- First, compact body: The 13mm diameter helps save product space.
- In addition, low noise: Smooth coreless operation helps reduce running noise.
- Also, low current: The no-load current is 0.02A max.
- Next, low start voltage: The motor can start at 0.5V max.
- Finally, stable output: The motor can support many small high-speed applications.
13mm Coreless Brushed DC Motor Specification Data
Next, the table below helps users check size, voltage, speed, current, torque, insulation resistance, and weight. Therefore, it is easier to confirm whether this motor fits the final product design.
| Motor Model | NFP-D1331R |
|---|---|
| Shaft Diameter | 5.7mm |
| Motor Diameter | 13mm |
| Motor Length | 32mm |
| Rated Voltage | 12V DC |
| No Load Speed | 8,500 ± 10%rpm |
| No Load Current | 0.02A max |
| Stall Torque | 100g.cm |
| Stall Current | 1.4A max |
| Start Voltage | 0.5V max |
| Insulation Resistance | ≥10MΩ |
| Weight | appr. 18.5g |
Also, the NFP-D1331R has 100g.cm stall torque and 8,500rpm no-load speed. As a result, it can support compact devices that need steady power and controlled current.
1331 Coreless Motor 8,500RPM Low Noise Motor Outline Drawing
First, the outline drawing shows the NFP-D1331R motor body and main size data. Therefore, users can check the motor fit before product design.
In addition, the 13mm body and 32mm length make this motor easy to use in small equipment. As a result, it can support products that need compact size, low noise, and reliable motion.
Outline Drawing and Design Benefits
- First, compact size: The 13mm motor body helps fit limited space.
- In addition, smooth output: The coreless structure helps reduce vibration.
- Also, low start voltage: The motor can start at 0.5V max.
- Next, stable insulation: Insulation resistance is ≥10MΩ.
- Finally, light weight: The motor weighs about 18.5g.
Typical Applications
Next, this lightweight coreless DC motor is suitable for many compact products. For example, it can work in smart robots, drones, handheld devices, aircraft, and RC vehicles.
- Smart robots
- Drones
- Handheld devices
- Aircraft
- RC vehicles
- Small household appliances
- Medical equipment
- Testing equipment
- Tattoo machines
- Electronic tools
- Beauty equipment
Finally, the NFP-D1331R 13mm coreless brushed DC motor is a good fit for compact products that need 12V DC power, low noise, low current, and stable output.
Keywords: 1331 brushed coreless dc motor China exporters, coreless motors for model trains, 13x31mm small coreless motor China suppliers, 13mm coreless motor, coreless micro motor, 12v coreless motor, coreless brush dc motor, 1331 coreless motor datasheet, China wholesale 1331mm coreless dc motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
