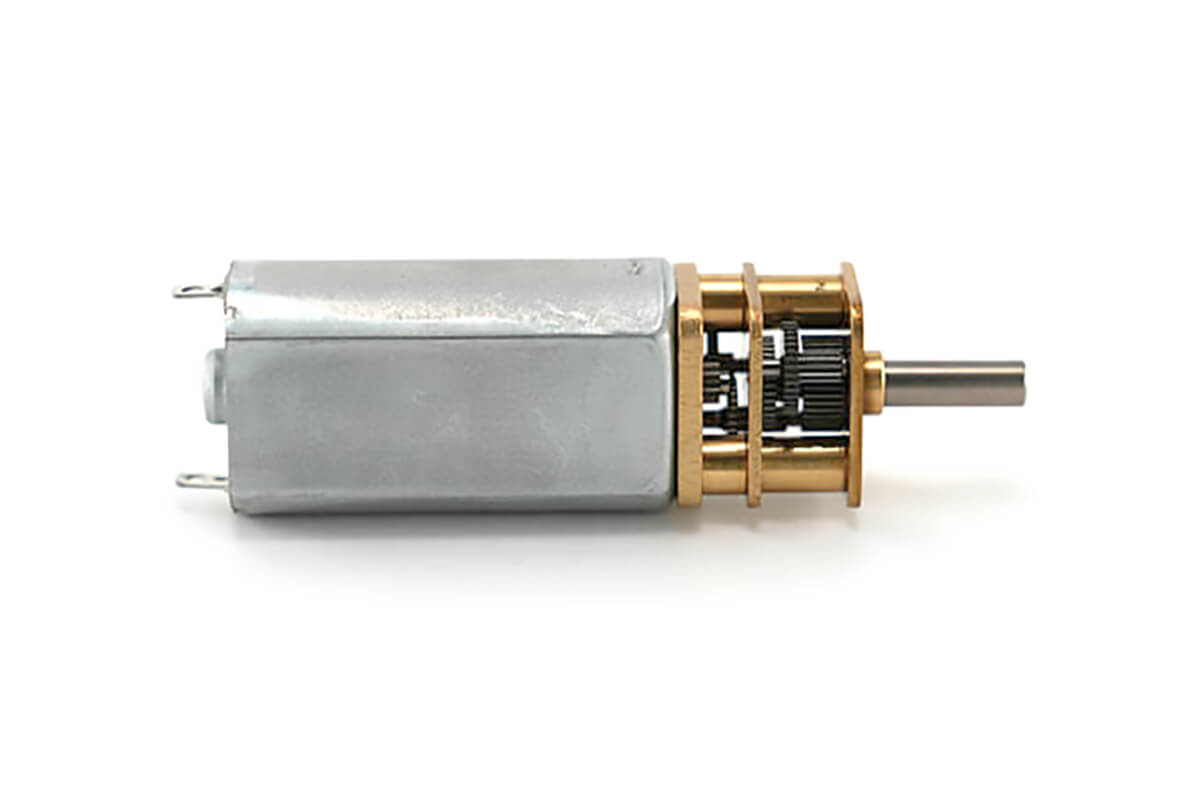

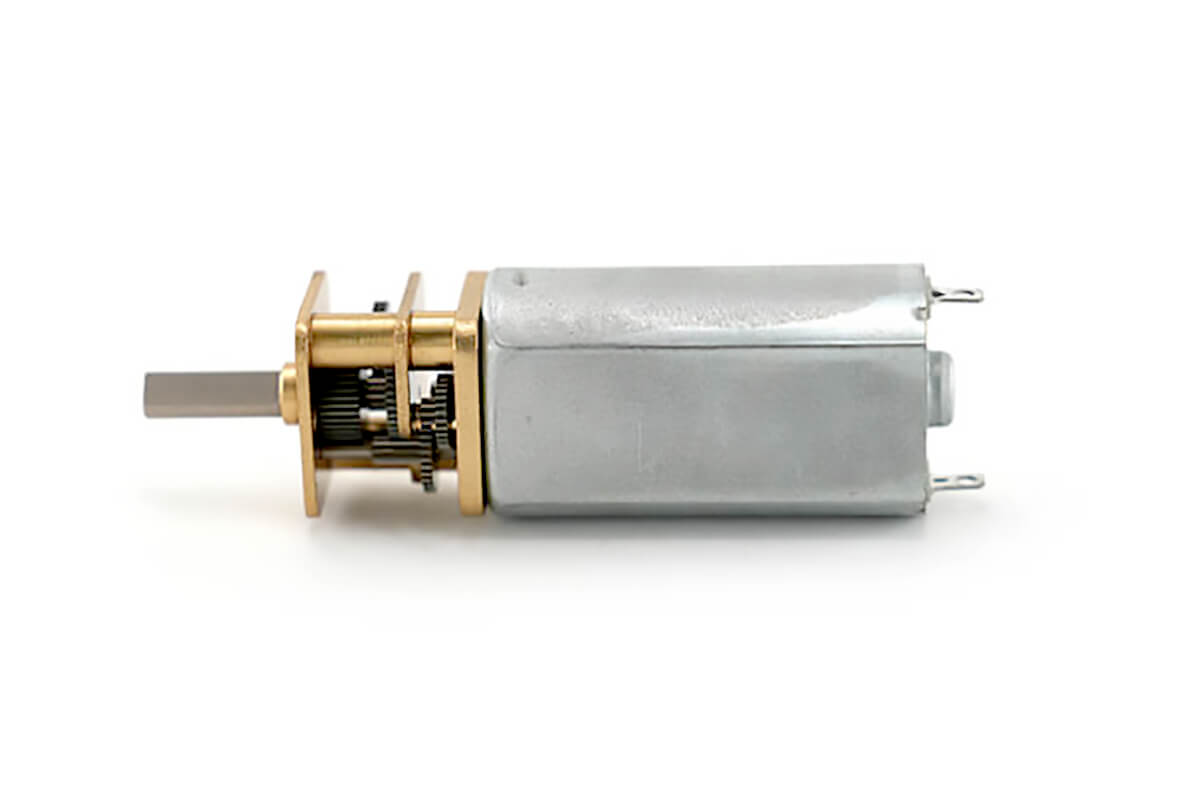

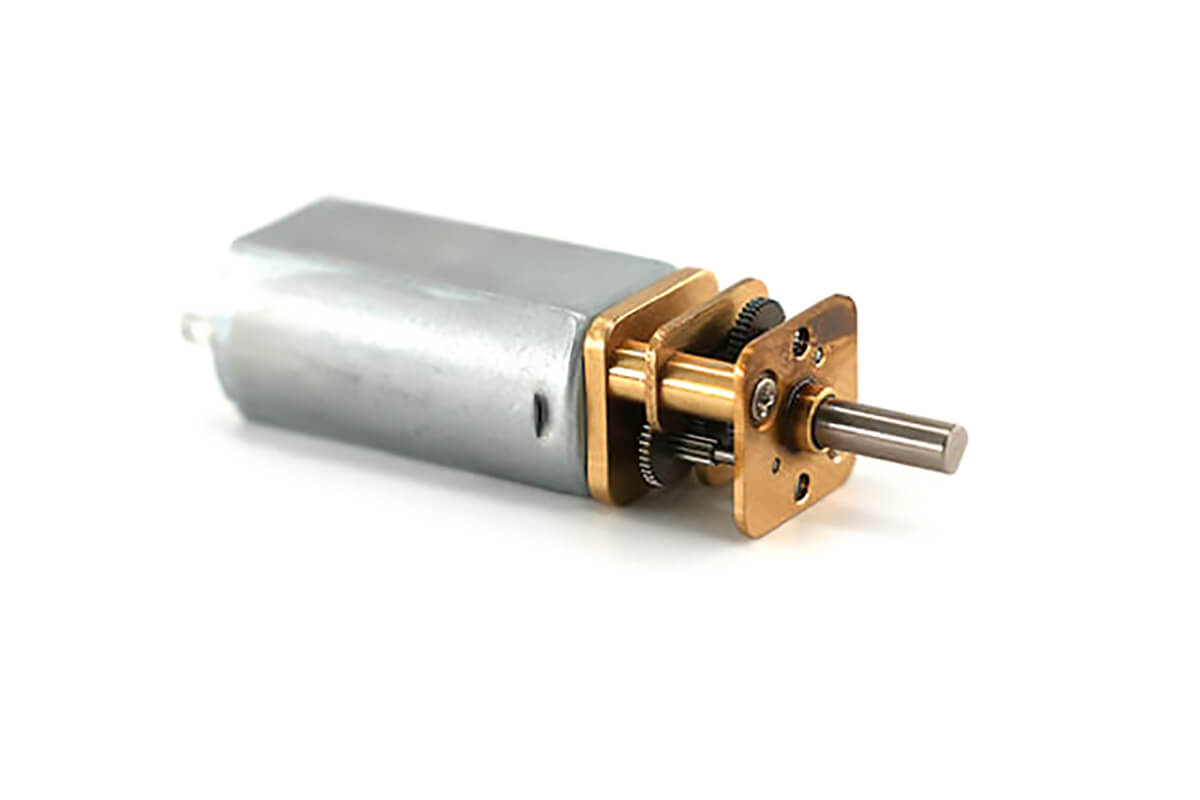

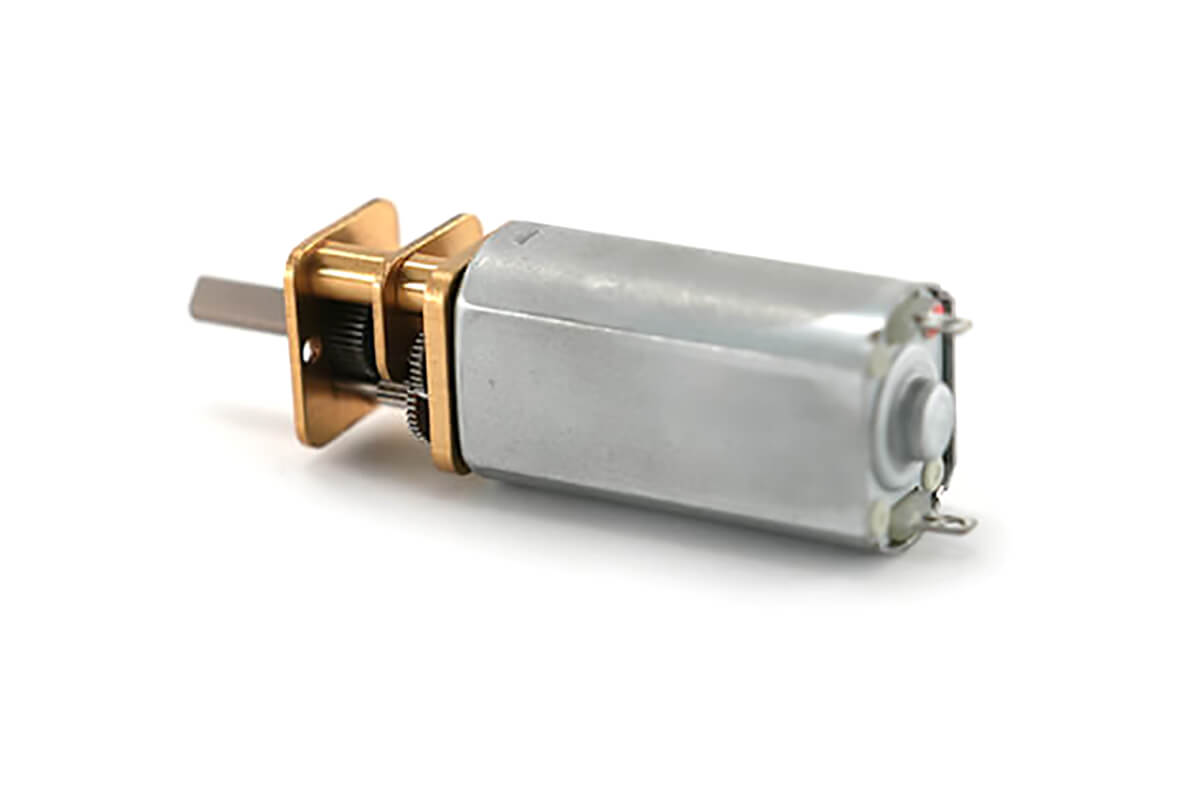

16mm Metal Gear Motor Model NFP-GM13-050

High Torque Low Speed Reduction Electric Motor Parameters

The 15mm 3V, 6V, 12V, 24V Mini Full Metal Gearbox Motor, model NFP-GM13-050, is made for high torque, low speed, and steady output. It is a good choice for robots, small tools, DIY projects, and compact drive products.

First, this motor supports 3V, 6V, 12V, and 24V DC power. Also, the metal gearbox helps lower speed and raise torque. Therefore, users can choose the right voltage and ratio based on speed, torque, and current needs.

In addition, the 15mm body helps save space. As a result, this motor can fit small parts that need smooth motion and strong gear output.

Main Product Features

• First, high torque output: The gearbox gives stronger torque at low speed.
• In addition, wide voltage range: The motor supports 3V, 6V, 12V, and 24V DC power.
• Also, compact size: The 15mm body fits small product spaces.
• Next, metal gearbox: The gear set helps improve strength and service life.
• Finally, multiple ratios: Ratio choices help users match speed and torque needs.

Model: NFP-GM13-050, 3V DC

First, the 3V DC version is useful for low-voltage battery products. Also, the table below shows how each ratio changes speed, current, rated torque, and stall torque.

Note: All reduced no-load speeds have a tolerance of ±15%.

Also, the 3V version gives strong low-speed torque at higher ratios. Therefore, it is useful for small products that need low-voltage power and controlled movement.

Model: NFP-GM13-050, 6V DC

Next, the 6V DC version gives higher speed and stronger output than the 3V version. As a result, it is suitable for small systems that need more power from the same gear motor type.

Note: All reduced no-load speeds have a tolerance of ±15%.

In addition, the 6V version reaches 2,000rpm at 10:1 ratio. Therefore, it is a good choice when the product needs faster gear output and strong torque.

Model: NFP-GM13-050, 12V DC

Also, the 12V DC version gives a good mix of speed and current for higher-voltage systems. Therefore, it can support compact products that need steady motion with controlled current.

Note: All reduced no-load speeds have a tolerance of ±15%.

As a result, the 12V 360:1 version gives the highest rated torque in this table. Also, it is useful for small systems that need slow and strong output.

Model: NFP-GM13-050, 24V DC

Finally, the 24V DC version is suitable for systems that use a 24V power supply. Also, it keeps the no-load current low while offering many ratio choices.

Note: All reduced no-load speeds have a tolerance of ±15%.

In addition, the 24V version gives a low no-load current of ≤75mA. As a result, it is a practical option for 24V compact control systems.

Brush-commutated Spur Gear DC Motor Dimension

First, the NFP-GM13-050 micro metal gearbox motor gives strong torque and works with many voltages. Therefore, it is suitable for many compact drive uses.

In addition, the small body and smooth motion make it a good choice for engineers and hobby users. As a result, it can support steady use and long service life under the right load.

Outline Drawing and Design Benefits

• First, high torque performance: Several gear ratios provide strong output for high-load needs.
• In addition, wide voltage range: The motor works at 3V, 6V, 12V, and 24V DC.
• Also, compact and light: The 15mm body helps fit small devices and tight spaces.
• Next, smooth motion: The motor supports smooth and steady motion control.
• Finally, durable build: The motor uses quality materials for long service life.

Also, the mounting bracket image below helps users check one way to install this compact gear motor. Therefore, it is useful before sample testing and final design.

Typical Applications

Finally, this mini full metal gearbox motor is suitable for products that need small size, strong torque, and steady low-speed motion. For example, it can work in robots, small automation systems, DIY projects, consumer products, medical devices, car parts, and security devices.

• Robotics: Also, it can drive wheels, move arms, and support small robot control.
• Automation systems: In addition, it is useful for small belts, sort units, and light machines.
• DIY projects: Next, it can support custom tools, model cars, boats, planes, and hobby builds.
• Consumer products: Also, it can work in small home devices, electric toys, and compact products.
• Medical devices: For example, it can fit small pumps, rehab tools, and health care devices.
• Automotive: In addition, it can work in power mirrors, small actuators, and car parts.
• Security systems: Finally, it is useful for camera pan or tilt parts, door locks, and related devices.

In short, the NFP-GM13-050 high torque low speed reduction electric motor is a good fit for products that need 3V, 6V, 12V, or 24V DC power, compact 15mm size, full metal gearbox output, several ratio options, and steady low-speed torque.
