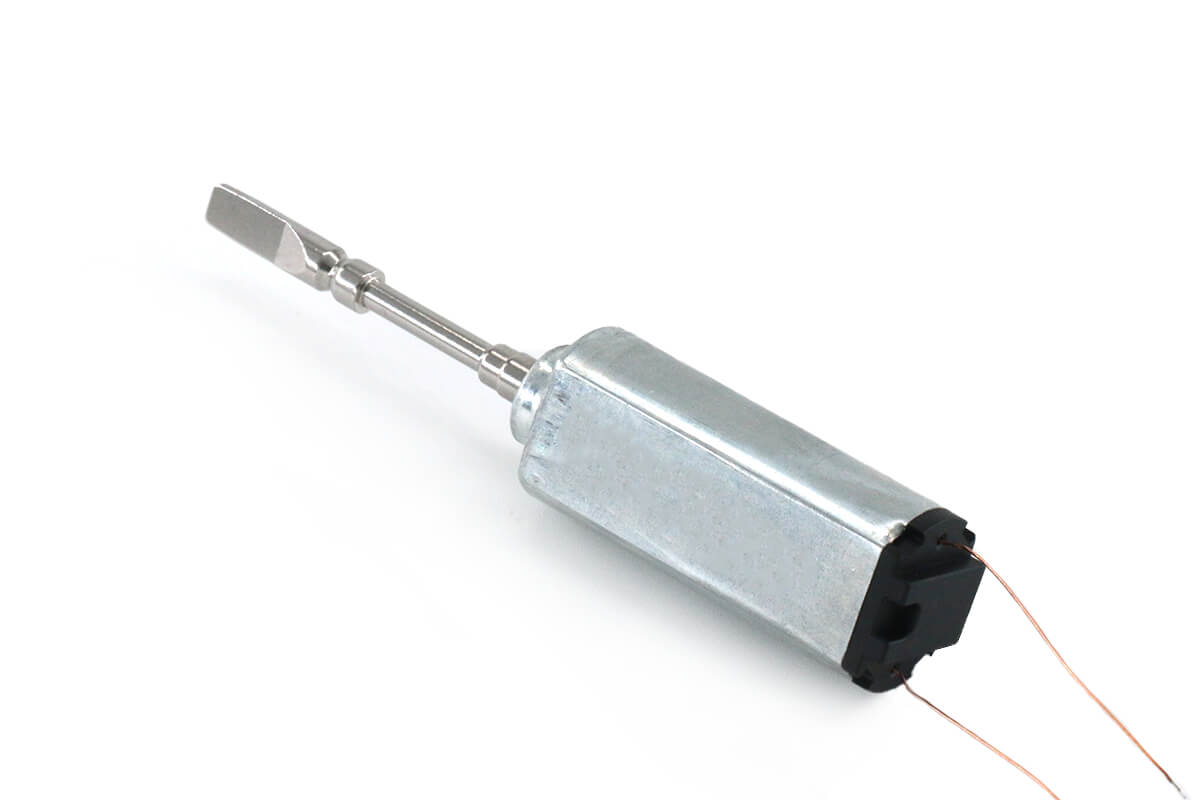

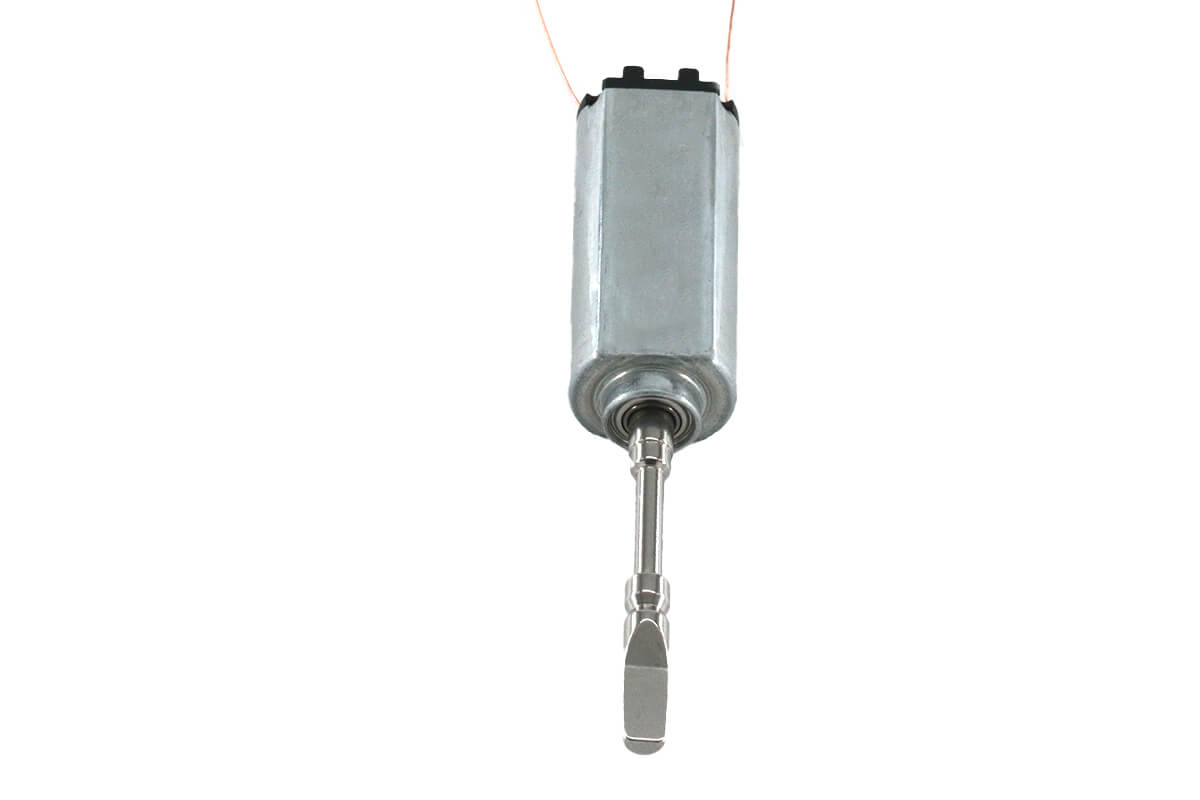

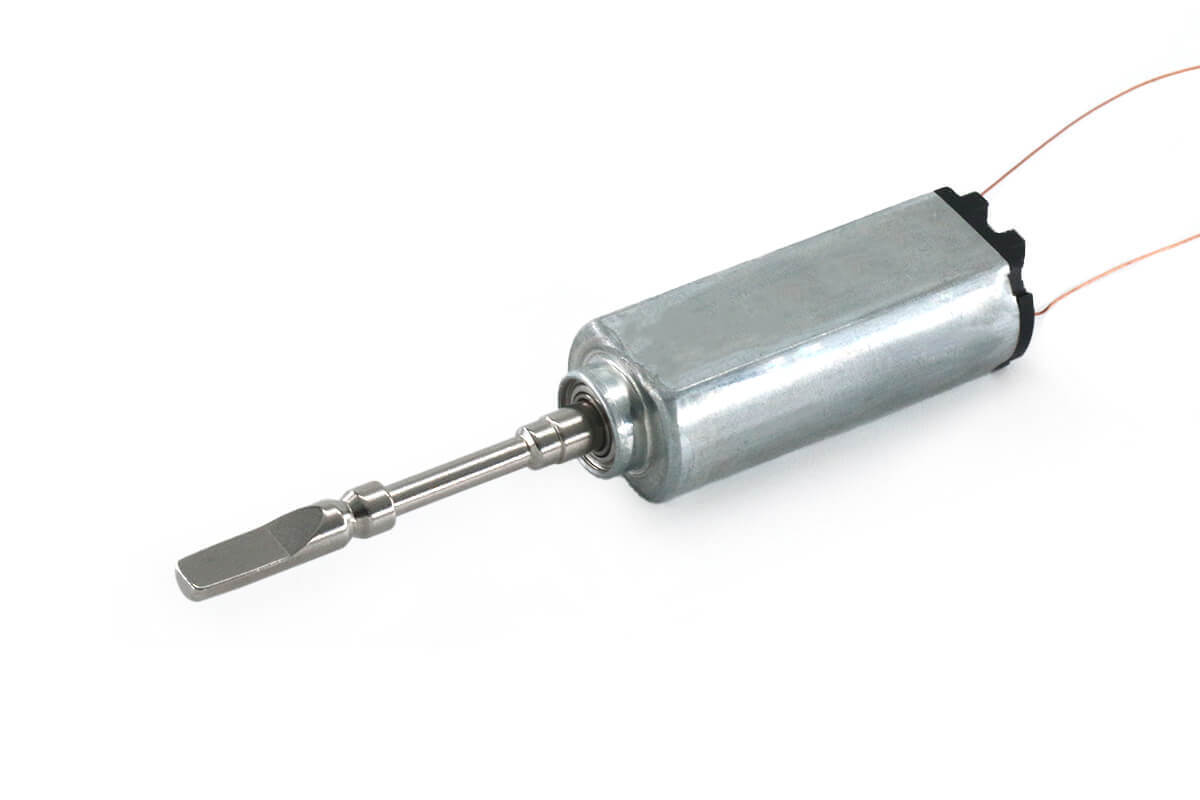

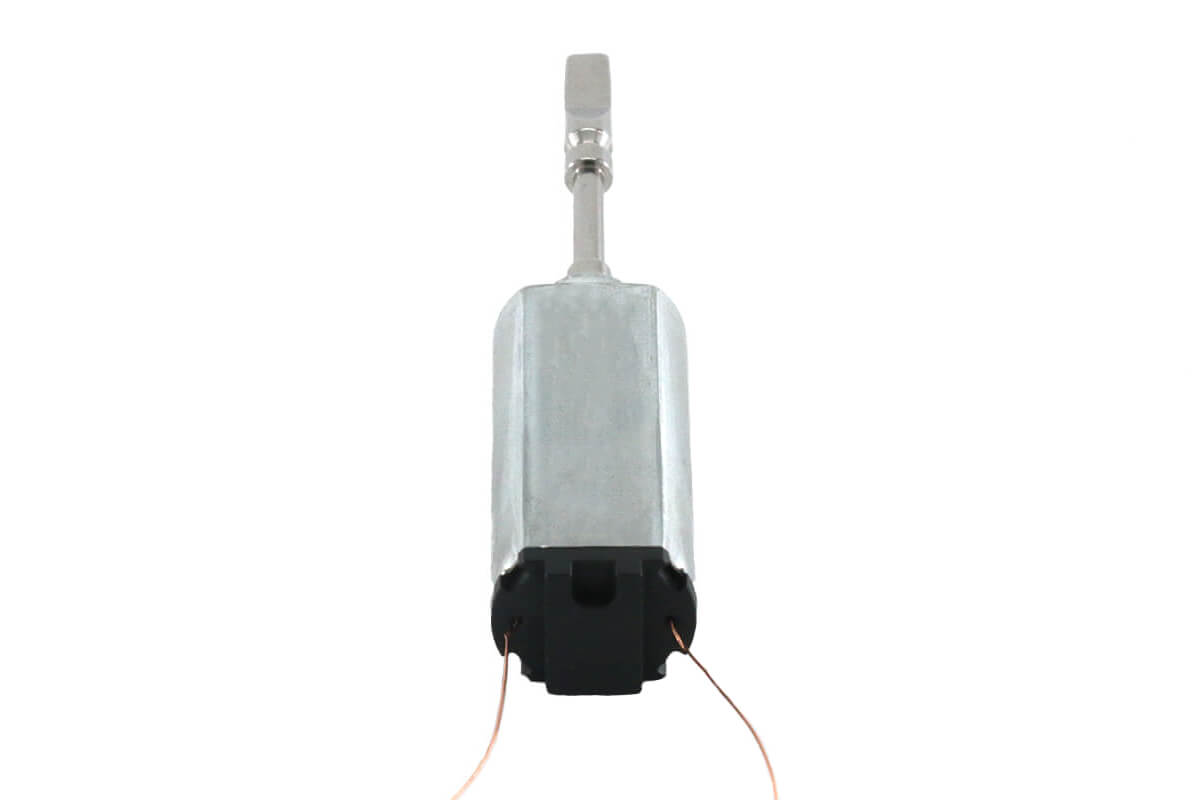

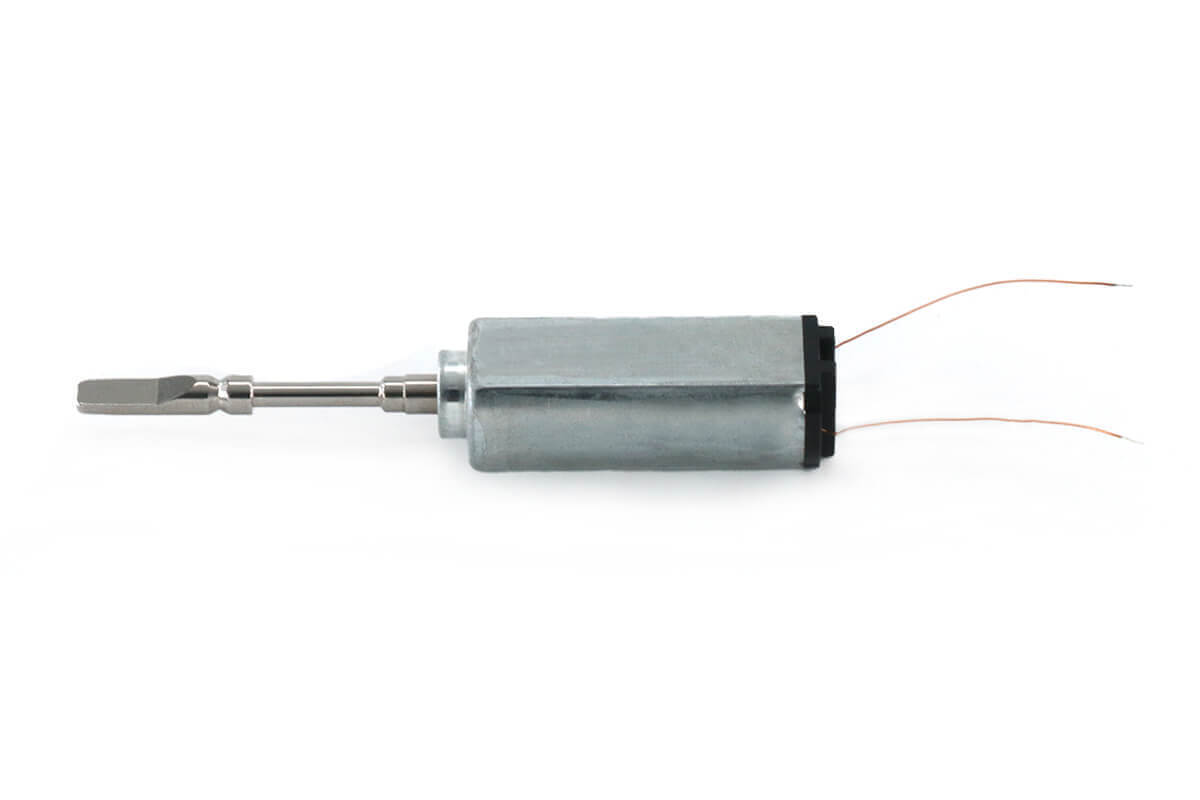

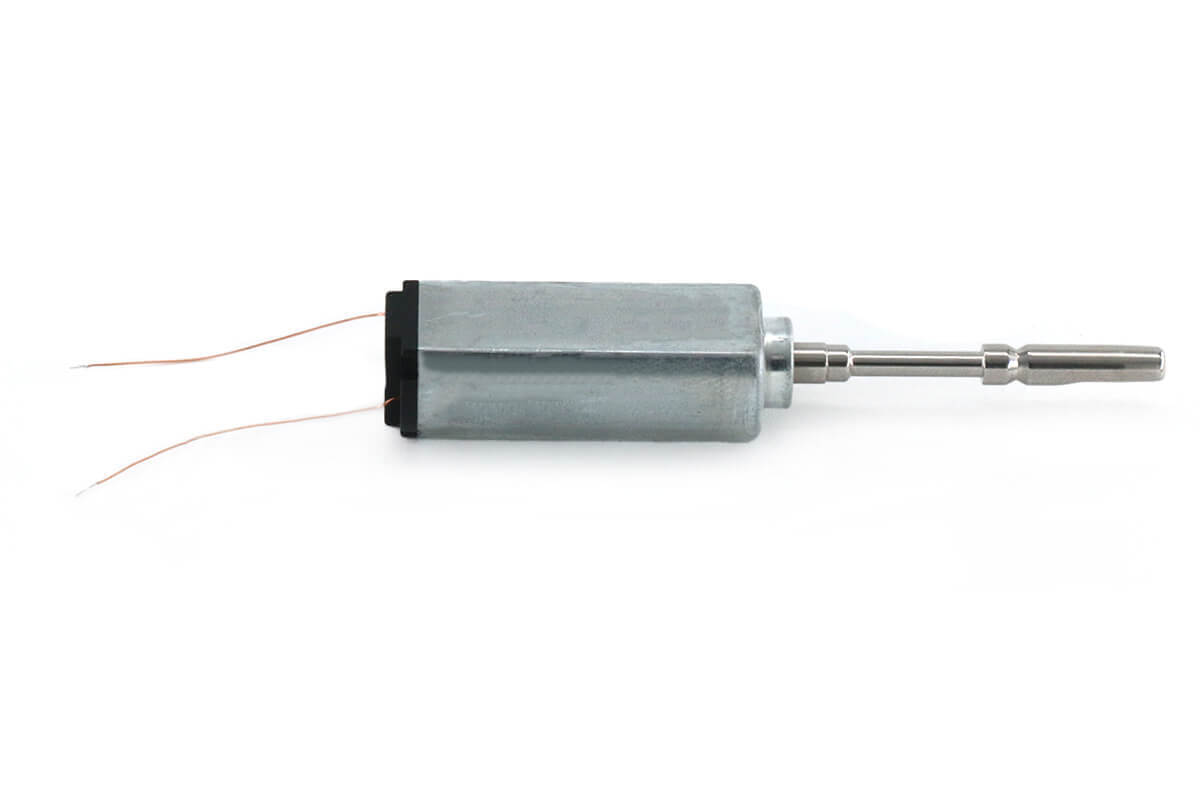

15mm Sonic Vibration Motor – 38mm Type Model NFP-1538-A609
$15.00
Enhance your projects with the 15mm Sonic Vibration Motor, delivering reliable performance and efficiency across various applications. Order now!
Request a quotation for mass production quantities, contact us for customizations and integration.
| Quantity | Price | Discount |
|---|---|---|
| 1 - 99 | $15.00 | 0% |
| 100+ | $8.00 | 46.67% |
Electric Toothbrush BLAC Motors Technical Sheet
| Motor Model | NFP-1538-A609 |
|---|---|
| Rated Voltage | 3.6V AC |
| Rated Current | 300mA |
| Rated Load Torque | 4.5g |
| Rated Frequency | 260Hz |
| Operating Voltage | 3V – 4.5V AC |
| Operating Frequency | 170Hz – 350Hz |
| No Load Frequency | 380Hz |
| No Load Current | 120mA |
| Stall Current | 720mA |
| Equilibrium Position Torque | 270gf.cm |
| Starting Voltage | 3.0V AC |
| Insulation Resistance | 10MΩ Min |
| Shaft Press Fit Force | ≤8kgf |
| Working Temperature & Humidity | -10°C – 60°C; ≤90%RH |
| Storage Temperature& Humidity | -30°C – 70°C; ≤80%RH |
| Working Life | 1,000H |
| Low Noise | 42dB |
| Weight | Appr. 23g |
High Frequency Brushless Motors Dimension
High Efficient AC Motor Brushless Type Operating Mechanism
Micro Vibrating Motor BLAC Performance Curve
Test voltage: 3.7V AC Duty cycle: 90%
Keywords:
small maglev motor, NFP vibration motor, vibration motor small, blac motors for sale, haptic motor, 15mm ac motor
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
