16mm Coreless Metal Gearbox Motor Model NFP-BL1635GM1623

Large Torque Coreless Gear Motor Long-term Durability Data Sheet

First, the NFP-BL1635GM1623 is a large torque brushless DC gear motor for compact drive systems. Also, it uses a 64:1 gearbox ratio and works with a 7.4V DC power supply.

In addition, this motor provides 302mNm rated torque and 200rpm rated speed. Therefore, it is suitable for small products that need stable speed, strong torque, and long service life.

Moreover, the brushless motor structure helps reduce wear compared with brushed motors. As a result, it is useful for applications that need low noise, high efficiency, and long-term durability.

Main Product Features

• First, brushless DC motor: The BLDC structure helps reduce wear and service needs.
• In addition, large torque output: The motor provides 302mNm rated torque and 2,082mNm stall torque.
• Also, 64:1 gearbox: The reduction gearbox helps provide lower speed and stronger output torque.
• Next, high efficiency: The listed max efficiency is 77%.
• Moreover, compact design: The motor can fit small gear drive products.
• Finally, JST connector: The JST PHR-8 connector helps simplify wiring during sample testing.

Basic Motor Specifications

First, the table below shows the main motor data. Also, it helps users check voltage, current, torque, speed, resistance, efficiency, ratio, and connector type before testing.

Therefore, this motor is a strong option for compact systems that need 7.4V DC power and stable torque output. In addition, the 64:1 gearbox helps convert motor speed into useful low-speed drive power.

Low Noise Brushless DC Motor with Gearbox Dimension

Motor Outline and Mounting Reference

First, the outline drawing helps users check the motor body, gearbox size, shaft position, and mounting space. Therefore, it is useful before sample testing and product design.

In addition, the compact brushless gearbox structure helps reduce installation space. As a result, it can fit small robots, smart devices, precision instruments, and compact automation modules.

Brushless Gearbox Structure

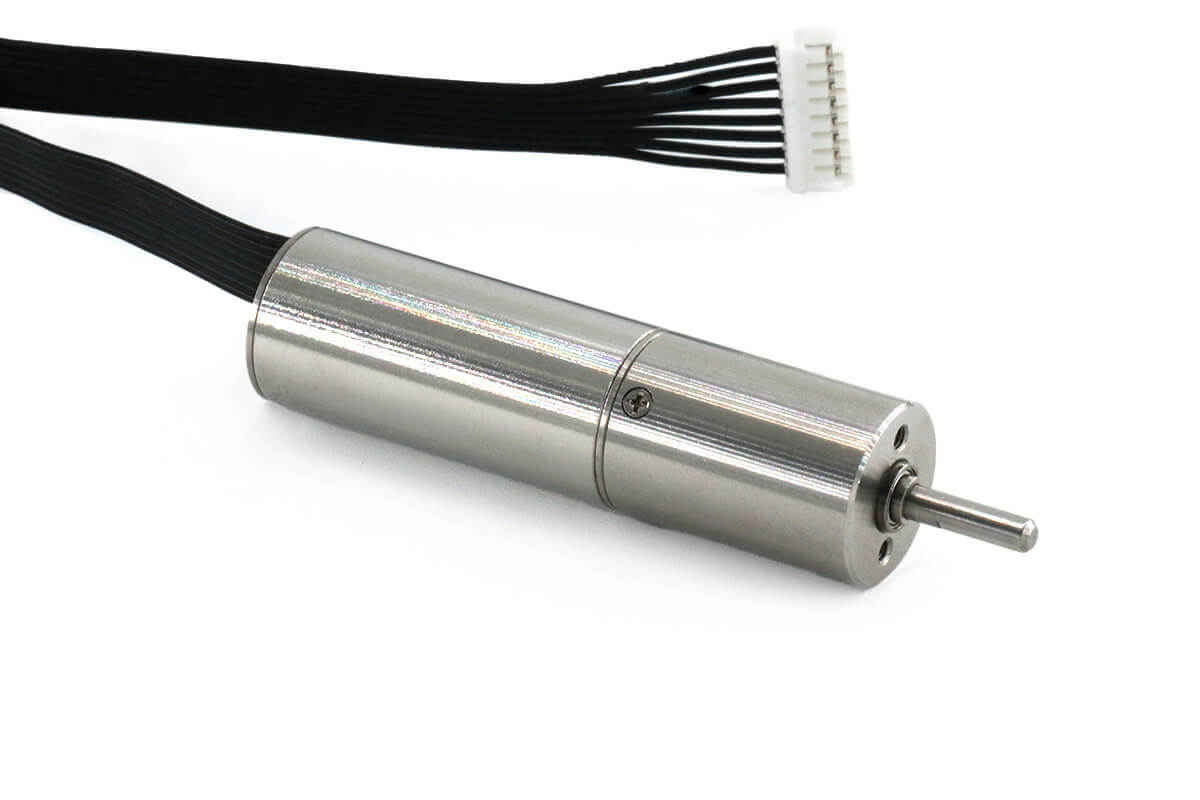

Next, the image below shows the small brushless motor and gearbox structure. Also, it helps users review the motor layout before building a compact drive system.

Moreover, the gearbox helps provide stable reduction output. Therefore, the motor can support products that need smooth motion and stronger torque at lower speed.

Outline Drawing and Design Benefits

• First, compact gearbox: The motor can fit small product spaces.
• In addition, low noise design: The brushless motor supports quieter operation.
• Also, 64:1 reduction: The gearbox helps provide stable low-speed output.
• Next, high torque: The motor supports compact force-driven tasks.
• Moreover, clear dimensions: The drawings help users design brackets and housings.
• Finally, connector support: The JST PHR-8 connector helps simplify wiring.

Long Lifespan Brushless Gearbox Motor BLDC Performance Curve

Performance Curve Overview

First, the BLDC performance curve helps users review speed, torque, current, power, and efficiency under different load points. Also, it is useful for choosing a safer working range.

In addition, the motor reaches 77% max efficiency according to the listed data. Therefore, users can use the curve to compare the best working point before final design.

Moreover, the curve helps show how current rises when load increases. As a result, users can avoid overload and improve motor service life during real use.

Curve Reading Notes

• First, no-load point: The motor reaches 234rpm no-load speed with 0.3A no-load current.
• In addition, rated point: The rated output is 200rpm with 302mNm rated torque.
• Also, stall point: The stall torque is 2,082mNm with 9.87A stall current.
• Next, efficiency: The listed max efficiency is 77%.
• Moreover, current check: The driver should support the required working current.
• Finally, real testing: Users should confirm temperature, torque, current, and noise under real load.

Applications and Selection Tips

Typical Applications

Finally, this brushless DC gear motor is useful for compact products that need high torque, low noise, and long service life. For example, it can work in small robots, precision instruments, smart devices, automation modules, and compact actuators.

• First, small robots: The motor can drive wheels, arms, and compact motion parts.
• In addition, precision instruments: The low-noise output helps support smooth movement.
• Also, smart devices: The compact gearbox helps save internal product space.
• Next, automation modules: The motor can provide stable low-speed drive output.
• Moreover, compact actuators: The high torque output can support push, pull, and rotation tasks.
• Finally, long-life products: The BLDC structure helps reduce brush wear and maintenance needs.

How to Choose This Motor

First, check whether the product can use a 7.4V DC motor. Also, confirm that the driver can support the rated current and stall current range.

In addition, check the required speed and torque before selection. Therefore, users should compare 200rpm rated speed and 302mNm rated torque with the real load.

Moreover, check the duty cycle and heat rise during operation. As a result, users can improve long-term durability and reduce overload risk.

Final Selection Notes

• First, check voltage: Use a 7.4V DC power supply.
• In addition, check ratio: Use the 64:1 gearbox ratio for low-speed high-torque output.
• Also, check torque: Compare 302mNm rated torque with the real load.
• Next, check current: Make sure the driver can handle 1.6A rated current and 9.87A stall current.
• Moreover, check connector: Confirm the JST PHR-8 connector before wiring.
• Finally, test real load: Confirm speed, current, torque, temperature, noise, and service life before production.

In short, the NFP-BL1635GM1623 is a compact brushless DC gear motor for products that need 7.4V DC power, 64:1 reduction, 302mNm rated torque, 77% max efficiency, low noise, and long-term durability.
