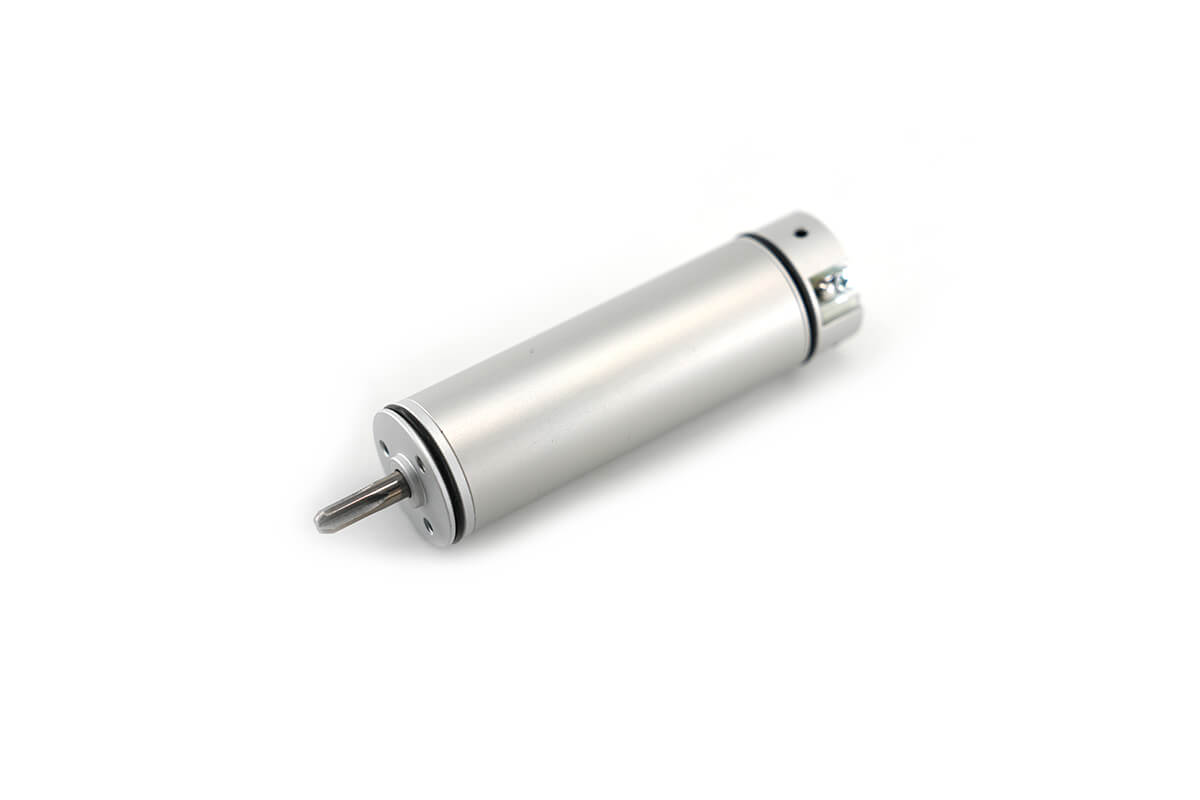

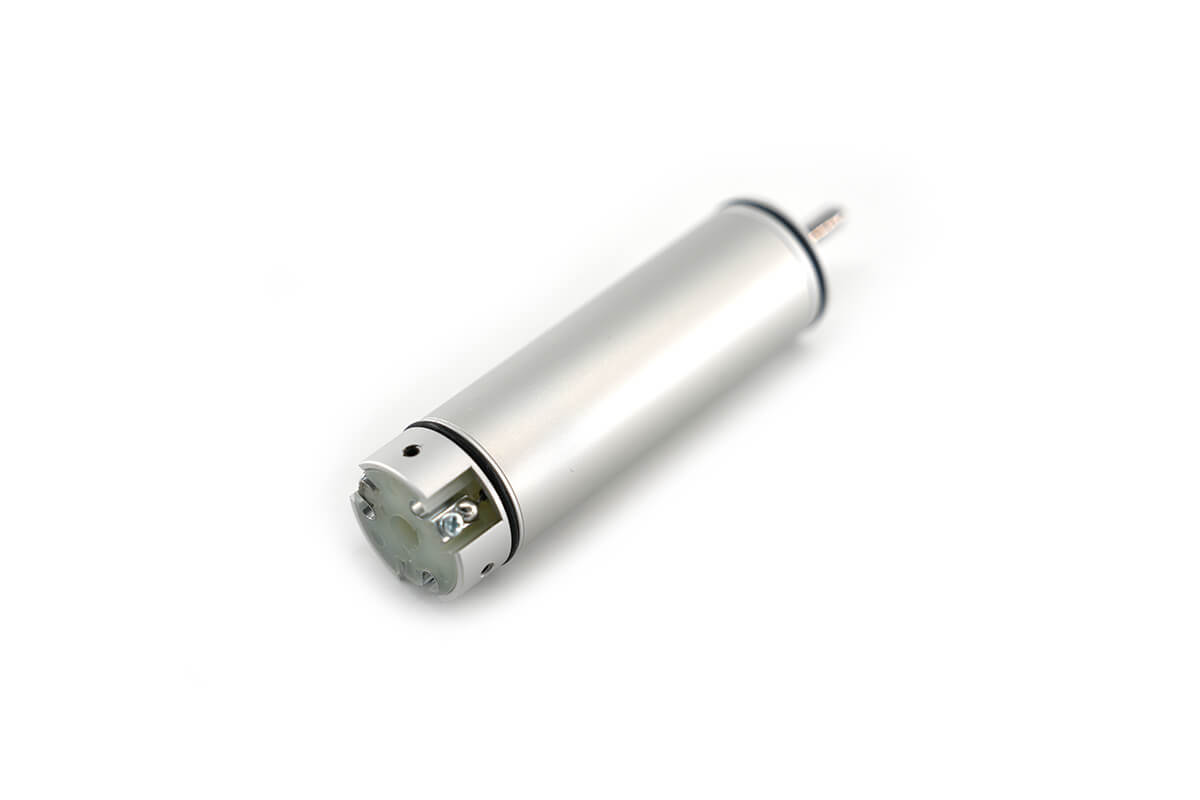

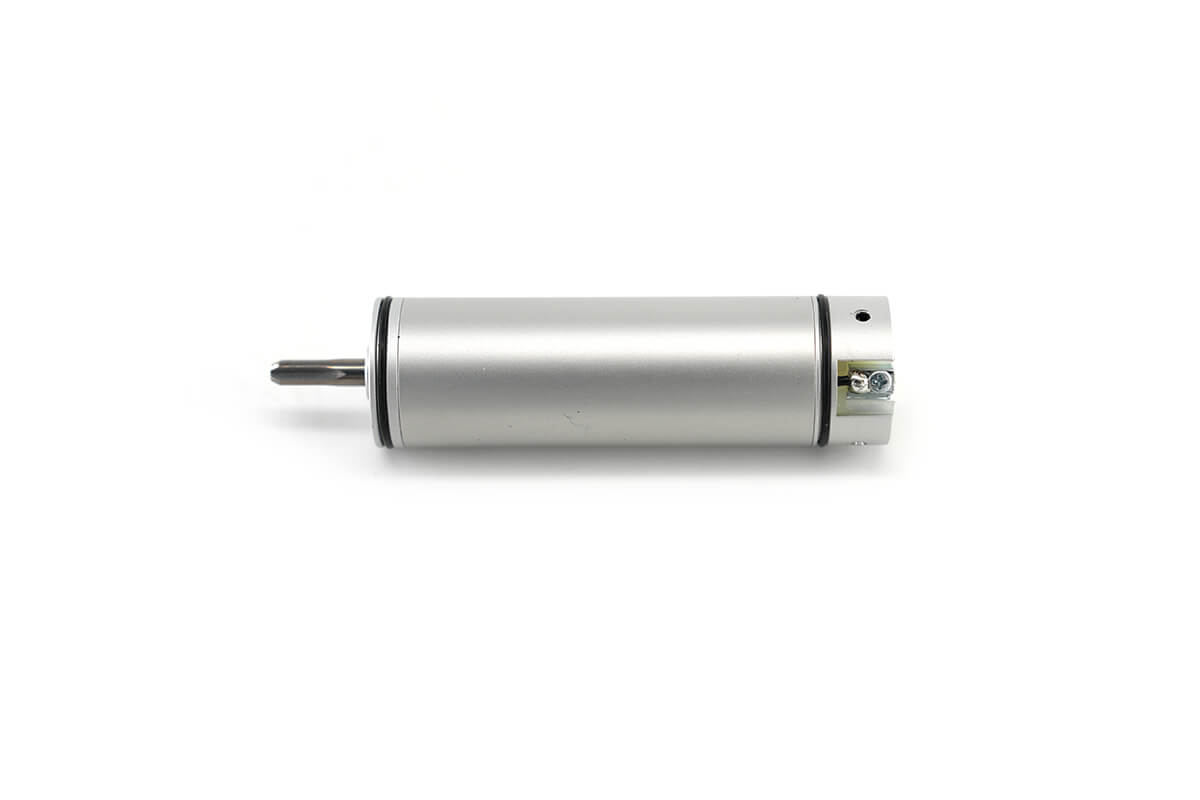

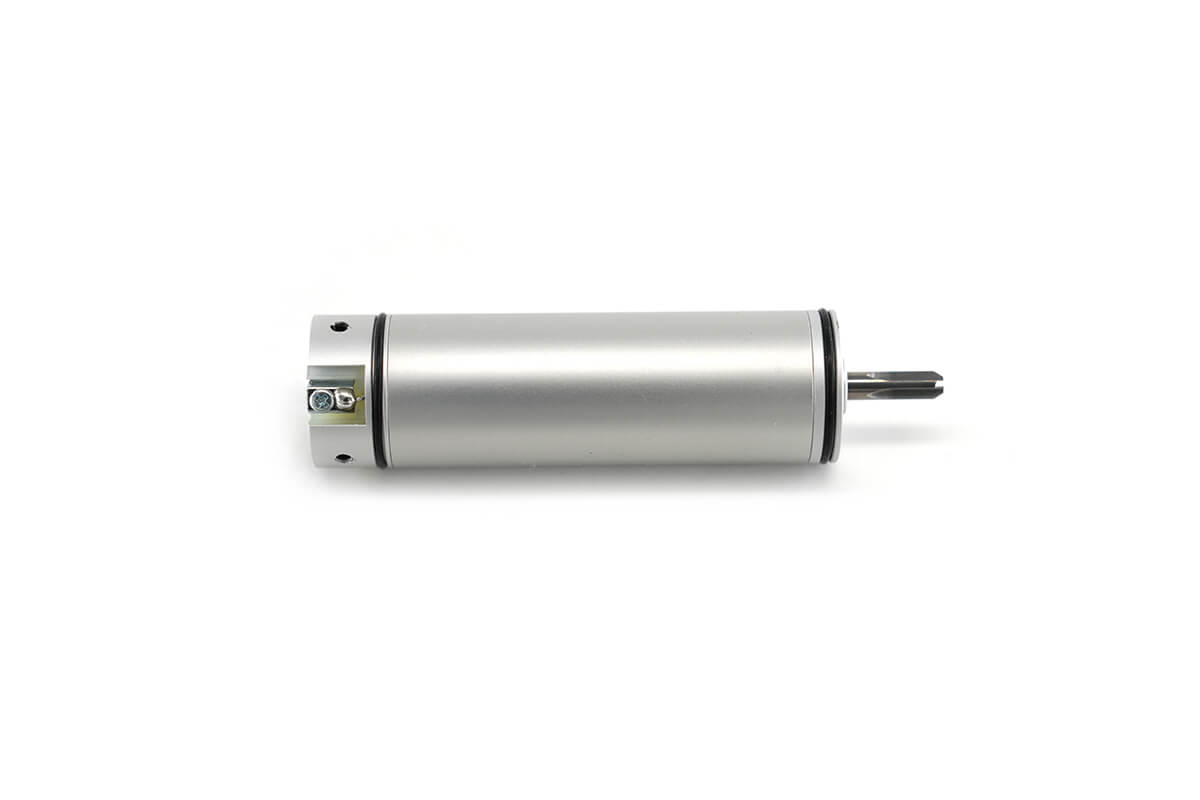

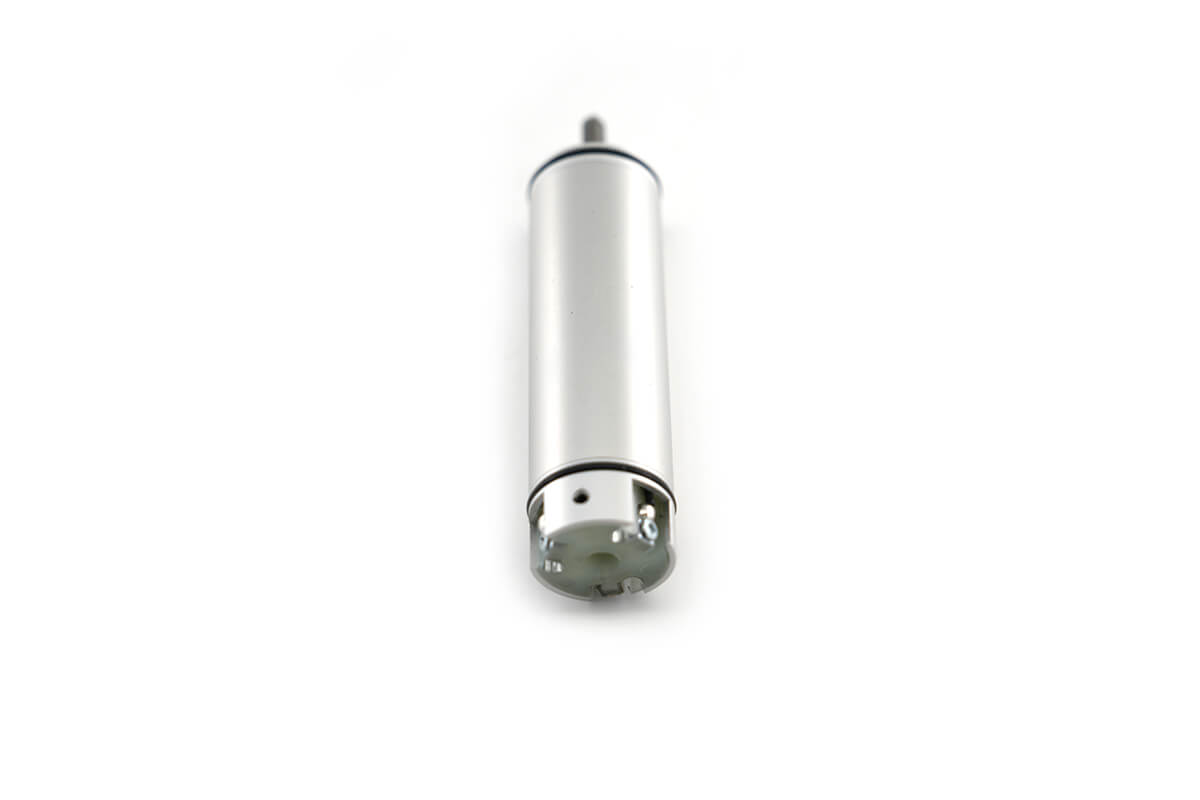

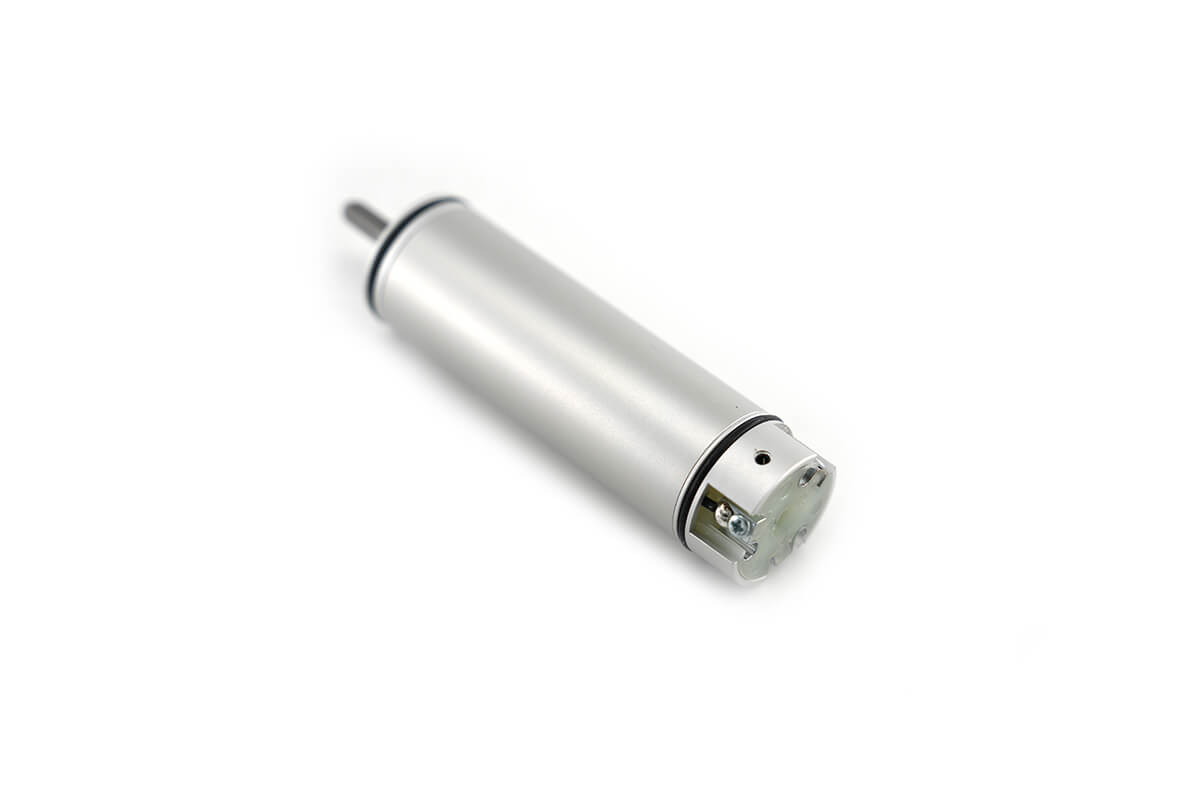

16mm Brushless DC Motor – 54mm Type Model NFP-BLDC-1654
$30.00
The advanced 16mm brushless dc motor combines compactness and efficiency, making it a top choice for designers. Obtain yours now and enhance your design!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $30.00 | 0% |
| 10 - 49 | $27.00 | 10% |
| 50 - 99 | $25.50 | 15% |
| 100 - 499 | $20.00 | 33.33% |
| 500+ | $12.80 | 57.33% |
16mm Brushless DC Motor Datasheets
The NFP-BLDC-1654 is a 16mm brushless DC motor for compact products that need high speed, high efficiency, and long lifetime. It works at 24V DC and provides 30,000rpm no-load speed.
First, this BLDC motor has a compact 16mm diameter and 54.15mm total length. Also, it uses brushless technology to reduce brush wear. Therefore, it is useful for space-limited products that need reliable performance.
In addition, users can get a BLDC motor controller from the following link. As a result, it is easier to match the motor with a suitable drive system.
Main Product Features
- First, compact size: The 16mm motor diameter fits small product spaces.
- In addition, high speed: The no-load speed reaches 30,000rpm.
- Also, strong torque: Stall torque reaches 540g.cm.
- Next, brushless design: The structure helps reduce brush wear and maintenance.
- Finally, precision build: Metal construction and mold processing help support stable performance.
NFP-BLDC-1654 Brushless Motor Specification Data
Next, the table below helps users check voltage, rotation, speed, current, resistance, torque, shaft size, motor size, and total length. Therefore, it is easier to confirm whether this brushless motor fits the final product design.
| Motor Model | NFP-BLDC-1654 |
|---|---|
| Voltage | 24V DC |
| Rotation | CW |
| No-load current | 75mA |
| No-load speed | 30,000rpm |
| End resistance | 3.36Ω |
| Stall torque | 540g.cm |
| Stall current | 7.14A |
| Output shaft length | 11.00mm |
| Motor diameter | 16.00mm |
| Total length | 54.15mm |
| Flange diameter | 6mm |
Also, the NFP-BLDC-1654 provides high speed with low no-load current. As a result, it can support compact devices that need efficient and fast brushless motor output.
24V BLDC Precision Brushless Motor Outline Drawing
First, the outline drawing shows the NFP-BLDC-1654 motor body, shaft, and main size data. Therefore, users can check the motor fit before product design.
In addition, this brushless motor uses metal construction and precision mold processing. As a result, it can support durability and stable performance in demanding environments.
Outline Drawing and Design Benefits
- First, compact body: The 16mm motor diameter helps save product space.
- In addition, long body design: The 54.15mm total length supports useful output in a small diameter.
- Also, precise shaft: The 11.00mm output shaft length helps with mechanical connection.
- Next, heat resistance: The structure helps maintain performance under suitable load.
- Finally, vibration resistance: The metal structure helps support stable running.
Other Performance Of 1654 Brushless DC Motor Model
Next, brushless DC motors have no brushes for commutation. Therefore, they can reduce brush wear and support longer service life than brushed motor designs.
In addition, the NFP-BLDC-1654 series can support high speed, lower noise, reduced EMI, and low maintenance. As a result, it is useful for precision products and compact electronic systems.
Brushless Motor Benefits
- First, higher efficiency: Brushless operation helps reduce power loss.
- In addition, longer lifespan: No brush wear helps extend running life under suitable conditions.
- Also, minimal maintenance: The brushless design removes brush replacement work.
- Next, quieter operation: Smooth commutation can help reduce running noise.
- Finally, reduced EMI: The motor can improve compatibility with sensitive electronic parts.
1654 Brushless DC Motor Performance Data
Also, the table below helps users compare voltage, speed constant, torque constant, no-load speed, current, nominal data, stall data, efficiency, and terminal resistance. Therefore, users can choose the right 1654 BLDC version more easily.
| MODEL | 1654-22D | 1654-33D | 1654-35D | 1654-24D | 1654-18D | 1654-19C |
|---|---|---|---|---|---|---|
| Voltage | 12V DC | 7.4V DC | 12V DC | 24V DC | 24V DC | 24V DC |
| Speed constant | 2442rpm/V | 2083rpm/V | 1744rpm/V | 1083rpm/V | 1325rpm/V | 1596rpm/V |
| Torque constant | 3.83mNm/A | 4.49mNm/A | 5.37mNm/A | 8.64mNm/A | 7.06mNm/A | 5.86mNm/A |
| No-load speed | 29300rpm | 25000rpm | 29300rpm | 26000rpm | 31800rpm | 38300rpm |
| No-load current | 150mA | 130mA | 130mA | 90mA | 100mA | 130mA |
| Nominal speed | 26370rpm | 22250rpm | 26000rpm | 23000rpm | 28460rpm | 34850rpm |
| Nominal torque | 4.04mNm | 3.9mNm | 4.5mNm | 5.3mNm | 5.3mNm | 7.5mNm |
| Nominal current | 1.1A | 0.97A | 0.95A | 0.68A | 0.83A | 1.38A |
| Stall torque | 39.90mNm | 35.4mNm | 40.6mNm | 45mNm | 50.5mNm | 83mNm |
| Stall current | 10.30A | 7.8A | 5.4A | 5.2A | 7.1A | 14A |
| Max efficiency | 83% | 79% | 78% | 78% | 86% | 83% |
| Terminal resistance | 1.16Ω | 1.53Ω | 2.23Ω | 4.59Ω | 3.4Ω | 1.71Ω |
Also, the 1654-19C gives the highest no-load speed, nominal speed, nominal torque, and stall torque. However, the 1654-18D gives the highest max efficiency.
As a result, users can choose the 1654-19C for higher speed and torque, or choose the 1654-18D for better efficiency.
Typical Applications
Finally, this 16mm BLDC motor is suitable for compact products that need high speed, precision, and low maintenance. For example, it can work in medical devices, robotics, and precision equipment.
- Medical devices
- Robotics
- Precision equipment
- Compact automation systems
- High-speed electronic devices
- Space-limited BLDC drive systems
- Low-noise motor projects
In short, the NFP-BLDC-1654 brushless DC motor is a good fit for compact products that need 24V DC power, high speed, long life, low maintenance, and reliable BLDC motor performance.
Keywords: brushless dc motor, bldc motor, 16mm motor, high-speed dc motor, compact motor, efficient motor, medical device motor, robotics motor, precision motor, NFP-BLDC-1654
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
