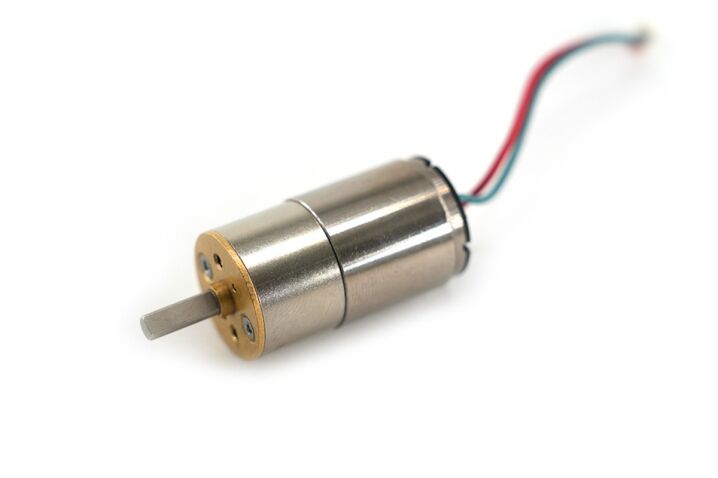

16mm Coreless Metal Gearbox Motor Model NFP-GM16-C1629
$15.50
Transform your projects with the compact 16mm 1617 coreless motor with reducer. Ideal for robotics enthusiasts looking for efficiency. Buy now!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 99 | $15.50 | 0% |
| 100 - 499 | $14.41 | 7.03% |
| 500 - 999 | $13.90 | 10.32% |
| 1000 - 4999 | $13.38 | 13.68% |
| 5000+ | $12.87 | 16.97% |
Permanent Magnet DC Coreless Gear Motor Parameter
Product Overview
First, the NFP-GM16-C1629 is a 16mm permanent magnet coreless DC gear motor. Therefore, it is suitable for compact drive systems that need smooth motion, low noise, and stable torque output.
In addition, this motor uses a coreless DC motor with a reduction gearbox. As a result, it can provide higher torque at lower output speed.
Moreover, the motor supports CW and CCW rotation. Therefore, users can apply it to two-way motion systems such as smart locks, robot arms, and miniature gimbals.
Main Features
- First, 16mm compact gearbox: The small gearbox helps save installation space and fits compact mechanical designs.
- In addition, coreless DC motor input: The coreless motor provides fast response and smooth operation for precision motion tasks.
- Also, all-metal gear structure: The metal gears improve wear resistance and help extend service life.
- Next, D-shaped output shaft: The D-cut shaft helps prevent slipping and makes installation easier.
- Moreover, CW and CCW rotation: The motor supports forward and reverse rotation for flexible motion control.
- Finally, low-noise output: The coreless motor and gearbox structure help support quieter operation.
Basic Motor Specifications
First, the table below shows the main motor data. Therefore, users can check voltage, shaft size, rotation, and weight before testing.
| Model | NFP-GM16-C1629 |
|---|---|
| Rated Voltage | 6V DC |
| Rotation | CW / CCW |
| Shaft Diameter | Φ3mm (D-cut: 2.5mm) |
| Shaft Length | 10mm |
| Weight | Appr. 27g |
As a result, this model gives a compact 6V coreless gear motor solution for small smart products. Moreover, the Φ3mm D-cut shaft helps improve coupling grip during assembly.
Coreless DC Gear Motor Performance Data
6V DC Performance Data
First, the table below shows the 6V DC version with 15,000RPM motor input. Therefore, users can compare ratio, speed, current, torque, and stall data before choosing a gear ratio.
In addition, lower ratios provide higher output speed. However, higher ratios provide lower speed and stronger torque for compact drive tasks.
Model: NFP-GM16-C1629-06153, 6V DC (15000RPM)
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 10:1 | 1450rpm | ≤50mA | 1050rpm | ≤0.28A | 0.08kg.cm | ≥0.25kg.cm | ≤1.4A |
| 20:1 | 720rpm | ≤50mA | 530rpm | ≤0.28A | 0.15kg.cm | ≥0.55kg.cm | ≤1.4A |
| 35:1 | 410rpm | ≤50mA | 300rpm | ≤0.28A | 0.27kg.cm | ≥1kg.cm | ≤1.4A |
| 63:1 | 228rpm | ≤50mA | 170rpm | ≤0.28A | 0.5kg.cm | ≥1.7kg.cm | ≤1.4A |
| 86:1 | 167rpm | ≤50mA | 125rpm | ≤0.28A | 0.65kg.cm | ≥2.3kg.cm | ≤1.4A |
| 115:1 | 125rpm | ≤50mA | 93rpm | ≤0.28A | 0.9kg.cm | Max 3kg.cm | ≤1.4A |
| 150:1 | 95rpm | ≤50mA | 72rpm | ≤0.28A | 1.1kg.cm | Max 3kg.cm | ≤1.4A |
| 250:1 | 57rpm | ≤50mA | 43rpm | ≤0.28A | 1.9kg.cm | Max 3kg.cm | ≤1.4A |
| 360:1 | 40rpm | ≤50mA | 30rpm | ≤0.28A | 2.8kg.cm | Max 3kg.cm | ≤1.4A |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 6V version covers no-load speeds from 40rpm to 1450rpm. Moreover, the 360:1 ratio provides the strongest rated torque in this table.
6V DC Selection Notes
- First, for higher speed: Choose 10:1, 20:1, or 35:1.
- In addition, for balanced output: Choose 63:1, 86:1, or 115:1 based on the load.
- Also, for higher torque: Choose 150:1, 250:1, or 360:1.
- Next, for compact systems: Use this motor when the product needs a small 16mm gearbox.
- Finally, for safe use: Test current, torque
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
