16mm Metal Gear Motor Model NFP-JGA16-030

$10.50

(1 customer review)

Contact us for a quotation for production quantities, customizations and integration.

16mm JGA16-030 Miniature Gear Motor 6V, 12V DC Parameters


CW, CCW High torque small DC motor, 3mm shaft diameter, low noise, long lifetime. 12rpm – 923rpm, 0.6W-0.8W, no load current 0.05A – 0.09A, weight: 28g.

Motor Model: NFP-JGA16-030
Voltage: 6V/12V DC
Speed: 12rpm – 923rpm
No-load Current 0.05A – 0.09A
Shaft Diameter 3mm
Rotation CW/CCW
Max Torque 5kg
Weight 28g



Model: NFP-JGA16-030-06120, 6V DC, 12,000RPM, 1.3W
Ratio No Load Rated Load Stall
i : 1 Speed (rpm) Current (A) Speed (rpm) Current (A) Torque (kg.cm) Torque (kg.cm) Current (A)
13 923 0.045 692 0.16 0.06 0.25 0.6
25 480 0.045 360 0.16 0.1 0.43 0.6
32 375 0.045 281 0.16 0.13 0.56 0.6
35.7 336 0.045 240 0.16 0.15 0.62 0.6
45 266 0.045 200 0.16 0.17 0.71 0.6
50.7 240 0.045 1 80 0.16 0.19 0.80 0.6
63 190 0.045 142 0.16 0.24 1 .00 0.6
72 166 0.045 125 0.16 0.27 1.1 0.6
89 134 0.045 101 0.16 0.34 1.4 0.6
100 120 0.045 90 0.16 0.38 1.5 0.6
126 95 0.045 71 0.16 0.43 1.8 0.6
143 83 0.045 62 0.16 0.49 2.0 0.6
179 67 0.045 50 0.16 0.61 2.5 0.6
201 60 0.045 45 0.16 0.69 2.8 0.6
252 47 0.045 33 0.16 0.86 3.6 0.6
284 42 0.045 30 0.16 0.97 4.0 0.6
355 34 0.045 23 0.16 1.10 4.6 0.6
403 29 0.045 19 0.16 1.25 5.2 0.6
504 24 0.045 16 0.16 1.57 6.5 0.6
568 21 0.045 14 0.16 1.77 7.3 0.6
710 16 0.045 11 0.16 2.21 92 0.6
800 15 0.045 10 0.16 2.49 10.3 0.6
1000 12 0.045 8 0.16 3 12 0.6



Model: NFP-JGA16-030-12120, 12V DC, 12,000RPM, 1.3W
Ratio No Load Rated Load Stall
i : 1 Speed (rpm) Current (A) Speed (rpm) Current (A) Torque (kg.cm) Torque (kg.cm) Current (A)
13 923 0.035 692 0.11 0.06 0.25 0.4
25 480 0.035 360 0.11 0.1 0.43 0.4
32 375 0.035 281 0.11 0.13 0.56 0.4
35.7 336 0.035 240 0.11 0.15 0.62 0.4
45 266 0.035 200 0.11 0.17 0.71 0.4
50.7 240 0.035 180 0.11 0.19 0.80 0.4
63 190 0.035 142 0.11 0.24 1.00 0.4
72 166 0.035 125 0.11 0.27 1.1 0.4
89 134 0.035 101 0.11 0.34 1.4 0.4
100 120 0.035 90 0.11 0.38 1.5 0.4
126 95 0.035 71 0.11 0.43 18 0.4
143 83 0.035 62 0.11 0.49 2.0 0.4
179 67 0.035 50 0.11 0.61 2.5 0.4
201 60 0.035 45 0.11 0.69 2.8 0.4
252 47 0.035 33 0.11 0.86 3.6 0.4
284 42 0.035 30 0.11 0.97 4.0 0.4
355 34 0.035 23 0.11 1.10 4.6 0.4
403 29 0.035 19 0.11 1.25 5.2 0.4
504 24 0.035 16 0.11 1.57 6.5 0.4
568 21 0.035 14 0.11 1.77 7.3 0.4
710 16 0.035 11 0.11 2.21 9.2 0.4
800 15 0.035 10 0.11 2.49 10.3 0.4
1000 12 0.035 8 0.11 3 12 0.4



JGA16Y-050 Small Gear Motor Outline Drawing


12-volt-motor-with-gearbox-outline-drawing-030-16mm

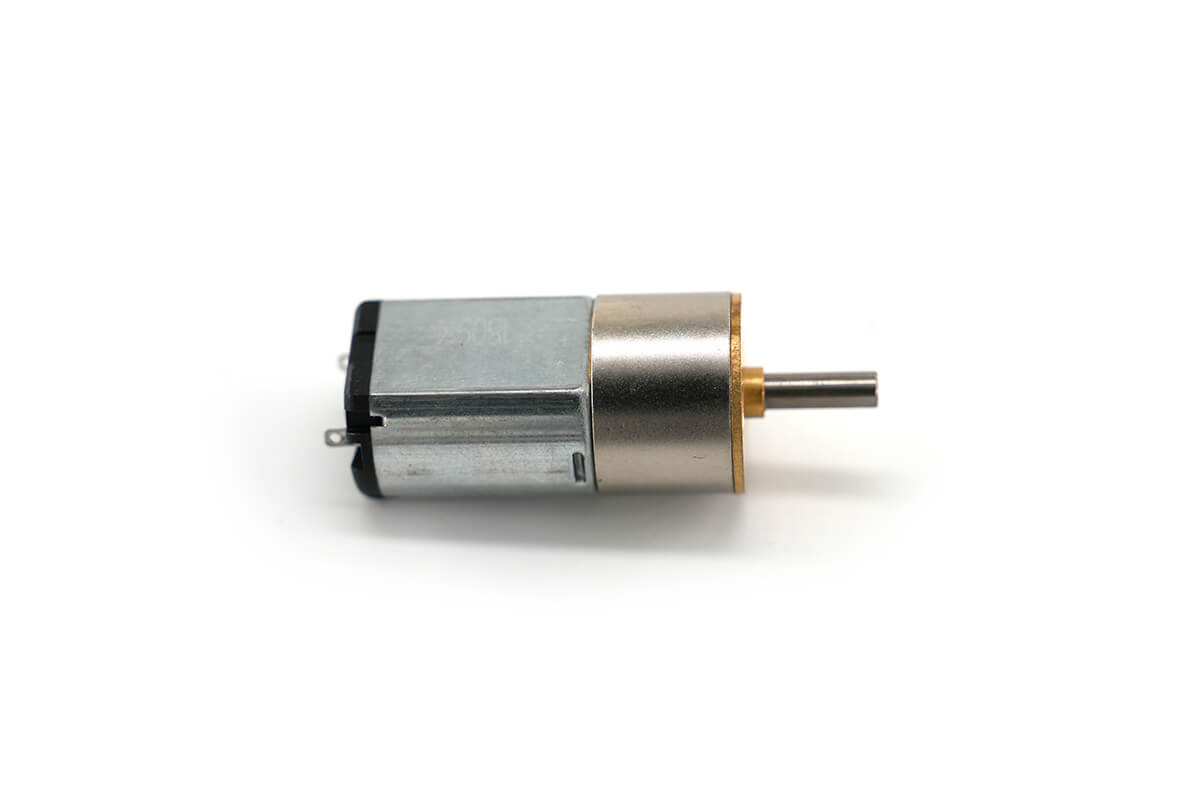

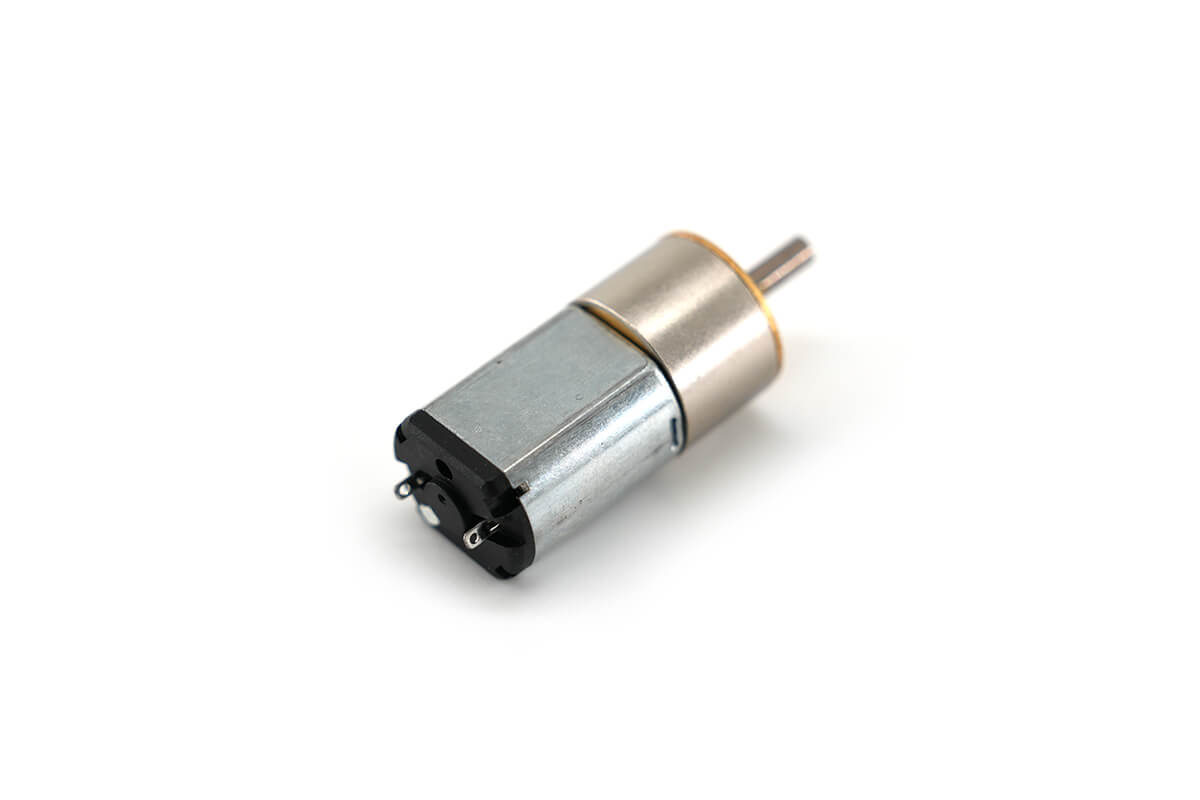

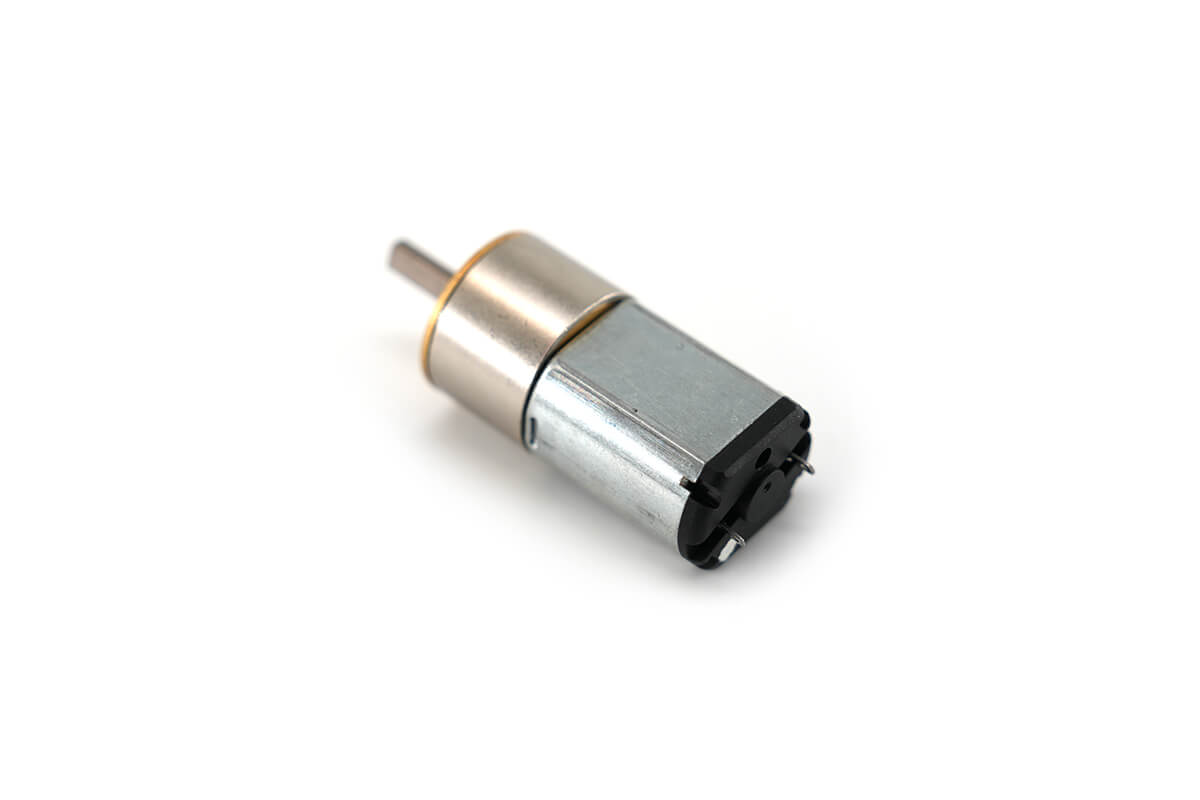

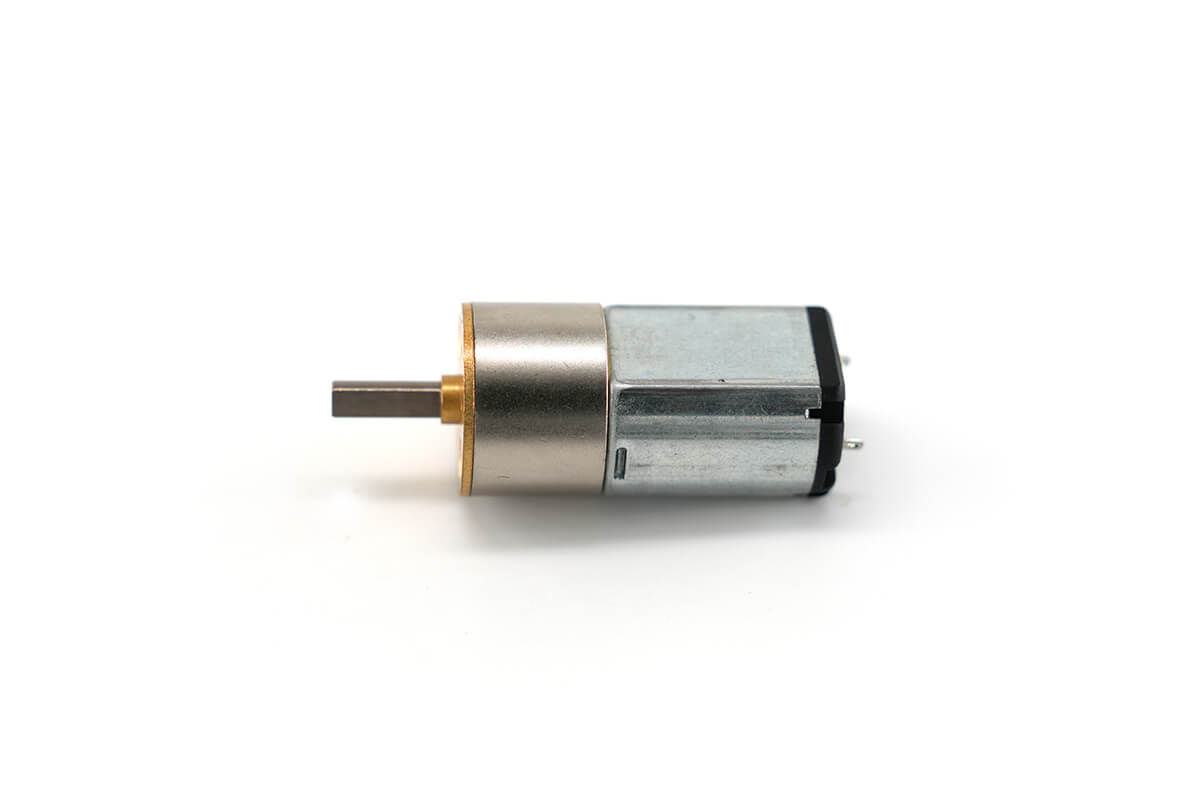

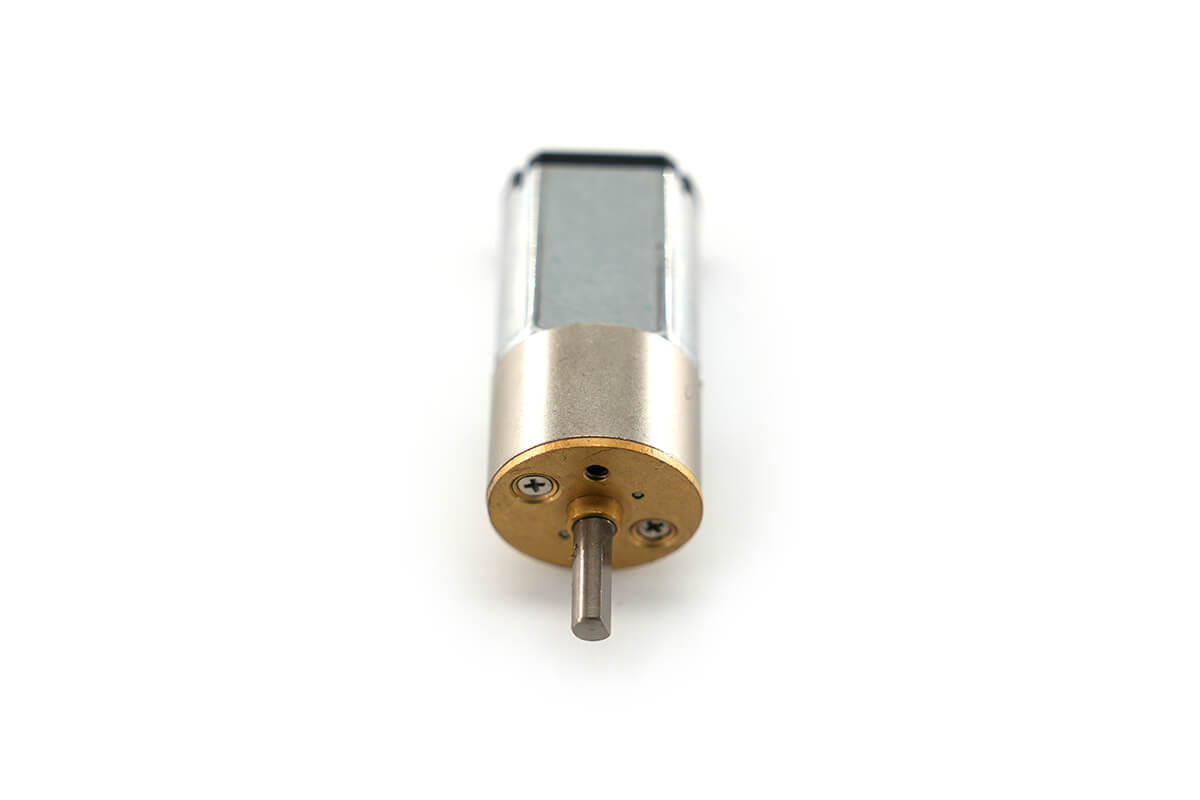

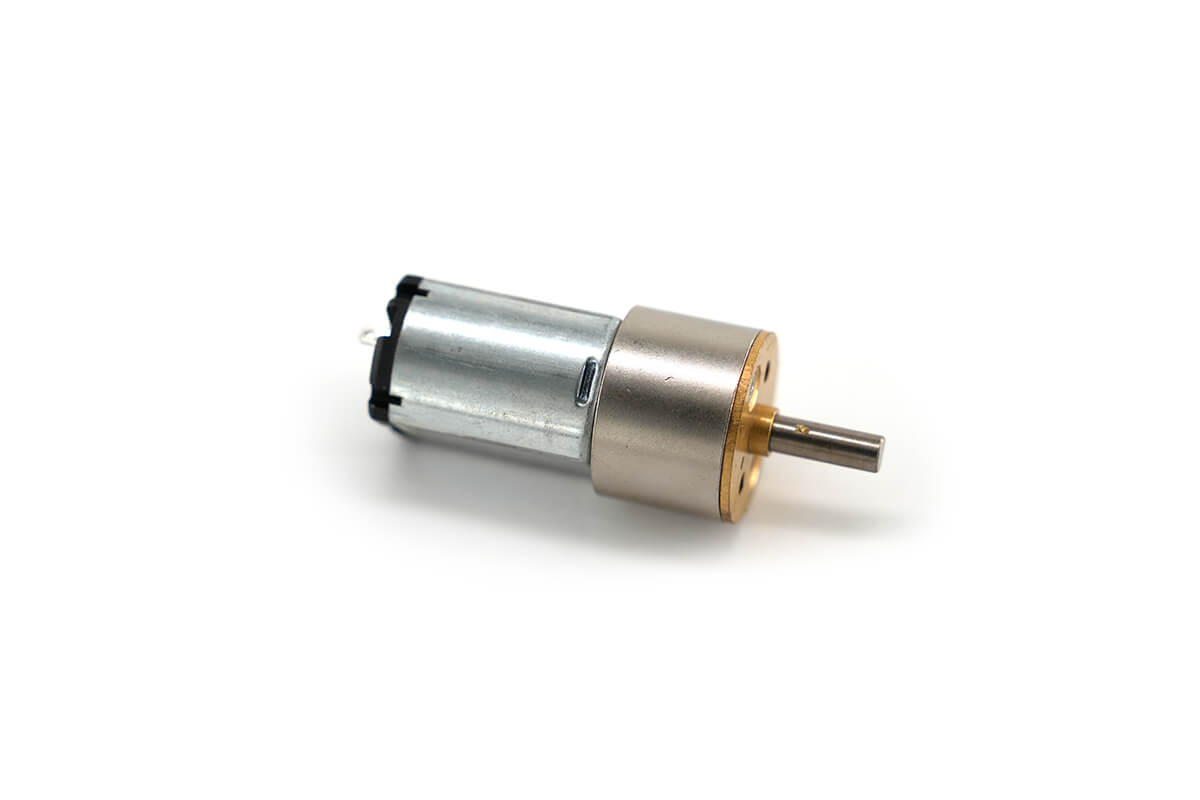

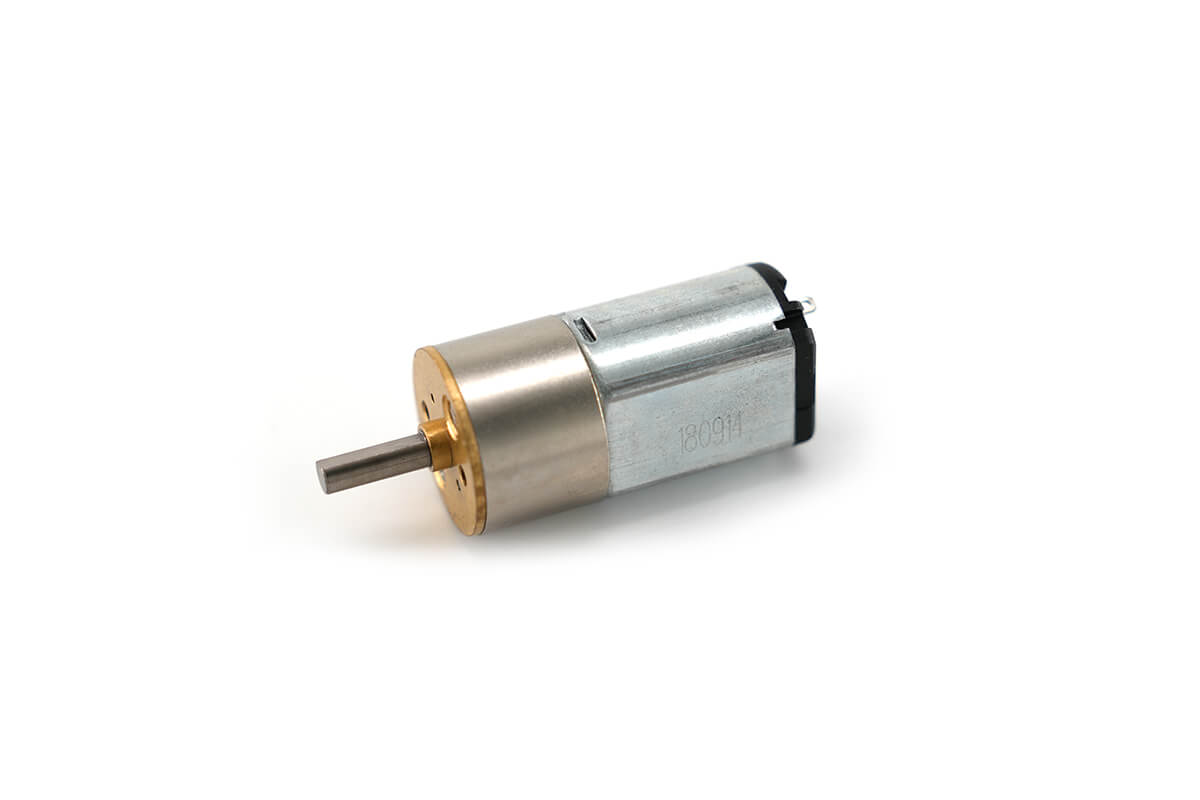

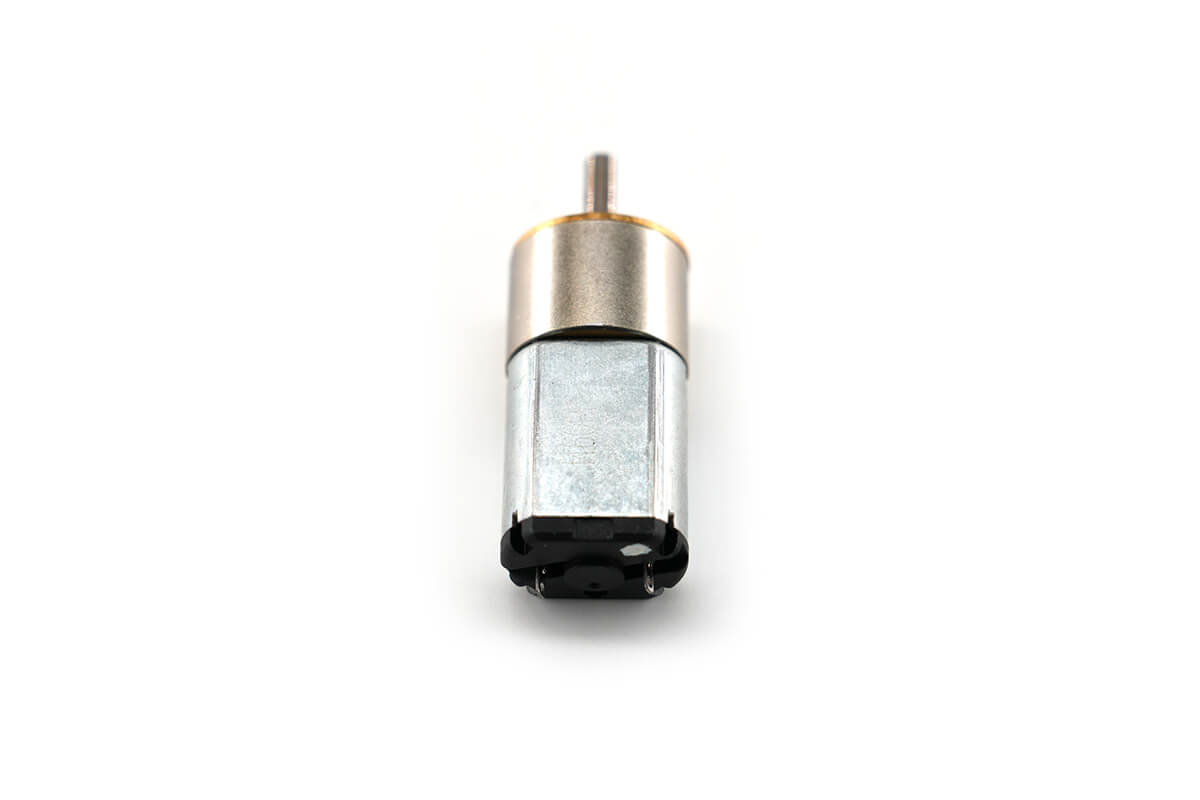

NFP-GM16-030SH 6V Dc Motor High Torque Low Rpm

Applications:
Printing Machine Tools, Flame Cutting, Laser Cutting, Cnc Machine Tools, Tool Machinery, Food Packaging, Automated Production, Industry, Aerospace, Semiconductor Equipment, Medical Equipment, Robots, Manipulators, Communication Equipment, Pharmaceutical Equipment, Printing Equipment, Packaging Machinery, Textile Machinery, Cnc Machine Tools, Cnc Pipe Benders, Parking Equipment, Lianghe Equipment, Work Machine, Precision Monitoring System, Vehicle Industry, Automatic Control System And Other Industries…

Keywords:
dc gear motor datasheet, gear motor mechanism, mini dc gear motor, JGA16Y-030

Payment:
1.Payment methods : Paypal, T/T

Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you havenโ€™t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.

FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.

Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.

Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.

Still can’t find ideal motors?


The electrical parameters of the motor can be adjusted. For example, the two main factors determining the vibration force: the size of the pager motor eccentric mass and the speed requirement. , voltage, current can be adjusted according to customer needs. Some encapsulated vibration motors adding terminals connectors, which are our customized products according to different customers. You can also contact us in the bottom contact form to ask for your needs.

If you want a custom lead wire connection of the water resistant vibration motors. Such as alternate lead wire length & strip lengths, with a connector (e.g. Molex, JST). You can contact us from the footer form, tell us your need. Any problems will be taken seriously and will be answered professionally, so pls do not hesitate to contact us by the footer form.
