16mm Metal Gear Motor Model NFP-GM13-050-M3-L
$14.50
Transform your applications using the robust 16mm metal gear motor with lead screw. Ensure reliable performance in every task you undertake!
Reduction DC Metal Gearbox Motor Parameter

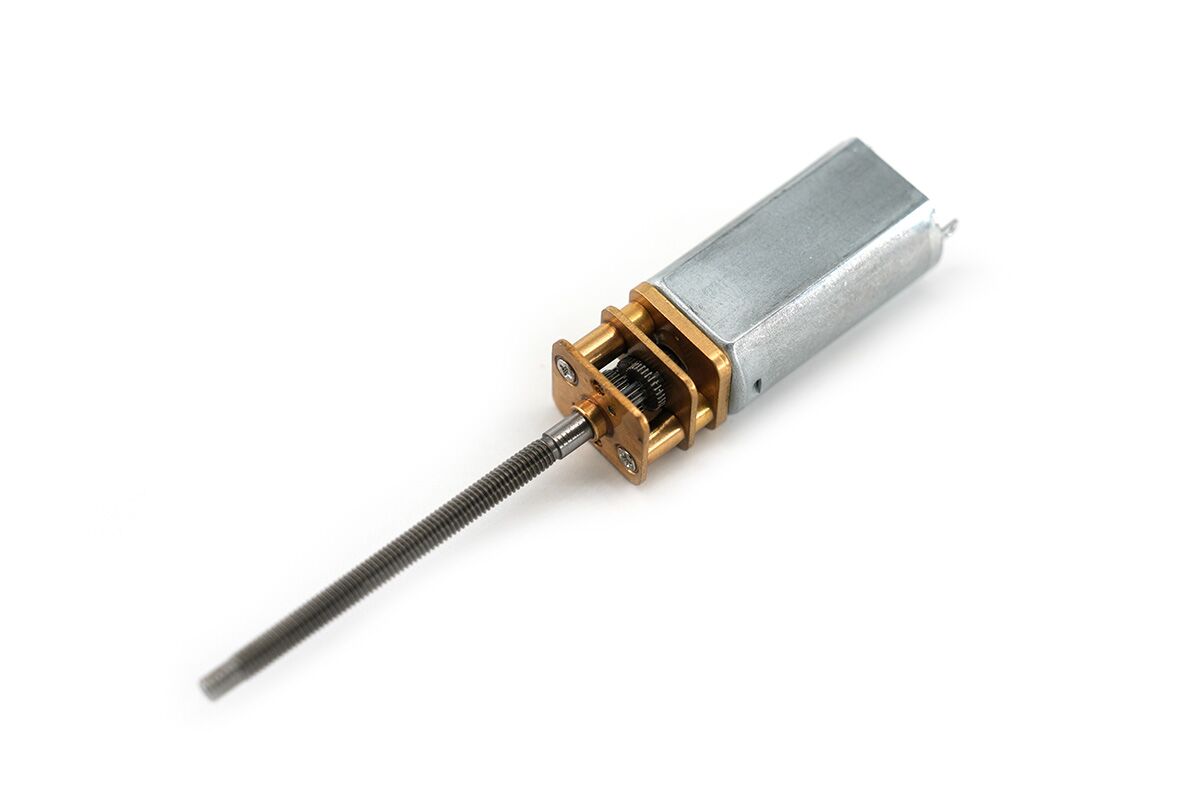

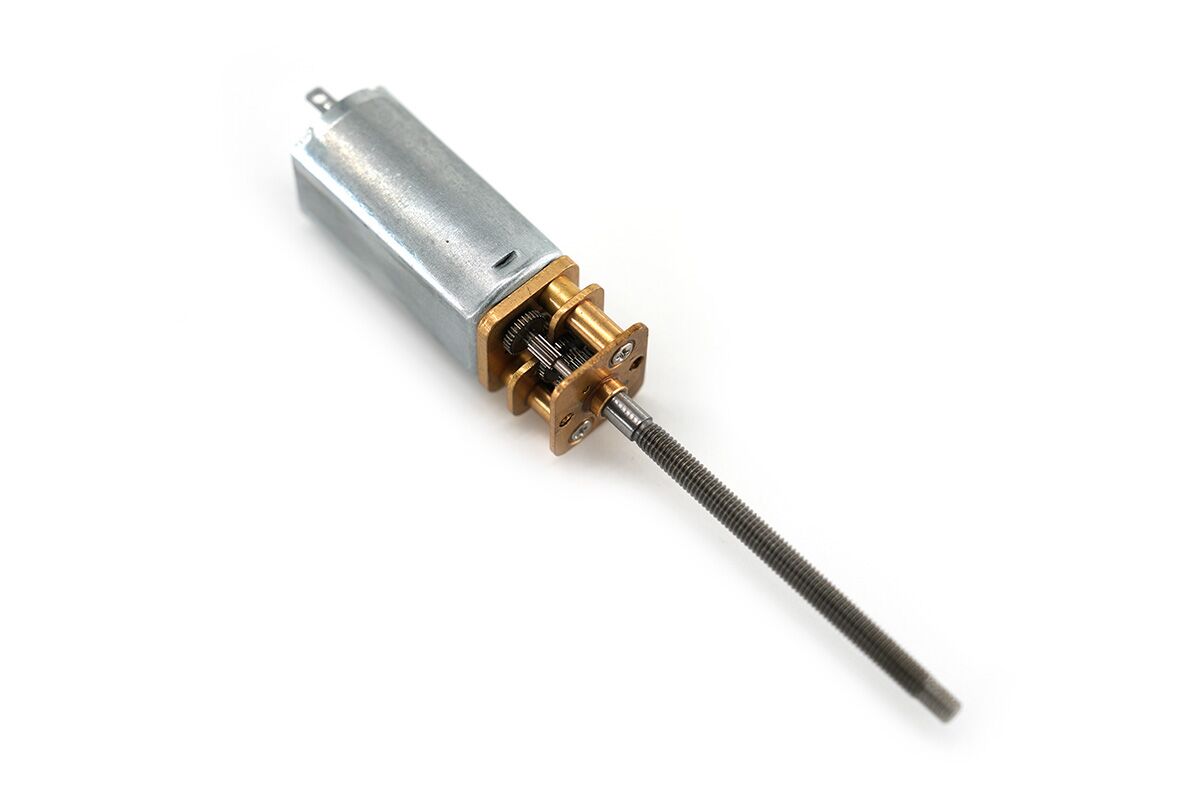

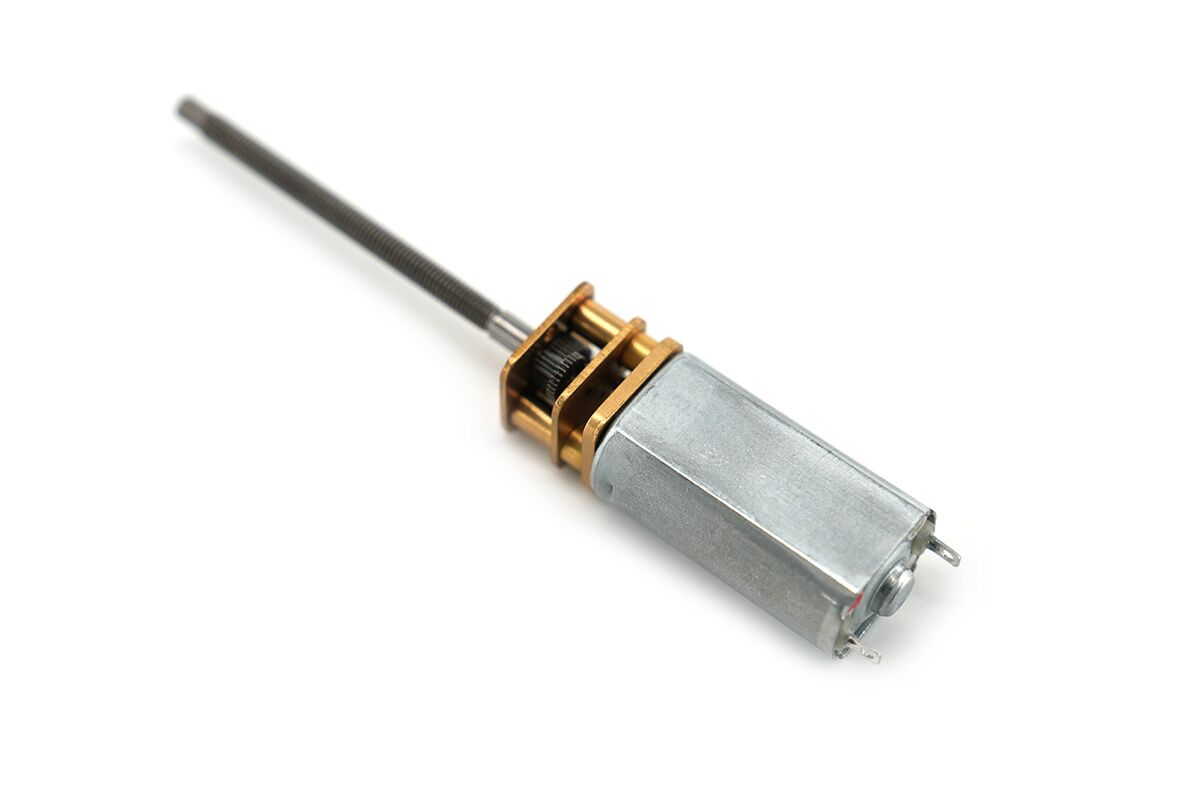

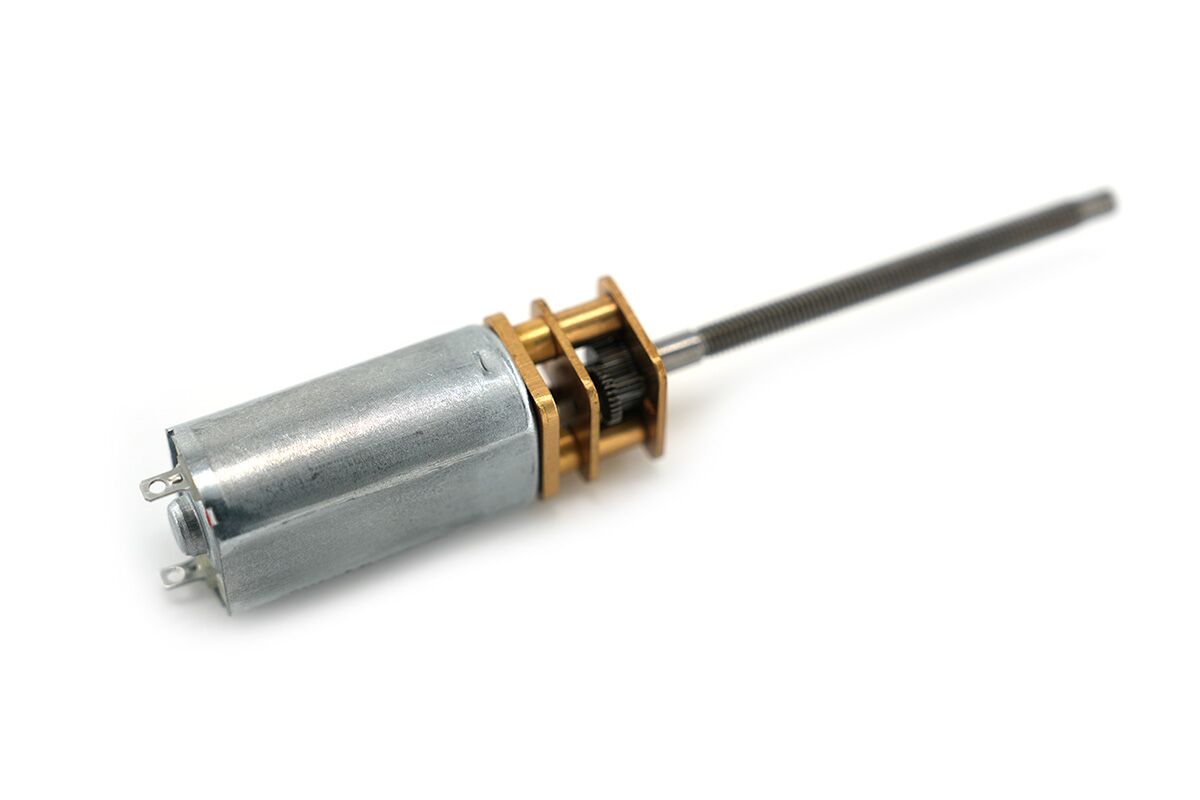

The NFP-GM13-050-M3-L is a reduction DC metal gearbox motor with a long M3 threaded screw shaft. It supports 3V, 6V, 12V, and 24V DC power options for compact drive systems.
First, this motor uses a metal gearbox to lower speed and raise torque. Also, the M3 screw shaft can support linear motion or special drive structures. Therefore, it is useful for small tools, automation projects, smart devices, and compact machines.
In addition, the motor supports CW and CCW rotation. As a result, users can design forward and reverse movement in small control systems.
Main Product Features
- First, M3 threaded shaft: The 44.7mm screw shaft supports compact linear motion designs.
- In addition, metal gearbox: The gear structure helps improve wear resistance and service life.
- Also, voltage options: The motor supports 3V, 6V, 12V, and 24V DC systems.
- Next, speed regulation: Speed control is supported for more flexible motion output.
- Finally, reversible rotation: CW and CCW rotation support forward and reverse movement.
General Motor Data
Next, the table below helps users check voltage, shaft size, shaft length, weight, rotation, and speed control. Therefore, it is easier to confirm whether this motor fits the final product design.
| Motor Model | NFP-GM13-050-M3-L |
|---|---|
| Rotation | CW & CCW |
| Rated Voltage | 3V / 6V / 12V / 24V DC |
| Output Shaft Length | 44.7mm screw shaft |
| Output Shaft Diameter | Φ3mm screw shaft |
| Weight | Appr. 30g |
| Speed Regulation | Yes |
Also, the long threaded shaft makes this motor useful for compact push-pull structures. As a result, it can support small linear motion systems without adding a large external mechanism.
3V DC 16mm Metal Gear Motor With M3 Threaded Shaft
First, the 3V DC version is useful for low-voltage battery-powered designs. Also, the table below compares the 11-Type 3V and 16-Type 3V options at the same 1:35 ratio.
| Voltage | 11-Type 3V | 16-Type 3V |
|---|---|---|
| Ratio | 1: 35 | 1: 35 |
| No-load Current | ≤50mA | ≤90mA |
| No-load Speed | 120rpm | 285rpm |
| Rated Torque | 100 g.cm | 200 g.cm |
| Rated Speed | 95rpm | 200rpm |
| Rated Current | ≤0.15A | ≤0.45A |
| Stall Torque | ≥600g.cm | ≥750g.cm |
| Stall Current | ≤0.6A | ≤1.7A |
Note: All reduced no-load speeds have a tolerance of ±15%.
Also, the 16-Type 3V version gives higher speed and higher rated torque than the 11-Type 3V version. Therefore, it is useful when a 3V system needs more output.
6V DC High Torque 16mm DC Gear Motor For Precision Machinery
Next, the 6V DC versions provide more choices for speed and torque. In addition, users can compare the 11-Type, 13-Type, and 16-Type options before sample testing.
| Voltage | 11-Type 6V | 13-Type 6V | 16-Type 6V |
|---|---|---|---|
| Ratio | 1: 35 | 1: 35 | 1: 35 |
| No-load Current | ≤60mA | ≤90mA | ≤230mA |
| No-load Speed | 240rpm | 375rpm | 570rpm |
| Rated Torque | 160 g.cm | 100 g.cm | 400 g.cm |
| Rated Speed | 200rpm | 290rpm | 400rpm |
| Rated Current | ≤0.15A | ≤0.2A | ≤0.9A |
| Stall Torque | ≥1000g.cm | ≥750g.cm | ≥1500g.cm |
| Stall Current | ≤0.9A | ≤0.95A | ≤3.4A |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 16-Type 6V version gives the highest no-load speed and rated torque in this table. However, users should also check the higher current before final use.
12V DC Compact Brushed Metal Gearbox Motor For Automation Project
Also, the 12V DC versions are useful for compact automation projects that need steady motion and controlled current. Therefore, the table below helps users compare speed, torque, and current quickly.
| Voltage | 11-Type 12V | 34-Type 12V |
|---|---|---|
| Ratio | 1: 35 | 1: 35 |
| No-load Current | ≤90mA | ≤50mA |
| No-load Speed | 480rpm | 230rpm |
| Rated Torque | 320 g.cm | 200 g.cm |
| Rated Speed | 400rpm | 170rpm |
| Rated Current | ≤0.25A | ≤0.15A |
| Stall Torque | ≥2300g.cm | ≥900g.cm |
| Stall Current | ≤1.5A | ≤0.4A |
Note: All reduced no-load speeds have a tolerance of ±15%.
In addition, the 11-Type 12V version gives higher speed and higher torque. As a result, it is a good choice when a 12V product needs stronger output from a small gearbox motor.
24V DC Small Industrial Grade DC Geared Motor For Linear Motion Systems
Finally, the 24V DC version is suitable for compact systems that use a 24V power supply. Also, it provides 460rpm no-load speed with low no-load current.
| Voltage | 34-Type 24V |
|---|---|
| Ratio | 1: 35 |
| No-load Current | ≤75mA |
| No-load Speed | 460rpm |
| Rated Torque | 400 g.cm |
| Rated Speed | 340rpm |
| Rated Current | ≤0.23A |
| Stall Torque | ≥1800g.cm |
| Stall Current | ≤0.5A |
Note: All reduced no-load speeds have a tolerance of ±15%.
Therefore, the 24V version is useful for small industrial devices and linear motion systems. Also, the low current helps reduce power load in compact control systems.
Brushed Reducer DC Gear Motor Outline Drawing
First, the outline drawing helps users review the motor body, long screw shaft, gearbox, and mounting size. Therefore, it is useful before sample testing and final mechanical design.
In addition, the mounting bracket image shows one possible installation method. As a result, engineers can check space, bracket fit, and shaft direction before assembly.
Structure and Design Benefits
- First, all-metal gear structure: The metal gears improve wear resistance and help extend service life.
- In addition, pure copper wire winding: The rotor uses pure copper windings for low resistance and high conductivity.
- Also, stronger torque: Better winding conductivity can help improve motor torque.
- Next, M3 threaded shaft: The M3 standard thread supports small linear motion and screw-drive use.
- Finally, custom shaft length: Custom thread lengths are supported for bulk orders.
Typical Applications
Next, this reduction DC metal gearbox motor is suitable for compact products that need small size, strong torque, and a long threaded shaft. For example, it can work in smart locks, small robots, DIY tools, and light automation devices.
- Smart locks
- Small robots
- DIY tools
- Light automation devices
- Mini linear motion systems
- Compact control units
- Small threaded-shaft drive projects
In short, the NFP-GM13-050-M3-L reduction DC metal gearbox motor is a good fit for products that need 3V, 6V, 12V, or 24V DC power, CW and CCW rotation, speed regulation, a 44.7mm M3 screw shaft, and stable low-speed torque.
