16mm Metal Gear Motor Model NFP-GM13-050RS-EN
$15.50
Experience quality performance with the 16mm metal gear motor with encoder. Perfect for every application, elevate your projects today!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $15.50 | 0% |
| 10 - 19 | $11.00 | 29.03% |
| 20 - 49 | $9.90 | 36.13% |
| 50+ | $9.60 | 38.06% |
DC Metal Gear Motor With Rear Shaft Parameters

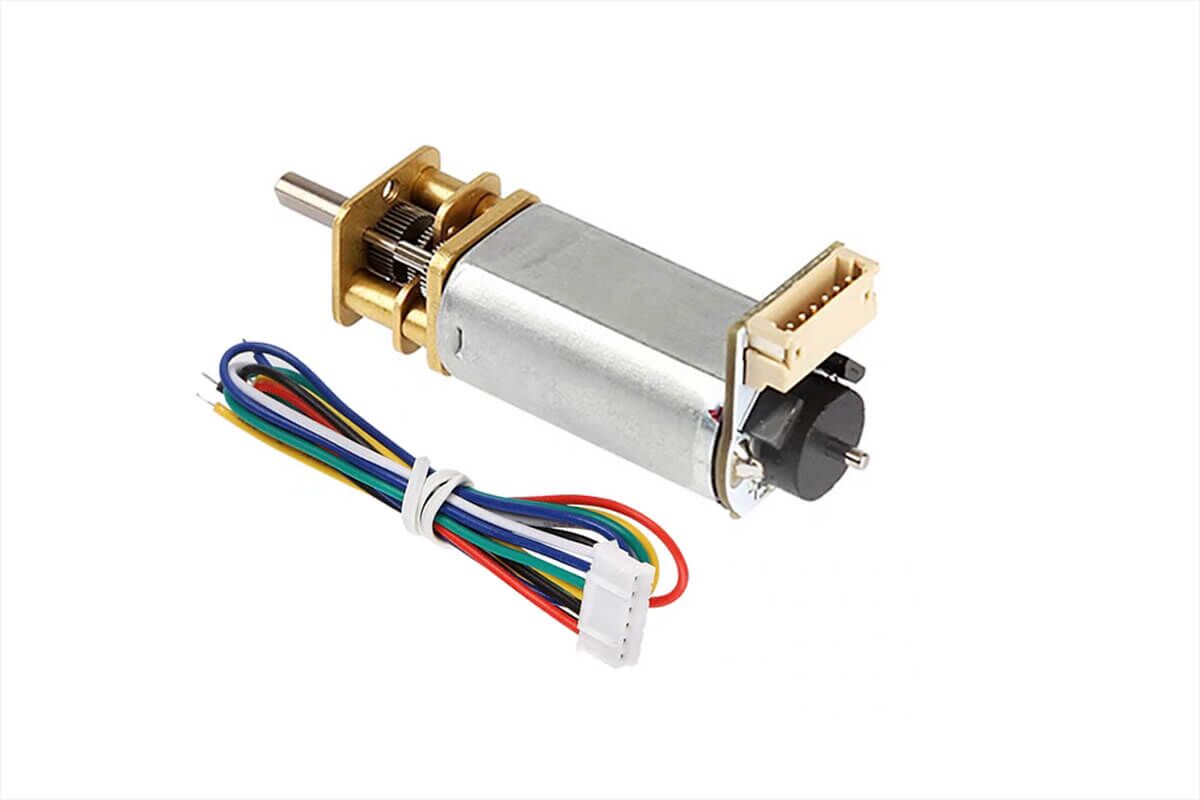

The NFP-GM13-050RS-EN is a DC metal gear motor with rear shaft and Hall encoder feedback. It supports 6V and 12V DC power options for compact control systems.
First, this motor uses a metal gearbox to reduce speed and raise torque. Also, the rear shaft and encoder can provide speed feedback for motion control. Therefore, it is useful for smart locks, lottery machines, compact tools, and small automation devices.
In addition, the motor supports CW and CCW rotation. As a result, users can design forward and reverse movement in a small product layout.
Main Product Features
- First, metal gearbox: The gear structure helps improve wear resistance and service life.
- In addition, rear shaft design: The rear shaft can work with encoder feedback for speed control.
- Also, voltage options: The motor supports 6V and 12V DC systems.
- Next, D-shaped shaft: The Φ3mm D-shaped output shaft helps support stable coupling.
- Finally, reversible rotation: CW and CCW rotation support forward and reverse movement.
General Motor Data
Next, the table below helps users check voltage, shaft length, output shaft type, rotation, and weight. Therefore, it is easier to confirm whether this motor fits the final product design.
| Motor Model | NFP-GM13-050RS-EN |
|---|---|
| Rotation | CW & CCW |
| Rated Voltage | 6V / 12V DC |
| Shaft Length | 10mm |
| Output Shaft Diameter | Φ3mm D-shaped (D-cut: 2.5mm) |
| Weight | Appr. 32g |
Also, the D-shaped shaft can reduce slipping during power transfer. As a result, this motor is suitable for small drive parts that need stable mechanical fit.
Model: NFP-GM13-050RS-EN, 6V DC
First, the 6V DC version is useful for low-voltage control systems. Also, the table below shows how each ratio changes speed, current, torque, and stall data.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 10 | 800 rpm | ≤60mA | 620 rpm | ≤0.18A | 0.1 kg.cm | ≥0.3 kg.cm | ≤0.8A |
| 20 | 400 rpm | ≤60mA | 310 rpm | ≤0.18A | 0.2 kg.cm | ≥0.6 kg.cm | ≤0.8A |
| 35 | 230 rpm | ≤60mA | 175 rpm | ≤0.18A | 0.4 kg.cm | ≥1 kg.cm | ≤0.8A |
| 63 | 125 rpm | ≤60mA | 100 rpm | ≤0.18A | 0.6 kg.cm | ≥1.3 kg.cm | ≤0.8A |
| 86 | 92 rpm | ≤60mA | 70 rpm | ≤0.18A | 0.9 kg.cm | ≥1.8 kg.cm | ≤0.8A |
| 115 | 70 rpm | ≤60mA | 55 rpm | ≤0.18A | 1.1 kg.cm | ≥2.3 kg.cm | ≤0.8A |
| 150 | 52 rpm | ≤60mA | 42 rpm | ≤0.18A | 1.5 kg.cm | Max 3 kg.cm | ≤0.8A |
| 250 | 33 rpm | ≤60mA | 27 rpm | ≤0.18A | 2 kg.cm | Max 3 kg.cm | ≤0.8A |
| 360 | 22 rpm | ≤60mA | 19 rpm | ≤0.18A | 2.5 kg.cm | Max 3 kg.cm | ≤0.8A |
Note: All reduced no-load speeds have a tolerance of ±15%.
Also, the 6V 360 ratio gives the lowest no-load speed and high rated torque. Therefore, it is useful for slow and strong low-voltage motion.
Model: NFP-GM13-050RS-EN, 12V DC
Next, the 12V DC version provides higher speed and stronger output than the 6V version. As a result, it is suitable for compact systems that need more power from the same gearbox size.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 10 | 1600 rpm | ≤80mA | 1250 rpm | ≤0.35A | 0.15 kg.cm | ≥0.6 kg.cm | ≤1.4A |
| 20 | 800 rpm | ≤80mA | 630 rpm | ≤0.35A | 0.3 kg.cm | ≥1 kg.cm | ≤1.4A |
| 35 | 460 rpm | ≤80mA | 355 rpm | ≤0.35A | 0.5 kg.cm | ≥1.8 kg.cm | ≤1.4A |
| 63 | 255 rpm | ≤80mA | 200 rpm | ≤0.35A | 0.9 kg.cm | ≥2.5 kg.cm | ≤1.4A |
| 86 | 185 rpm | ≤80mA | 145 rpm | ≤0.35A | 1.2 kg.cm | Max 3 kg.cm | ≤1.4A |
| 115 | 140 rpm | ≤80mA | 110 rpm | ≤0.35A | 1.7 kg.cm | Max 3 kg.cm | ≤1.4A |
| 150 | 105 rpm | ≤80mA | 83 rpm | ≤0.35A | 2 kg.cm | Max 3 kg.cm | ≤1.4A |
| 250 | 65 rpm | ≤80mA | 55 rpm | ≤0.35A | 2.5 kg.cm | Max 3 kg.cm | ≤1.4A |
| 360 | 45 rpm | ≤80mA | 38 rpm | ≤0.35A | 2.5 kg.cm | Max 3 kg.cm | ≤1.4A |
Note: All reduced no-load speeds have a tolerance of ±15%.
In addition, the 12V version reaches 1600 rpm at ratio 10. Therefore, it is a good choice when the final product needs faster gear motor output.
DC Hall Encoder Reduction Gear Motor Outline Drawing
First, the outline drawing helps users review the motor body, gearbox, rear shaft, encoder area, and mounting layout. Therefore, it is useful before sample testing and final mechanical design.
In addition, the mounting bracket image shows one possible installation method. As a result, engineers can check space, bracket fit, and shaft direction before assembly.
Structure and Encoder Benefits
- First, all-metal gear structure: The metal gears improve wear resistance and help extend service life.
- In addition, pure copper wire winding: The rotor uses pure copper winding for low resistance and high conductivity.
- Also, stronger torque: Better winding conductivity can help increase motor torque.
- Next, Hall encoder feedback: The AB two-phase incremental magnetic Hall encoder uses basic pulse 7PPR × gear reduction ratio.
- Finally, rear shaft support: The rear shaft design helps support encoder use and feedback control.
Typical Applications
Next, this DC metal gear motor with rear shaft is suitable for compact products that need low speed, torque, and feedback control. For example, it can work in lottery machines, smart door locks, and small automation devices.
- Lottery machines
- Smart door locks
- Small automation devices
- Compact control units
- Feedback gear motor projects
- Small geared motor systems
In short, the NFP-GM13-050RS-EN DC metal gear motor with rear shaft is a good fit for products that need 6V or 12V DC power, CW and CCW rotation, D-shaped output shaft, Hall encoder feedback, and stable low-speed torque.
