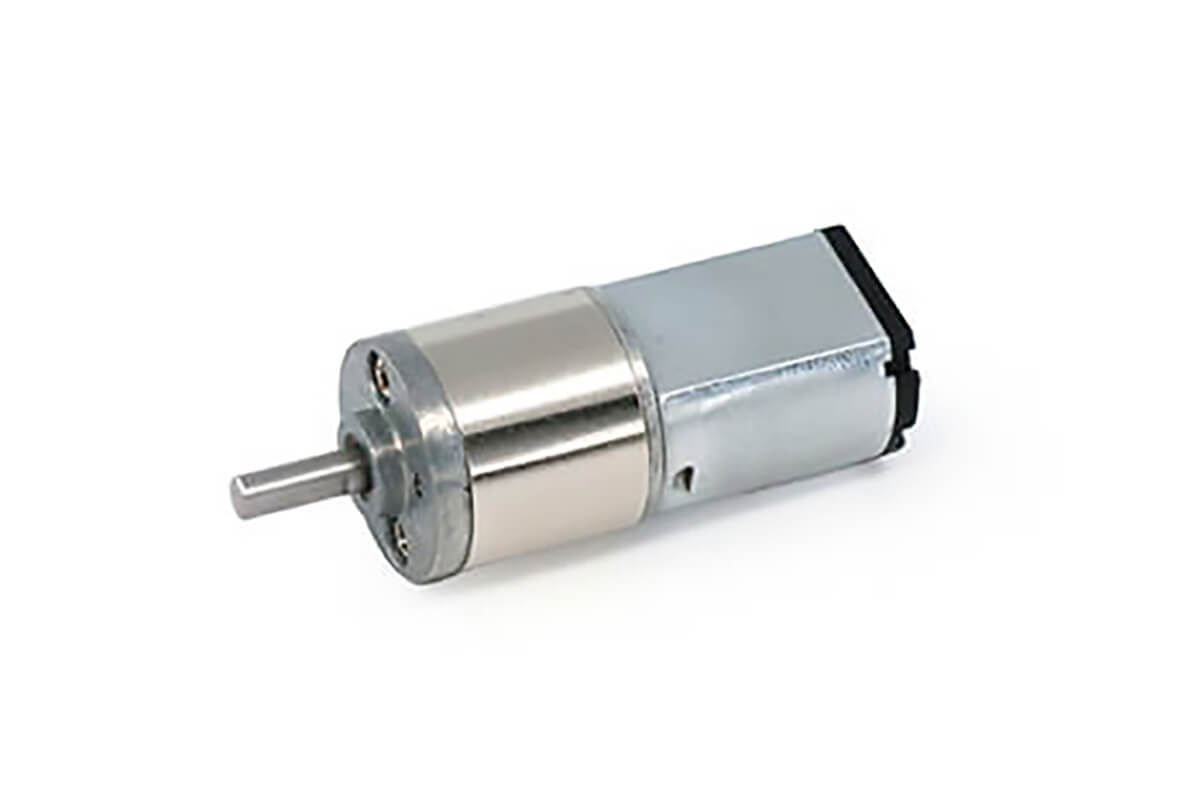

16mm Metal Gear Motor Model NFP-JGA16-030
$9.50
Elevate your automation systems with our 16mm planetary gear motor big torque. Perfect for intricate projects, get it now and enhance performance!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 49 | $9.50 | 0% |
| 50 - 99 | $7.80 | 17.89% |
| 100+ | $6.30 | 33.68% |
DC Gear Motor 12V 6V Gear Box Engine Datasheet
Product Overview
First, the NFP-JGA16-030 is a small DC gear motor with 6V and 12V options. Therefore, it is a good choice for small drive systems that need low speed and high torque.
In addition, the motor uses a compact gearbox. As a result, it saves space and gives steady output.
Moreover, the motor has many gear ratios. Therefore, users can choose the right speed and torque for their design.
Main Features
- First, small size: The whole drive unit is small. Therefore, it fits tight product layouts.
- In addition, wide speed range: The motor has many gear ratios. As a result, users can choose many output speeds.
- Also, high torque: Higher gear ratios give more torque. Therefore, the motor works well in low-speed drive tasks.
- Next, voltage options: The motor supports 6V and 12V DC. In addition, this gives users more power choices.
- Finally, two-way rotation: The motor supports CW and CCW rotation. Therefore, it can work in two-way drive systems.
General Motor Data
First, the table below shows the main motor data. Also, users can check voltage, speed, current, torque, shaft size, and weight before testing.
| Model | NFP-JGA16-030 |
|---|---|
| Rated Voltage | 6V / 12V DC |
| No-load Speed | 12rpm – 923rpm |
| No-load Current | 0.05A – 0.09A |
| Max Torque | 3kg.cm |
| Rotation | CW / CCW |
| Shaft Diameter | 3mm |
| Weight | appr. 30g |
As a result, this motor gives many speed choices in a compact body. Moreover, the 3mm shaft helps users build small drive parts.
6V DC Gear Motor Data
First, the table below shows the 6V DC version. Therefore, users can compare speed, current, torque, and stall data across different gear ratios.
In addition, this 6V type works well in low-voltage drive systems. As a result, it is useful for small battery-powered products.
Also, lower voltage can help some designs reduce power demand. Therefore, this option is useful for many small devices.
Model: NFP-JGA16-030-06120, 6V DC, motor without gearbox 12,000rpm
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 13:1 | 923rpm | 0.045A | 692rpm | 0.16A | 0.06kg.cm | 0.25kg.cm | 0.6A |
| 25:1 | 480rpm | 0.045A | 360rpm | 0.16A | 0.1kg.cm | 0.43kg.cm | 0.6A |
| 32:1 | 375rpm | 0.045A | 281rpm | 0.16A | 0.13kg.cm | 0.56kg.cm | 0.6A |
| 35.7:1 | 336rpm | 0.045A | 240rpm | 0.16A | 0.15kg.cm | 0.62kg.cm | 0.6A |
| 45:1 | 266rpm | 0.045A | 200rpm | 0.16A | 0.17kg.cm | 0.71kg.cm | 0.6A |
| 50.7:1 | 240rpm | 0.045A | 180rpm | 0.16A | 0.19kg.cm | 0.8kg.cm | 0.6A |
| 63:1 | 190rpm | 0.045A | 142rpm | 0.16A | 0.24kg.cm | 1kg.cm | 0.6A |
| 72:1 | 166rpm | 0.045A | 125rpm | 0.16A | 0.27kg.cm | 1.1kg.cm | 0.6A |
| 89:1 | 134rpm | 0.045A | 101rpm | 0.16A | 0.34kg.cm | 1.4kg.cm | 0.6A |
| 100:1 | 120rpm | 0.045A | 90rpm | 0.16A | 0.38kg.cm | 1.5kg.cm | 0.6A |
| 126:1 | 95rpm | 0.045A | 71rpm | 0.16A | 0.43kg.cm | 1.8kg.cm | 0.6A |
| 143:1 | 83rpm | 0.045A | 62rpm | 0.16A | 0.49kg.cm | 2kg.cm | 0.6A |
| 179:1 | 67rpm | 0.045A | 50rpm | 0.16A | 0.61kg.cm | 2.5kg.cm | 0.6A |
| 201:1 | 60rpm | 0.045A | 45rpm | 0.16A | 0.69kg.cm | 2.8kg.cm | 0.6A |
| 252:1 | 47rpm | 0.045A | 33rpm | 0.16A | 0.86kg.cm | 3.6kg.cm | 0.6A |
| 284:1 | 42rpm | 0.045A | 30rpm | 0.16A | 0.97kg.cm | 4kg.cm | 0.6A |
| 355:1 | 34rpm | 0.045A | 23rpm | 0.16A | 1.1kg.cm | 4.6kg.cm | 0.6A |
| 403:1 | 29rpm | 0.045A | 19rpm | 0.16A | 1.25kg.cm | 5.2kg.cm | 0.6A |
| 504:1 | 24rpm | 0.045A | 16rpm | 0.16A | 1.57kg.cm | 6.5kg.cm | 0.6A |
| 568:1 | 21rpm | 0.045A | 14rpm | 0.16A | 1.77kg.cm | 7.3kg.cm | 0.6A |
| 710:1 | 16rpm | 0.045A | 11rpm | 0.16A | 2.21kg.cm | 9.2kg.cm | 0.6A |
| 800:1 | 15rpm | 0.045A | 10rpm | 0.16A | 2.49kg.cm | 10.3kg.cm | 0.6A |
| 1,000:1 | 12rpm | 0.045A | 8rpm | 0.16A | 3kg.cm | 12kg.cm | 0.6A |
Note: All reduced no-load speeds have a tolerance of ±15%.
In short, higher ratios give lower speed and stronger torque. Also, the 1,000:1 ratio is useful for very slow and strong output.
12V DC Gear Motor Data
Next, the table below shows the 12V DC version. In addition, users can compare it with the 6V version when choosing the right power option.
Moreover, the 12V type can fit systems that need the same gear ratios with a different voltage. Therefore, it gives users more design choice.
Also, this option can suit control boards that use a 12V power rail. As a result, it may make wiring simpler in some systems.
Model: NFP-JGA16-030-12120, 12V DC, motor without gearbox 12,000rpm
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 13:1 | 923rpm | 0.035A | 692rpm | 0.11A | 0.06kg.cm | 0.25kg.cm | 0.4A |
| 25:1 | 480rpm | 0.035A | 360rpm | 0.11A | 0.1kg.cm | 0.43kg.cm | 0.4A |
| 32:1 | 375rpm | 0.035A | 281rpm | 0.11A | 0.13kg.cm | 0.56kg.cm | 0.4A |
| 35.7:1 | 336rpm | 0.035A | 240rpm | 0.11A | 0.15kg.cm | 0.62kg.cm | 0.4A |
| 45:1 | 266rpm | 0.035A | 200rpm | 0.11A | 0.17kg.cm | 0.71kg.cm | 0.4A |
| 50.7:1 | 240rpm | 0.035A | 180rpm | 0.11A | 0.19kg.cm | 0.8kg.cm | 0.4A |
| 63:1 | 190rpm | 0.035A | 142rpm | 0.11A | 0.24kg.cm | 1kg.cm | 0.4A |
| 72:1 | 166rpm | 0.035A | 125rpm | 0.11A | 0.27kg.cm | 1.1kg.cm | 0.4A |
| 89:1 | 134rpm | 0.035A | 101rpm | 0.11A | 0.34kg.cm | 1.4kg.cm | 0.4A |
| 100:1 | 120rpm | 0.035A | 90rpm | 0.11A | 0.38kg.cm | 1.5kg.cm | 0.4A |
| 126:1 | 95rpm | 0.035A | 71rpm | 0.11A | 0.43kg.cm | 1.8kg.cm | 0.4A |
| 143:1 | 83rpm | 0.035A | 62rpm | 0.11A | 0.49kg.cm | 2kg.cm | 0.4A |
| 179:1 | 67rpm | 0.035A | 50rpm | 0.11A | 0.61kg.cm | 2.5kg.cm | 0.4A |
| 201:1 | 60rpm | 0.035A | 45rpm | 0.11A | 0.69kg.cm | 2.8kg.cm | 0.4A |
| 252:1 | 47rpm | 0.035A | 33rpm | 0.11A | 0.86kg.cm | 3.6kg.cm | 0.4A |
| 284:1 | 42rpm | 0.035A | 30rpm | 0.11A | 0.97kg.cm | 4kg.cm | 0.4A |
| 355:1 | 34rpm | 0.035A | 23rpm | 0.11A | 1.1kg.cm | 4.6kg.cm | 0.4A |
| 403:1 | 29rpm | 0.035A | 19rpm | 0.11A | 1.25kg.cm | 5.2kg.cm | 0.4A |
| 504:1 | 24rpm | 0.035A | 16rpm | 0.11A | 1.57kg.cm | 6.5kg.cm | 0.4A |
| 568:1 | 21rpm | 0.035A | 14rpm | 0.11A | 1.77kg.cm | 7.3kg.cm | 0.4A |
| 710:1 | 16rpm | 0.035A | 11rpm | 0.11A | 2.21kg.cm | 9.2kg.cm | 0.4A |
| 800:1 | 15rpm | 0.035A | 10rpm | 0.11A | 2.49kg.cm | 10.3kg.cm | 0.4A |
| 1,000:1 | 12rpm | 0.035A | 8rpm | 0.11A | 3kg.cm | 12kg.cm | 0.4A |
Note: All reduced no-load speeds have a tolerance of ±15%.
Therefore, the 12V version gives the same wide ratio range with lower no-load current. Also, it is useful for 12V control boards and compact drive systems.
Micro Speed Reduction Gear Motor Parameters
Gear Motor Structure
First, the motor uses a D-shaped shaft, metal gear parts, and a copper coil. Therefore, it can give steady drive output in a small body.
- First, D-shaped shaft: The 3mm shaft helps transfer torque. Therefore, it is useful for small drive parts.
- In addition, metal parts: The gear motor uses metal parts for better strength. Also, this helps improve service life.
- Also, copper coil: The motor uses a copper coil. As a result, it can support steady output.
- Finally, smooth running: The motor runs with low noise. Moreover, the noise level is about 50dB.
Applications
First, this 6V and 12V DC gear motor can work in many small drive systems. For example, it is suitable for machines that need low speed and strong torque.
In addition, users can choose different gear ratios for different speed needs. Therefore, the same motor series can fit many product designs.
Also, the compact body helps save space in machines and tools. As a result, it is useful for both test builds and final products.
- Flame cutting equipment
- Laser cutting equipment
- Food packing machines
- Auto production lines
- Aerospace devices
- Robots and robot arms
- Textile machines
- CNC machine tools
- Auto control systems
- Medical equipment
- Parking systems
- Printing equipment
In short, the NFP-JGA16-030 DC gear motor is a good fit for products that need 6V or 12V DC power, compact size, wide ratio choices, low speed, and strong torque.
Keywords: high torque gear motor, 12V gear motor, 12 volt DC geared motor, 6V DC motor high torque low speed
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
