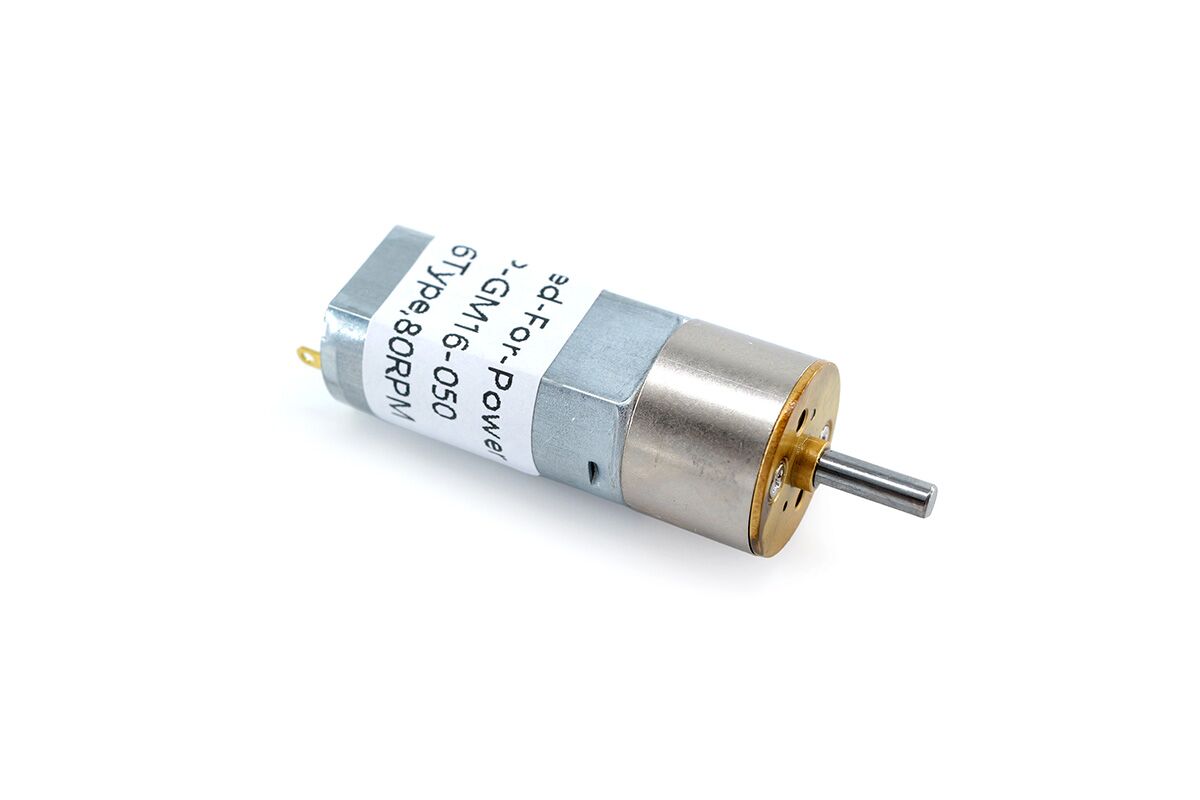

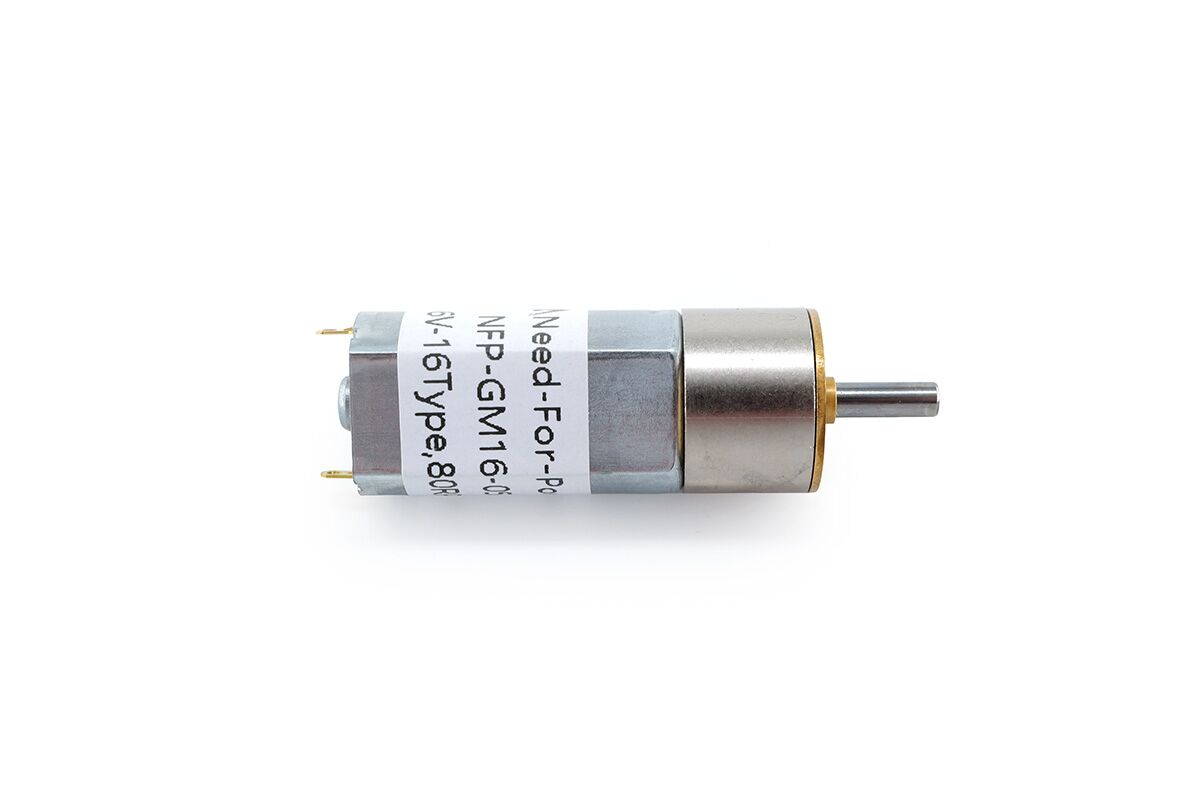

16mm Metal Gear Motor Model NFP-GM16-050
$12.50
Achieve remarkable torque with the 16mm dc gear motor! Perfect for instrumentation, this motor ensures efficiency in all your projects. 🚀
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $12.50 | 0% |
| 10 - 19 | $9.70 | 22.40% |
| 20 - 49 | $7.90 | 36.80% |
| 50 - 99 | $7.50 | 40% |
| 100 - 499 | $7.00 | 44% |
| 500+ | $6.50 | 48% |
DC Spur Gear Motor Data Sheet
First, this DC spur gear motor is made for small devices that need steady speed, useful torque, and smooth work. Also, it is suitable for robots, tools, small locks, home products, and compact drive systems.
In addition, the NFP-GM16-050 supports many voltage and gear ratio options. Therefore, users can choose slow high-torque output or faster output speed for different project needs.
Also, this motor uses a compact 15.5mm body. As a result, it can fit small products that need strong output in a tight space.
Main Product Features
- First, compact size: The motor diameter is 15.5mm.
- In addition, D-cut shaft: The output shaft diameter is 3mm.
- Also, voltage choices: The motor supports 3V, 6V, 12V, and 24V DC.
- Next, reversible rotation: CW and CCW rotation are supported.
- Finally, light weight: The motor weighs about 25g.
Basic Motor Parameters
First, the table below gives the main motor data. Also, it helps users check size, voltage, speed, current, rotation, and weight before selecting a gear ratio.
| Motor Model | NFP-GM16-050 |
|---|---|
| Motor Diameter | 15.5mm |
| Shaft Diameter | 3mm (D-cut shaft) |
| Shaft Length | 10mm |
| Rated Voltage | 3V / 6V / 12V / 24V DC |
| No Load Speed | 12rpm – 2,000rpm |
| No Load Current | ≤0.05A / ≤0.06A / ≤0.075A / ≤0.09A / ≤0.17A |
| Rotation | CW / CCW |
| Weight | appr. 25g |
As a result, this model gives a wide speed range in a small body. Moreover, the next sections show each voltage and motor type in more detail.
DC Spur Gear Motor Performance Data
First, each table lists ratio, no-load speed, current, rated torque, and stall data. Therefore, users can compare each motor version and choose the best option more easily.
NFP-GM16-050 3V DC 11 Type Performance Data
First, this 3V DC 11 type version uses a motor speed of 4,150rpm before the gearbox. Therefore, it is a good choice when low current and controlled output speed are important.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤0.05A | 415rpm | ≤0.1A | 365rpm | 0.023kg.cm | ≤0.6A | ≥0.2kg.cm |
| 20:1 | ≤0.05A | 208rpm | ≤0.1A | 182rpm | 0.046kg.cm | ≤0.6A | ≥0.4kg.cm |
| 35:1 | ≤0.05A | 119rpm | ≤0.1A | 100rpm | 0.080kg.cm | ≤0.6A | ≥0.7kg.cm |
| 63:1 | ≤0.05A | 66rpm | ≤0.1A | 57rpm | 0.144kg.cm | ≤0.6A | ≥1.2kg.cm |
| 86:1 | ≤0.05A | 48rpm | ≤0.1A | 42rpm | 0.197kg.cm | ≤0.6A | ≥1.7kg.cm |
| 115:1 | ≤0.05A | 36rpm | ≤0.1A | 21rpm | 0.264kg.cm | ≤0.6A | ≥2.3kg.cm |
| 150:1 | ≤0.05A | 28rpm | ≤0.1A | 24rpm | 0.345kg.cm | ≤0.6A | ≤3.0kg.cm |
| 250:1 | ≤0.05A | 17rpm | ≤0.1A | 14rpm | 0.575kg.cm | ≤0.6A | ≤3.0kg.cm |
| 360:1 | ≤0.05A | 12rpm | ≤0.1A | 10rpm | 0.828kg.cm | ≤0.6A | ≤3.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In short, higher ratios give lower speed and higher torque for slow drive needs. Also, this 3V 11 type version is useful when the design needs low current.
NFP-GM16-050 3V DC 16 Type Performance Data
Next, the 3V DC 16 type version uses a motor speed of 10,000rpm before the gearbox. As a result, it gives higher output speed than the 11 type version.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤0.09A | 1,000rpm | ≤0.45A | 600rpm | 0.06kg.cm | ≤1.7A | ≥0.2kg.cm |
| 20:1 | ≤0.09A | 500rpm | ≤0.45A | 300rpm | 0.11kg.cm | ≤1.7A | ≥0.4kg.cm |
| 35:1 | ≤0.09A | 285rpm | ≤0.45A | 200rpm | 0.20kg.cm | ≤1.7A | ≥0.7kg.cm |
| 63:1 | ≤0.09A | 159rpm | ≤0.45A | 110rpm | 0.35kg.cm | ≤1.7A | ≥1.2kg.cm |
| 86:1 | ≤0.09A | 115rpm | ≤0.45A | 80rpm | 0.50kg.cm | ≤1.7A | ≥1.7kg.cm |
| 115:1 | ≤0.09A | 87rpm | ≤0.45A | 60rpm | 0.60kg.cm | ≤1.7A | ≥2.4kg.cm |
| 150:1 | ≤0.09A | 67rpm | ≤0.45A | 45rpm | 0.80kg.cm | ≤1.7A | ≤3.0kg.cm |
| 250:1 | ≤0.09A | 40rpm | ≤0.45A | 27rpm | 1.25kg.cm | ≤1.7A | ≤3.0kg.cm |
| 360:1 | ≤0.09A | 28rpm | ≤0.45A | 21rpm | 1.25kg.cm | ≤1.7A | ≤3.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
Therefore, this version is better when the application needs more speed at 3V DC. In addition, it can still provide useful torque at higher ratios.
NFP-GM16-050 6V DC 11 Type Performance Data
Similarly, the 6V DC 11 type version uses a motor speed of 8,300rpm before the gearbox. Also, it keeps low no-load current while offering many useful ratios.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤0.06A | 840rpm | ≤0.15A | 725rpm | 0.045kg.cm | ≤0.9A | ≥0.4kg.cm |
| 20:1 | ≤0.06A | 420rpm | ≤0.15A | 363rpm | 0.090kg.cm | ≤0.9A | ≥0.8kg.cm |
| 35:1 | ≤0.06A | 240rpm | ≤0.15A | 207rpm | 0.158kg.cm | ≤0.9A | ≥1.4kg.cm |
| 63:1 | ≤0.06A | 133rpm | ≤0.15A | 115rpm | 0.284kg.cm | ≤0.9A | ≤3.0kg.cm |
| 86:1 | ≤0.06A | 98rpm | ≤0.15A | 84rpm | 0.387kg.cm | ≤0.9A | ≤3.0kg.cm |
| 115:1 | ≤0.06A | 73rpm | ≤0.15A | 63rpm | 0.518kg.cm | ≤0.9A | ≤3.0kg.cm |
| 150:1 | ≤0.06A | 56rpm | ≤0.15A | 48rpm | 0.675kg.cm | ≤0.9A | ≤3.0kg.cm |
| 250:1 | ≤0.06A | 34rpm | ≤0.15A | 29rpm | 1.125kg.cm | ≤0.9A | ≤3.0kg.cm |
| 360:1 | ≤0.06A | 24rpm | ≤0.15A | 20rpm | 1.620kg.cm | ≤0.9A | ≤3.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, this 6V option can support both medium speed and slow high-torque output. Moreover, it is useful when the design needs stable current values.
NFP-GM16-050 6V DC 13 Type Performance Data
Furthermore, the 6V DC 13 type version uses a motor speed of 12,000rpm before the gearbox. Therefore, it gives a wider choice for faster 6V designs.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤0.09A | 1,200rpm | ≤0.2A | 490rpm | 0.026kg.cm | ≤0.95A | ≥0.1kg.cm |
| 20:1 | ≤0.09A | 600rpm | ≤0.2A | 308rpm | 0.052kg.cm | ≤0.95A | ≥0.3kg.cm |
| 35:1 | ≤0.09A | 375rpm | ≤0.2A | 160rpm | 0.091kg.cm | ≤0.95A | ≥0.5kg.cm |
| 63:1 | ≤0.09A | 190rpm | ≤0.2A | 100rpm | 0.164kg.cm | ≤0.95A | ≥0.8kg.cm |
| 86:1 | ≤0.09A | 139rpm | ≤0.2A | 60rpm | 0.224kg.cm | ≤0.95A | ≥1.1kg.cm |
| 115:1 | ≤0.09A | 105rpm | ≤0.2A | 85rpm | 0.300kg.cm | ≤0.95A | ≥1.5kg.cm |
| 150:1 | ≤0.09A | 80rpm | ≤0.2A | 20rpm | 0.391kg.cm | ≤0.95A | ≥2.0kg.cm |
| 250:1 | ≤0.09A | 48rpm | ≤0.2A | 11rpm | 0.652kg.cm | ≤0.95A | ≤3.0kg.cm |
| 360:1 | ≤0.09A | 33rpm | ≤0.2A | 6rpm | 0.939kg.cm | ≤0.95A | ≤3.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In short, this table helps compare speed, current, and torque under the same 6V input. Also, it is useful for selecting a faster 6V gear motor version.
NFP-GM16-050 6V DC 16 Type Performance Data
Next, the 6V DC 16 type version uses a motor speed of 20,000rpm before the gearbox. As a result, it offers the highest no-load speed group in the 6V range.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤0.17A | 2,000rpm | ≤0.9A | 1,200rpm | 0.11kg.cm | ≤3.4A | ≥0.4kg.cm |
| 20:1 | ≤0.17A | 1,000rpm | ≤0.9A | 600rpm | 0.22kg.cm | ≤3.4A | ≥0.85kg.cm |
| 35:1 | ≤0.17A | 570rpm | ≤0.9A | 400rpm | 0.40kg.cm | ≤3.4A | ≥1.5kg.cm |
| 63:1 | ≤0.17A | 317rpm | ≤0.9A | 220rpm | 0.70kg.cm | ≤3.4A | ≥2.5kg.cm |
| 86:1 | ≤0.17A | 230rpm | ≤0.9A | 160rpm | 1.00kg.cm | ≤3.4A | ≤3.0kg.cm |
| 115:1 | ≤0.17A | 173rpm | ≤0.9A | 120rpm | 1.20kg.cm | ≤3.4A | ≤3.0kg.cm |
| 150:1 | ≤0.17A | 133rpm | ≤0.9A | 90rpm | 1.60kg.cm | ≤3.4A | ≤3.0kg.cm |
| 250:1 | ≤0.17A | 80rpm | ≤0.9A | 54rpm | 2.50kg.cm | ≤3.4A | ≤3.0kg.cm |
| 360:1 | ≤0.17A | 55rpm | ≤0.9A | 42rpm | 2.50kg.cm | ≤3.4A | ≤3.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
Therefore, this version is useful when a compact gear motor needs higher speed at the output shaft. In addition, the high-ratio options can still provide strong torque.
NFP-GM16-050 12V DC 11 Type Performance Data
First, the 12V DC 11 type version uses a motor speed of 16,800rpm before the gearbox. Also, it gives strong output across several gear ratios.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤0.09A | 1,680rpm | ≤0.25A | 1,450rpm | 0.090kg.cm | ≤1.45A | ≥0.8kg.cm |
| 20:1 | ≤0.09A | 840rpm | ≤0.25A | 725rpm | 0.180kg.cm | ≤1.45A | ≥1.6kg.cm |
| 35:1 | ≤0.09A | 480rpm | ≤0.25A | 414rpm | 0.315kg.cm | ≤1.45A | ≥2.8kg.cm |
| 63:1 | ≤0.09A | 266rpm | ≤0.25A | 230rpm | 0.567kg.cm | ≤1.45A | ≤3.0kg.cm |
| 86:1 | ≤0.09A | 195rpm | ≤0.25A | 168rpm | 0.774kg.cm | ≤1.45A | ≤3.0kg.cm |
| 115:1 | ≤0.09A | 146rpm | ≤0.25A | 126rpm | 1.035kg.cm | ≤1.45A | ≤3.0kg.cm |
| 150:1 | ≤0.09A | 112rpm | ≤0.25A | 96rpm | 1.350kg.cm | ≤1.45A | ≤3.0kg.cm |
| 250:1 | ≤0.09A | 67rpm | ≤0.25A | 58rpm | 2.250kg.cm | ≤1.45A | ≤3.0kg.cm |
| 360:1 | ≤0.09A | 47rpm | ≤0.25A | 40rpm | 3.240kg.cm | ≤1.45A | ≤3.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, this 12V version is suitable for designs that need a stable speed range and higher torque. Moreover, the 360:1 ratio gives the strongest rated torque in this table.
NFP-GM16-050 12V DC 34 Type Performance Data
Similarly, the 12V DC 34 type version uses a motor speed of 8,000rpm before the gearbox. Therefore, it is useful when lower current is preferred.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤0.05A | 800rpm | ≤0.18A | 600rpm | 0.06kg.cm | ≤0.36A | ≥0.25kg.cm |
| 20:1 | ≤0.05A | 400rpm | ≤0.18A | 300rpm | 0.12kg.cm | ≤0.36A | ≥0.5kg.cm |
| 35:1 | ≤0.05A | 228rpm | ≤0.18A | 170rpm | 0.20kg.cm | ≤0.36A | ≥0.9kg.cm |
| 63:1 | ≤0.05A | 126rpm | ≤0.18A | 90rpm | 0.38kg.cm | ≤0.36A | ≥1.5kg.cm |
| 86:1 | ≤0.05A | 93rpm | ≤0.18A | 65rpm | 0.50kg.cm | ≤0.36A | ≥2.2kg.cm |
| 115:1 | ≤0.05A | 69rpm | ≤0.18A | 50rpm | 0.70kg.cm | ≤0.36A | ≤3.0kg.cm |
| 150:1 | ≤0.05A | 53rpm | ≤0.18A | 40rpm | 0.90kg.cm | ≤0.36A | ≤3.0kg.cm |
| 250:1 | ≤0.05A | 32rpm | ≤0.18A | 24rpm | 1.50kg.cm | ≤0.36A | ≤3.0kg.cm |
| 360:1 | ≤0.05A | 22rpm | ≤0.18A | 15rpm | 2.16kg.cm | ≤0.36A | ≤3.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In short, this table is a good reference for 12V low-current gear motor selection. Also, it is useful for compact systems that need steady torque with less current.
NFP-GM16-050 24V DC 34 Type Performance Data
Finally, the 24V DC 34 type version uses a motor speed of 16,000rpm before the gearbox. In addition, it supports high voltage systems while keeping the motor size compact.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤0.075A | 1,600rpm | ≤0.2A | 1,200rpm | 0.09kg.cm | ≤0.5A | ≥0.4kg.cm |
| 20:1 | ≤0.075A | 800rpm | ≤0.2A | 600rpm | 0.18kg.cm | ≤0.5A | ≥0.8kg.cm |
| 35:1 | ≤0.075A | 456rpm | ≤0.2A | 340rpm | 0.32kg.cm | ≤0.5A | ≥1.3kg.cm |
| 63:1 | ≤0.075A | 252rpm | ≤0.2A | 180rpm | 0.55kg.cm | ≤0.5A | ≥2.5kg.cm |
| 86:1 | ≤0.075A | 185rpm | ≤0.2A | 130rpm | 0.75kg.cm | ≤0.5A | ≤3.0kg.cm |
| 115:1 | ≤0.075A | 138rpm | ≤0.2A | 100rpm | 1.00kg.cm | ≤0.5A | ≤3.0kg.cm |
| 150:1 | ≤0.075A | 106rpm | ≤0.2A | 80rpm | 1.35kg.cm | ≤0.5A | ≤3.0kg.cm |
| 250:1 | ≤0.075A | 64rpm | ≤0.2A | 58rpm | 2.00kg.cm | ≤0.5A | ≤3.0kg.cm |
| 360:1 | ≤0.075A | 44rpm | ≤0.2A | 30rpm | 2.00kg.cm | ≤0.5A | ≤3.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In conclusion, this 24V option is suitable for compact equipment that needs stable torque and higher input voltage. Moreover, all reduced no-load speeds have a tolerance of ±15%.
High Torque DC Geared Motor Dimension
First, the outline drawing helps users check the motor body size, gearbox shape, shaft position, and mounting space. Also, it is useful when users design the motor into a small machine or custom device.
In addition, this micro DC gear motor is about 2 inches long. Therefore, it can fit many space-limited products without losing useful output torque.
Typical Applications
Finally, the NFP-GM16-050 is a compact brushed DC gear motor with many voltage, speed, and ratio choices. As a result, it can be used for robots, small tools, locks, meters, and automation devices.
- Robots
- Small tools
- Smart locks
- Meters
- Automation devices
- Home products
- Compact drive systems
- Small gear box projects
In short, the NFP-GM16-050 DC spur gear motor is a good fit for products that need 3V, 6V, 12V, or 24V DC power, compact 15.5mm size, D-cut shaft output, wide ratio choices, and steady low-speed torque.
