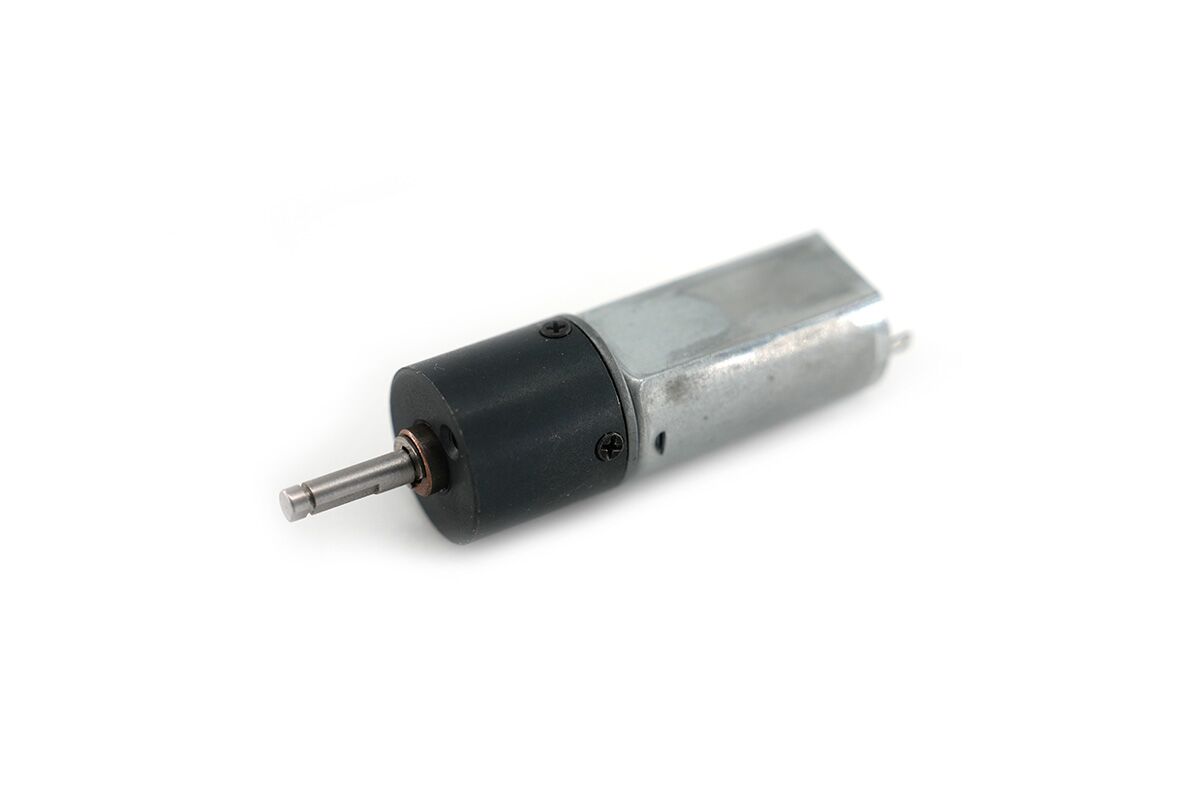

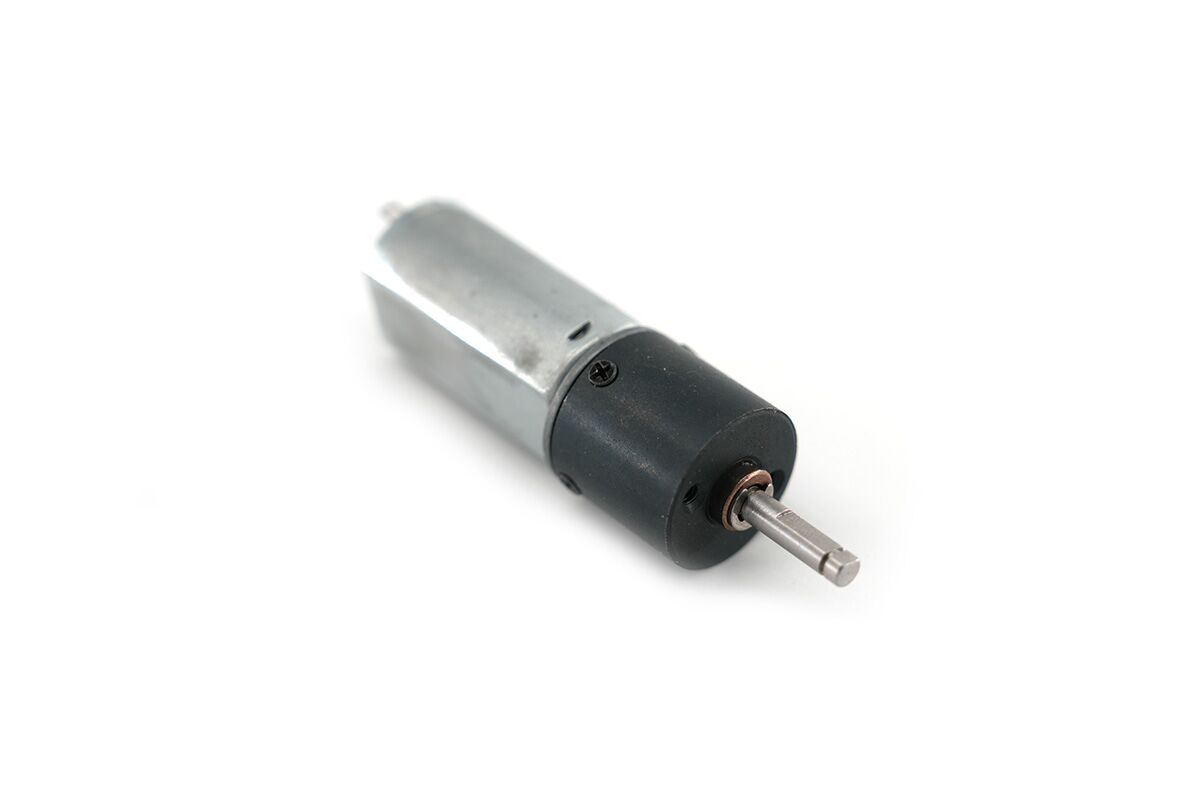

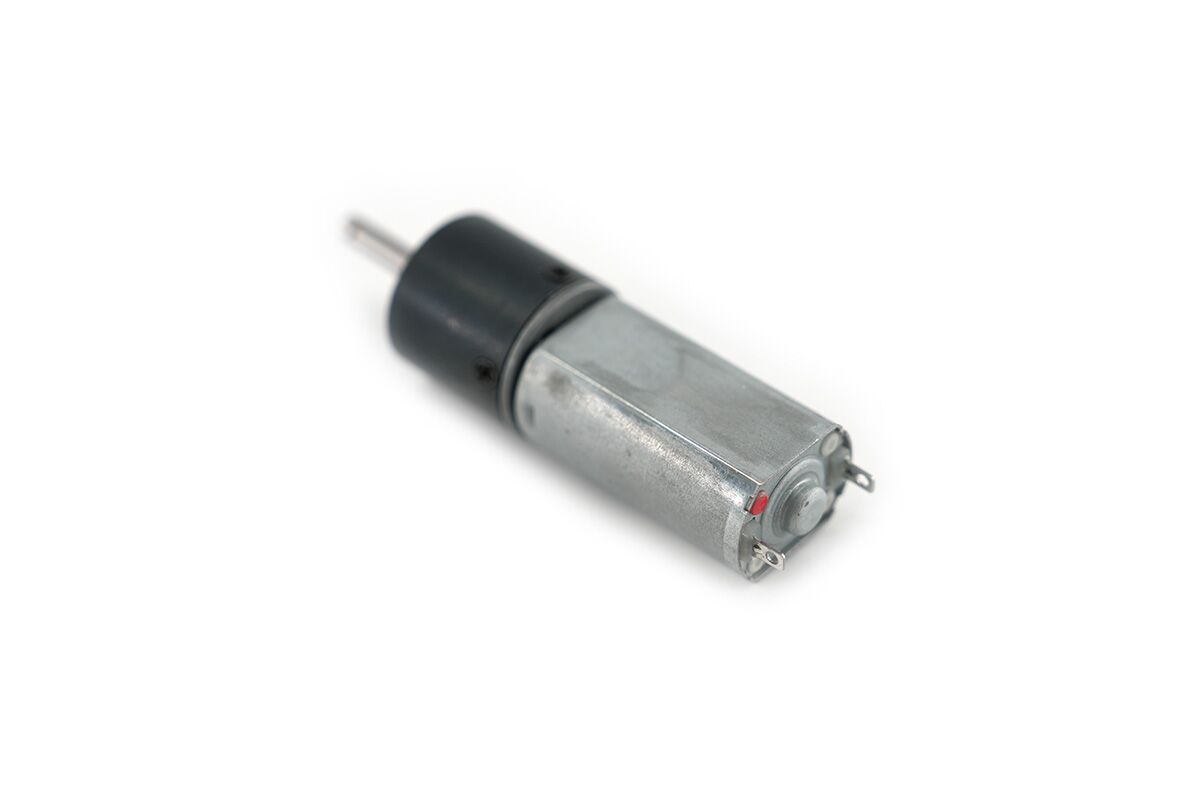

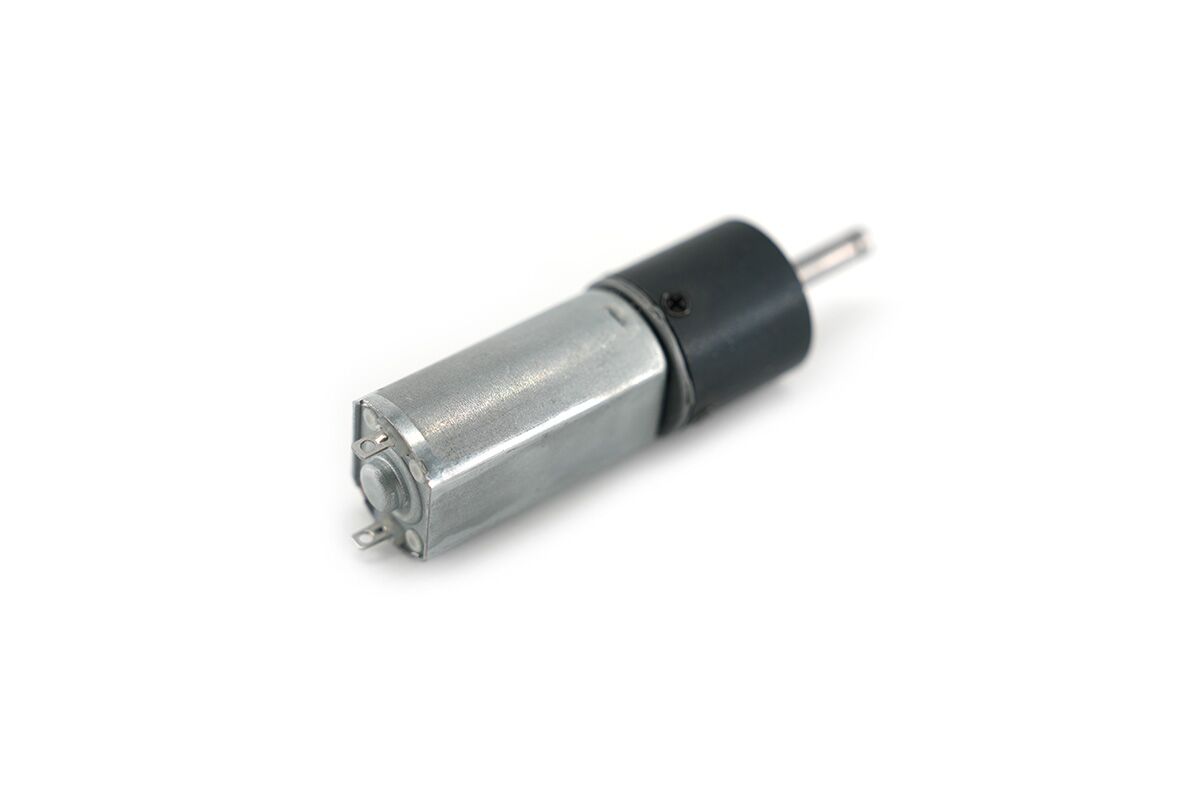

16mm Planetary Gear Motor Model NFP-16GP-050
$14.00
Achieve perfection in your projects with the 16mm precision motion gear motor. This compact option combines high torque with versatility. Order now!
Permanent Magnet DC Planetary Reduction Motor Parameter
First, the NFP-16GP-050 is a permanent magnet DC planetary reduction motor with a compact 16mm body. Also, it supports 12V and 24V DC power for small drive systems.
In addition, this small planetary gear motor uses a D-shaped output shaft. Therefore, it can help improve shaft locking and torque transfer during drive work.
Moreover, the motor supports CW and CCW rotation with speed regulation. As a result, users can match speed, direction, and torque needs in compact products.
Main Product Features
- First, compact 16mm body: The small motor size helps save installation space.
- In addition, planetary gearbox: The gearbox helps provide stable torque output.
- Also, D-shaped shaft: The output shaft helps connect drive parts firmly.
- Next, speed regulation: Users can adjust speed based on system needs.
- Finally, voltage options: The motor supports 12V and 24V DC.
Basic Motor Specifications
First, the table below shows the main motor data. Also, it helps users check rotation, voltage, motor diameter, shaft size, weight, and speed regulation before choosing a ratio.
| Model | NFP-16GP-050 |
|---|---|
| Rotation | CW & CCW |
| Rated Voltage | 12V / 24V DC |
| Motor Diameter | Φ16mm |
| Shaft Length | 13.5mm |
| Output Shaft Diameter | Φ3mm D-shaped |
| Weight | Appr. 37g |
| Speed Regulation | Yes |
As a result, this model gives a small and light planetary gear motor solution. Moreover, the Φ3mm D-shaped shaft helps fit compact wheels, gears, levers, and small drive parts.
Model: NFP-16GP-050, 12V DC
First, the 12V DC version is useful for compact 12V drive systems. Also, the table below helps users compare ratio, speed, current, torque, and stall data before sample testing.
Therefore, users can choose a lower ratio for higher output speed. In addition, users can choose a higher ratio for lower speed and stronger torque.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 4:1 | 4000 rpm | ≤120mA | 3300 rpm | ≤0.28A | 0.04 kg.cm | ≥0.23 kg.cm | ≤1.5A |
| 16:1 | 1000 rpm | ≤120mA | 850 rpm | ≤0.28A | 0.15 kg.cm | ≥0.8 kg.cm | ≤1.5A |
| 23:1 | 710 rpm | ≤120mA | 610 rpm | ≤0.28A | 0.22 kg.cm | ≥1.1 kg.cm | ≤1.5A |
| 64:1 | 250 rpm | ≤120mA | 205 rpm | ≤0.28A | 0.6 kg.cm | ≥3 kg.cm | ≤1.5A |
| 90:1 | 175 rpm | ≤120mA | 150 rpm | ≤0.28A | 0.9 kg.cm | ≥4.5 kg.cm | ≤1.5A |
| 256:1 | 62 rpm | ≤120mA | 50 rpm | ≤0.28A | 2.5 kg.cm | Max 5 kg.cm | ≤1.5A |
| 361:1 | 45 rpm | ≤120mA | 36 rpm | ≤0.28A | 3.5 kg.cm | Max 5 kg.cm | ≤1.5A |
| 509:1 | 31 rpm | ≤120mA | 25 rpm | ≤0.28A | 5 kg.cm | Max 5 kg.cm | ≤1.5A |
| 1024:1 | 15.5 rpm | ≤120mA | 14 rpm | ≤0.28A | 5 kg.cm | Max 5 kg.cm | ≤1.5A |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 12V version covers speeds from 15.5 rpm to 4000 rpm. Moreover, the 509:1 and 1024:1 ratios give the highest rated torque in this table.
Model: NFP-16GP-050, 24V DC
Next, the 24V DC version is useful for 24V control systems that need lower current. Also, it keeps a wide ratio range for different speed and torque needs.
Therefore, users can choose this version for higher-voltage products. In addition, the high-ratio options support slow speed and higher torque in a compact gearbox.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 4:1 | 3875 rpm | ≤90mA | 3000 rpm | ≤0.25A | 0.04 kg.cm | ≥0.2 kg.cm | ≤0.5A |
| 16:1 | 960 rpm | ≤90mA | 750 rpm | ≤0.25A | 0.15 kg.cm | ≥0.7 kg.cm | ≤0.5A |
| 23:1 | 680 rpm | ≤90mA | 530 rpm | ≤0.25A | 0.22 kg.cm | ≥1 kg.cm | ≤0.5A |
| 64:1 | 240 rpm | ≤90mA | 185 rpm | ≤0.25A | 0.6 kg.cm | ≥2.5 kg.cm | ≤0.5A |
| 90:1 | 170 rpm | ≤90mA | 130 rpm | ≤0.25A | 0.9 kg.cm | ≥3.5 kg.cm | ≤0.5A |
| 256:1 | 60 rpm | ≤90mA | 45 rpm | ≤0.25A | 2.5 kg.cm | Max 5 kg.cm | ≤0.5A |
| 361:1 | 42 rpm | ≤90mA | 33 rpm | ≤0.25A | 3.5 kg.cm | Max 5 kg.cm | ≤0.5A |
| 509:1 | 30 rpm | ≤90mA | 23 rpm | ≤0.25A | 5 kg.cm | Max 5 kg.cm | ≤0.5A |
| 1024:1 | 15 rpm | ≤90mA | 11 rpm | ≤0.25A | 5 kg.cm | Max 5 kg.cm | ≤0.5A |
Note: All reduced no-load speeds have a tolerance of ±15%.
In conclusion, the 24V version covers speeds from 15 rpm to 3875 rpm. Also, the 509:1 and 1024:1 ratios give the highest rated torque in this table.
Ball Bearings Reduction DC Gear Motor Outline Drawing
First, the outline drawing helps users check motor size, gearbox length, output shaft, and mounting space. Therefore, it is useful before sample testing and product design.
In addition, the gearbox length changes with the reduction ratio and gear stage. As a result, users should confirm the selected ratio before final mechanical design.
Gearbox Length by Ratio
- First, ratio 4:1: Gearbox length is 15.8mm, with 1 stage.
- In addition, ratios 16:1 / 23:1: Gearbox length is 15.8mm, with 2 stages.
- Also, ratios 64:1 / 90:1: Gearbox length is 19.4mm, with 3 stages.
- Next, ratios 256:1 to 509:1: Gearbox length is 23mm, with 4 stages.
- Finally, ratio 1024:1: Gearbox length is 26.6mm, with 5 stages.
Outline Drawing and Design Benefits
- First, compact structure: The Φ16mm motor body helps save space.
- In addition, ball bearings: The bearing design helps support smooth rotation.
- Also, planetary gearbox: The gearbox helps provide stable torque output.
- Next, D-shaped shaft: The shaft helps improve locking with drive parts.
- Finally, multiple stages: Users can choose speed or torque based on the load.
Typical Applications
Finally, this permanent magnet DC planetary reduction motor is useful for compact products that need small size, stable speed, and useful torque. For example, it can work in intelligent robots, electric curtains, balancing cars, and intelligent manipulators.
- Intelligent robots
- Electric curtains
- Intelligent balancing cars
- Intelligent manipulators
- Small automation systems
- Compact drive modules
- Smart home products
Selection Notes
First, users should choose voltage and ratio based on speed, torque, current, gearbox length, and available product space. Also, users should check the gear stage before final assembly.
- First, for higher speed: Choose a lower ratio such as 4:1, 16:1, or 23:1.
- In addition, for higher torque: Choose a higher ratio such as 509:1 or 1024:1.
- Also, for 12V systems: Choose the 12V DC version when the product uses a 12V control board.
- Next, for 24V systems: Choose the 24V DC version when the product uses a 24V power system.
- Moreover, for tight spaces: Check gearbox length because higher ratios use more stages.
- Finally, for speed control: Use the speed regulation function based on the load and drive circuit.
In short, the NFP-16GP-050 permanent magnet DC planetary reduction motor is a good fit for products that need 12V or 24V DC power, Φ16mm compact size, speed regulation, D-shaped shaft, and stable planetary gearbox output.
Keywords: micro DC gear motor, small planetary gear motor, tiny DC gearmotors, micro DC planetary gearboxes
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
