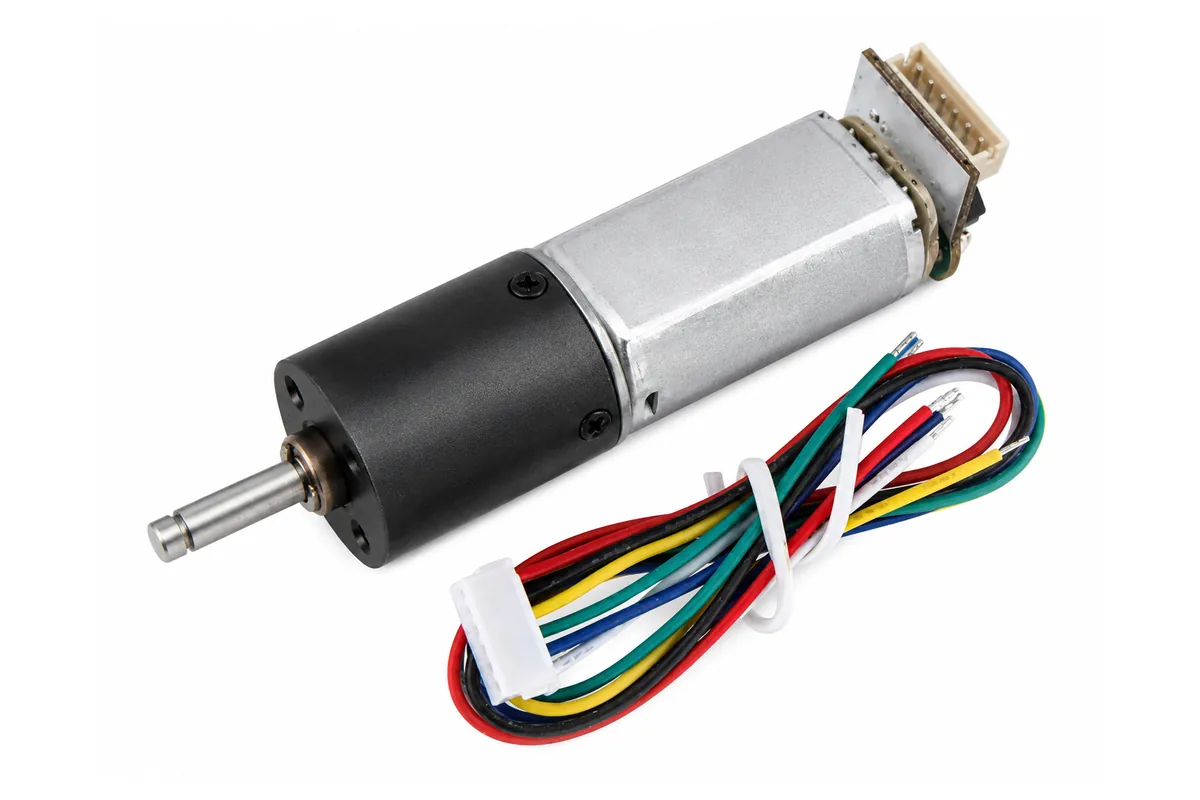

16mm Planetary Gear Motor Model NFP-16GP-050-EN
$16.50
Transform your projects with the reliable 16mm precision motion gear motor with encoder. Enjoy superior speed and efficiency in every use!
Permanent Magnet DC Planetary Reduction Motor Parameter
Product Overview
The NFP-16GP-050-EN is a 16mm permanent magnet DC planetary reduction motor. Therefore, it is suitable for compact drive systems that need low speed, stable torque, and precise motion control.
In addition, this motor supports 12V and 24V DC options. As a result, users can choose the right voltage for different power systems and control boards.
Moreover, the motor supports CW and CCW rotation. Therefore, it works well in two-way motion systems such as robots, electric curtains, and intelligent manipulators.
Main Features
- 16mm planetary gearbox: The compact gearbox helps save installation space. Therefore, it fits small mechanical designs.
- 12V and 24V options: Users can choose a suitable voltage. As a result, the motor can match different power systems.
- Speed regulation support: The motor supports speed regulation. In addition, users can adjust output speed according to the load.
- D-shaped output shaft: The Φ3mm D-shaped shaft helps prevent slipping. Therefore, it supports easier mechanical assembly.
- Multiple gear ratios: The available ratios range from 4:1 to 1024:1. Moreover, users can balance speed and torque by selecting the right ratio.
Basic Motor Specifications
The table below shows the main motor data. Therefore, users can check voltage, motor size, shaft size, rotation, weight, and speed regulation before testing.
| Model | NFP-16GP-050-EN |
|---|---|
| Rotation | CW & CCW |
| Rated Voltage | 12V / 24V DC |
| Motor Diameter | Φ16mm |
| Shaft Length | 13.5mm |
| Output Shaft Diameter | Φ3mm D-shaped |
| Weight | Appr. 37g |
| Speed Regulation | Yes |
12V DC Performance Data
The table below shows the 12V DC version. Therefore, users can compare ratio, speed, current, torque, and stall data before choosing a gear ratio.
Model: NFP-16GP-050-EN, 12V DC
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 4:1 | 4000 rpm | ≤120mA | 3300 rpm | ≤0.28A | 0.04 kg.cm | ≥0.23 kg.cm | ≤1.5A |
| 16:1 | 1000 rpm | ≤120mA | 850 rpm | ≤0.28A | 0.15 kg.cm | ≥0.8 kg.cm | ≤1.5A |
| 23:1 | 710 rpm | ≤120mA | 610 rpm | ≤0.28A | 0.22 kg.cm | ≥1.1 kg.cm | ≤1.5A |
| 64:1 | 250 rpm | ≤120mA | 205 rpm | ≤0.28A | 0.6 kg.cm | ≥3 kg.cm | ≤1.5A |
| 90:1 | 175 rpm | ≤120mA | 150 rpm | ≤0.28A | 0.9 kg.cm | ≥4.5 kg.cm | ≤1.5A |
| 256:1 | 62 rpm | ≤120mA | 50 rpm | ≤0.28A | 2.5 kg.cm | Max 5 kg.cm | ≤1.5A |
| 361:1 | 45 rpm | ≤120mA | 36 rpm | ≤0.28A | 3.5 kg.cm | Max 5 kg.cm | ≤1.5A |
| 509:1 | 31 rpm | ≤120mA | 25 rpm | ≤0.28A | 5 kg.cm | Max 5 kg.cm | ≤1.5A |
| 1024:1 | 15.5 rpm | ≤120mA | 14 rpm | ≤0.28A | 5 kg.cm | Max 5 kg.cm | ≤1.5A |
Note: all reduced no-load speeds have a tolerance of ±15%.
24V DC Performance Data
The table below shows the 24V DC version. In addition, this version can support 24V drive systems with lower no-load current.
Moreover, users can compare the 12V and 24V versions before final selection. Therefore, they can choose a better match for speed, current, and torque requirements.
Model: NFP-16GP-050-EN, 24V DC
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 4:1 | 3875 rpm | ≤90mA | 3000 rpm | ≤0.25A | 0.04 kg.cm | ≥0.2 kg.cm | ≤0.5A |
| 16:1 | 960 rpm | ≤90mA | 750 rpm | ≤0.25A | 0.15 kg.cm | ≥0.7 kg.cm | ≤0.5A |
| 23:1 | 680 rpm | ≤90mA | 530 rpm | ≤0.25A | 0.22 kg.cm | ≥1 kg.cm | ≤0.5A |
| 64:1 | 240 rpm | ≤90mA | 185 rpm | ≤0.25A | 0.6 kg.cm | ≥2.5 kg.cm | ≤0.5A |
| 90:1 | 170 rpm | ≤90mA | 130 rpm | ≤0.25A | 0.9 kg.cm | ≥3.5 kg.cm | ≤0.5A |
| 256:1 | 60 rpm | ≤90mA | 45 rpm | ≤0.25A | 2.5 kg.cm | Max 5 kg.cm | ≤0.5A |
| 361:1 | 42 rpm | ≤90mA | 33 rpm | ≤0.25A | 3.5 kg.cm | Max 5 kg.cm | ≤0.5A |
| 509:1 | 30 rpm | ≤90mA | 23 rpm | ≤0.25A | 5 kg.cm | Max 5 kg.cm | ≤0.5A |
| 1024:1 | 15 rpm | ≤90mA | 11 rpm | ≤0.25A | 5 kg.cm | Max 5 kg.cm | ≤0.5A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Ball Bearings Reduction DC Gear Motor Outline Drawing
Gearbox Length by Ratio
The gearbox length changes with the reduction ratio. Therefore, users should confirm the gearbox stage and total length before product design.
- Ratio 4:1: Gearbox length L is 15.8mm, with 1 stage.
- Ratio 16:1 / 23:1: Gearbox length L is 15.8mm, with 2 stages.
- Ratio 64:1 / 90:1: Gearbox length L is 19.4mm, with 3 stages.
- Ratio 256:1 to 509:1: Gearbox length L is 23mm, with 4 stages.
- Ratio 1024:1: Gearbox length L is 26.6mm, with 5 stages.
Outline Drawing
The outline drawing below shows the 16mm planetary DC gear motor structure. In addition, it helps users check the motor body, gearbox length, shaft size, and mounting space.
As a result, users can confirm whether the selected ratio fits the final product structure. Moreover, this step can reduce assembly risk during prototype testing.
Typical Applications
This 16mm planetary DC gear motor works well in small intelligent devices. For example, users can apply it to robots, electric curtains, and compact motion modules.
- Intelligent robots: The motor can support small wheel drive or joint movement.
- Electric curtains: The gearbox can provide low-speed torque for curtain motion.
- Intelligent balancing cars: The compact size helps fit small drive systems.
- Intelligent manipulators: The motor can support controlled movement in light robotic arms.
- Automation modules: The motor can drive compact low-speed mechanisms.
