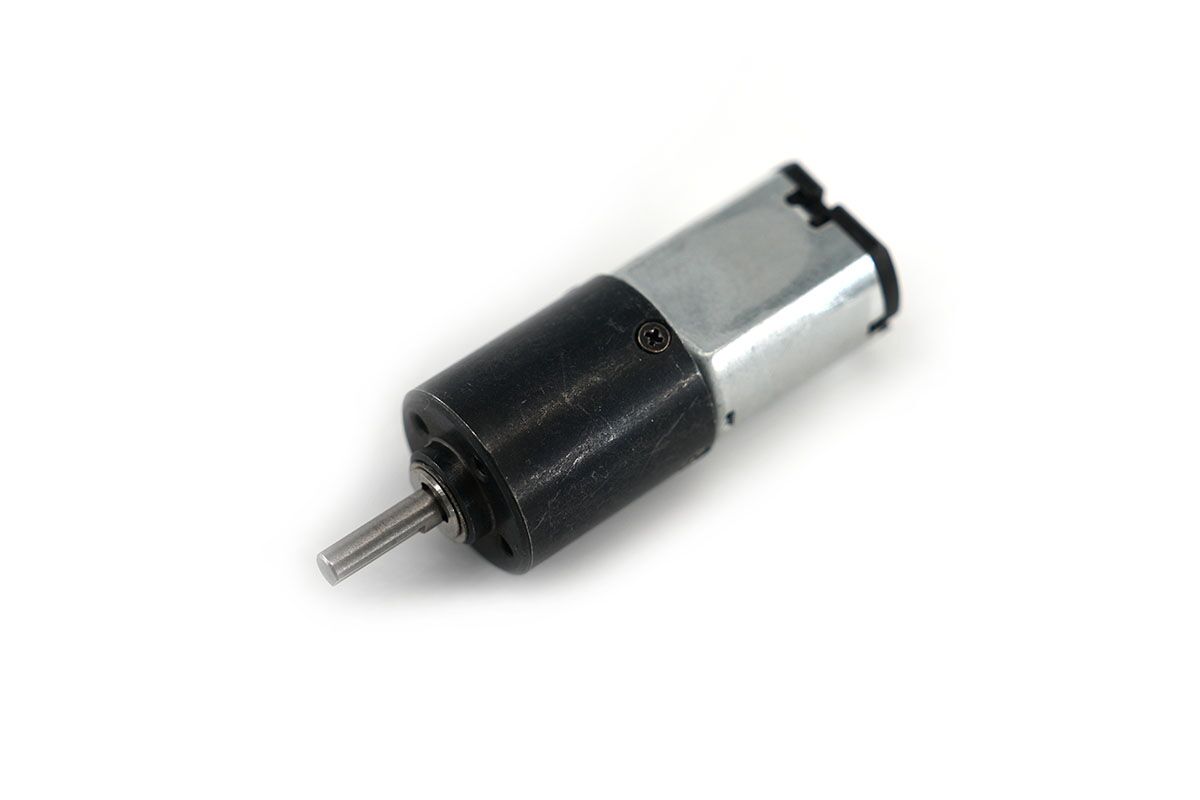

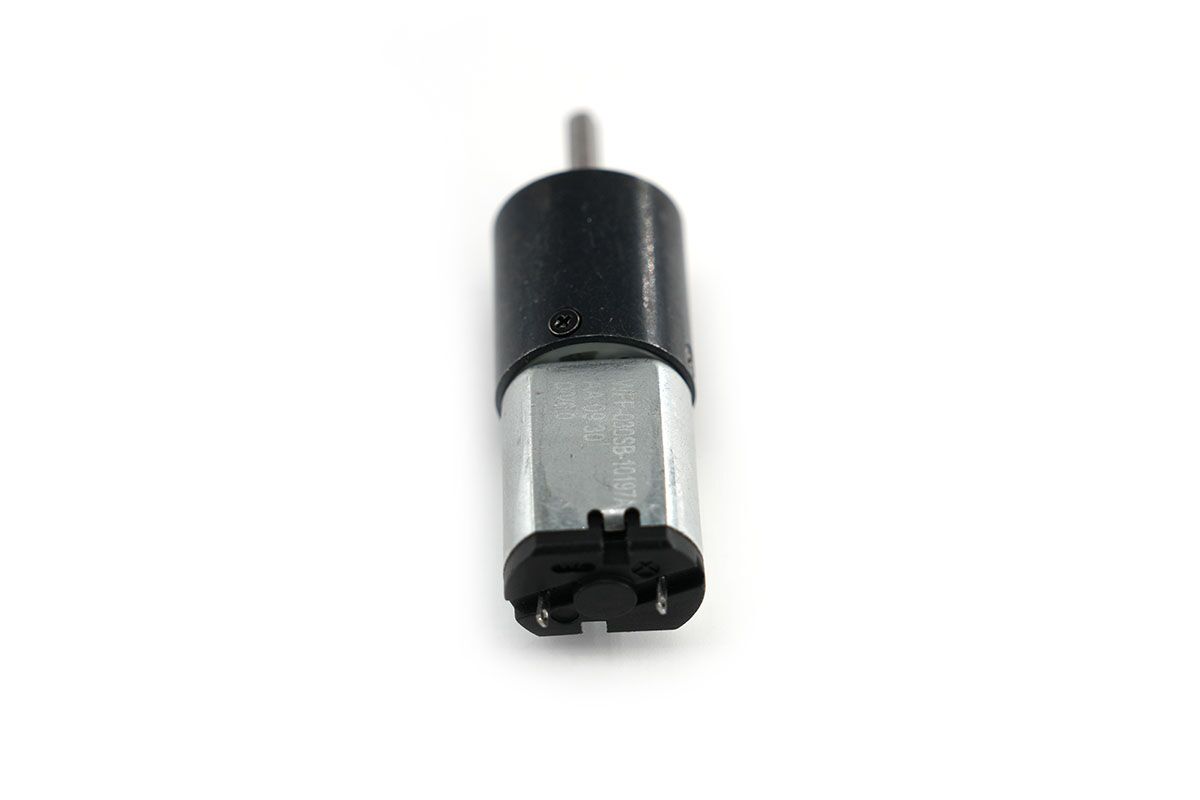

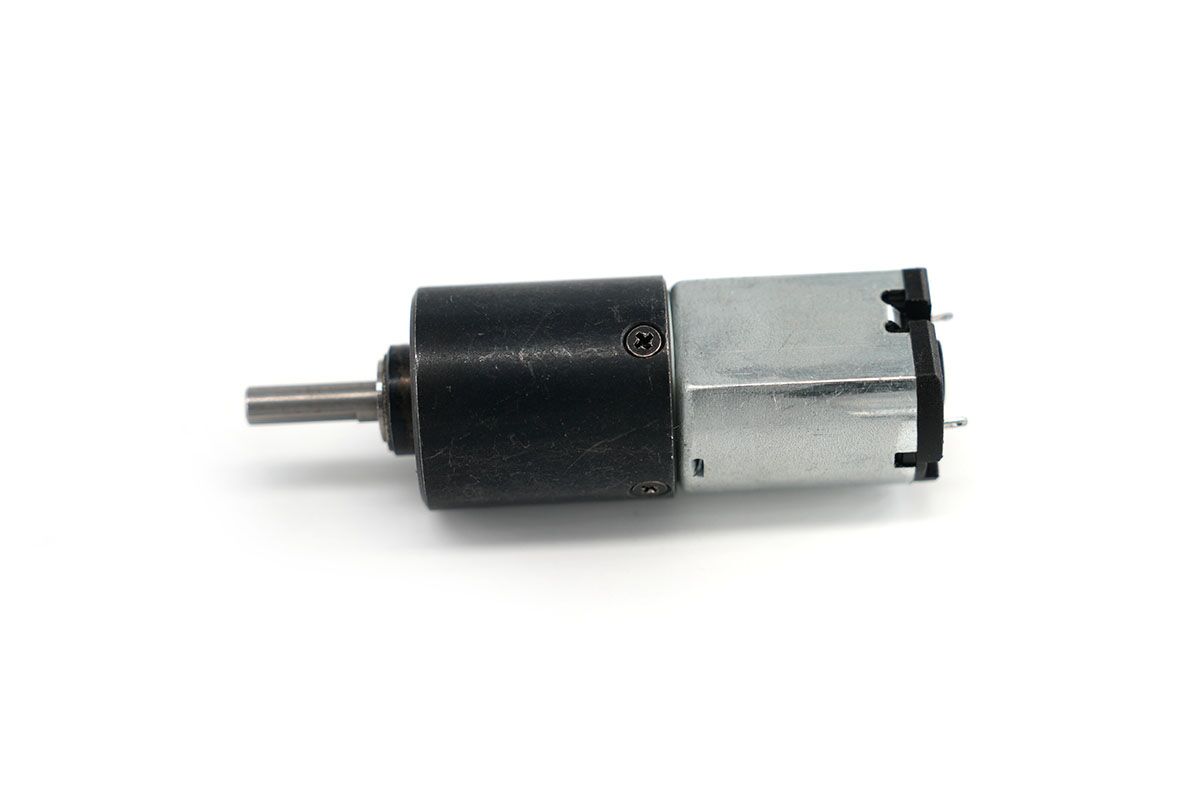

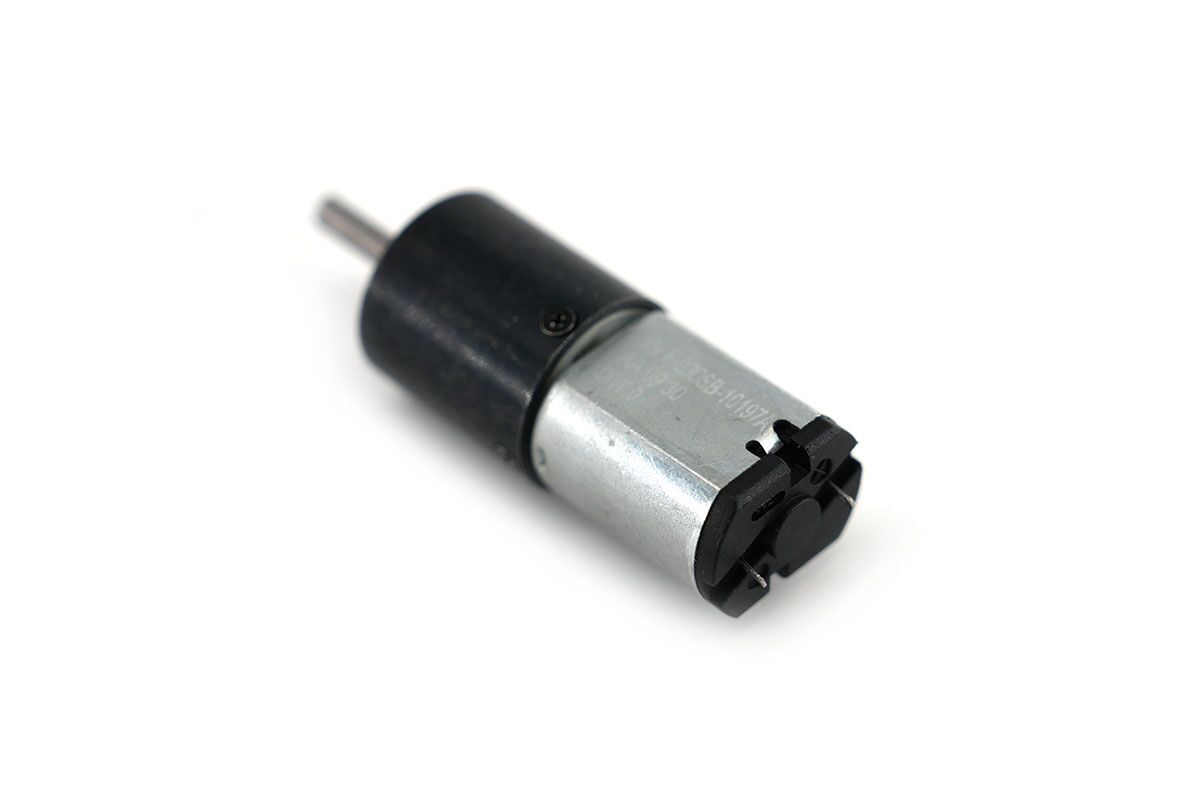

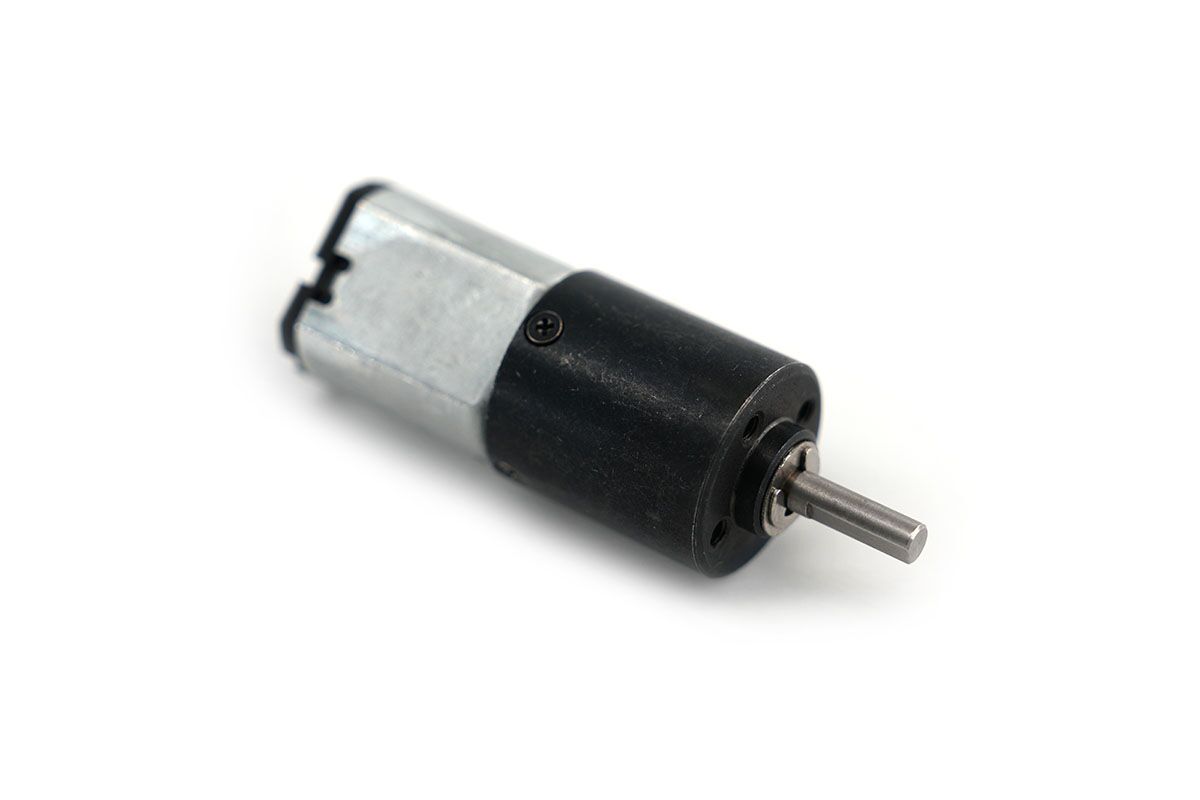

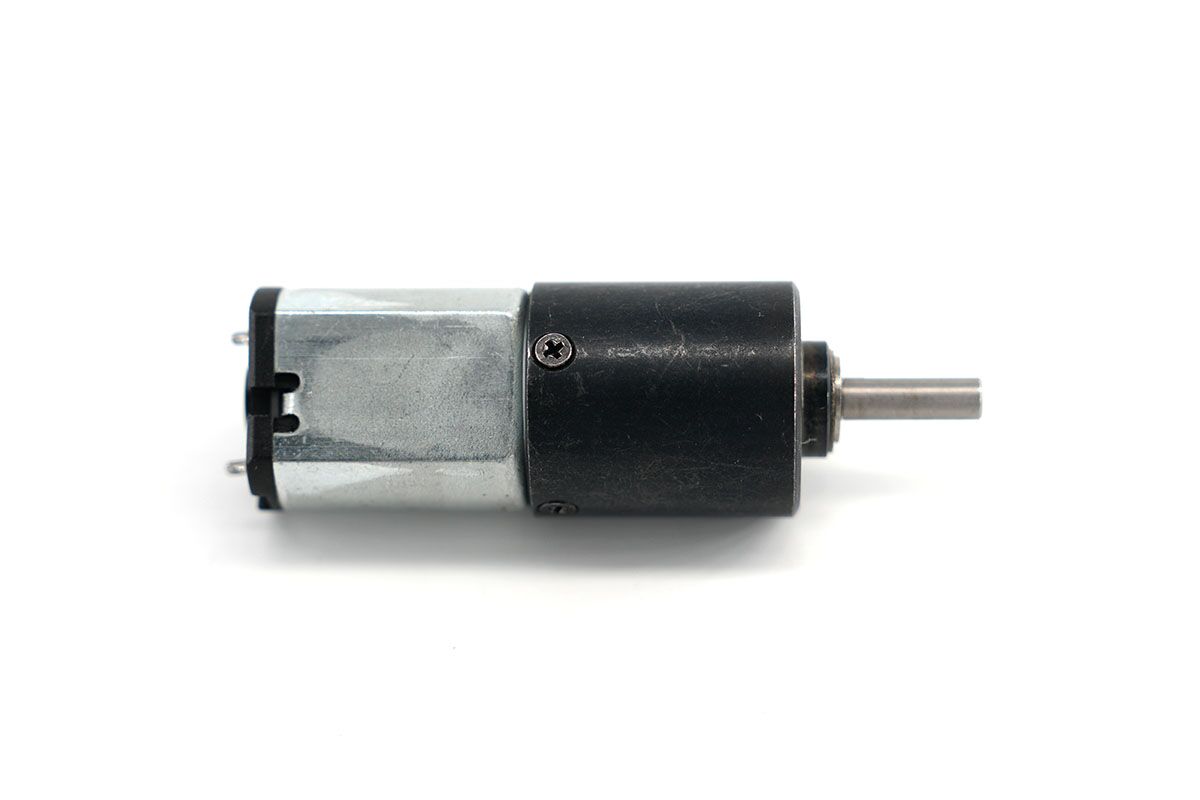

16mm Planetary Gear Motor Model NFP-GA16Y-030SB
$18.50
Achieve unmatched performance with the 16mm high quality planetary gear motor in your projects. Ideal for tight spaces—get yours now! 🔧
2 in stock
Small DC Planetary Gear Motor Parameters
First, the NFP-GA16Y-030SB is a small DC planetary gear motor with a compact 16mm body. Also, it is useful for products that need high torque in limited space.
In addition, this planetary gear motor supports 6V DC power and a 144:1 gear ratio. Therefore, it can provide slow speed and strong torque for compact drive systems.
Moreover, the motor delivers 4kg.cm normal torque and 15kg.cm breakdown torque. As a result, it is suitable for robotics, automation systems, precision instruments, and small smart devices.
Main Product Features
- First, compact 16mm body: The small size helps save installation space.
- In addition, 144:1 ratio: The gearbox helps provide low speed and high torque.
- Also, 6V DC power: The motor can match low-voltage control systems.
- Next, 65% efficiency: The motor supports useful output in compact products.
- Finally, D-cut shaft: The output shaft helps connect drive parts firmly.
Basic Motor Specifications
First, the table below shows the main motor data. Also, it helps users check voltage, speed, current, ratio, torque, efficiency, shaft size, and weight before sample testing.
| Motor Model | NFP-GA16Y-030SB |
|---|---|
| Rotation | CW & CCW |
| Rated Voltage | 6V DC |
| No-load Speed | 85rpm ± 15% |
| No-load Current | 60mA |
| Gear Ratio | 144:1 |
| Normal Torque | 4kg.cm |
| Breakdown Torque | 15kg.cm |
| Efficiency | 65% |
| Output Shaft Diameter | Φ3mm, L9.8mm |
| D-Cut Size | 2.5mm, L7.8mm |
| Weight | 30g |
As a result, this model gives a small and light planetary gear motor solution. Moreover, the Φ3mm D-cut output shaft helps fit compact gears, levers, wheels, and other drive parts.
16mm Micro DC Gear Motor Outline Drawing
First, the outline drawing helps users check motor size, gearbox layout, shaft size, and mounting space. Therefore, it is useful before sample testing and product design.
In addition, the NFP-GA16Y-030SB is designed for stable 6V DC operation. As a result, it can fit battery-operated devices and systems that need steady low-speed output.
Moreover, the compact planetary gearbox helps provide useful torque in limited space. Therefore, users can add this motor to small drive products more easily.
Outline Drawing and Design Benefits
- First, 16mm motor body: The small body helps save space in compact designs.
- In addition, planetary gear system: The gear system helps transfer torque smoothly.
- Also, Φ3mm output shaft: The shaft helps connect small drive parts.
- Next, D-cut design: The D-cut helps improve shaft locking during use.
- Finally, compact gearbox: The 144:1 ratio provides strong low-speed output.
Typical Applications
Finally, this small DC planetary gear motor is useful for compact products that need high torque, stable output, and small size. For example, it can work in robotics, automation systems, precision instruments, smart devices, and battery-powered drive modules.
- Robotics
- Automation systems
- Precision instruments
- Smart devices
- Battery-operated products
- Small drive modules
- Compact control systems
Selection Notes
First, users should confirm whether 6V DC power, 85rpm no-load speed, and 144:1 gear ratio match the load. Also, users should check shaft size before mechanical design.
- First, for 6V systems: Choose this model when the product uses a 6V DC power supply.
- In addition, for low speed: The 144:1 ratio provides 85rpm no-load speed.
- Also, for high torque: The motor provides 4kg.cm normal torque and 15kg.cm breakdown torque.
- Next, for tight spaces: The 16mm body helps fit small product layouts.
- Finally, for firm output: The Φ3mm D-cut shaft helps lock the drive part.
In short, the NFP-GA16Y-030SB small DC planetary gear motor is a good fit for products that need 6V DC power, compact 16mm size, 144:1 ratio, 85rpm no-load speed, high torque, and stable planetary gearbox output.
Keywords: high torque micro motor, miniature planetary gear motor, 16mm gear motor, precision planetary motor, DC gear motor, small planetary gear motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
