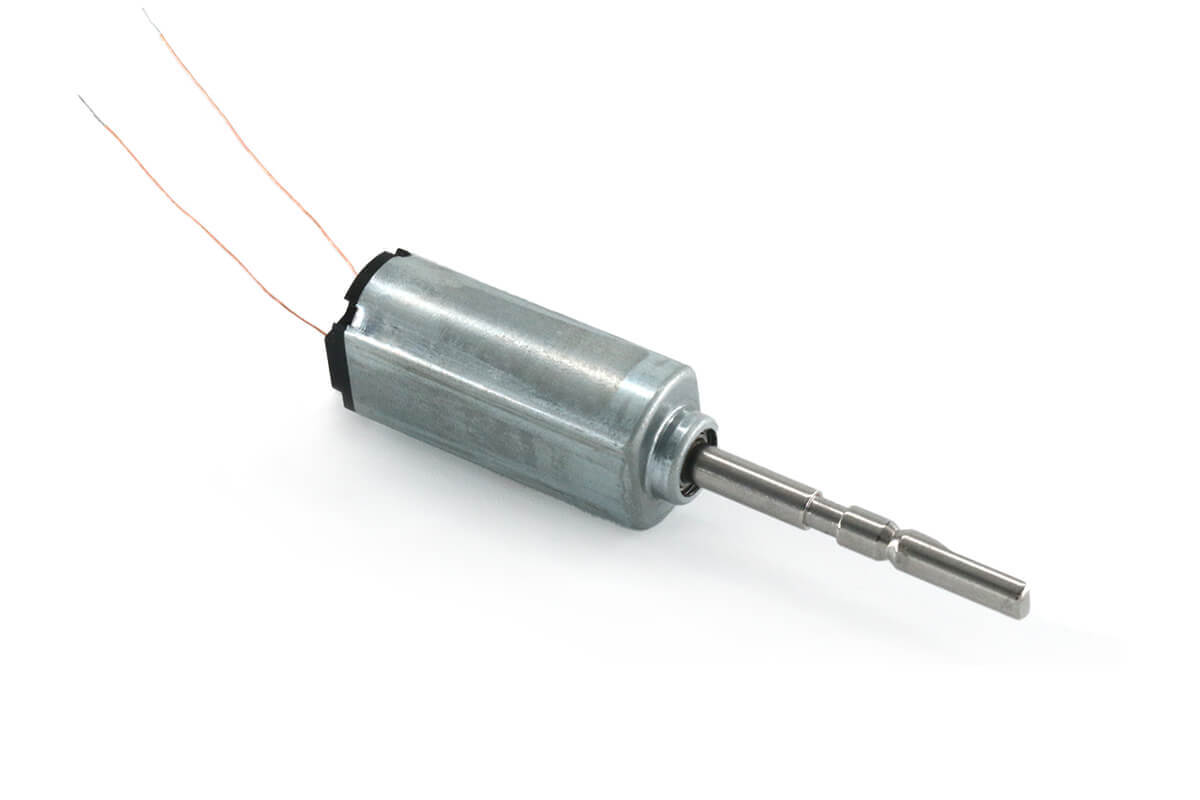

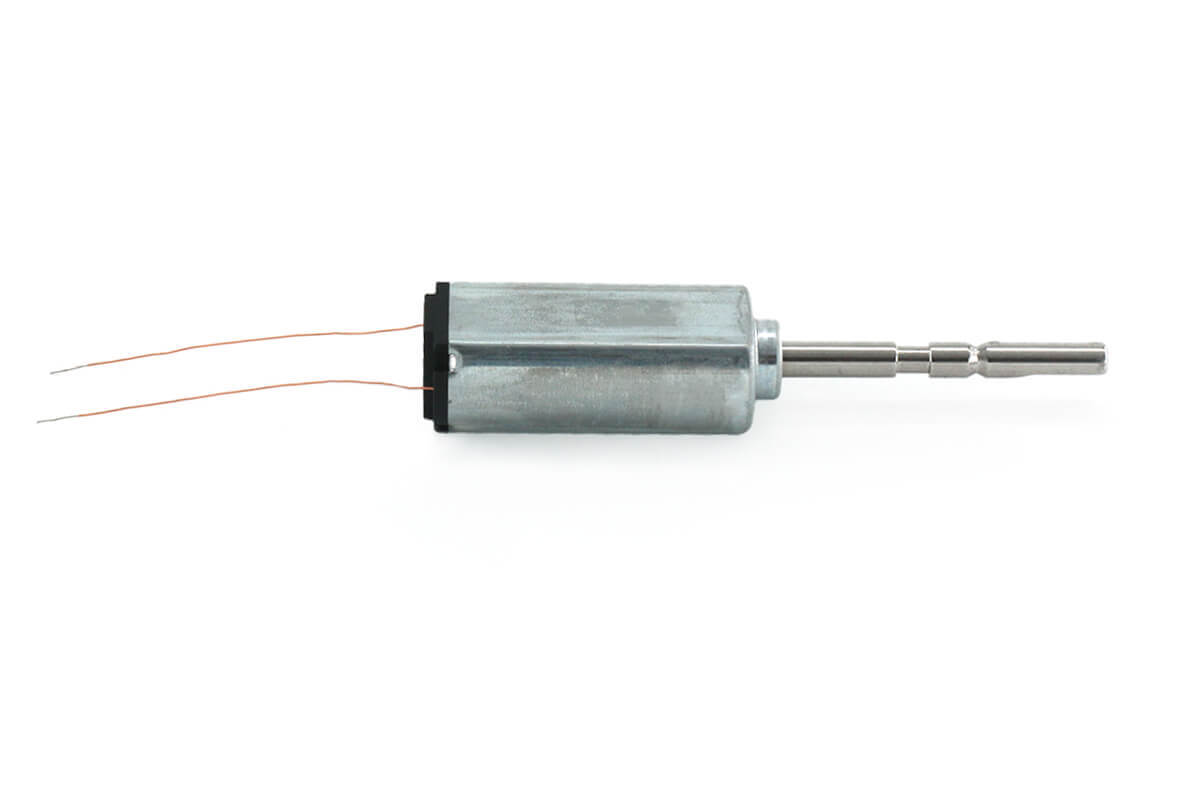

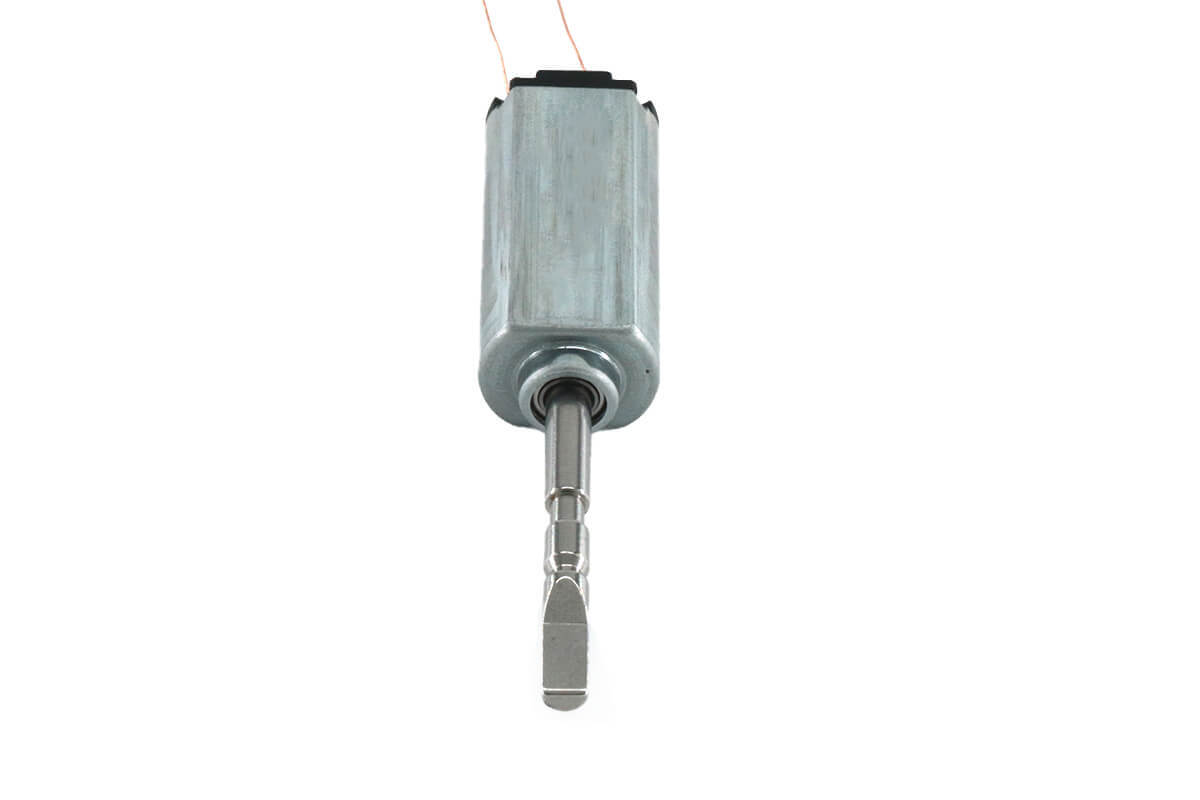

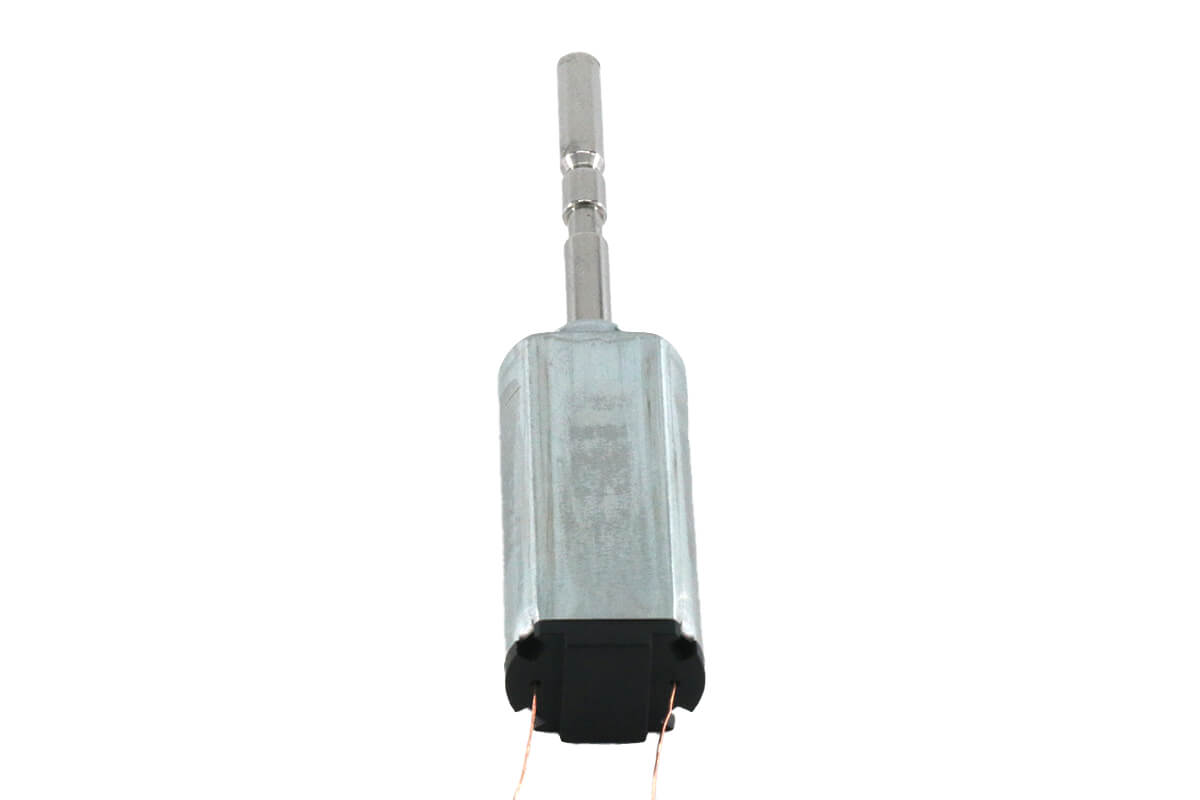

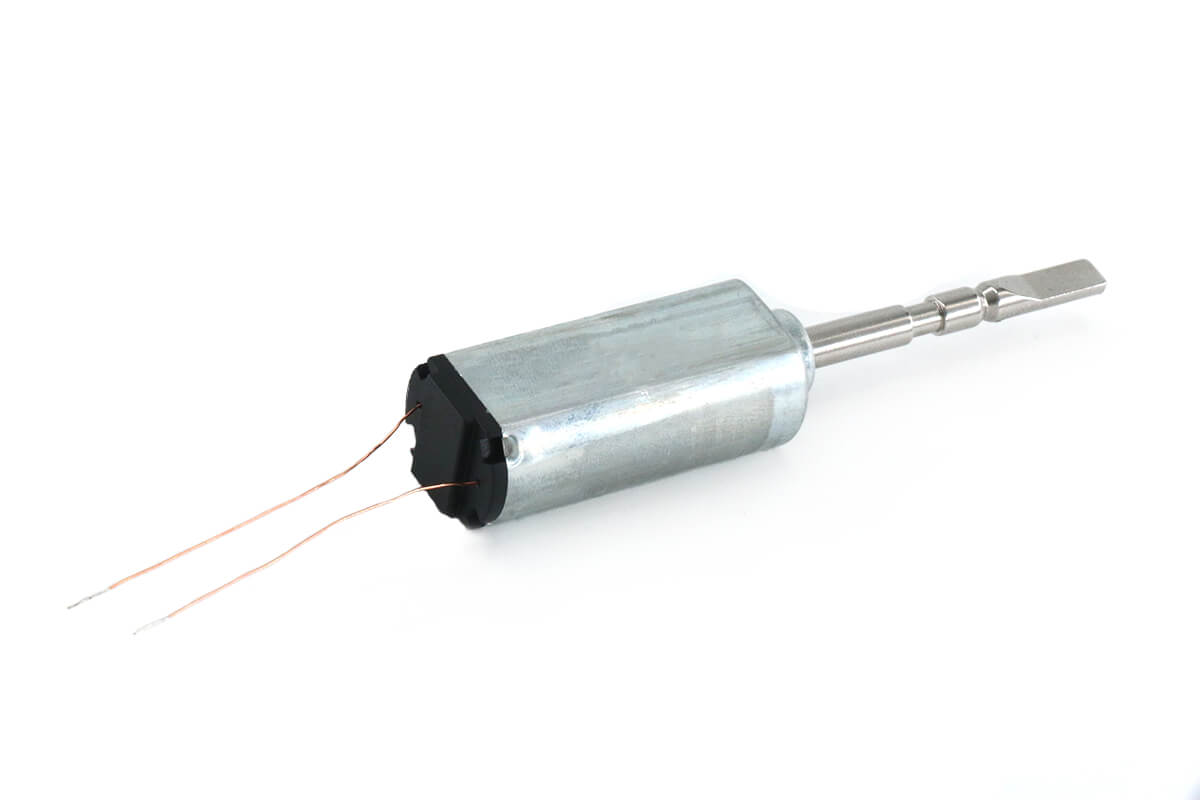

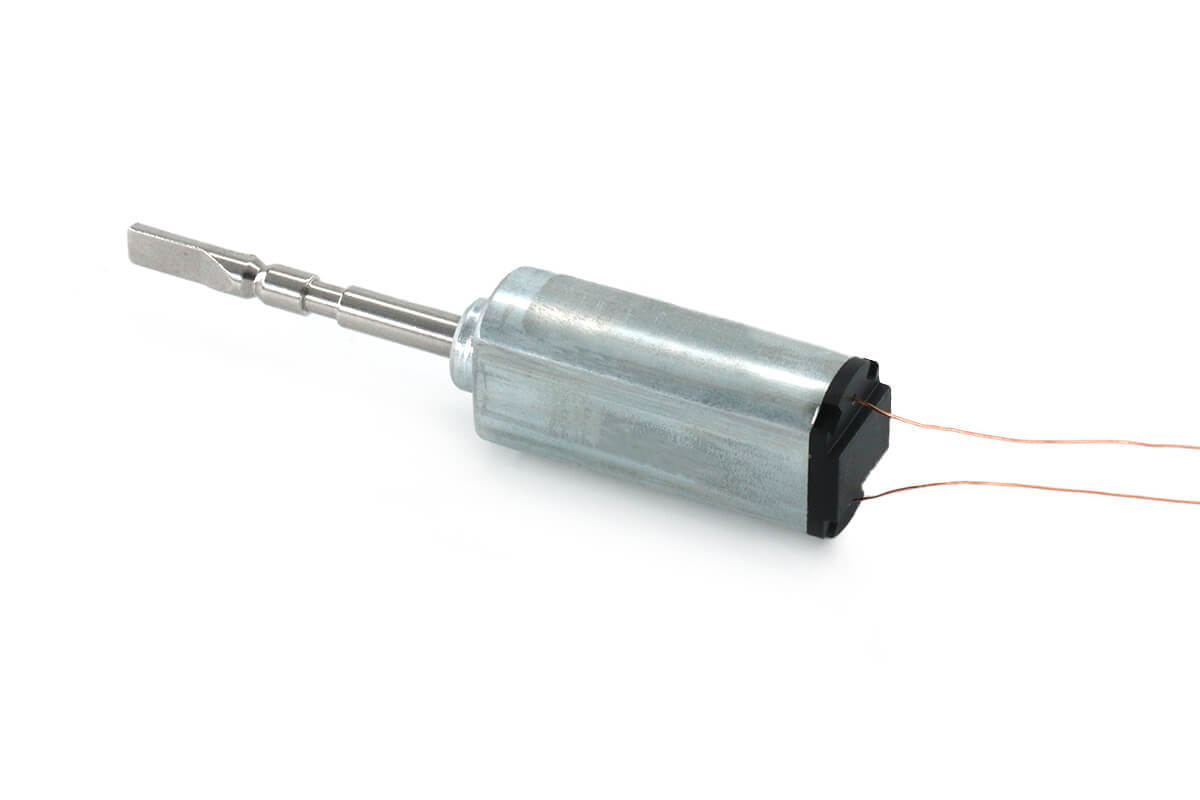

16mm Sonic Vibration Motor – 38mm Type Model NFP-1638-B607
$15.00
Achieve superior plaque removal with the highly efficient 16mm Sonic Vibration Motor. Enjoy a powerful yet quiet brushing experience every day! 🪥
Request a quotation for mass production quantities, contact us for customizations and integration.
| Quantity | Price | Discount |
|---|---|---|
| 1 - 99 | $15.00 | 0% |
| 100+ | $8.00 | 46.67% |
Ultrasonic Vibration Motor Technical Sheet
First, high frequency vibrators play a main role in a toothbrush for effective plaque removal and deep cleaning. In addition, this motor is compact, highly efficient, and runs quietly to ensure a cozy user experience. Manufacturers design this small AC motor with low power use to maximize battery life while still providing strong brushing power. Therefore, consistent performance makes it a reliable choice for oral health care devices.
| Model | NFP-1638-B607 |
|---|---|
| Rated Voltage | 3.6V AC |
| Rated Current | 200mA |
| Rated Load Torque | 4.5g |
| Rated Frequency | 260Hz |
| Operating Voltage | 3.0V – 4.5V AC |
| Operating Frequency | 170Hz – 350Hz |
| No-load Frequency | 380Hz |
| No-load Current | 120mA |
| Stall Current | 720mA |
| Equilibrium Position Torque | 330gf.cm |
| Starting Voltage | 3.0V AC |
| Insulation Resistance | 10MΩ Min |
| Shaft Press Fit Force | ≤8kgf |
| Working Temperature & Humidity | -10°C – 60°C; ≤90%RH |
| Storage Temperature & Humidity | -30°C – 70°C; ≤80%RH |
| Working Life | 1,000H |
| Low Noise | 42dB |
| Weight | 25g |
Key Features and Uses
Engineers build this drive mechanism for high stability and smooth daily operation. As a result, users get stable vibrating strength every time.
- Low noise output at 42dB for quiet operation
- Long working life up to 1,000 hours
- Low energy needs to save overall battery life
- Ideal uses include sonic toothbrushes, haptic feedback tools, and mini vibrators
Magnetic Levitation Motor BLAC Driving Mechanism
Sonic Electric Toothbrush Motor Characteristics Graph
Maglev Motor Toothbrush Performance Curve
Test voltage: 3.7V AC | Duty cycle: 90%
Keywords: toothbrush motor replacement, mini vibration motor, haptic feedback motor, powerful vibrator
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
Jojo Ch –
For the production of electric toothbrushes, I conducted comprehensive tests on the motors. After many tests, the motors were reliable and durable, and could easily cope with continuous on and off cycles.
