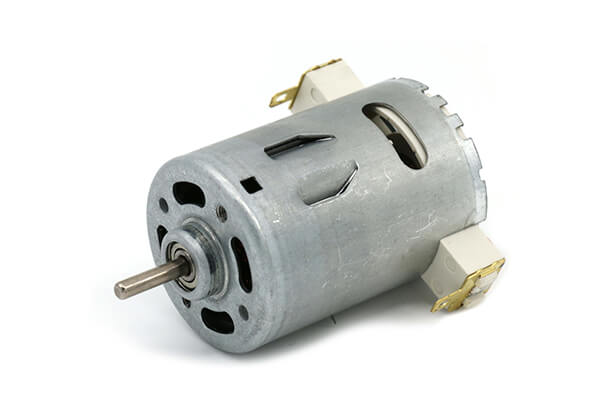

36mm Brushed DC Motor – 50mm Type Model NFP-545SH-5518-72VF
$15.00
Notice: this motor model need to make new ones that would take extra 2-3 weeks.
Experience powerful performance with the 36mm Brushed DC Motor, featuring a remarkable no-load speed of 28,500 RPM. Order yours now! ⚙️
| Quantity | Price | Discount |
|---|---|---|
| 1 - 99 | $15.00 | 0% |
| 100 - 999 | $3.50 | 76.67% |
| 1000+ | $2.35 | 84.33% |
545 High Power Brushed DC Motor Ball Bearing Data Sheet
| Motor Model: | NFP-545SH-5518-72VF |
|---|---|
| Diameter: | 36mm |
| Rated Voltage: | 17.3V DC |
| Rated Load: | Ø72*3.5 Moving Impeller Load |
| Rotation: | CCW |
| Voltage Range: | 14V – 22V DC |
| No Load Speed: | 28,500rpm ± 10% |
| No Load Current: | 1.6A max |
| Rated Load Speed: | 24,500rpm – 27,500rpm |
| Rated Load Current: | 3.6A – 5.6A |
| Starting Voltage: | 2.0V max |
| Stall Current: | 20A min |
| Stall Torque: | 1200g.cm/min |
| Lifetime: | >300 hours |
Micro Brushed DC Motor Outline Drawing
545 DC Motor Performance Curve
