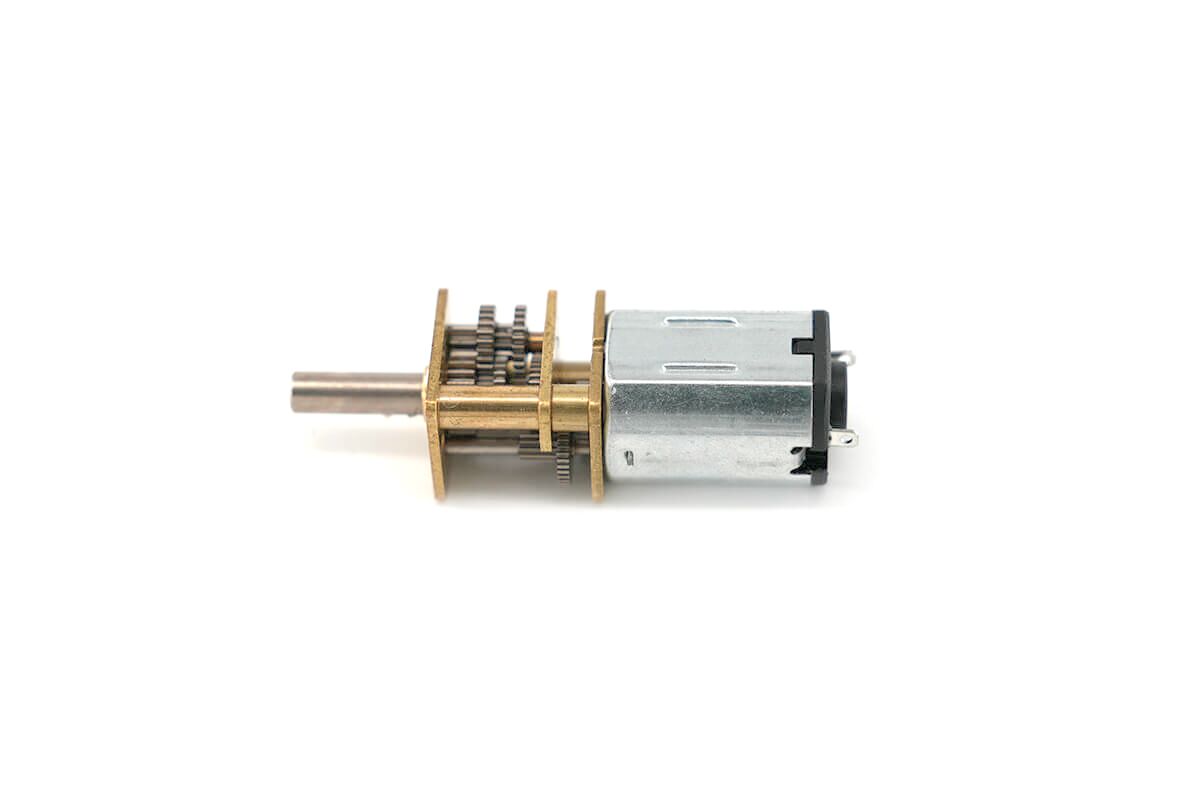

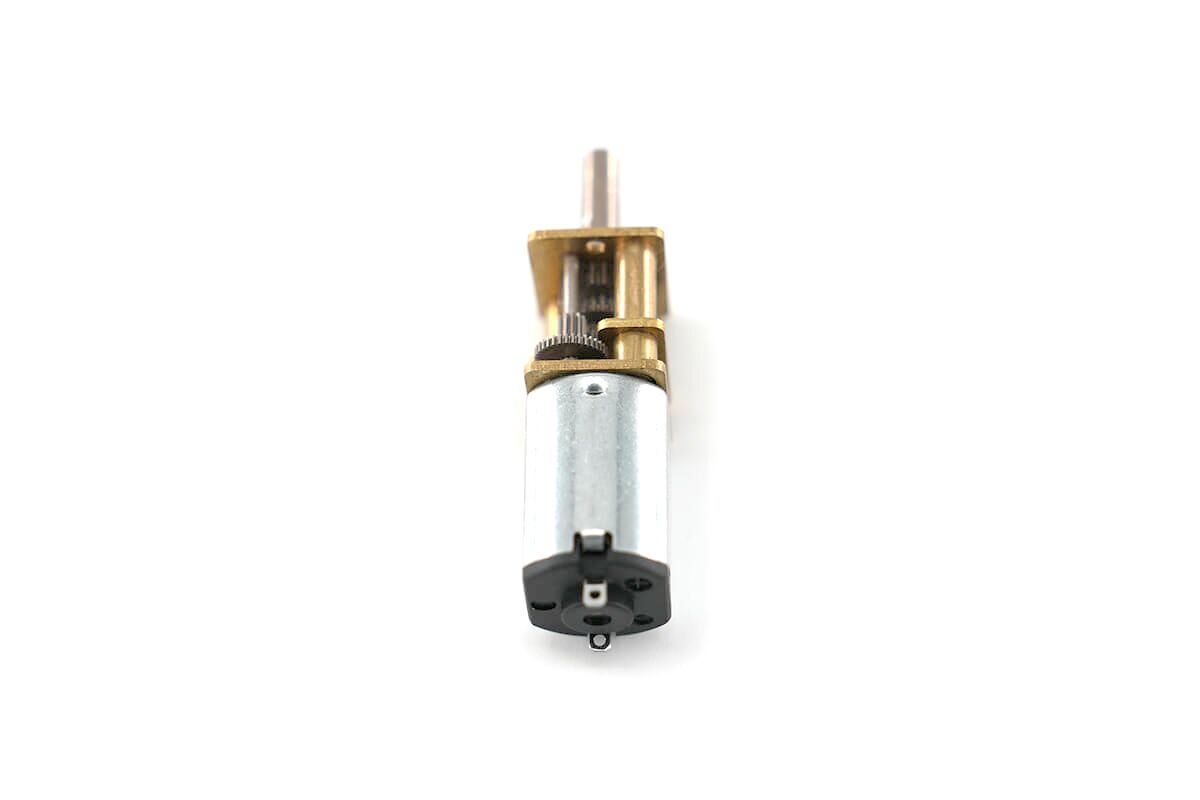

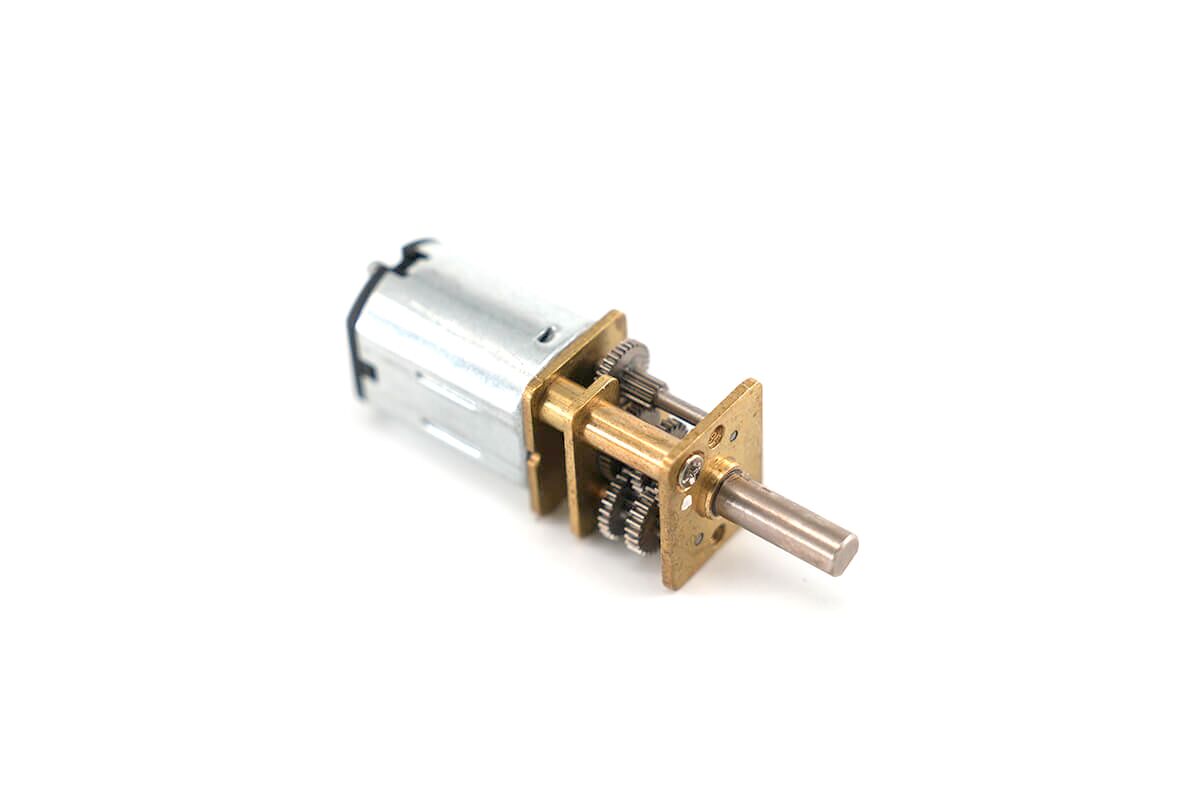

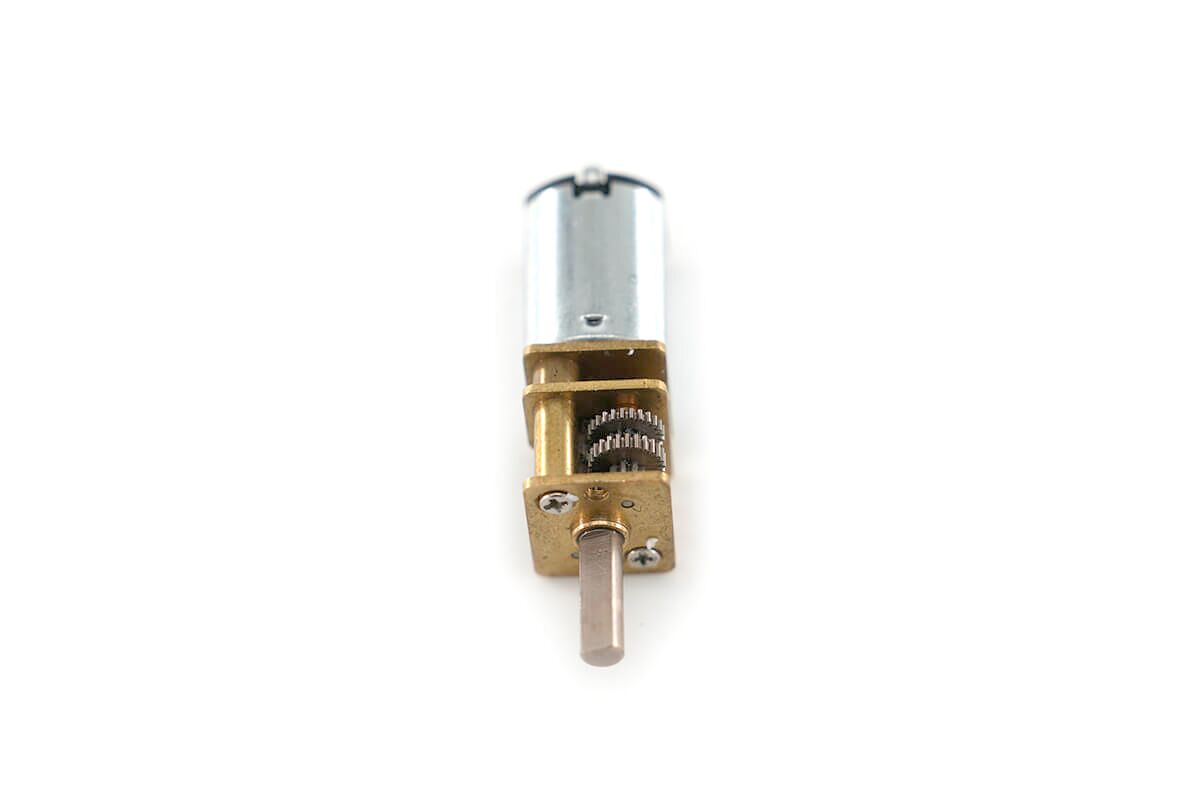

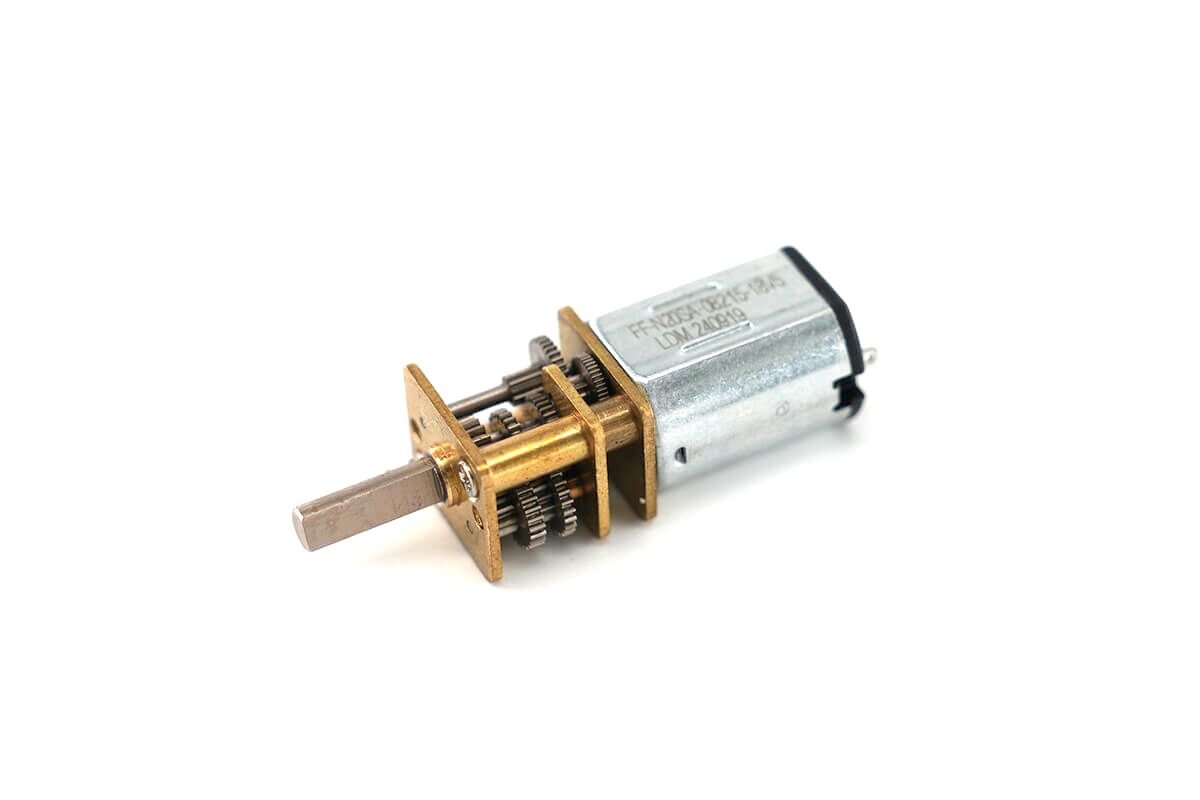

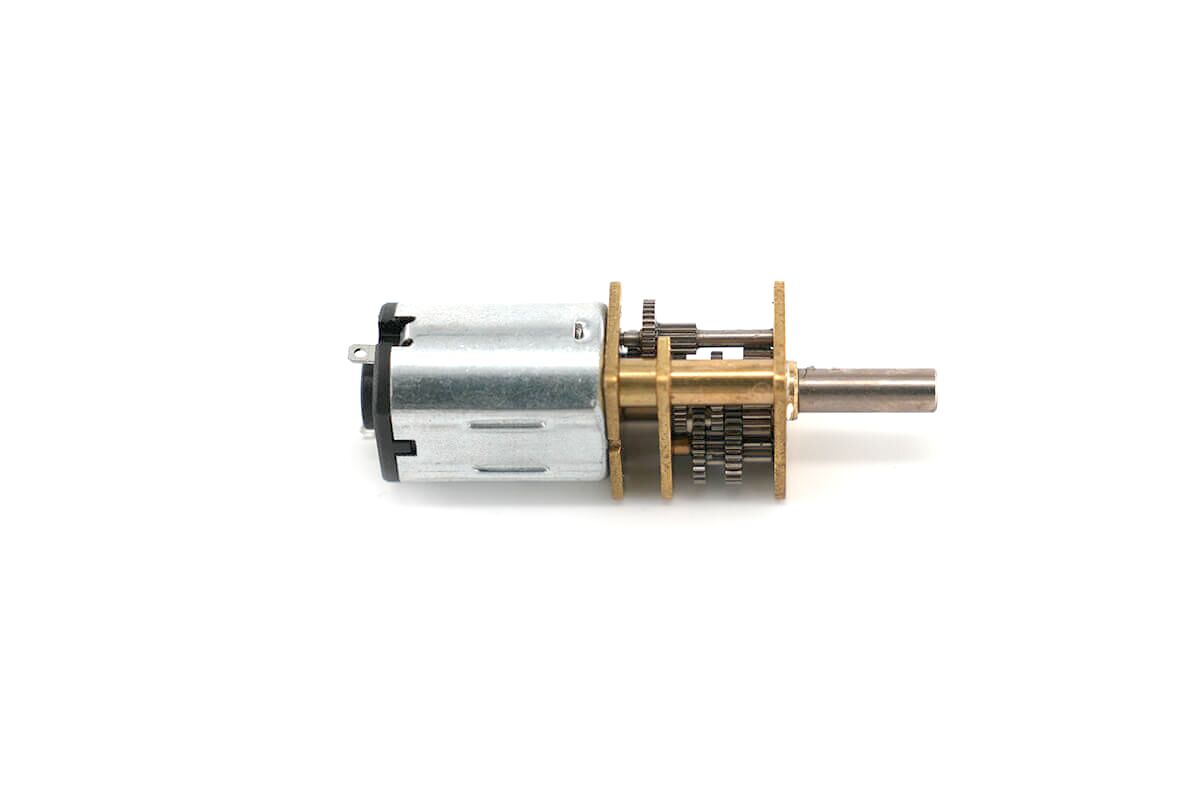

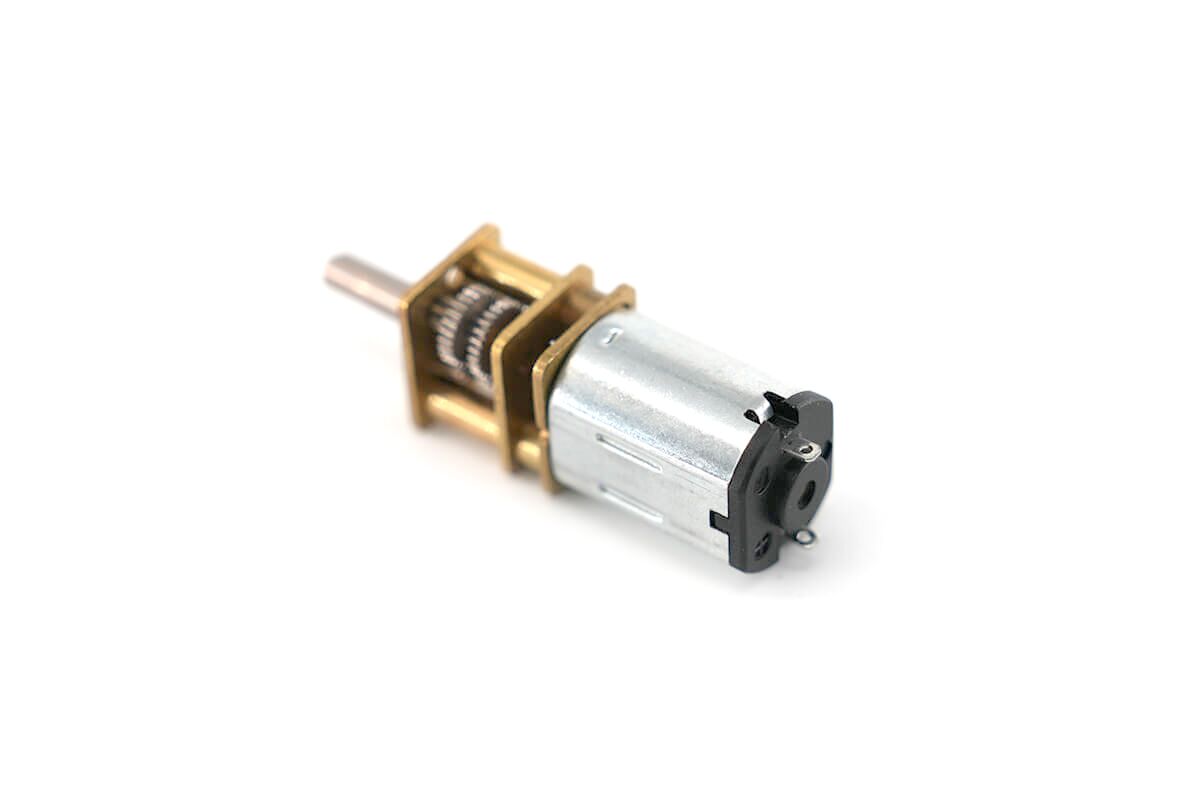

12mm Standard Gear Motor Model NFP-GM12-N20VA-R-1000-1
$18.00
Unlock high torque and precision with our compact 12mm Standard Gear Motor. Perfect for reliable performance in various applications.
Notice: this motor model need to make new ones that would take extra 2-3 weeks.
2.4V, 5.0V, 12.0V NFP-GM12-N20VA DC Gear Motor Description
First, the NFP-GM12-N20VA is a small N20 DC gear motor for compact drive systems. Also, it supports 2.4V, 5V, and 12V DC motor options.
In addition, this mini gear motor uses a high reduction gearbox. Therefore, it can provide low-speed output and useful torque in a small body.
Moreover, the 1000:1 ratio is suitable for precision motion and holding tasks. As a result, this motor works well in automation devices, robotics projects, smart products, and small mechanisms.
Main Product Features
- First, compact N20 size: The small motor body helps fit tight product spaces.
- In addition, voltage options: The motor supports 2.4V DC, 5V DC, and 12V DC versions.
- Also, 1000:1 ratio: The high gear ratio supports low-speed high-torque output.
- Next, stable output: The gearbox helps provide controlled motion for precision tasks.
- Moreover, low current options: The 5V and 12V base motors provide lower no-load current values.
- Finally, wide application use: The motor is suitable for automation, robotics, and smart devices.
Single Motor Technical Data Sheet
First, the table below compares the single motor data before gearbox reduction. Also, it helps users check voltage, speed, current, output power, stall torque, and stall current.
| Motor Model | NFP-N20VA-13110 | NFP-N20VA-09220 | NFP-N20VA-05430 |
|---|---|---|---|
| Voltage | 2.4V DC | 5V DC | 12V DC |
| No-load speed | 14,800rpm | 14,800rpm | 16,000rpm |
| No-load current | 60mA | 30mA | 15mA |
| At maximum efficiency speed | 12,000rpm | 12,000rpm | 12,500rpm |
| At maximum efficiency torque | 2.5g.cm | 2.5g.cm | 3g.cm |
| At maximum efficiency current | 200mA | 120mA | 60mA |
| Output | 0.31W | 0.31W | 0.35W |
| Stall torque | 13g.cm | 13g.cm | 13g.cm |
| Stall current | 1.2A | 0.52A | 0.25A |
Therefore, users can choose the base motor voltage before selecting the final gear motor version. In addition, the 12V DC motor provides the highest listed no-load speed in this table.
NFP-GM12-N20VA Gear Motor Performance Data
Gear Motor NFP-GM12-N20VA-13110-XXX Technical Data
First, the NFP-GM12-N20VA-13110-XXX version uses a 2.4V DC base motor. Therefore, it is useful for low-voltage drive systems that need slow speed and compact torque.
| Ratio | Gearbox Length | No-load Speed | Rated Speed | Rated Torque | Max Torque |
|---|---|---|---|---|---|
| 1000:1 | 12mm | 14.5rpm | 12rpm | 1.00kg.cm | 3.0kg.cm |
As a result, this 2.4V version provides low-speed output with 1.00kg.cm rated torque. Also, the 12mm gearbox length helps support compact installation.
Gear Motor NFP-GM12-N20VA-09220-XXX Technical Data
Next, the NFP-GM12-N20VA-09220-XXX version uses a 5V DC base motor. In addition, it provides the same listed 1000:1 ratio and 12mm gearbox length.
| Ratio | Gearbox Length | No-load Speed | Rated Speed | Rated Torque | Max Torque |
|---|---|---|---|---|---|
| 1000:1 | 12mm | 14.5rpm | 12rpm | 1.00kg.cm | 3.0kg.cm |
Therefore, this 5V version is useful for common small control boards and compact smart devices. Also, it provides a practical balance of voltage, speed, and torque.
Gear Motor NFP-GM12-N20VA-05430-XXX Technical Data
Furthermore, the NFP-GM12-N20VA-05430-XXX version uses a 12V DC base motor. Therefore, it is suitable for products that need a 12V supply and slightly higher output speed.
| Ratio | Gearbox Length | No-load Speed | Rated Speed | Rated Torque | Max Torque |
|---|---|---|---|---|---|
| 1000:1 | 12mm | 16rpm | 13rpm | 1.00kg.cm | 3.0kg.cm |
In conclusion, this 12V version provides 16rpm no-load speed and 13rpm rated speed. Also, it keeps the same 1.00kg.cm rated torque and 3.0kg.cm max torque.
Performance Selection Notes
- First, for low-voltage products: Choose the 2.4V DC version when the device uses a low-voltage battery.
- In addition, for 5V control systems: Choose the 5V DC version for small controller boards.
- Also, for 12V systems: Choose the 12V DC version when the product uses a 12V supply.
- Next, for low-speed output: Use the 1000:1 ratio for slow and controlled motion.
- Moreover, for torque needs: Compare the 1.00kg.cm rated torque with the real load.
- Finally, for safe use: Test speed, current, torque, noise, and temperature before production.
NFP-GM12-N20VA Mini DC Gear Motor Outline Drawing
Motor Outline and Mounting Reference
First, the outline drawing helps users check the N20 gear motor size, gearbox length, output shaft, and mounting space. Therefore, it is useful before sample testing and product design.
In addition, the NFP-GM12-N20VA provides high torque and reliable performance in a compact design. As a result, it can fit precision tasks in automation and robotics projects.
Moreover, the 1000:1 gear ratio helps provide slow and controlled movement. Therefore, the motor is useful for small devices that need stable low-speed output.
Outline Drawing and Design Benefits
- First, compact N20 body: The motor can fit small product spaces.
- In addition, 12mm gearbox: The gearbox length supports compact installation.
- Also, 1000:1 ratio: The high ratio helps provide slow and stable output.
- Next, multiple voltage options: Users can choose 2.4V, 5V, or 12V DC.
- Moreover, high torque output: The motor supports compact force-driven tasks.
- Finally, clear dimensions: The drawing helps users design brackets, holders, and housings.
Applications and Selection Tips
Typical Applications
Finally, this N20 DC gear motor is useful for compact products that need low-speed output and reliable torque. For example, it can work in robots, smart devices, locks, toys, small actuators, and automation modules.
- First, robotics: The motor can drive compact wheels, arms, and grippers.
- In addition, smart devices: The small gearbox helps save internal product space.
- Also, locks and latches: The high ratio supports slow and controlled movement.
- Next, toys and models: The voltage options support small battery-powered products.
- Moreover, small actuators: The motor can support compact push, pull, and rotation tasks.
- Finally, automation modules: The 1000:1 ratio helps provide stable low-speed drive output.
How to Choose the Right Version
First, choose the base motor voltage based on the power supply and controller. Also, compare no-load speed, rated speed, rated torque, and max torque before final selection.
In addition, the 2.4V and 5V versions provide 14.5rpm no-load speed. Therefore, they are useful when the product needs a lower-voltage gear motor.
Moreover, the 12V version provides 16rpm no-load speed. As a result, it is useful when a product needs 12V DC power and slightly faster output.
Final Selection Notes
- First, check voltage: Choose 2.4V, 5V, or 12V based on the power supply.
- In addition, check ratio: Use the 1000:1 ratio for low-speed output.
- Also, check gearbox length: Confirm the 12mm gearbox length before design.
- Next, check torque: Compare 1.00kg.cm rated torque and 3.0kg.cm max torque with the real load.
- Moreover, check current: Make sure the driver can support the selected motor version.
- Finally, test real load: Confirm current, speed, torque, noise, and temperature before mass production.
In short, the NFP-GM12-N20VA is a compact N20 DC gear motor for products that need 2.4V, 5V, or 12V DC power, 1000:1 ratio, 12mm gearbox length, low-speed output, and reliable torque performance.
Keywords: N20 DC gear motor, small gear motor, NFP-GM12-N20VA, mini gear motor, high torque motor, precision motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
