12mm Standard Gear Motor Model NFP-GM12-N20VA-EN
$18.50

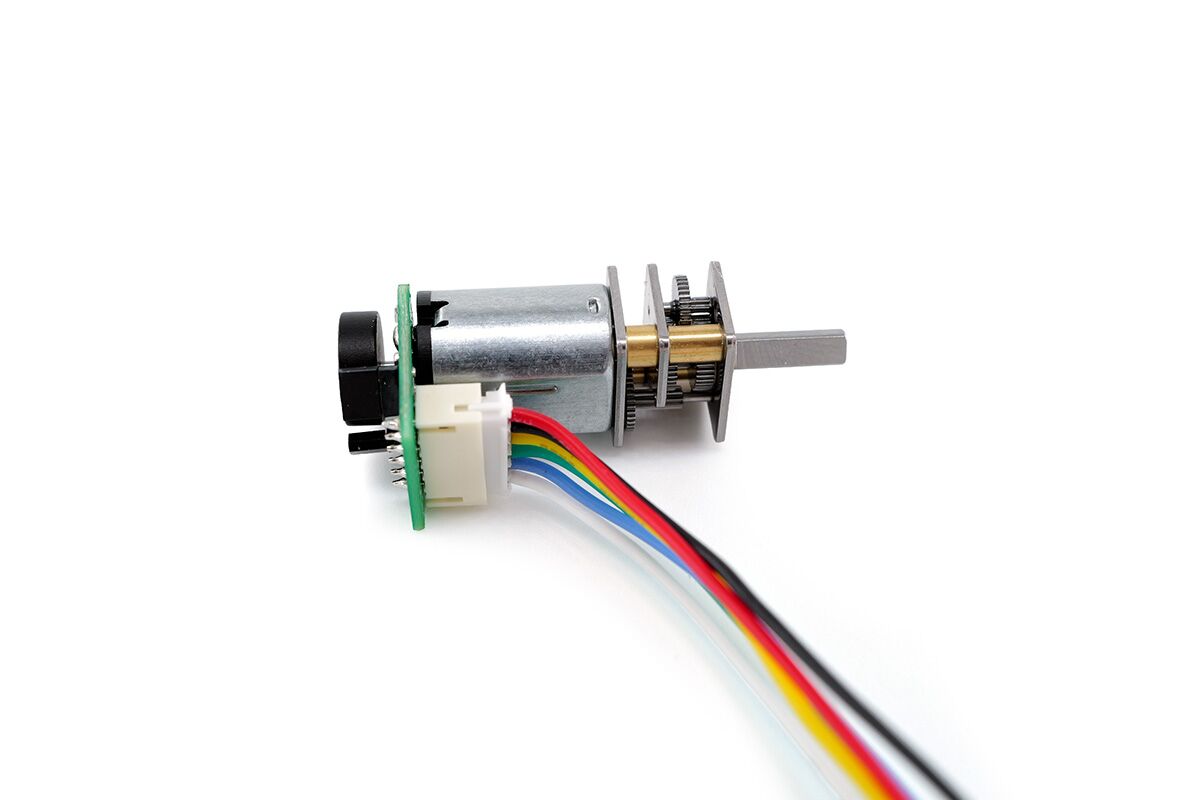

Enhance your designs with the compact N20 gear motor with encoder resolution, known for high torque and speed. Perfect for creative innovations! ⚙️
Notice: this motor model need to make new ones that would take extra 2-3 weeks.
Stock Product and Made-to-Order Option
This product is not a stock item. Therefore, if you need stock gear motors, you can buy them from the following link:
https://nfpshop.com/spur-gear-motor
Stock Gear Motor vs Made-to-Order Gear Motor
What is the difference between stock gear motors and this product that takes 2-3 weeks? In general, stock motors are better for quick tests and sample use.
However, made-to-order motors are better for company projects that need stable data, low noise, and better fit for the final product.
- Stock motors: They are suitable for early tests, samples, and quick trial orders.
- Made-to-order motors: They are suitable for company projects and bulk orders.
- Lead time: Stock motors can usually ship faster. However, new production may take 2-3 weeks.
- Best use: Use stock motors for early research. In addition, use new production for final product tests.
Order Suggestion
Our main work is to supply bulk motor orders. Therefore, online orders help customers buy samples and reduce the order process.
If your project is still in the research or test stage, stock motors are a good choice. However, if your product needs low noise, high performance, or life testing, we suggest new production.
2.4V, 5.0V, 12V NFP-GM12-N20VA-EN DC Gear Motor Description
Product Overview
The NFP-GM12-N20VA-EN is a small DC gear motor with 2.4V, 5V, and 12V options. Therefore, it can fit many small drive systems.
In addition, this micro gear motor provides high torque in a small body. As a result, it works well in smart selfie sticks, camera gimbals, robot cameras, and small robots.
Main Features
- Small size: The N20 motor body saves space. Therefore, it fits compact product designs.
- High torque: The gear box raises output torque. As a result, the motor can drive small moving parts.
- Voltage options: The motor supports 2.4V, 5V, and 12V DC. In addition, this gives users more design choices.
- Gear ratio options: Different ratios give different speed and torque. Therefore, users can choose the right output.
- Common use: It works well in smart stands, camera parts, small robots, and other light drive systems.
Single Motor Technical Data
The table below shows single motor data before the gear box. Therefore, users can compare voltage, speed, current, output, stall torque, and stall current.
| Motor model No. | NFP-N20VA-13110 | NFP-N20VA-09220 | NFP-N20VA-05430 |
|---|---|---|---|
| Voltage | 2.4V DC | 5.0V DC | 12.0V DC |
| No-load speed | 14,800rpm | 14,800rpm | 16,000rpm |
| No-load current | 60mA | 30mA | 15mA |
| Max efficiency speed | 12,000rpm | 12,000rpm | 12,500rpm |
| Max efficiency torque | 2.5g.cm | 2.5g.cm | 3.0g.cm |
| Max efficiency current | 200mA | 120mA | 60mA |
| Output | 0.31W | 0.31W | 0.35W |
| Stall torque | 13g.cm | 13g.cm | 13g.cm |
| Stall current | 1.20A | 0.52A | 0.25A |
2.4V Gear Motor Data
The table below shows the NFP-GM12-N20VA-13110 gear motor data. Therefore, users can select the right ratio by speed and torque needs.
Gear Motor NFP-GM12-N20VA-13110-XXX Technical Data
| Ratio | Length | No-load speed | Rated speed | Rated torque | Max. momentary torque |
|---|---|---|---|---|---|
| 10 : 1 | 9mm | 1450rpm | 1200rpm | 0.015kg.cm | 0.08kg.cm |
| 30 : 1 | 9mm | 470rpm | 400rpm | 0.05kg.cm | 0.23kg.cm |
| 50 : 1 | 9mm | 285rpm | 240rpm | 0.07kg.cm | 0.4kg.cm |
| 100 : 1 | 9mm | 145rpm | 120rpm | 0.15kg.cm | 0.8kg.cm |
| 150 : 1 | 9mm | 96rpm | 80rpm | 0.22kg.cm | 1.1kg.cm |
| 210 : 1 | 9mm | 69rpm | 57rpm | 0.31kg.cm | 1.5kg.cm |
| 250 : 1 | 9mm | 58rpm | 48rpm | 0.37kg.cm | 1.6kg.cm |
| 298 : 1 | 9mm | 50rpm | 40rpm | 0.45kg.cm | 1.9kg.cm |
| 380 : 1 | 9mm | 38rpm | 31rpm | 0.50kg.cm | 2.5kg.cm |
| 1000 : 1 | 12mm | 14.5rpm | 12rpm | 1.00kg.cm | 3.0kg.cm |
5V Gear Motor Data
The table below shows the NFP-GM12-N20VA-09220 gear motor data. In addition, this 5V type gives users another option for small drive systems.
Gear Motor NFP-GM12-N20VA-09220-XXX Technical Data
| Ratio | Length | No-load speed | Rated speed | Rated torque | Max. momentary torque |
|---|---|---|---|---|---|
| 10 : 1 | 9mm | 1450rpm | 1200rpm | 0.015kg.cm | 0.08kg.cm |
| 30 : 1 | 9mm | 470rpm | 400rpm | 0.05kg.cm | 0.23kg.cm |
| 50 : 1 | 9mm | 285rpm | 240rpm | 0.07kg.cm | 0.4kg.cm |
| 100 : 1 | 9mm | 145rpm | 120rpm | 0.15kg.cm | 0.8kg.cm |
| 150 : 1 | 9mm | 96rpm | 80rpm | 0.22kg.cm | 1.1kg.cm |
| 210 : 1 | 9mm | 69rpm | 57rpm | 0.31kg.cm | 1.5kg.cm |
| 250 : 1 | 9mm | 58rpm | 48rpm | 0.37kg.cm | 1.6kg.cm |
| 298 : 1 | 9mm | 50rpm | 40rpm | 0.45kg.cm | 1.9kg.cm |
| 380 : 1 | 9mm | 38rpm | 31rpm | 0.50kg.cm | 2.5kg.cm |
| 1000 : 1 | 12mm | 14.5rpm | 12rpm | 1.00kg.cm | 3.0kg.cm |
12V Gear Motor Data
The table below shows the NFP-GM12-N20VA-05430 gear motor data. As a result, users can compare the 12V type with the lower voltage types.
Gear Motor NFP-GM12-N20VA-05430-XXX Technical Data
| Ratio | Length | No-load speed | Rated speed | Rated torque | Max. momentary torque |
|---|---|---|---|---|---|
| 10 : 1 | 9mm | 1550rpm | 1100rpm | 0.02kg.cm | 0.1kg.cm |
| 30 : 1 | 9mm | 530rpm | 400rpm | 0.05kg.cm | 0.2kg.cm |
| 50 : 1 | 9mm | 310rpm | 250rpm | 0.08kg.cm | 0.4kg.cm |
| 100 : 1 | 9mm | 160rpm | 125rpm | 0.18kg.cm | 0.8kg.cm |
| 150 : 1 | 9mm | 110rpm | 80rpm | 0.27kg.cm | 1.1kg.cm |
| 210 : 1 | 9mm | 78rpm | 60rpm | 0.37kg.cm | 1.5kg.cm |
| 250 : 1 | 9mm | 60rpm | 50rpm | 0.45kg.cm | 1.6kg.cm |
| 298 : 1 | 9mm | 55rpm | 42rpm | 0.50kg.cm | 1.9kg.cm |
| 380 : 1 | 9mm | 43rpm | 33rpm | 0.50kg.cm | 2.5kg.cm |
| 1000 : 1 | 12mm | 16rpm | 13rpm | 1.00kg.cm | 3.0kg.cm |
NFP-GM12-N20VA-EN Micro Getriebemotor Outline Drawing
Motor and Gearbox Solution
Are you looking for a motor plus gearbox? Therefore, this N20 gear motor can be a good choice for compact drive needs.
In addition, it gives users a small body, simple gear output, and several voltage choices.
Common Applications
- Smart selfie stick: The motor can drive small moving parts.
- Smart camera gimbal: It can help support small angle control.
- Robot camera corner: The gear motor can move small camera parts.
- Smart micro robot: It can provide low-speed drive in a small space.
- Sample testing: Stock motors can help users test early ideas faster.
Keywords:
N20 encoder motor, closed-loop control motor, 12mm gear motor, NFP-GM12-N20VA-EN, precision motor, feedback control motor
