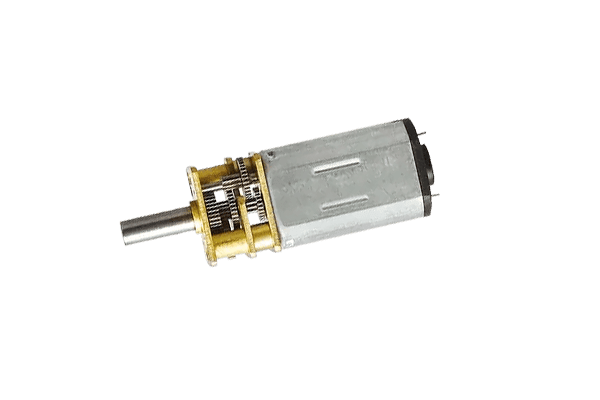

12mm Standard Gear Motor Model NFP-GM12-N30VA
$16.50
Maximize efficiency with the 12mm Standard Gear Motor, providing exceptional torque and speed for versatile applications. Order yours now!
Notice: this motor model need to make new ones that would take extra 2-3 weeks.
2.5V, 6.0V NFP-GM12-N30VA DC Gear Motor Description
First, the NFP-GM12-N30VA is a compact DC planetary gear motor series for small drive systems. Also, it supports 2.5V DC and 6.0V DC base motor options.
In addition, this motor series provides multiple gear ratios from 10:1 to 1000:1. Therefore, users can choose higher speed or stronger torque based on the final load.
Moreover, the small gearbox structure helps save installation space. As a result, it is suitable for mini robots, smart devices, small tools, and compact automation modules.
Main Product Features
- First, compact DC gear motor: The small body helps fit tight product spaces.
- In addition, voltage options: The motor supports 2.5V DC and 6.0V DC versions.
- Also, wide ratio range: Ratios from 10:1 to 1000:1 support different speed and torque needs.
- Next, planetary gearbox: The gearbox helps provide stable low-speed output.
- Moreover, high peak torque: The 1000:1 ratio can provide up to 3.0kg.cm max peak torque.
- Finally, flexible use: The motor is suitable for compact products that need controlled motion.
Single Motor Technical Data
First, the table below compares the single motor data before gearbox reduction. Also, it helps users check voltage, no-load speed, current, output power, stall torque, and stall current.
| Model | NFP-N30VA-09210 | NFP-N30VA-09190 |
|---|---|---|
| Voltage | 2.5V DC | 6.0V DC |
| No-load speed | 5,200rpm | 12,500rpm |
| No-load current | 20mA | 25mA |
| At maximum efficiency speed | 4,050rpm | 10,700rpm |
| At maximum efficiency torque | 2.0g.cm | 3.0g.cm |
| At maximum efficiency current | 60mA | 95mA |
| Output | 0.10W | 0.35W |
| Stall torque | 8.5g.cm | 18g.cm |
| Stall current | 0.25A | 0.50A |
Therefore, users can choose the base motor voltage before selecting the gearbox ratio. In addition, the 6.0V DC motor provides higher speed and higher output than the 2.5V DC motor.
NFP-GM12-N30VA Gear Motor Performance Data
Gear Motor NFP-GM12-N30VA-09210-XXX Technical Data
First, the NFP-GM12-N30VA-09210-XXX version uses a 2.5V DC base motor. Therefore, it is useful for low-voltage products that need compact speed reduction.
In addition, lower ratios provide faster output speed. However, higher ratios provide lower speed and stronger torque for small force-driven mechanisms.
| Ratio | Gearbox Length | No-load Speed | Rated Speed | Rated Torque | Max Peak Torque |
|---|---|---|---|---|---|
| 10:1 | 9mm | 500rpm | 405rpm | 0.012kg.cm | 0.05kg.cm |
| 30:1 | 9mm | 165rpm | 135rpm | 0.035kg.cm | 0.16kg.cm |
| 50:1 | 9mm | 100rpm | 80rpm | 0.06kg.cm | 0.25kg.cm |
| 100:1 | 9mm | 50rpm | 40rpm | 0.12kg.cm | 0.5kg.cm |
| 150:1 | 9mm | 33rpm | 27rpm | 0.18kg.cm | 0.8kg.cm |
| 210:1 | 9mm | 23rpm | 19rpm | 0.25kg.cm | 1.0kg.cm |
| 250:1 | 9mm | 20rpm | 16rpm | 0.30kg.cm | 1.1kg.cm |
| 298:1 | 9mm | 17rpm | 13rpm | 0.35kg.cm | 1.3kg.cm |
| 380:1 | 9mm | 13rpm | 10rpm | 0.45kg.cm | 1.6kg.cm |
| 1000:1 | 12mm | 5rpm | 4rpm | 0.80kg.cm | 3.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 2.5V version covers no-load speeds from 5rpm to 500rpm. Moreover, the 1000:1 ratio provides the strongest rated torque and max peak torque in this table.
2.5V DC Selection Notes
- First, for higher speed: Choose 10:1, 30:1, or 50:1.
- In addition, for balanced output: Choose 100:1, 150:1, 210:1, 250:1, 298:1, or 380:1.
- Also, for higher torque: Choose 1000:1.
- Finally, for low-voltage products: Use this version when the product uses a 2.5V DC power supply.
Gear Motor NFP-GM12-N30VA-09190-XXX Technical Data
Next, the NFP-GM12-N30VA-09190-XXX version uses a 6.0V DC base motor. Therefore, it is suitable for products that need higher speed and stronger base motor output.
Also, this version provides higher no-load speed across the listed ratios. As a result, users can choose it for faster compact drive systems.
| Ratio | Gearbox Length | No-load Speed | Rated Speed | Rated Torque | Max Peak Torque |
|---|---|---|---|---|---|
| 10:1 | 9mm | 1,200rpm | 1,070rpm | 0.024kg.cm | 0.14kg.cm |
| 30:1 | 9mm | 410rpm | 355rpm | 0.06kg.cm | 0.38kg.cm |
| 50:1 | 9mm | 245rpm | 210rpm | 0.09kg.cm | 0.5kg.cm |
| 100:1 | 9mm | 120rpm | 105rpm | 0.18kg.cm | 1.1kg.cm |
| 150:1 | 9mm | 82rpm | 70rpm | 0.25kg.cm | 1.5kg.cm |
| 210:1 | 9mm | 60rpm | 50rpm | 0.35kg.cm | 2.1kg.cm |
| 250:1 | 9mm | 50rpm | 42rpm | 0.38kg.cm | 2.2kg.cm |
| 298:1 | 9mm | 42rpm | 36rpm | 0.45kg.cm | 2.5kg.cm |
| 380:1 | 9mm | 33rpm | 28rpm | 0.50kg.cm | 2.5kg.cm |
| 1000:1 | 12mm | 12.5rpm | 11rpm | 1.00kg.cm | 3.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In conclusion, the 6.0V version covers no-load speeds from 12.5rpm to 1,200rpm. Also, the 1000:1 ratio provides the strongest rated torque and max peak torque in this table.
6.0V DC Selection Notes
- First, for higher speed: Choose 10:1, 30:1, or 50:1.
- In addition, for balanced output: Choose 100:1, 150:1, 210:1, 250:1, 298:1, or 380:1.
- Also, for higher torque: Choose 1000:1.
- Finally, for 6V systems: Use this version when the product uses a 6.0V DC power supply.
Performance Selection Notes
- First, choose voltage: Use 2.5V DC for lower-voltage systems or 6.0V DC for higher speed.
- In addition, choose ratio: Select lower ratios for speed and higher ratios for torque.
- Also, check length: Most ratios use 9mm gearbox length, while 1000:1 uses 12mm.
- Next, check torque: Compare rated torque and max peak torque with the real load.
- Moreover, check current: Make sure the driver can support the selected motor current.
- Finally, test real load: Confirm current, speed, torque, noise, and temperature before production.
NFP-GM12-N30VA DC Planetary Gear Motor Outline Drawing
Motor Outline and Mounting Reference
First, the outline drawing helps users check the N30 gear motor size, gearbox length, output shaft, and mounting space. Therefore, it is useful before sample testing and product design.
In addition, users looking for a motor plus gearbox can use this series as a compact drive solution. As a result, it can support many small motion systems.
Moreover, the NFP-GM12-N30VA series offers several ratio options from 10:1 to 1000:1. Therefore, users can choose a suitable option for speed, torque, and space needs.
Outline Drawing and Design Benefits
- First, compact gearbox: The small gearbox helps save product space.
- In addition, multiple ratio options: Users can choose fast or slow output.
- Also, 9mm gearbox option: Most ratios provide compact gearbox length.
- Next, 12mm gearbox option: The 1000:1 ratio gives higher torque with a longer gearbox.
- Moreover, small DC motor input: The base motor supports compact drive designs.
- Finally, clear dimensions: The drawing helps users design brackets, housings, and fixtures.
Applications and Selection Tips
Typical Applications
Finally, this NFP-GM12-N30VA DC gear motor series is useful for compact products that need low voltage, small size, and flexible gear ratios. For example, it can work in robots, smart devices, toys, locks, instruments, and mini automation modules.
- First, robots: The gear motor can drive wheels, arms, and small motion parts.
- In addition, smart devices: The compact gearbox helps save internal product space.
- Also, toys and models: The low-voltage motor options support small battery-powered products.
- Next, locks and latches: Higher ratios can support stronger slow movement.
- Moreover, precision instruments: The gearbox provides controlled low-speed output.
- Finally, mini automation modules: The motor can support compact push, pull, or rotation tasks.
How to Choose the Right Version
First, choose the base motor voltage based on the power supply. Also, choose the ratio based on output speed, rated torque, max peak torque, and gearbox length.
In addition, lower ratios provide faster output speed. Therefore, they are better for quick movement and lighter loads.
Moreover, higher ratios provide slower output and stronger max peak torque. As a result, they are better for compact force-driven tasks.
Final Product Summary
In short, the NFP-GM12-N30VA DC planetary gear motor is a compact solution for products that need 2.5V or 6.0V DC power, 10:1 to 1000:1 ratio options, low-speed output, and flexible torque selection.
Moreover, the 1000:1 ratio gives the strongest listed torque in both voltage groups. Therefore, it is useful when compact products need slower speed and higher force.
Keywords: DC gear motor datasheet, gear motor mechanism, mini DC gear motor
