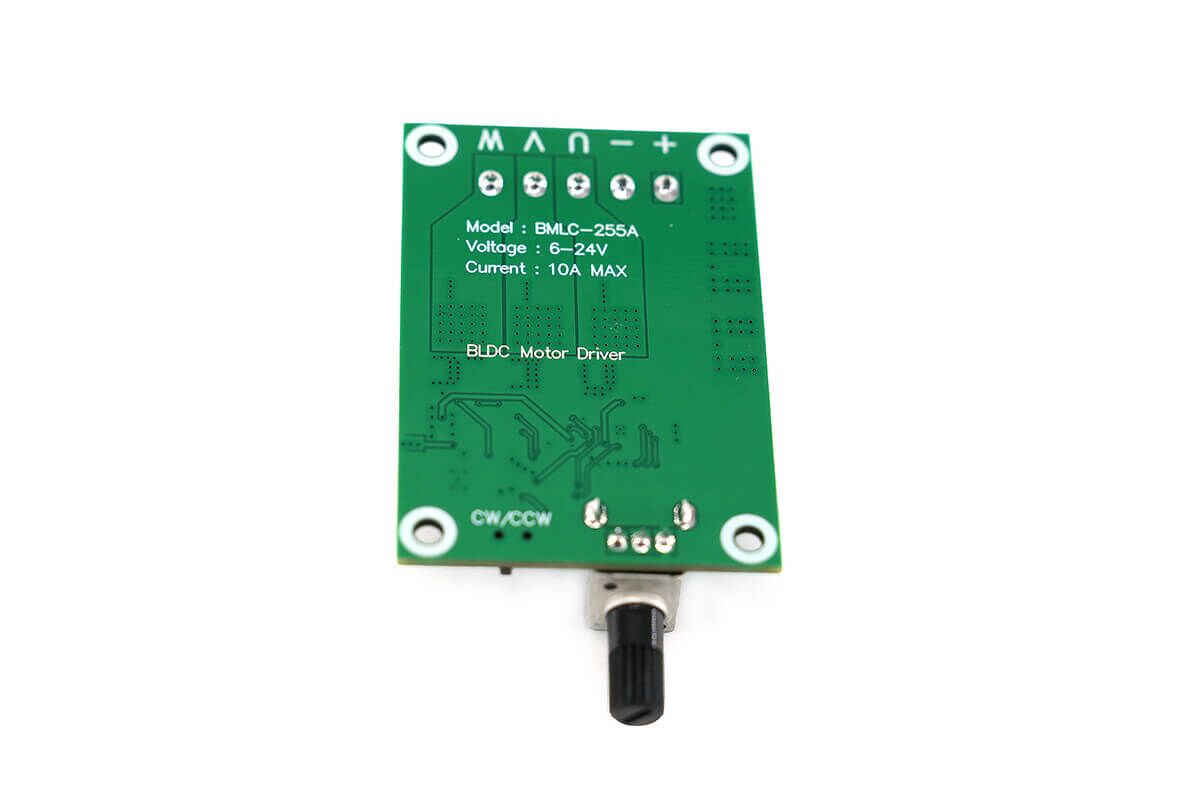

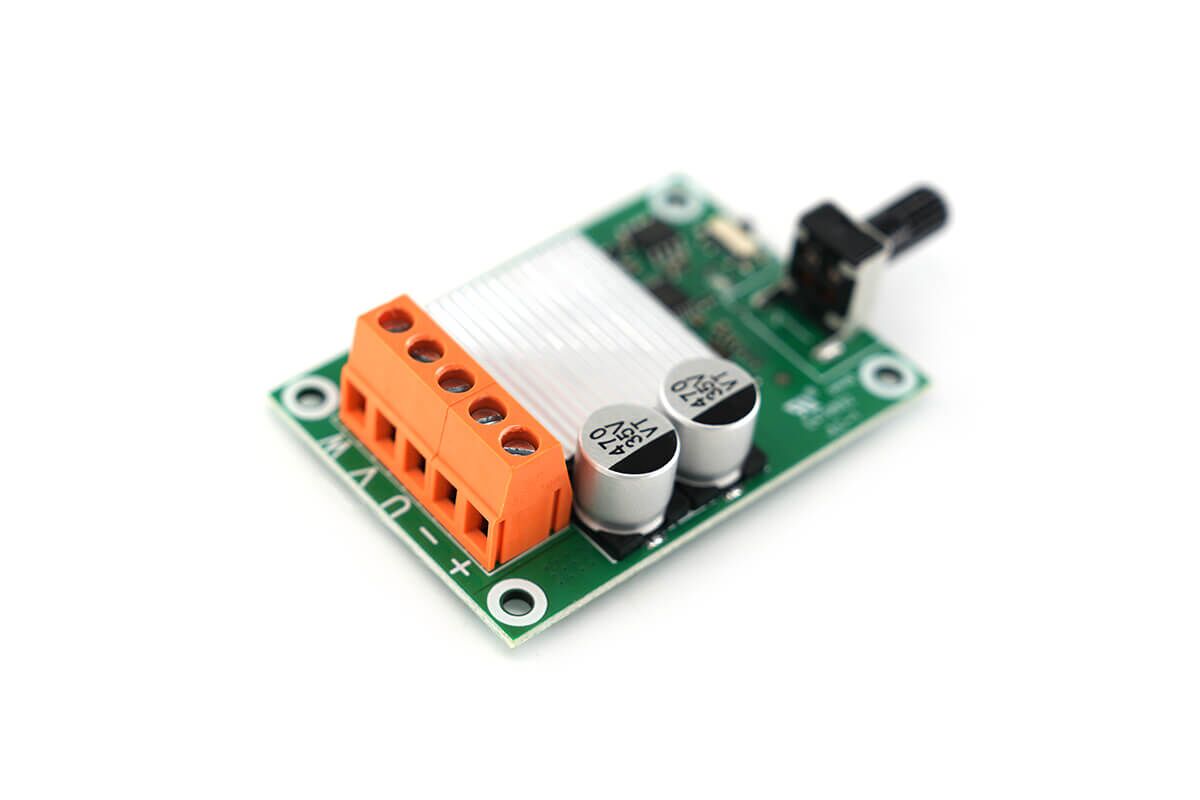

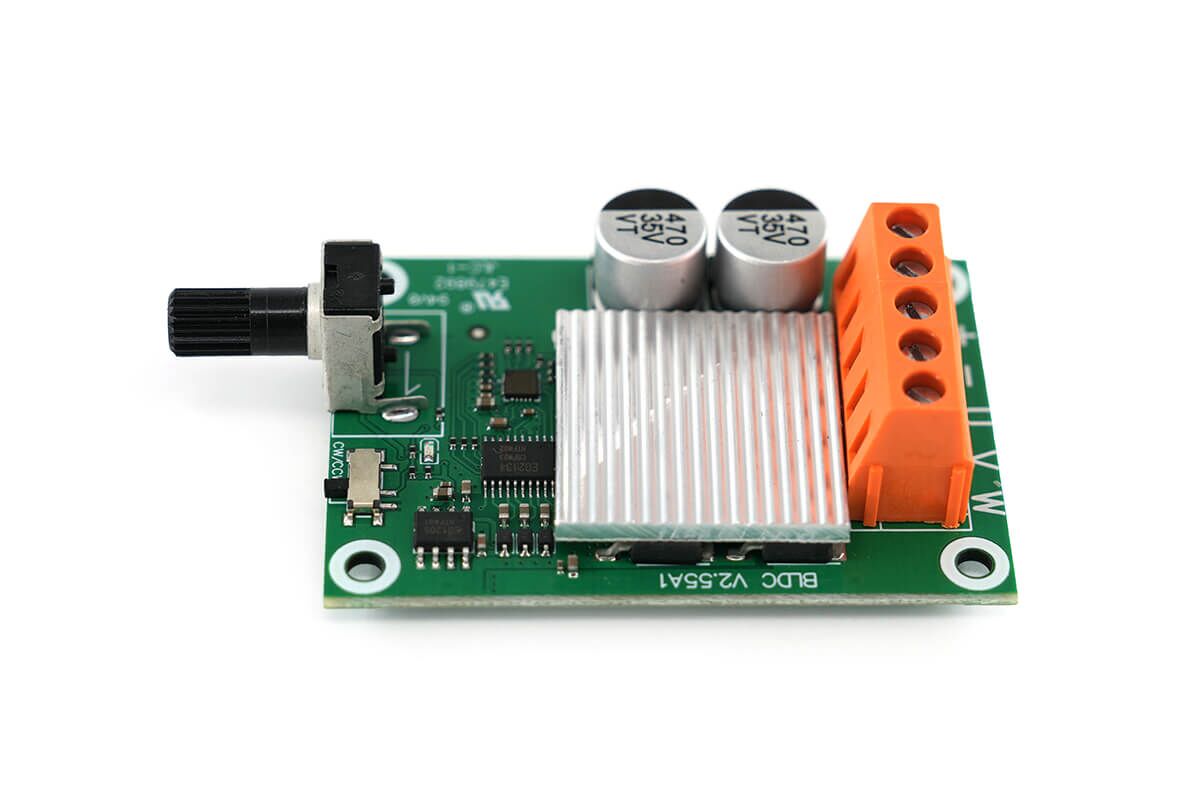

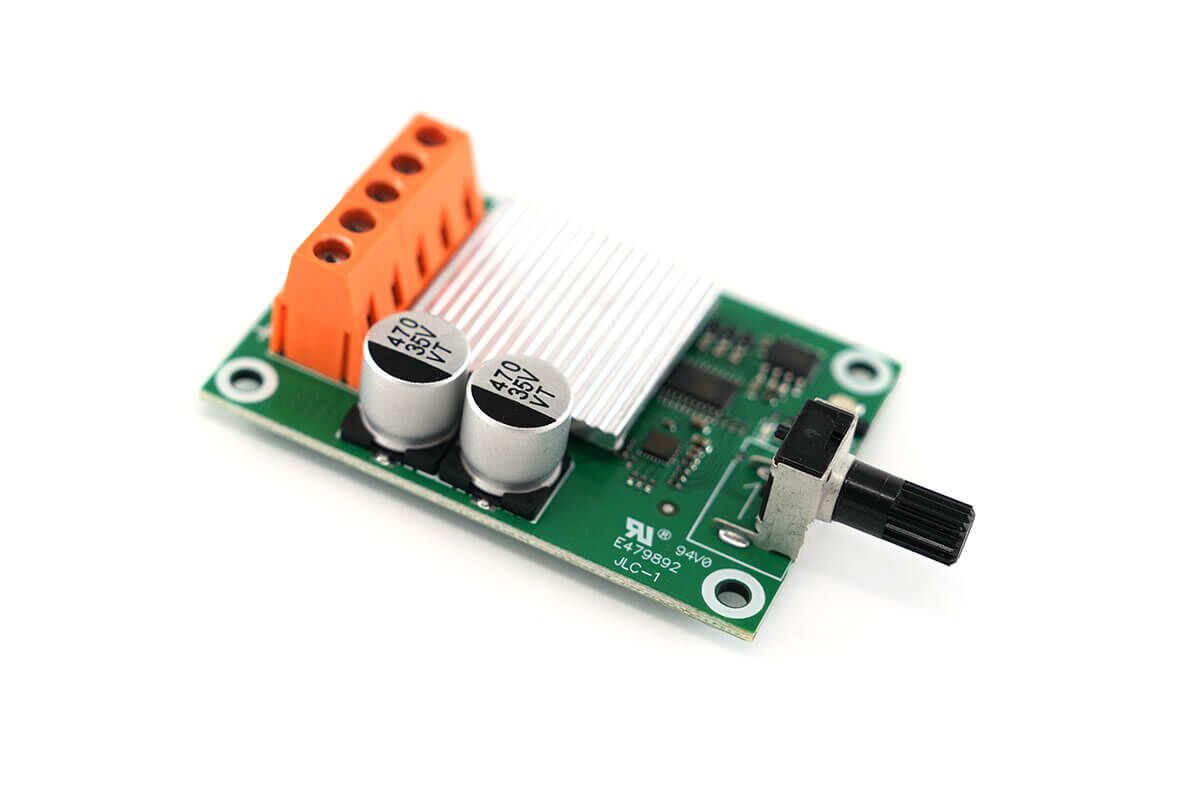

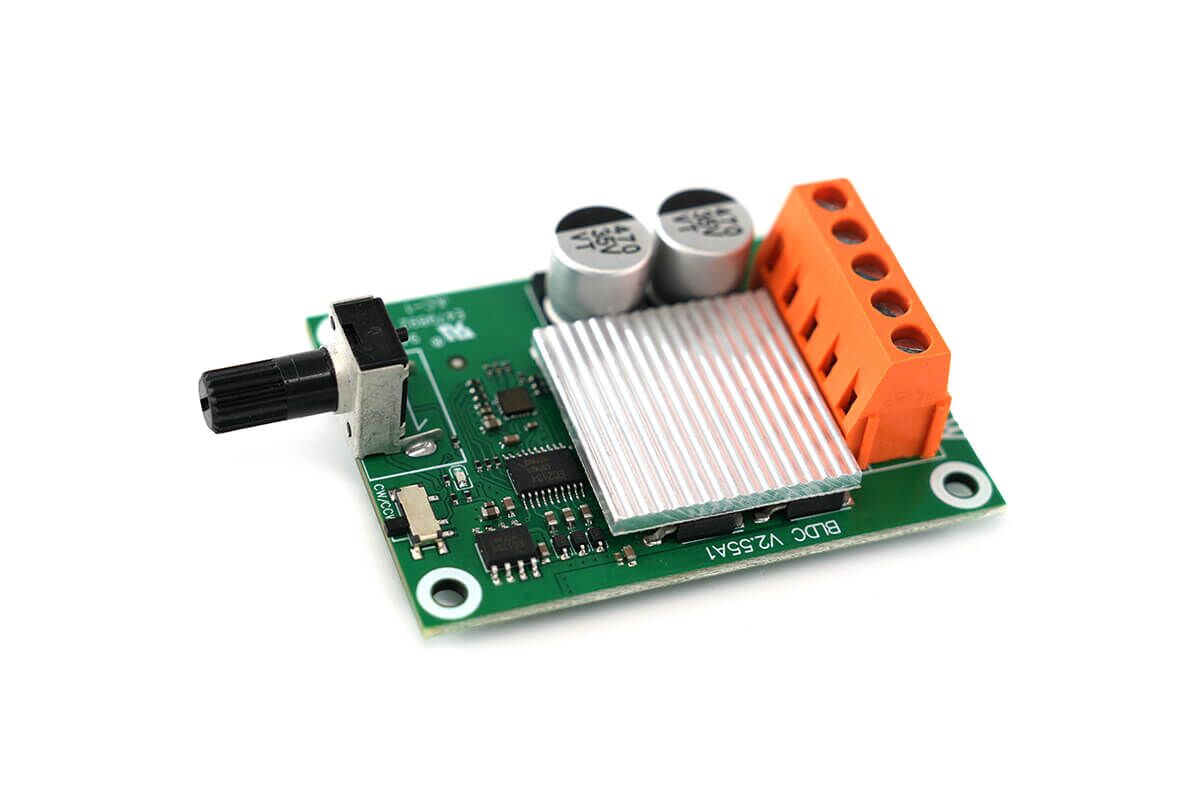

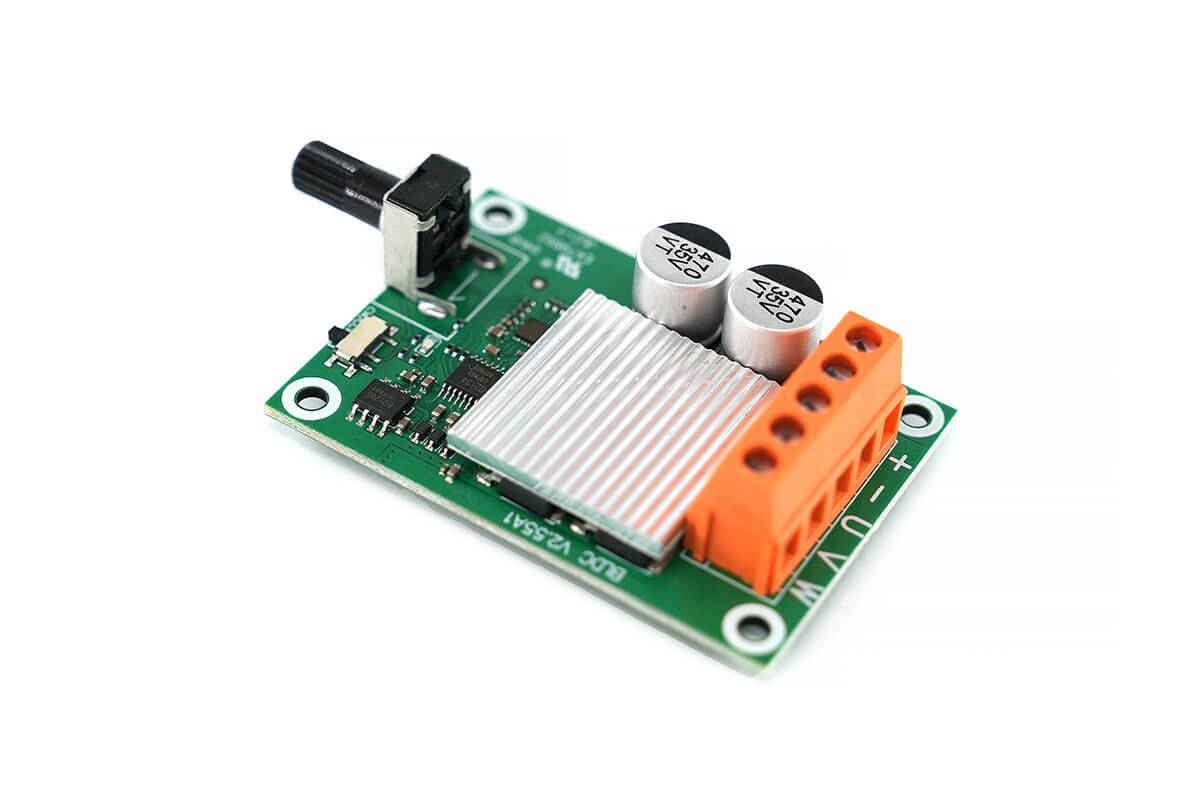

200W 10A 6V-24V Brushless BLDC Motor Driver Board Model NFP-BMLC-255A
$20.00
Harness high power output with the Brushless BLDC Motor Driver Board, ensuring smooth operation across various setups. Upgrade your project now!
6V 12V 24V Brushless Motor Driver Specifications
The NFP-BMLC-255A is a 3-phase brushless motor driver for compact BLDC motor control. It supports 6V to 24V DC input and can drive brushless motors with up to 200W peak power.
First, this driver supports wide-voltage operation for 6V, 12V, and 24V systems. Also, it provides stepless speed control for precise motor adjustment. Therefore, it is useful for fan motors, cooling systems, and small industrial equipment.
In addition, the controller supports up to 10A operating current and 120W rated power. As a result, it can handle many small and medium-power BLDC motor applications.
Main Product Features
- First, high power output: The driver supports up to 200W peak power for DC brushless motors.
- In addition, wide voltage range: It works with 6V – 24V DC power systems.
- Also, stepless speed control: Speed regulation helps users fine-tune motor performance.
- Next, compact weight: The controller weighs only 25g.
- Finally, 3-phase drive: The U, V, and W ports connect to the brushless motor phases.
Brushless Motor Driver Specification Data
Next, the table below helps users check driver type, voltage, current, rated power, peak power, and weight. Therefore, it is easier to confirm whether this BLDC motor driver fits the final product design.
| Driver Model | NFP-BMLC-255A |
|---|---|
| Driver Type | 3 phases |
| Operating Voltage | 6V – 24V DC |
| Operating Current | ≤10A |
| Rated Power | 120W |
| Peak Power | 200W |
| Weight | 25g |
Also, the 200W peak power gives the driver more output margin for short high-load conditions. However, users should match the motor and driver power correctly before use.
High Power DC Motor Controller Interface

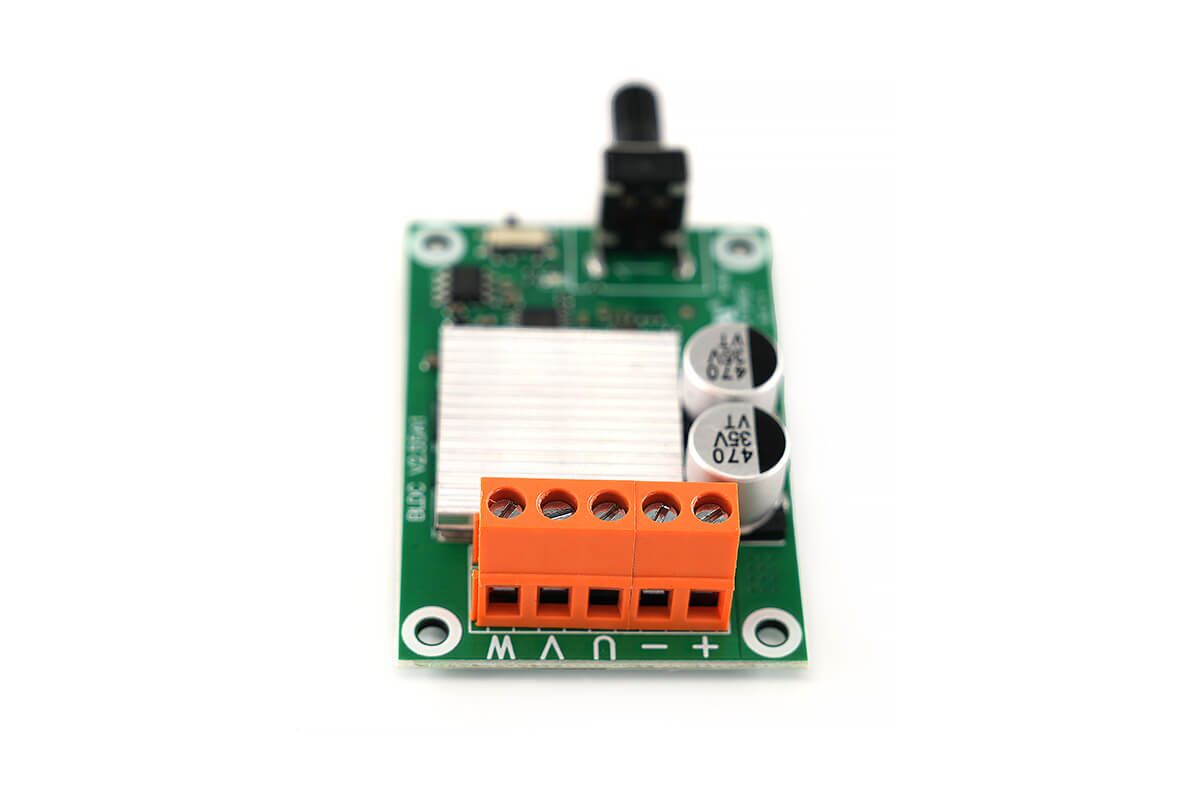

First, the U, V, and W terminals connect to the brushless motor. Therefore, users should connect these phase wires correctly before power-on testing.
In addition, VCC and GND connect to the external DC power supply. VCC is positive, and GND is negative. The supported voltage range is 6V – 24V DC.
Interface and Wiring Notes
- First, motor phase wires: U, V, and W connect to the brushless motor.
- In addition, power input: VCC connects to positive power, and GND connects to negative power.
- Also, voltage range: The controller supports 6V – 24V DC input.
- Next, power matching: Do not connect motors with mismatched power levels.
- Finally, battery support: The driver supports 2-5S small-power brushless motor speed regulation.
As a result, correct wiring and power matching can help protect the controller and motor during operation.
Brushless DC Motor Speed Controller Dimension
Next, the dimension image helps users review the controller size and installation layout. Therefore, it is useful before sample testing and final equipment design.
Also, this brushless DC motor speed controller has a compact structure and durable build quality. As a result, it can support fan motors, cooling systems, and other equipment that needs adjustable BLDC motor control.
Dimension and Integration Benefits
- First, compact controller: The small driver board helps save installation space.
- In addition, durable build: The driver is built for high-power operation and long-term reliability.
- Also, easy integration: The controller can fit fan motors, cooling systems, and industrial equipment.
- Next, adjustable control: Stepless speed regulation helps users tune motor speed.
- Finally, lightweight design: The 25g weight helps support compact device layouts.
Typical Applications
Finally, this brushless motor driver is suitable for products that need efficient speed control, wide-voltage input, and high-power BLDC motor support. For example, it can work in fan motors, cooling systems, HVAC systems, and smart devices.
- High-power DC fan motors
- Cooling systems
- HVAC systems
- Industrial equipment
- Machinery
- Automotive systems
- Smart devices
- Adjustable BLDC motor control systems
In short, the NFP-BMLC-255A brushless motor driver is a good fit for products that need 6V – 24V DC input, 3-phase BLDC control, stepless speed regulation, 120W rated power, and 200W peak power.
