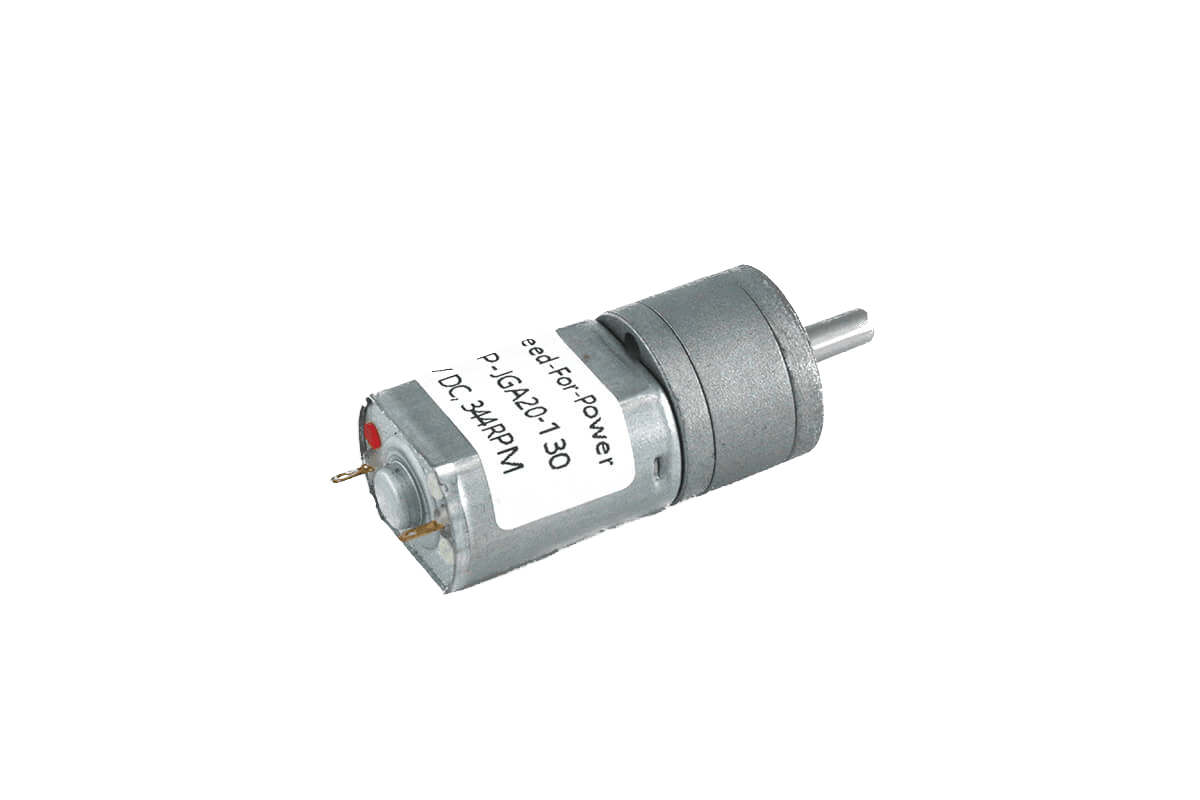

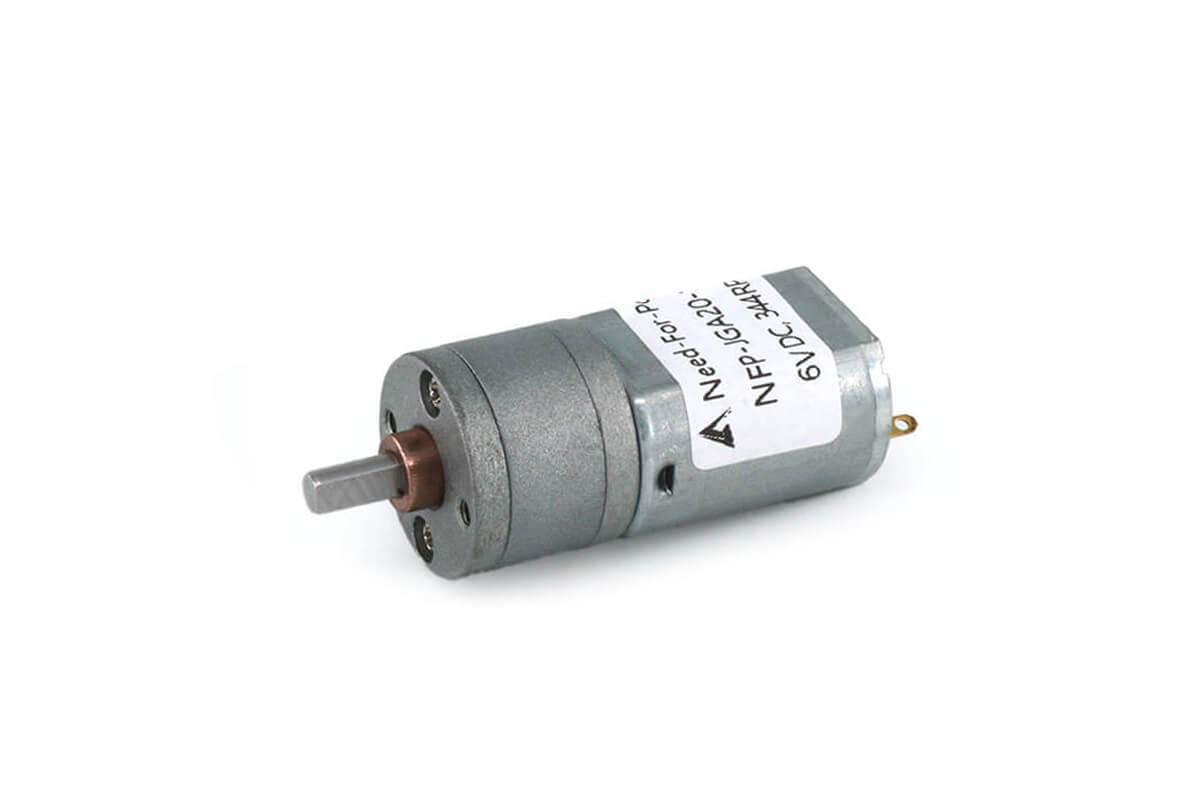

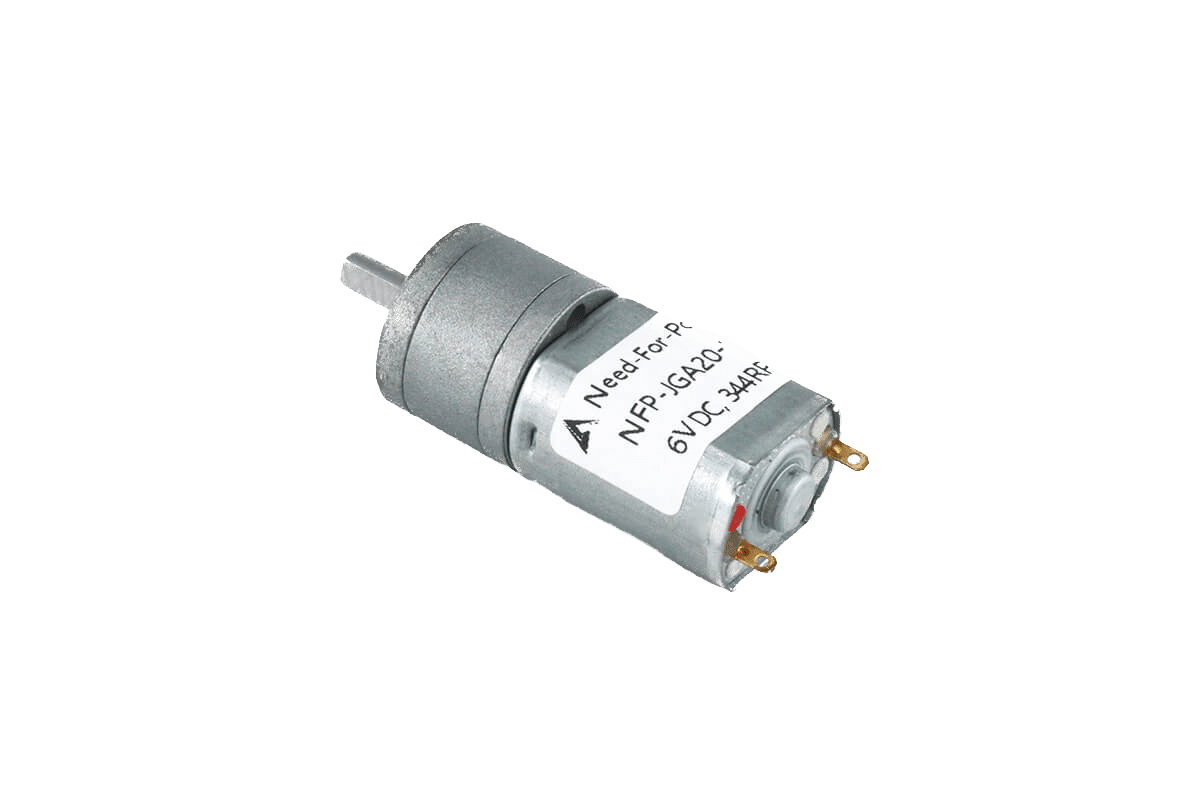

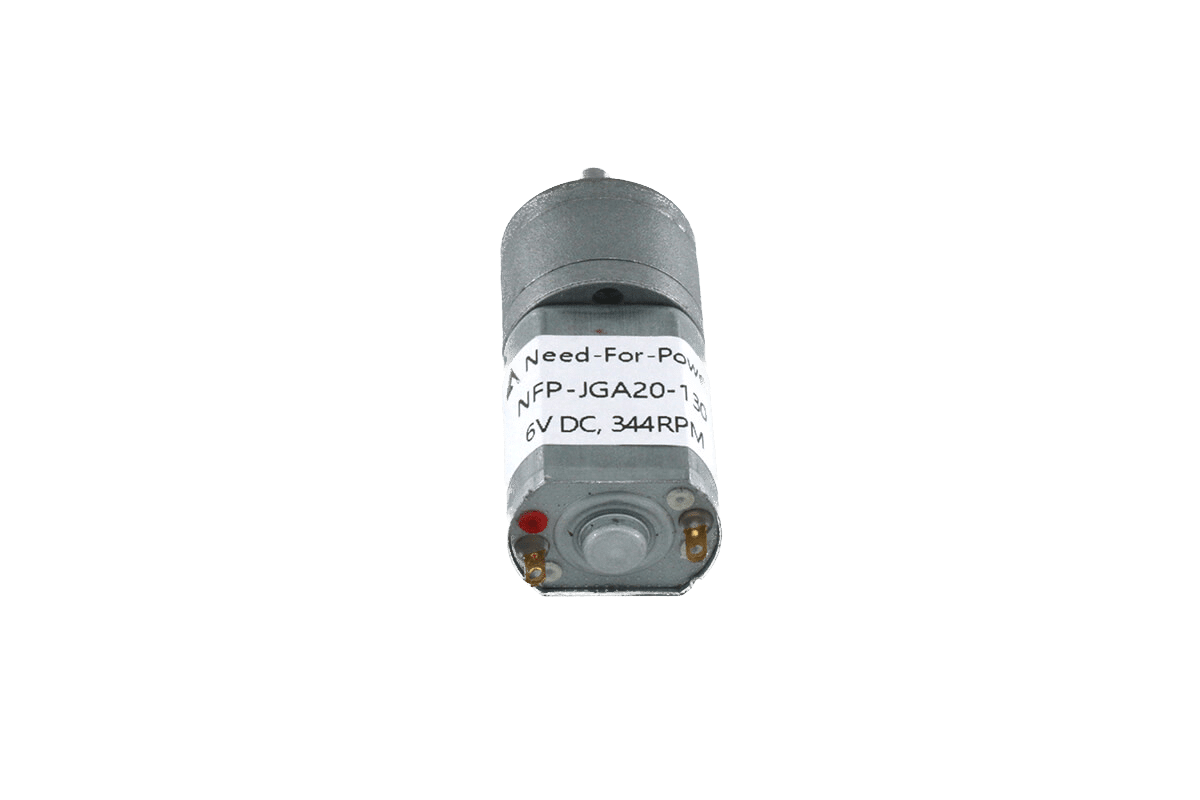

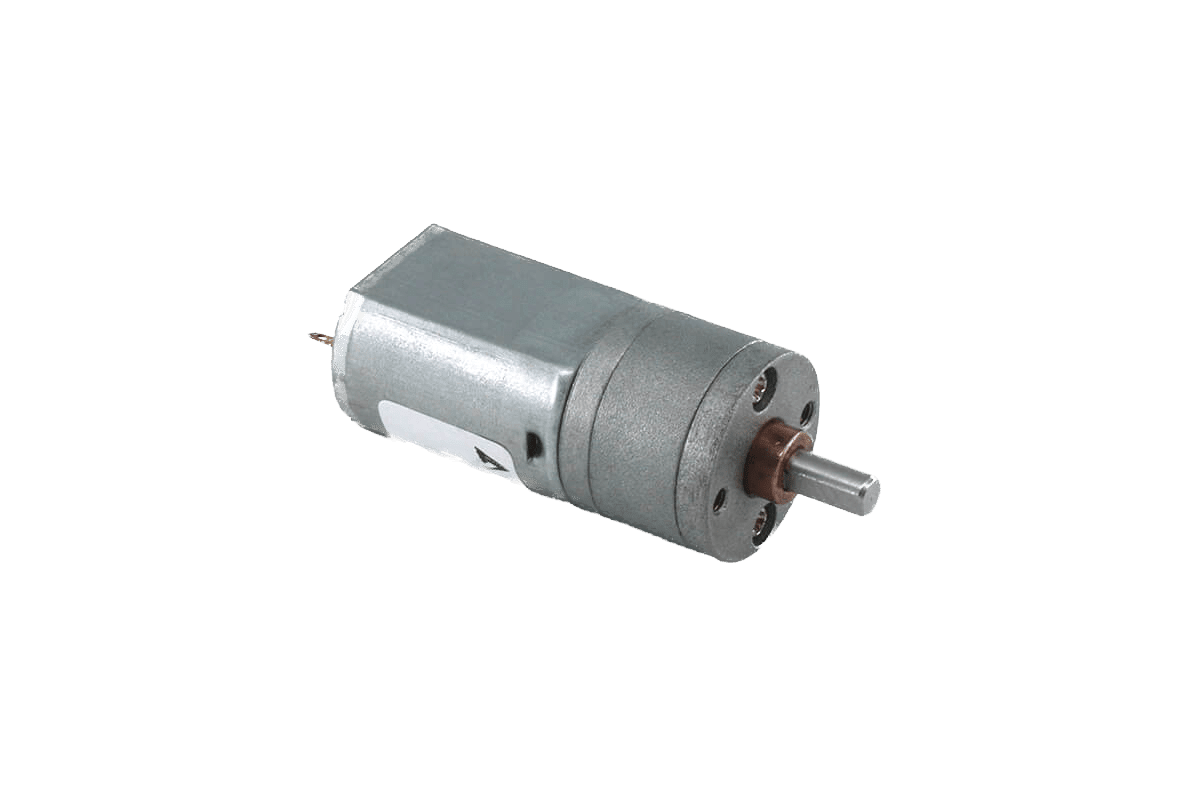

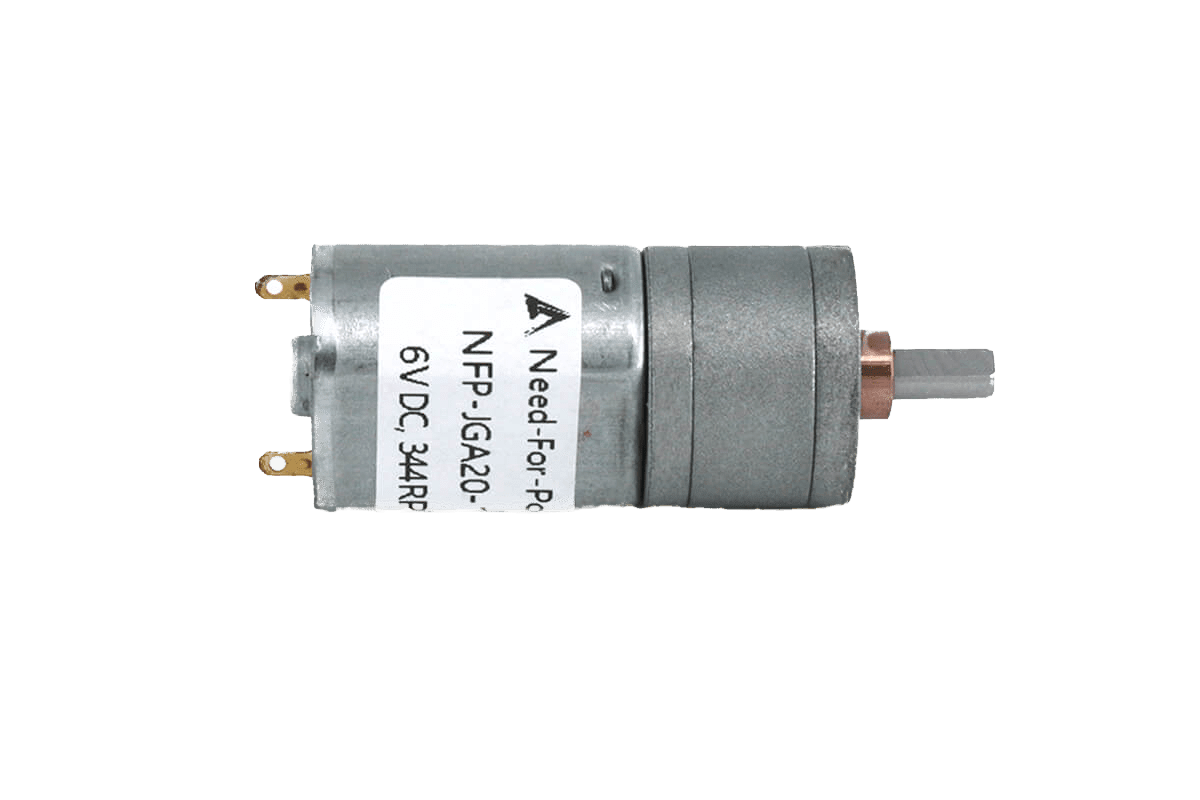

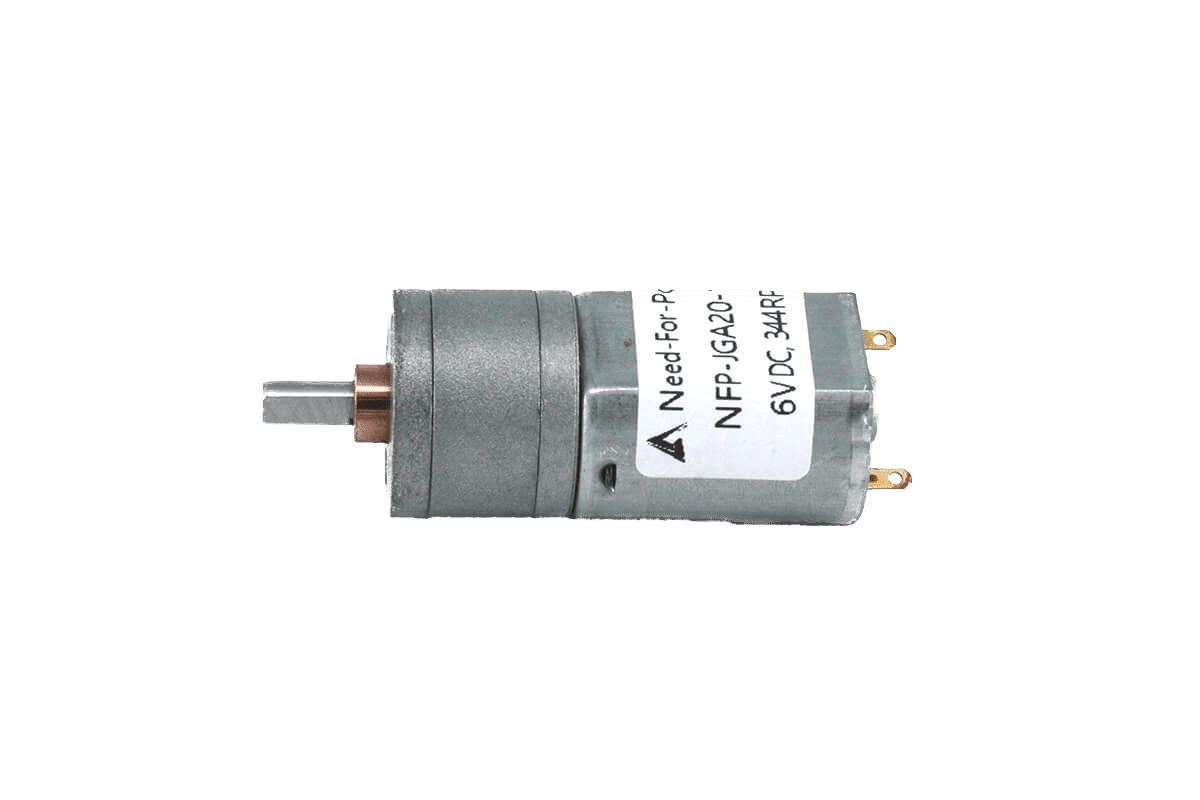

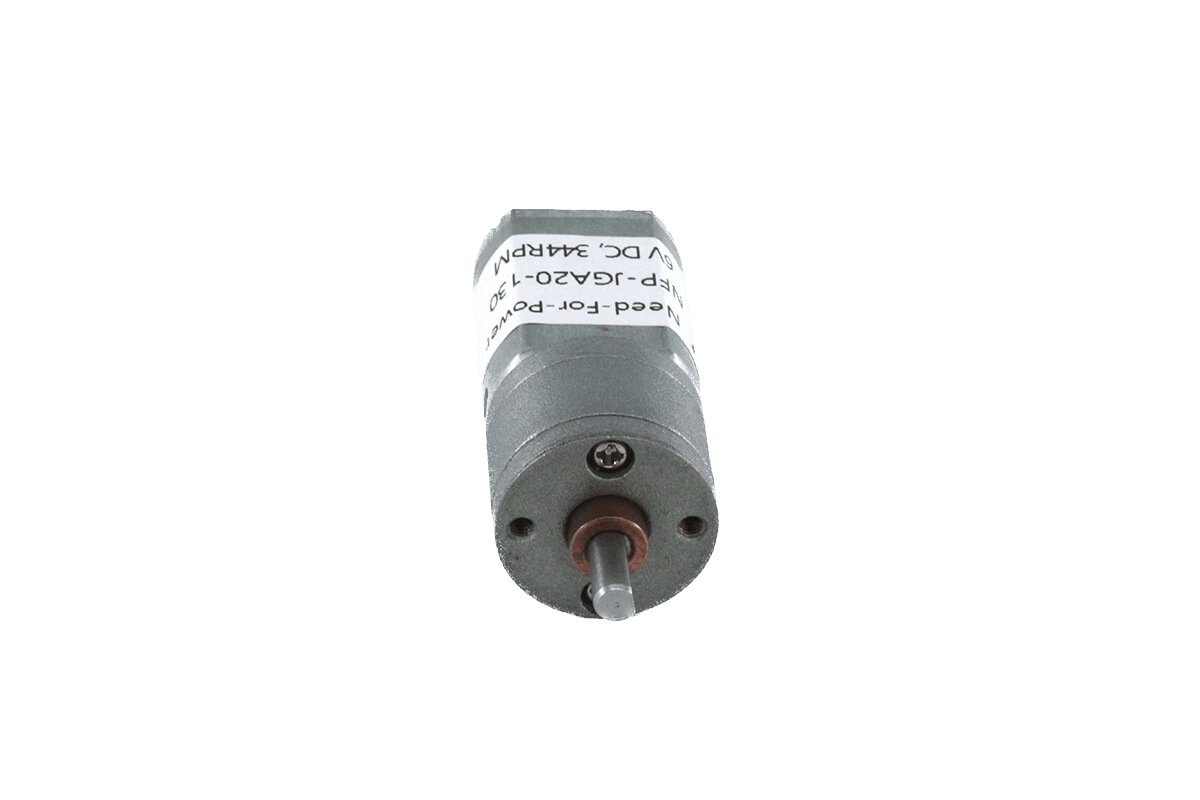

20mm Metal Gear Motor Model NFP-GM20-130
$15.00
Elevate your project with the 20mm planetary gear motor high speed! This reliable motor offers impressive torque and versatility. Order now!
Miniature Geared Electric Motors Data Sheet
First, the NFP-GM20-130 is a small geared electric motor for compact drive systems. Also, it supports 3V, 6V, and 12V DC power.
In addition, this motor gives low speed and useful torque in a compact body. Therefore, it is a good choice for small tools, robots, smart devices, and light-duty machines.
Moreover, the motor supports many gear ratios. As a result, users can choose faster output or stronger low-speed torque.
Main Product Features
- First, compact size: The motor fits small product layouts.
- In addition, voltage options: The motor supports 3V, 6V, and 12V DC.
- Also, wide ratio range: Users can choose many speed and torque options.
- Next, two-way rotation: CW and CCW rotation support forward and reverse motion.
- Finally, high torque: The max torque is 4kg.cm.
General Motor Data
First, the table below shows the main motor data. Also, it helps users check voltage, speed, current, torque, shaft size, and weight before testing.
| Model | NFP-GM20-130 |
|---|---|
| Rated Voltage | 3V / 6V / 12V DC |
| No-load Speed | 10rpm – 310rpm |
| No-load Current | ≤0.05A / ≤0.11A / ≤0.26A |
| Max Torque | 4kg.cm |
| Rotation | CW / CCW |
| Shaft Diameter | 3mm |
| Shaft Length | 10.8mm |
| Weight | appr. 45g |
As a result, this motor gives a wide speed range in one small gear motor frame. Moreover, the 3mm shaft helps fit many small drive parts.
Model: NFP-GM20-130, 3V DC
First, the 3V DC version is useful for low-voltage battery products. Also, the table below helps users compare gearbox length, speed, current, torque, and stall data.
Therefore, users can choose a low ratio for speed. In addition, users can choose a high ratio for stronger low-speed output.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 25:1 | 16mm | ≤0.26A | 310rpm | ≤0.7A | 210rpm | 0.2kg.cm | ≤2.3A | ≥0.6kg.cm |
| 31:1 | 16mm | ≤0.26A | 240rpm | ≤0.7A | 170rpm | 0.25kg.cm | ≤2.3A | ≥0.8kg.cm |
| 62.5:1 | 17.5mm | ≤0.26A | 125rpm | ≤0.7A | 85rpm | 0.5kg.cm | ≤2.3A | ≥1.5kg.cm |
| 78:1 | 17.5mm | ≤0.26A | 100rpm | ≤0.7A | 65rpm | 0.6kg.cm | ≤2.3A | ≥1.8kg.cm |
| 100:1 | 19mm | ≤0.26A | 78rpm | ≤0.7A | 52rpm | 0.8kg.cm | ≤2.3A | ≥2kg.cm |
| 125:1 | 19mm | ≤0.26A | 62rpm | ≤0.7A | 40rpm | 1kg.cm | ≤2.3A | ≥2.5kg.cm |
| 156:1 | 19mm | ≤0.26A | 50rpm | ≤0.7A | 33rpm | 1.2kg.cm | ≤2.3A | ≥3.5kg.cm |
| 195:1 | 19mm | ≤0.26A | 40rpm | ≤0.7A | 26rpm | 1.5kg.cm | ≤2.3A | ≥4.5kg.cm |
| 250:1 | 20.5mm | ≤0.26A | 31rpm | ≤0.7A | 20rpm | 2kg.cm | ≤2.3A | ≤6kg.cm |
| 312:1 | 20.5mm | ≤0.26A | 25rpm | ≤0.7A | 16rpm | 2.5kg.cm | ≤2.3A | ≤6kg.cm |
| 390:1 | 20.5mm | ≤0.26A | 20rpm | ≤0.7A | 13rpm | 3kg.cm | ≤2.3A | ≤6kg.cm |
| 488:1 | 20.5mm | ≤0.26A | 16rpm | ≤0.7A | 10rpm | 4kg.cm | ≤2.3A | ≤6kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In short, higher ratios give lower speed and stronger torque. Therefore, the 3V version is useful for slow and strong low-voltage drive tasks.
Model: NFP-GM20-130, 6V DC
Next, the 6V DC version gives lower no-load current than the 3V version. Also, it keeps the same wide ratio range for many speed needs.
Moreover, this version can work well in small battery products. As a result, it is useful when the design needs 6V power and steady output.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 25:1 | 16mm | ≤0.11A | 280rpm | ≤0.7A | 210rpm | 0.2kg.cm | ≤1.2A | ≥0.6kg.cm |
| 31:1 | 16mm | ≤0.11A | 225rpm | ≤0.7A | 170rpm | 0.25kg.cm | ≤1.2A | ≥0.8kg.cm |
| 62.5:1 | 17.5mm | ≤0.11A | 112rpm | ≤0.7A | 85rpm | 0.5kg.cm | ≤1.2A | ≥1.5kg.cm |
| 78:1 | 17.5mm | ≤0.11A | 90rpm | ≤0.7A | 65rpm | 0.6kg.cm | ≤1.2A | ≥1.8kg.cm |
| 100:1 | 19mm | ≤0.11A | 70rpm | ≤0.7A | 52rpm | 0.8kg.cm | ≤1.2A | ≥2kg.cm |
| 125:1 | 19mm | ≤0.11A | 56rpm | ≤0.7A | 40rpm | 1kg.cm | ≤1.2A | ≥2.5kg.cm |
| 156:1 | 19mm | ≤0.11A | 45rpm | ≤0.7A | 33rpm | 1.2kg.cm | ≤1.2A | ≥3.5kg.cm |
| 195:1 | 19mm | ≤0.11A | 36rpm | ≤0.7A | 26rpm | 1.5kg.cm | ≤1.2A | ≥4.5kg.cm |
| 250:1 | 20.5mm | ≤0.11A | 28rpm | ≤0.7A | 20rpm | 2kg.cm | ≤1.2A | ≤6kg.cm |
| 312:1 | 20.5mm | ≤0.11A | 22rpm | ≤0.7A | 16rpm | 2.5kg.cm | ≤1.2A | ≤6kg.cm |
| 390:1 | 20.5mm | ≤0.11A | 18rpm | ≤0.7A | 13rpm | 3kg.cm | ≤1.2A | ≤6kg.cm |
| 488:1 | 20.5mm | ≤0.11A | 14rpm | ≤0.7A | 10rpm | 4kg.cm | ≤1.2A | ≤6kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 6V version can support both faster output and slow high-torque output. In addition, users can select gearbox length based on space needs.
Model: NFP-GM20-130, 12V DC
Finally, the 12V DC version gives the lowest no-load current in this page. Also, it is useful for 12V control systems that need slow and steady output.
Therefore, users can choose this version for lower current needs. In addition, the high ratios can provide strong low-speed torque.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 25:1 | 16mm | ≤0.05A | 190rpm | ≤0.2A | 135rpm | 0.2kg.cm | ≤0.2A | ≥0.6kg.cm |
| 31:1 | 16mm | ≤0.05A | 152rpm | ≤0.2A | 110rpm | 0.25kg.cm | ≤0.2A | ≥0.8kg.cm |
| 62.5:1 | 17.5mm | ≤0.05A | 75rpm | ≤0.2A | 55rpm | 0.5kg.cm | ≤0.2A | ≥1.5kg.cm |
| 78:1 | 17.5mm | ≤0.05A | 60rpm | ≤0.2A | 43rpm | 0.6kg.cm | ≤0.2A | ≥1.8kg.cm |
| 100:1 | 19mm | ≤0.05A | 47rpm | ≤0.2A | 34rpm | 0.8kg.cm | ≤0.2A | ≥2kg.cm |
| 125:1 | 19mm | ≤0.05A | 37rpm | ≤0.2A | 27rpm | 1kg.cm | ≤0.2A | ≥2.5kg.cm |
| 156:1 | 19mm | ≤0.05A | 30rpm | ≤0.2A | 22rpm | 1.2kg.cm | ≤0.2A | ≥3.5kg.cm |
| 195:1 | 19mm | ≤0.05A | 24rpm | ≤0.2A | 17rpm | 1.5kg.cm | ≤0.2A | ≥4.5kg.cm |
| 250:1 | 20.5mm | ≤0.05A | 19rpm | ≤0.2A | 13rpm | 2kg.cm | ≤0.2A | ≤6kg.cm |
| 312:1 | 20.5mm | ≤0.05A | 15rpm | ≤0.2A | 11rpm | 2.5kg.cm | ≤0.2A | ≤6kg.cm |
| 390:1 | 20.5mm | ≤0.05A | 12rpm | ≤0.2A | 9rpm | 3kg.cm | ≤0.2A | ≤6kg.cm |
| 488:1 | 20.5mm | ≤0.05A | 10rpm | ≤0.2A | 7rpm | 4kg.cm | ≤0.2A | ≤6kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In conclusion, the 12V version is a good fit for compact systems that need low current and slow speed. Moreover, the 488:1 ratio gives the lowest no-load speed.
Gear Reduction Motor 130 Gear Motors Outline Drawing
First, the outline drawing helps users check the motor body, gearbox, shaft, and mounting size. Therefore, it is useful before sample testing and final product design.
In addition, the NFP-GM20-130 gear motor gives steady output in a compact form. As a result, it is useful for small tools, smart devices, robots, and light automation systems.
Outline Drawing and Design Benefits
- First, compact body: The motor helps save space in small layouts.
- In addition, high torque: Many ratios help users match speed and torque needs.
- Also, stable shaft: The 3mm shaft helps connect small drive parts.
- Next, two-way rotation: CW and CCW rotation support forward and reverse motion.
- Finally, wide voltage choice: 3V, 6V, and 12V versions support many systems.
Typical Applications
Finally, this miniature geared electric motor is useful for many compact systems. For example, it can work in small machines, robots, smart devices, test tools, and light-duty drive units.
- First, small machines: It can support compact drive tasks.
- In addition, robots: It can drive wheels, arms, and small moving parts.
- Also, smart devices: It can fit small home and control products.
- Next, test tools: It can support small lab or test builds.
- Finally, light-duty systems: It can provide low speed and useful torque.
In short, the NFP-GM20-130 gear motor is a good fit for products that need 3V, 6V, or 12V DC power, compact size, many ratios, low speed, and useful torque.
Keywords: speed reduction gear motor, gear motor manufacturer, electric gear motor, high torque gear motor applications, gear motor for mining equipment, custom gear motor design, energy efficient gear motors, compact gear motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
