20mm Metal Gear Motor Model NFP-GM20-130-EN

Low Noise High Precision Reversible Small DC Motors Datasheet

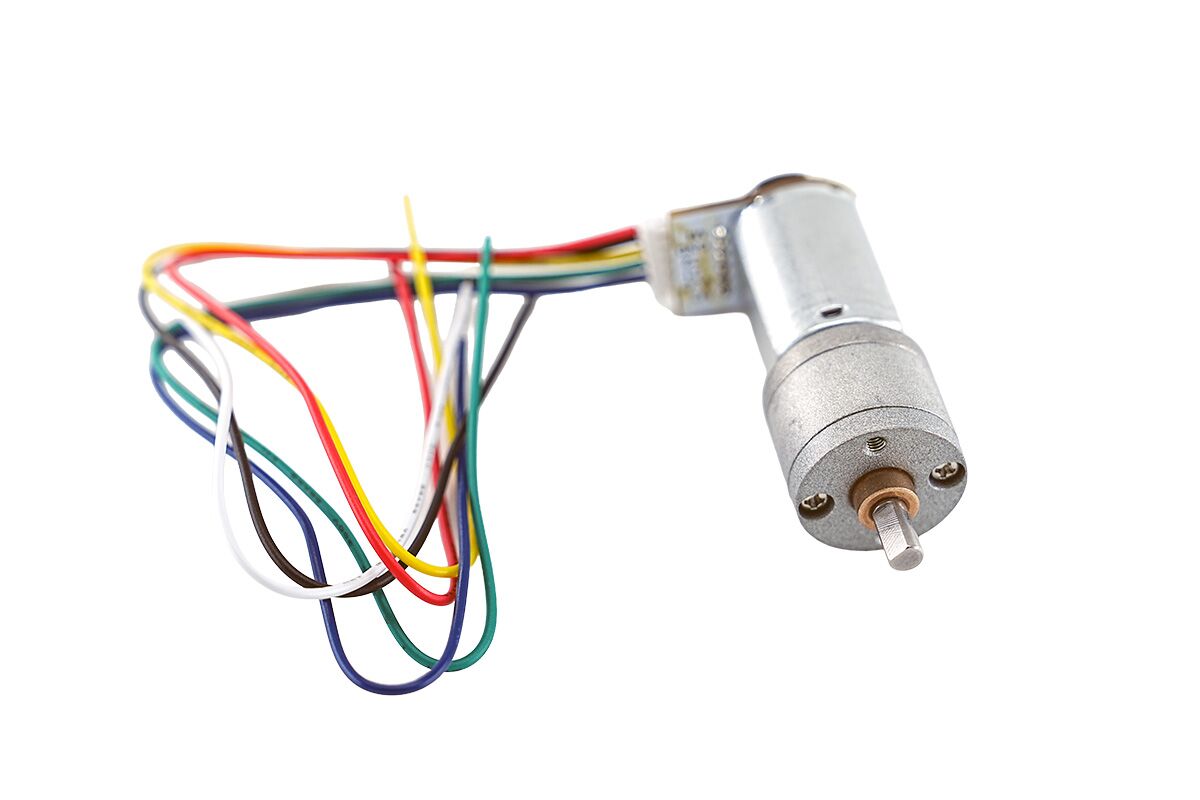

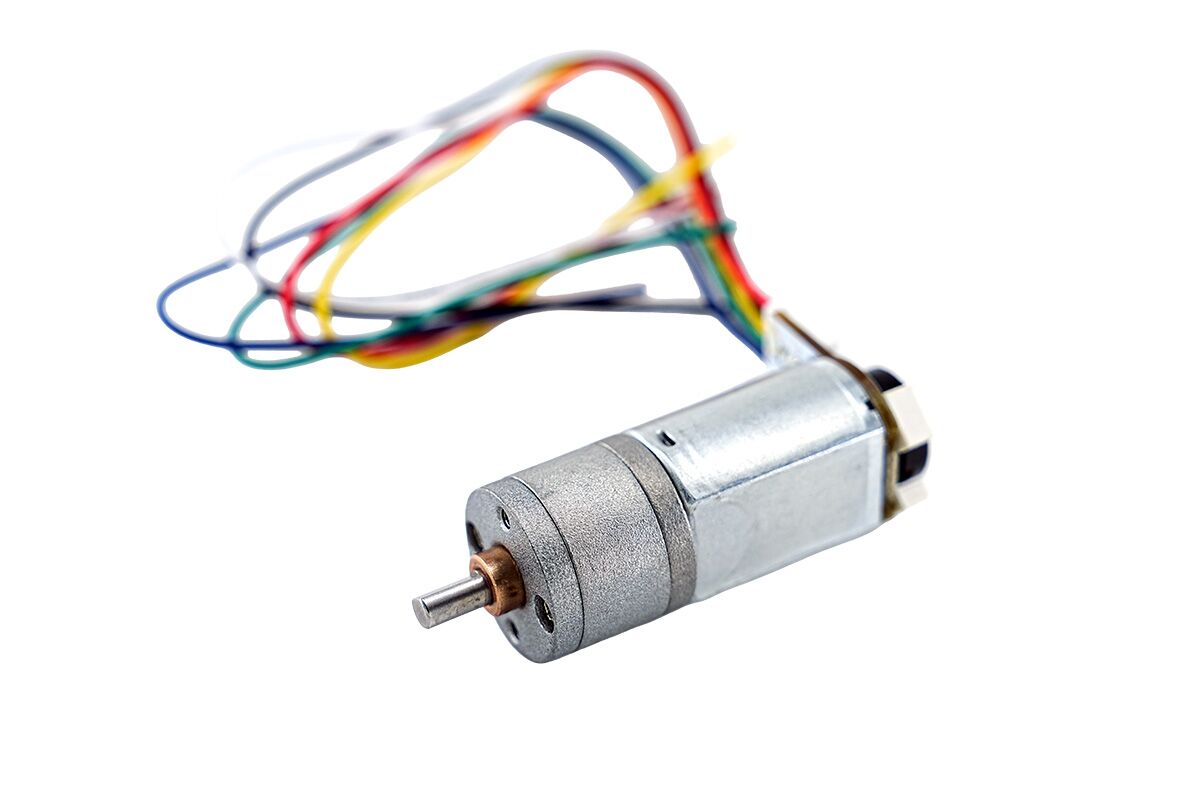

First, the NFP-GM20-130-EN is a 20mm low noise high precision reversible small DC motor with encoder. Also, it is useful for compact products that need accurate motion, stable speed, and feedback control.

In addition, this 20mm gear motor has an integrated encoder for better control in motion systems. Therefore, it can work with many controllers and can be added to new or existing projects more easily.

Moreover, the compact gearbox gives useful torque in a small body. As a result, engineers and hobbyists can use this motor in robots, automation systems, and small drive devices.

Main Product Features

• First, compact 20mm body: The small motor size helps save product space.
• In addition, encoder feedback: The AB phase Hall encoder helps detect speed and position.
• Also, reversible rotation: CW and CCW rotation support forward and reverse motion.
• Next, all-metal gearbox: The gearbox helps improve torque and wear life.
• Finally, wide voltage range: The motor supports 3V, 6V, and 12V DC systems.

Basic Motor Specifications

First, the table below shows the main motor data. Also, it helps users check diameter, shaft size, voltage, speed range, current, wiring, rotation, and weight before choosing a ratio.

As a result, this model gives a compact gear motor with encoder feedback, 4mm shaft, and PH2.0-6PIN wiring. Moreover, the low weight helps fit small mobile products.

Model: NFP-GM20-130-EN, 6V DC

First, the 6V DC version is useful for compact systems that need higher speed and stronger output. Also, the table below helps users compare ratio, gearbox length, speed, current, torque, stall data, and encoder signal count.

Therefore, users can choose a lower ratio for higher speed. In addition, users can choose a higher ratio for lower speed, stronger torque, and more encoder signal counts.

Note: All reduced no-load speeds have a tolerance of ±15%.

As a result, the 6V version covers speeds from 27rpm to 1,080rpm. Moreover, the 488:1 ratio gives the highest encoder signal count in this table.

Model: NFP-GM20-130-EN, 12V DC

Next, the 12V DC version is useful for lower-current control systems. Also, it provides stable output for compact products that need feedback control.

Therefore, users can choose this version for 12V control boards. In addition, the high-ratio options provide slow speed, higher torque, and more encoder signal counts.

Note: All reduced no-load speeds have a tolerance of ±15%.

In conclusion, the 12V version covers speeds from 16rpm to 620rpm. Also, the 390:1 and 488:1 ratios give the strongest rated torque in this table.

All Metal Gearbox Motor D-Cut Shaft Outline Drawing

First, the outline drawing helps users check the motor body, gearbox length, D-cut shaft, and mounting space. Therefore, it is useful before sample testing and final product design.

In addition, this compact gear motor can deliver useful torque for robotic and automated systems. As a result, it can support miniature CNC machines, assembly devices, and small drive products.

Moreover, the motor is made for steady work in compact products. Therefore, it can help reduce frequent replacement under suitable industrial and commercial use.

Outline Drawing and Design Benefits

• First, all-metal gearbox: The gearbox helps improve wear resistance and strength.
• In addition, D-cut shaft: The shaft helps connect drive parts more firmly.
• Also, compact body: The 20mm motor size helps save installation space.
• Next, high torque output: Higher ratios provide stronger slow-speed torque.
• Finally, encoder option: Encoder feedback supports closed-loop control.

Motor with Gearbox and AB Dual Phase Hall Encoder Wiring Diagram

First, the wiring diagram helps users check motor wiring and encoder wiring before power-on. Therefore, it can reduce wiring mistakes during motor setup.

In addition, the encoder provides real-time feedback on motor speed and position. As a result, it is useful for closed-loop control systems that need better efficiency and stable motion.

Encoder Specifications

First, the encoder specification table helps users check encoder type, line speed, supply voltage, interface type, output signal, response frequency, and pulse count. Therefore, it is easier to match the motor with a control board.

As a result, the AB dual-phase Hall encoder can provide useful speed and position feedback. Moreover, the 11 PPR base pulse helps users calculate output signal count by gear ratio.

Typical Applications

Finally, this low noise high precision reversible small DC motor is useful for compact systems that need accurate feedback and stable torque. For example, it can work in robots, miniature CNC machines, assembly devices, smart locks, printers, and small automation systems.

• Robots
• Miniature CNC machines
• Intricate assembly devices
• Smart locks
• Printers
• Small automation systems
• Compact drive devices
• Closed-loop motion control systems

Selection Notes

First, users should choose voltage and ratio based on speed, torque, current, encoder signal count, and available space. Also, users should confirm the D-cut shaft size before mechanical design.

• First, for higher speed: Choose a lower ratio such as 12.5:1 or 25:1.
• In addition, for higher torque: Choose a higher ratio such as 390:1 or 488:1.
• Also, for 6V systems: Choose the 6V DC version when higher speed and stronger output are needed.
• Next, for 12V systems: Choose the 12V DC version when the control system needs lower current.
• Moreover, for feedback control: Use the encoder signal count and 11 PPR base pulse for speed or position feedback.
• Finally, for tight spaces: Check the gearbox length before final assembly.

In short, the NFP-GM20-130-EN low noise high precision reversible small DC motor is a good fit for products that need 3V, 6V, or 12V DC power, 20mm gearbox, D-cut shaft, AB phase Hall encoder, and reliable low-speed torque.
