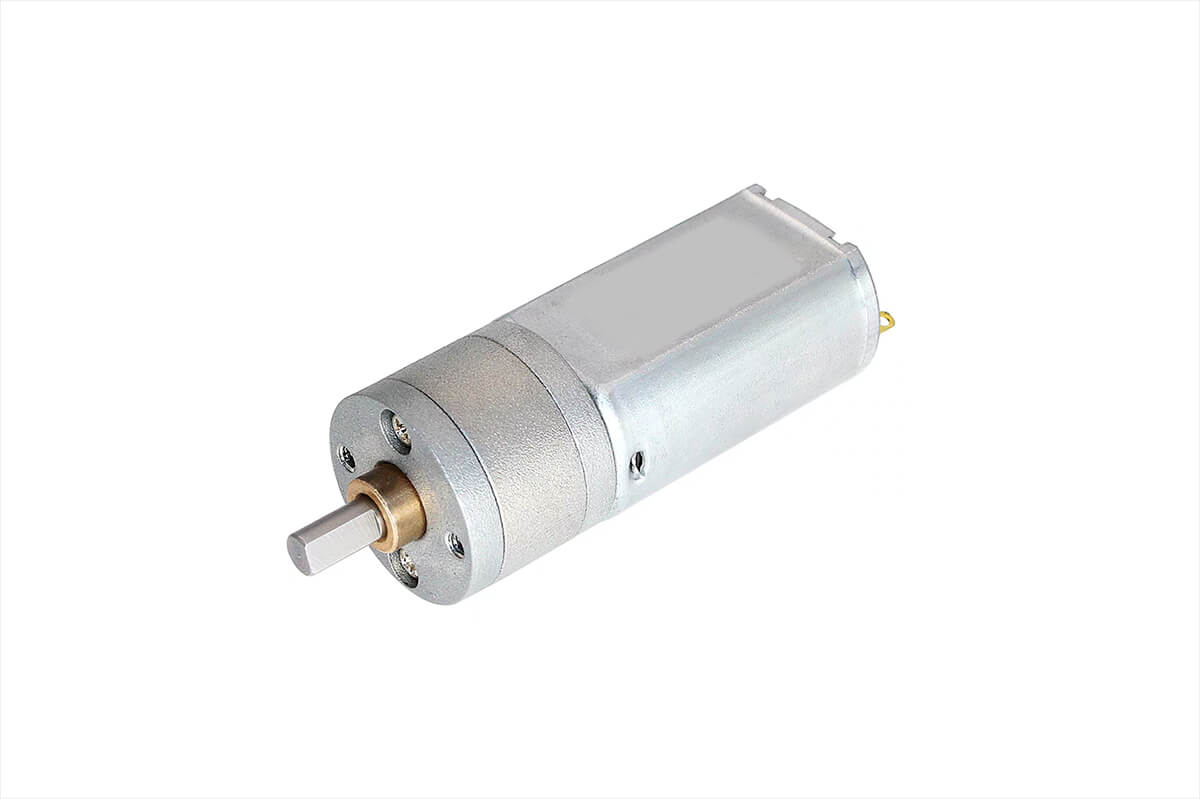

20mm Metal Gear Motor Model NFP-GM20-180
$15.00
Discover the power of the 20mm metal gear motor 180 series! With an all-metal gear and high-quality copper wire, it delivers incredible performance.
High Torque Precision Gear Motor Parameters
First, the NFP-GM20-180 is a compact 20mm metal gear motor for small drive systems. Also, it uses a carbon brush motor, copper wire, an all-metal gear set, and a D-type output shaft.
In addition, this motor supports 6V, 12V, and 24V DC power. Therefore, users can choose the right voltage for speed, torque, and current needs.
Moreover, the metal gearbox helps raise torque at low speed. As a result, this motor is useful for small tools, compact machines, and light-duty drive units.
Main Product Features
- First, carbon brush motor: The motor gives stable output for small drive tasks.
- In addition, copper wire: The winding helps support steady motor work.
- Also, all-metal gear set: The gear set helps improve strength and service life.
- Next, D-type output shaft: The shaft helps connect small drive parts.
- Finally, voltage choices: 6V, 12V, and 24V versions support many systems.
General Motor Data
First, the table below shows the main motor data. Also, it helps users check voltage, speed, torque, shaft size, and weight before choosing a ratio.
| Motor Model | NFP-GM20-180 |
|---|---|
| Rated Voltage | 6V / 12V / 24V DC |
| No-load Speed | 10rpm – 780rpm |
| No-load Current | ≤0.1A / ≤0.13A / ≤0.16A |
| Power | 0.5W / 2W / 2.3W |
| Max Torque | 6kg.cm |
| Rotation | CW / CCW |
| Shaft Diameter | 4mm |
| Shaft Length | 10.5mm |
| Weight | appr. 45g |
As a result, this gear motor gives several voltage choices in one size. Moreover, the metal gearbox helps improve torque for small tools and compact machines.
Model: NFP-GM20-180, 6V DC
First, the 6V DC version is a good choice for low-voltage control systems. Also, the table below lists each ratio with no-load speed and rated load data.
Therefore, users can choose a low ratio for speed. In addition, users can choose a high ratio for stronger low-speed output.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 12.5:1 | ≤0.13A | 400rpm | ≤0.38A | 270rpm | 0.15kg.cm | ≤1.4A | ≥0.5kg.cm |
| 25:1 | ≤0.13A | 195rpm | ≤0.38A | 140rpm | 0.3kg.cm | ≤1.4A | ≥1.0kg.cm |
| 31:1 | ≤0.13A | 155rpm | ≤0.38A | 110rpm | 0.4kg.cm | ≤1.4A | ≥1.2kg.cm |
| 50:1 | ≤0.13A | 95rpm | ≤0.38A | 68rpm | 0.6kg.cm | ≤1.4A | ≥1.8kg.cm |
| 62.5:1 | ≤0.13A | 80rpm | ≤0.38A | 55rpm | 0.8kg.cm | ≤1.4A | ≥2.0kg.cm |
| 78:1 | ≤0.13A | 60rpm | ≤0.38A | 42rpm | 1.0kg.cm | ≤1.4A | ≥3.0kg.cm |
| 100:1 | ≤0.13A | 50rpm | ≤0.38A | 35rpm | 1.5kg.cm | ≤1.4A | ≥4.5kg.cm |
| 125:1 | ≤0.13A | 40rpm | ≤0.38A | 25rpm | 1.8kg.cm | ≤1.4A | ≥5.5kg.cm |
| 156:1 | ≤0.13A | 30rpm | ≤0.38A | 22rpm | 2.2kg.cm | ≤1.4A | ≤6.0kg.cm |
| 195:1 | ≤0.13A | 25rpm | ≤0.38A | 15rpm | 2.8kg.cm | ≤1.4A | ≤6.0kg.cm |
| 250:1 | ≤0.13A | 20rpm | ≤0.38A | 12rpm | 3.5kg.cm | ≤1.4A | ≤6.0kg.cm |
| 312:1 | ≤0.13A | 15rpm | ≤0.38A | 10rpm | 4.5kg.cm | ≤1.4A | ≤6.0kg.cm |
| 390:1 | ≤0.13A | 12rpm | ≤0.38A | 9rpm | 5.0kg.cm | ≤1.4A | ≤6.0kg.cm |
| 488:1 | ≤0.13A | 10rpm | ≤0.38A | 8rpm | 5.0kg.cm | ≤1.4A | ≤6.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In short, the 6V DC model covers speeds from 10rpm to 400rpm. Therefore, lower ratios give more speed, while higher ratios give more torque.
Model: NFP-GM20-180, 12V DC
Next, the 12V DC version gives a wider speed range. Also, it is useful when the system needs more power in the same 20mm gearbox size.
Moreover, this version can reach up to 780rpm at 12.5:1. As a result, it fits compact devices that need both speed and stable torque.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 12.5:1 | ≤0.16A | 780rpm | ≤0.55A | 560rpm | 0.3kg.cm | ≤2.5A | ≥0.7kg.cm |
| 25:1 | ≤0.16A | 390rpm | ≤0.55A | 280rpm | 0.6kg.cm | ≤2.5A | ≥1.5kg.cm |
| 31:1 | ≤0.16A | 310rpm | ≤0.55A | 220rpm | 0.8kg.cm | ≤2.5A | ≥2.0kg.cm |
| 50:1 | ≤0.16A | 190rpm | ≤0.55A | 135rpm | 1.2kg.cm | ≤2.5A | ≥3.0kg.cm |
| 62.5:1 | ≤0.16A | 155rpm | ≤0.55A | 110rpm | 1.5kg.cm | ≤2.5A | ≥3.5kg.cm |
| 78:1 | ≤0.16A | 120rpm | ≤0.55A | 80rpm | 2.0kg.cm | ≤2.5A | ≥5.0kg.cm |
| 100:1 | ≤0.16A | 100rpm | ≤0.55A | 70rpm | 3.0kg.cm | ≤2.5A | ≤6.0kg.cm |
| 125:1 | ≤0.16A | 80rpm | ≤0.55A | 50rpm | 3.5kg.cm | ≤2.5A | ≤6.0kg.cm |
| 156:1 | ≤0.16A | 60rpm | ≤0.55A | 40rpm | 4.2kg.cm | ≤2.5A | ≤6.0kg.cm |
| 195:1 | ≤0.16A | 50rpm | ≤0.55A | 30rpm | 5.0kg.cm | ≤2.5A | ≤6.0kg.cm |
| 250:1 | ≤0.16A | 40rpm | ≤0.55A | 25rpm | 5.0kg.cm | ≤2.5A | ≤6.0kg.cm |
| 312:1 | ≤0.16A | 30rpm | ≤0.55A | 22rpm | 5.0kg.cm | ≤2.5A | ≤6.0kg.cm |
| 390:1 | ≤0.16A | 24rpm | ≤0.55A | 18rpm | 5.0kg.cm | ≤2.5A | ≤6.0kg.cm |
| 488:1 | ≤0.16A | 20rpm | ≤0.55A | 15rpm | 5.0kg.cm | ≤2.5A | ≤6.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
Therefore, the 12V DC model is a good fit for products that need more speed. In addition, high ratios can still give strong low-speed torque.
Model: NFP-GM20-180, 24V DC
Furthermore, the 24V DC version works well in systems with a higher supply voltage. Also, it keeps low current while giving useful torque through the metal gearbox.
Similarly, the 24V DC model supports many ratio choices for speed control. In conclusion, it is a practical option for compact tools and small drive units.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 12.5:1 | ≤0.1A | 720rpm | ≤0.25A | 470rpm | 0.3kg.cm | ≤0.6A | ≥0.5kg.cm |
| 25:1 | ≤0.1A | 360rpm | ≤0.25A | 235rpm | 0.6kg.cm | ≤0.6A | ≥1.1kg.cm |
| 31:1 | ≤0.1A | 290rpm | ≤0.25A | 185rpm | 0.8kg.cm | ≤0.6A | ≥1.5kg.cm |
| 50:1 | ≤0.1A | 180rpm | ≤0.25A | 113rpm | 1.2kg.cm | ≤0.6A | ≥2.3kg.cm |
| 62.5:1 | ≤0.1A | 145rpm | ≤0.25A | 92rpm | 1.5kg.cm | ≤0.6A | ≥2.5kg.cm |
| 78:1 | ≤0.1A | 115rpm | ≤0.25A | 75rpm | 2.0kg.cm | ≤0.6A | ≥3.0kg.cm |
| 100:1 | ≤0.1A | 90rpm | ≤0.25A | 58rpm | 3.0kg.cm | ≤0.6A | ≥4.0kg.cm |
| 125:1 | ≤0.1A | 72rpm | ≤0.25A | 45rpm | 3.5kg.cm | ≤0.6A | ≥5.5kg.cm |
| 156:1 | ≤0.1A | 57rpm | ≤0.25A | 35rpm | 4.2kg.cm | ≤0.6A | ≤6.0kg.cm |
| 195:1 | ≤0.1A | 50rpm | ≤0.25A | 28rpm | 5.0kg.cm | ≤0.6A | ≤6.0kg.cm |
| 250:1 | ≤0.1A | 36rpm | ≤0.25A | 23rpm | 5.0kg.cm | ≤0.6A | ≤6.0kg.cm |
| 312:1 | ≤0.1A | 29rpm | ≤0.25A | 11rpm | 5.0kg.cm | ≤0.6A | ≤6.0kg.cm |
| 390:1 | ≤0.1A | 23rpm | ≤0.25A | 9rpm | 5.0kg.cm | ≤0.6A | ≤6.0kg.cm |
| 488:1 | ≤0.1A | 18rpm | ≤0.25A | 7rpm | 5.0kg.cm | ≤0.6A | ≤6.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 24V version can support both faster output and strong low-speed torque. Moreover, it is useful for products that need low current and stable output.
12V DC Gear Motor Mechanical Drawing
Finally, the drawing helps confirm the motor size before design work. For example, it is useful for checking shaft size, mounting space, and body length.
Also, this 20mm DC gear motor can be used for many compact electric tools and drive products. Therefore, users can review the outline before sample testing.
Mechanical Drawing and Design Benefits
- First, compact body: The 20mm size helps fit small tools and machines.
- In addition, metal gearbox: The gearbox helps increase low-speed torque.
- Also, D-type shaft: The output shaft helps connect drive parts firmly.
- Next, wide voltage choice: 6V, 12V, and 24V versions support many designs.
- Finally, high torque: The motor can reach up to 6kg.cm max torque.
Typical Applications
Next, this high torque gear motor is useful for tools and small machines that need low speed and strong output. For example, it can work in power tools, drills, saws, grinders, and cleaners.
- Electric power tools
- Screwdrivers
- Drills
- Saws
- Grinders
- Hammer drills
- Impact wrenches
- Heat guns
- Lawn mowers
- Planers
- Carvers
- Cleaners
- Mixers
- Routers
In short, the NFP-GM20-180 high torque precision gear motor is a good fit for products that need 6V, 12V, or 24V DC power, compact 20mm size, metal gearbox output, D-type shaft, and strong low-speed torque.
Keywords: DC gearmotor, 12 volt motor DC, DC motor speed control, miniature gearbox motor, 12 volt motor, DC motor with gearbox, high torque DC motor, 12V motor with gearbox, DC motor gearbox, gear motor small, DC gear motor 12V, DC motor for sale, miniature gear motor, DC motor suppliers, mini gear motor, small motor gearbox, micro gear motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
