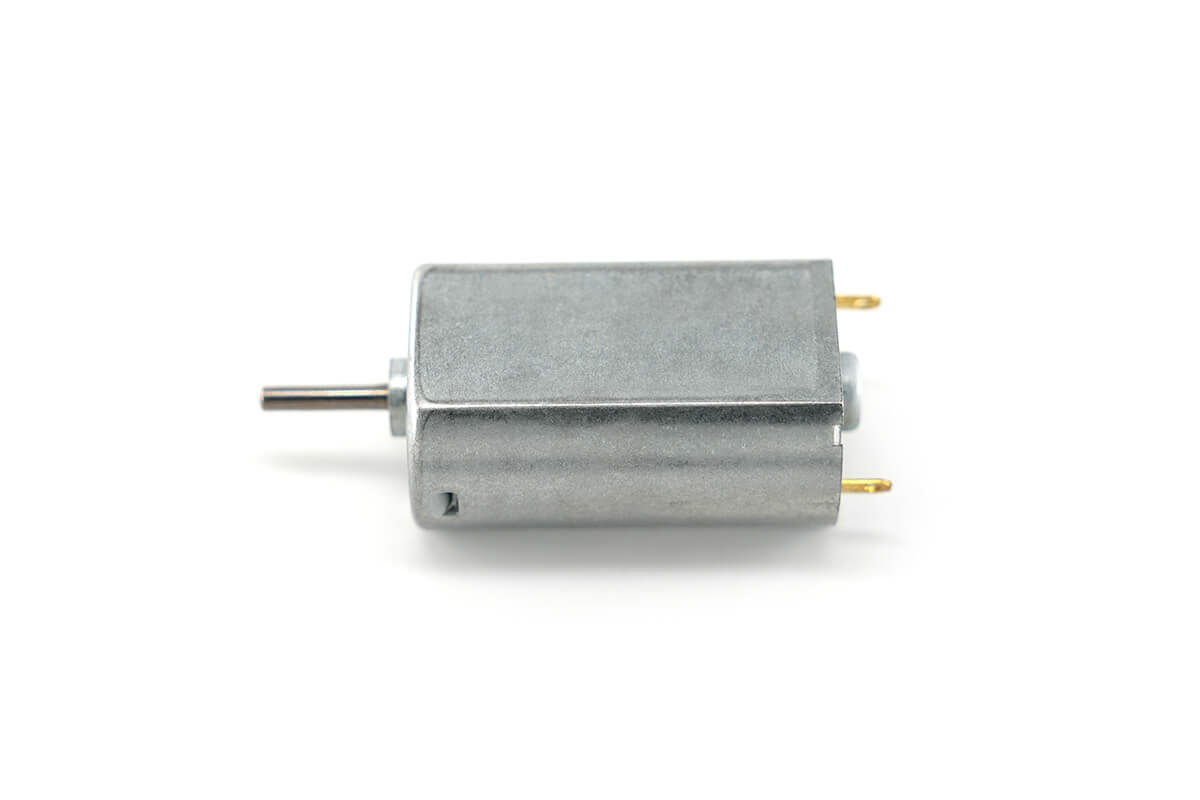

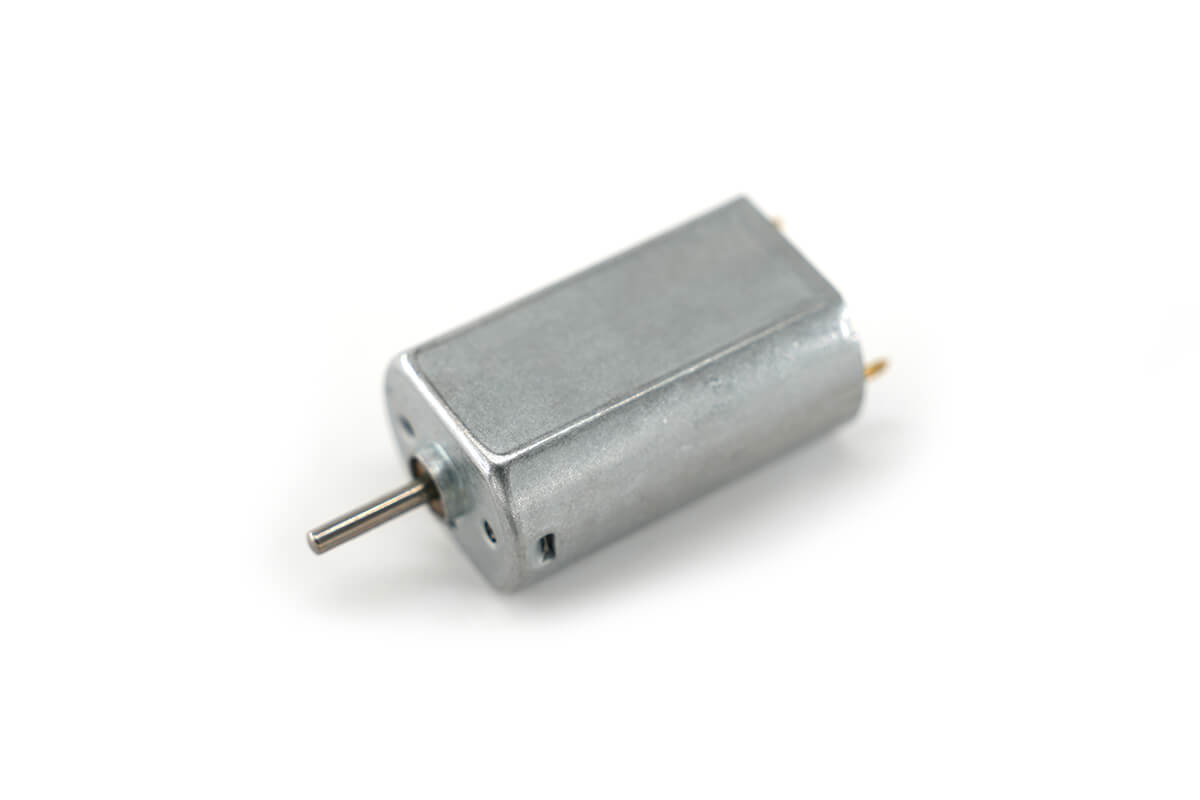

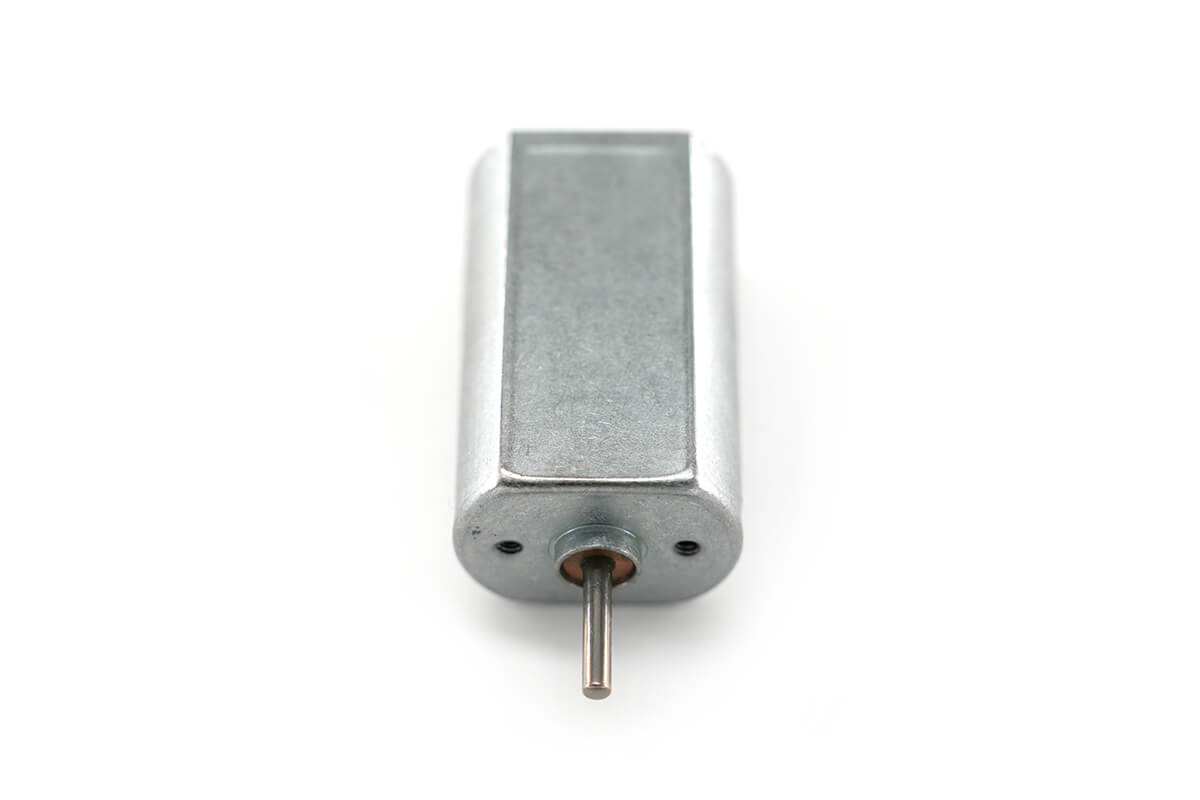

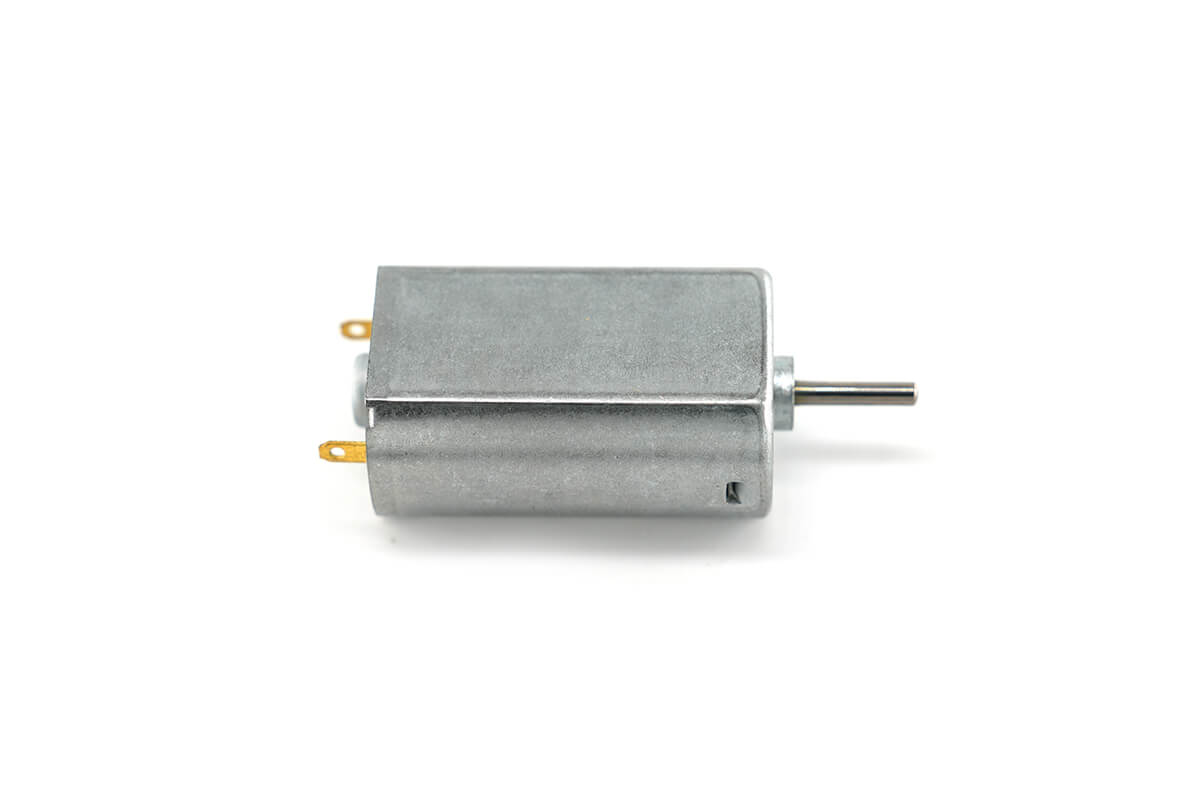

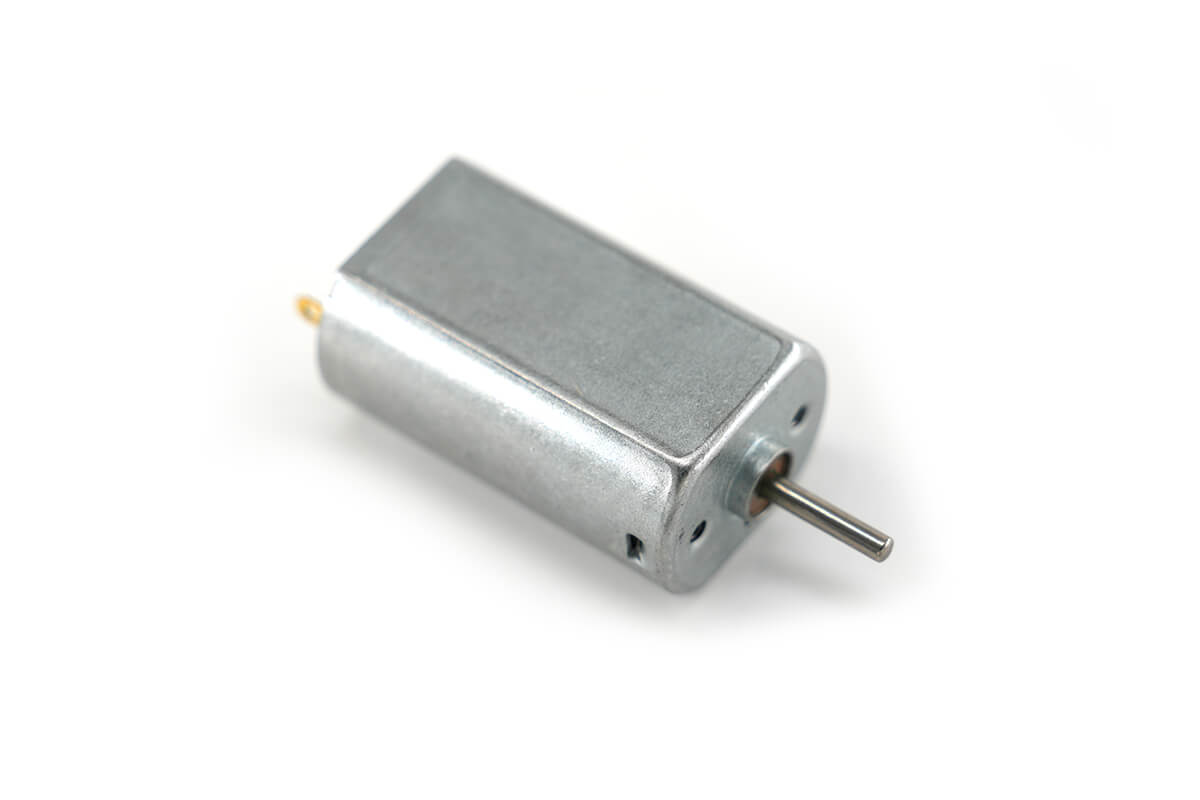

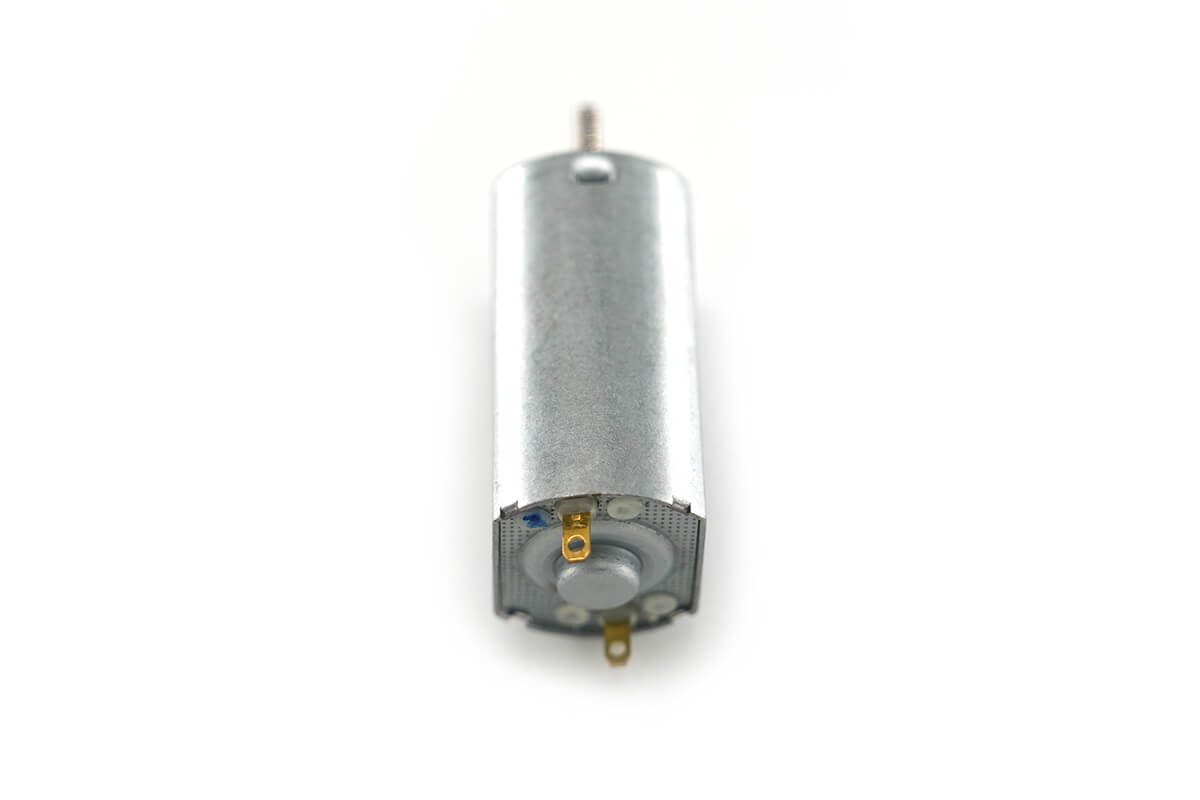

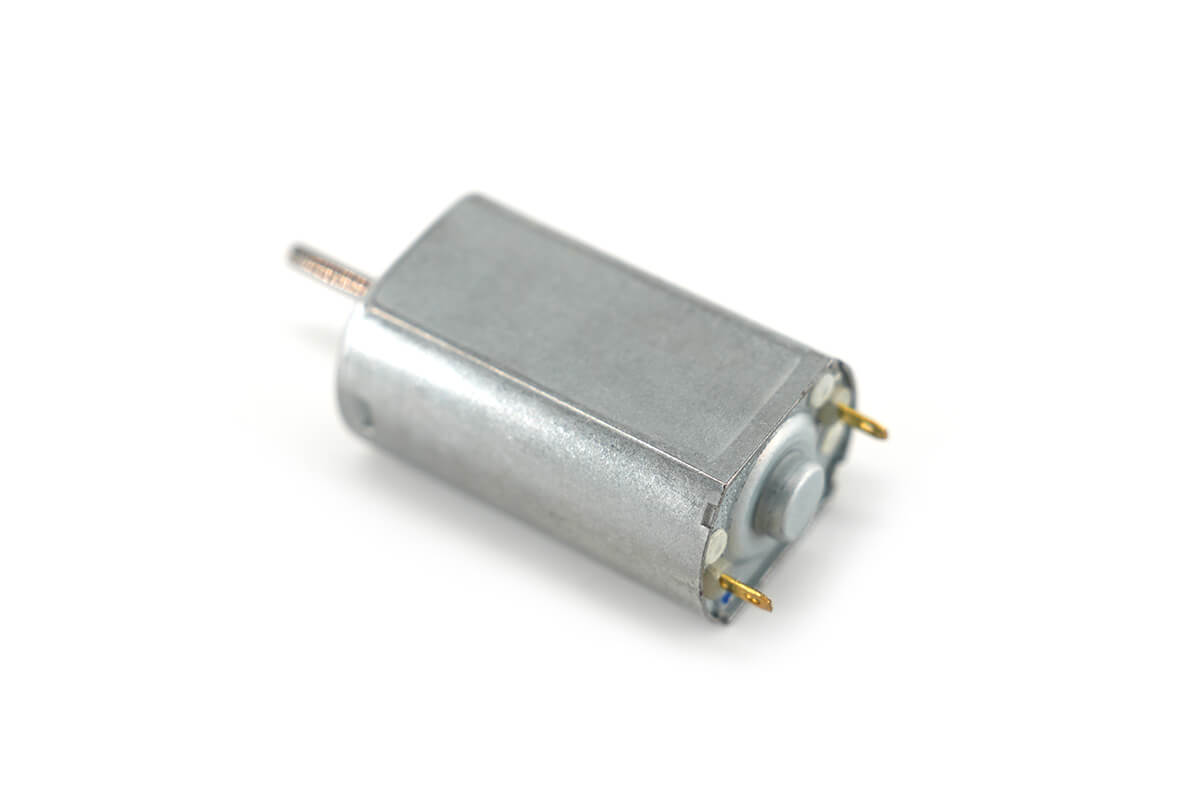

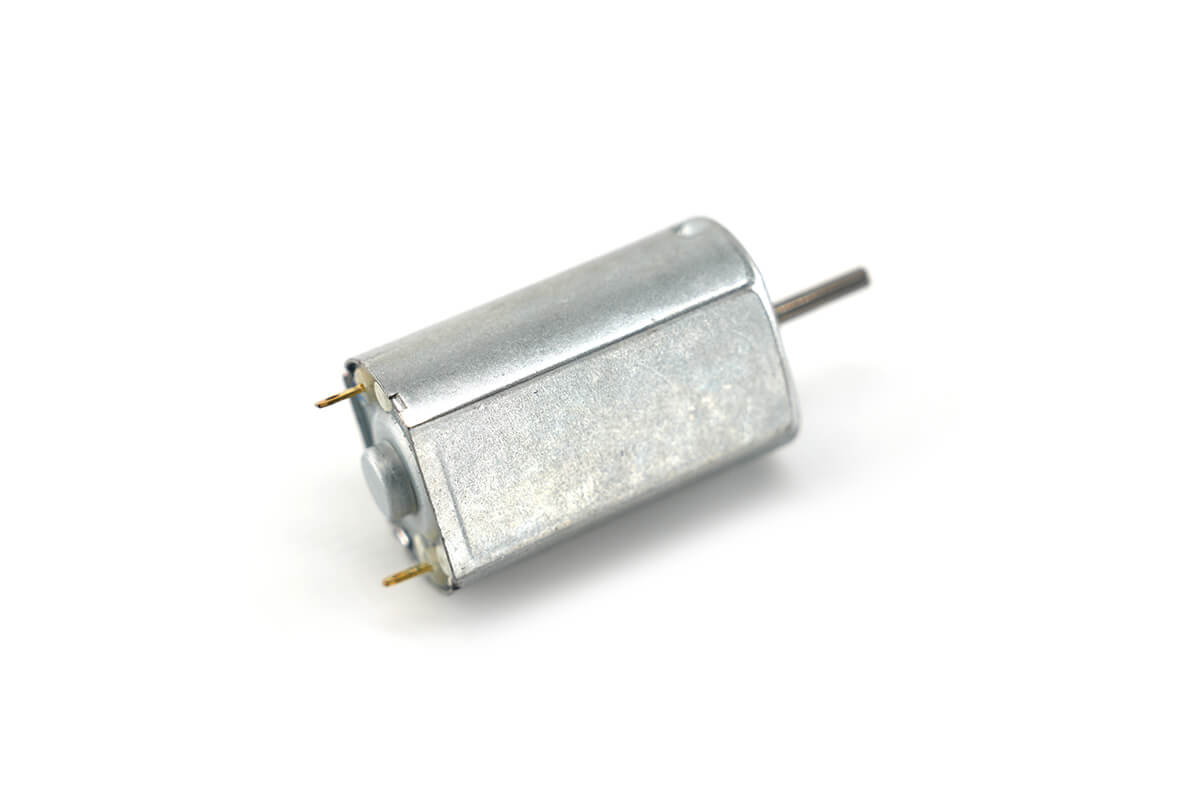

20mm Micro DC Motor – 32mm Type Model NFP-FK-180SH
$7.00
Notice: this motor model need to make new ones if order >100pcs that would take extra 2-3 weeks.
Discover the powerful 20mm Micro DC Motor, ideal for compact applications! Enjoy high performance without compromising space. Order yours today!
| Quantity | Price | Discount |
|---|---|---|
| 20 - 99 | $7.00 | 0% |
| 100 - 999 | $2.35 | 66.43% |
| 1000+ | $1.20 | 82.86% |
FK-180SH Carbon Brush DC Motor Technical Datasheet
The NFP-FK-180SH is a carbon brush DC motor for compact products that need high speed and stable output. It works at 12V DC and provides 18,000rpm no-load speed.
First, this motor has a 20.4mm diameter and 32.0mm body length. Also, it has a 2mm output shaft diameter. Therefore, it is useful for small devices that need compact size and reliable power.
In addition, the carbon brush structure supports steady DC motor operation. As a result, the motor can work well in toys, models, small appliances, and precision instruments.
Main Product Features
- First, compact size: The 20.4mm diameter and 32.0mm length fit small product spaces.
- In addition, high speed: The no-load speed reaches 18,000rpm at 12V DC.
- Also, stable current: The no-load current is 160mA.
- Next, practical shaft size: The output shaft length is 11.6mm, and the shaft diameter is 2mm.
- Finally, wide use: The motor can support toys, models, small appliances, and precision instruments.
FK-180SH Carbon Brush DC Motor Specification Data
Next, the table below helps users check voltage, speed, current, motor size, and shaft data. Therefore, it is easier to confirm whether this motor fits the final product design.
| Motor Model No. | NFP-FK-180SH |
|---|---|
| Rated voltage | 12V DC |
| No-load speed | 18,000rpm |
| No-load current | 160mA |
| Motor diameter | 20.4mm |
| Motor length | 32.0mm |
| Output shaft length | 11.6mm |
| Output shaft diameter | 2mm |
Also, the NFP-FK-180SH combines 12V DC input with high no-load speed. As a result, it can support compact products that need fast rotation and simple integration.
12V 180 Motor Model Outline Drawing
First, the outline drawing shows the NFP-FK-180SH motor body and main size data. Therefore, users can check the motor fit before product design.
In addition, this motor is designed for efficient DC operation. As a result, it can provide stable and reliable performance in battery-powered devices and small drive systems.
Outline Drawing and Design Benefits
- First, compact body: The 20.4mm motor diameter helps save product space.
- In addition, strong shaft: The 2mm output shaft helps support stable drive output.
- Also, high-speed operation: The 18,000rpm no-load speed supports fast motion.
- Next, DC power use: The motor works with 12V DC systems.
- Finally, easy integration: The motor size can fit many small product layouts.
Typical Applications
Next, this 12V DC motor is suitable for products that need compact size, high speed, and steady operation. For example, it can work in toys, models, small appliances, and precision instruments.
- Toys
- Models
- Small appliances
- Precision instruments
- Battery-powered devices
- Compact drive systems
Finally, the NFP-FK-180SH carbon brush DC motor is a good fit for compact products that need 12V DC power, 18,000rpm speed, stable current, and reliable motor output.
Keywords: 20mm micro DC motor, NFP-FK-180SH, 32mm type DC motor, high-performance micro motor, miniature DC motor, high-speed DC motor, compact DC motor, small DC motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
