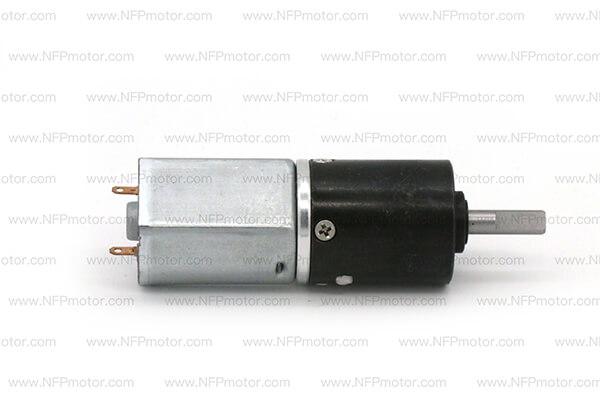

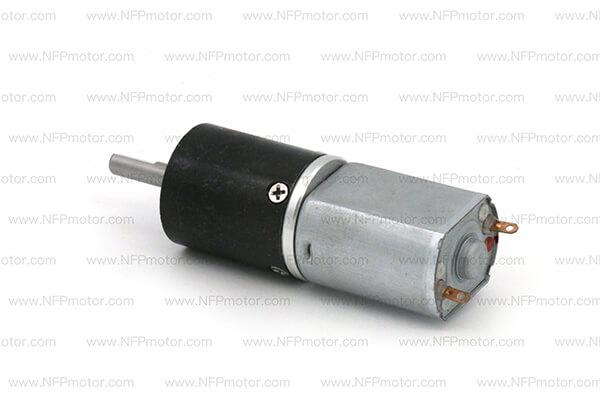

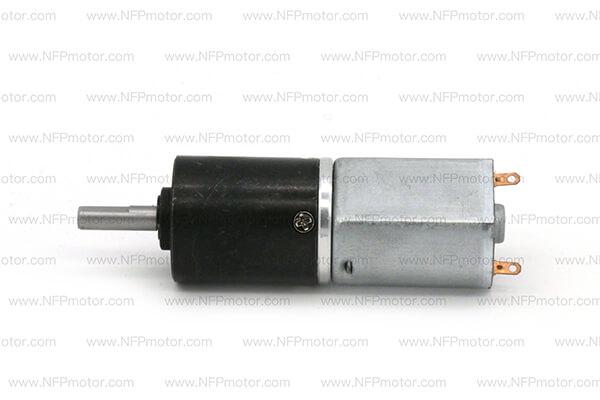

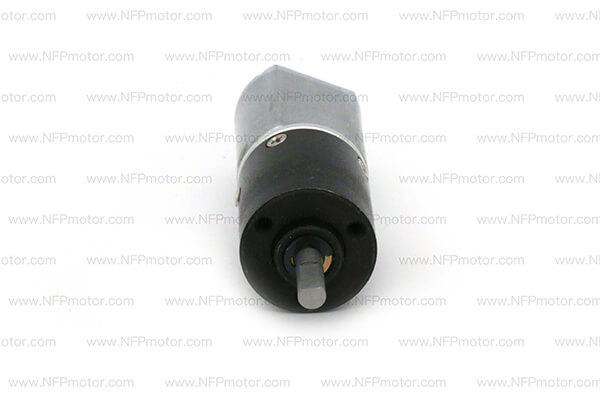

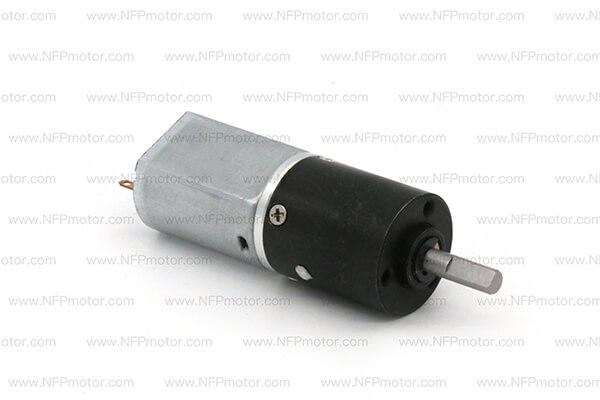

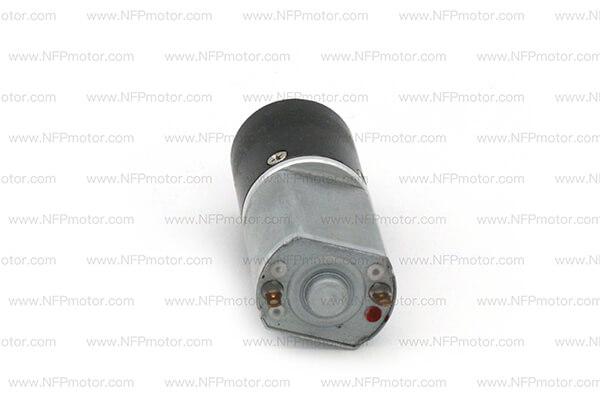

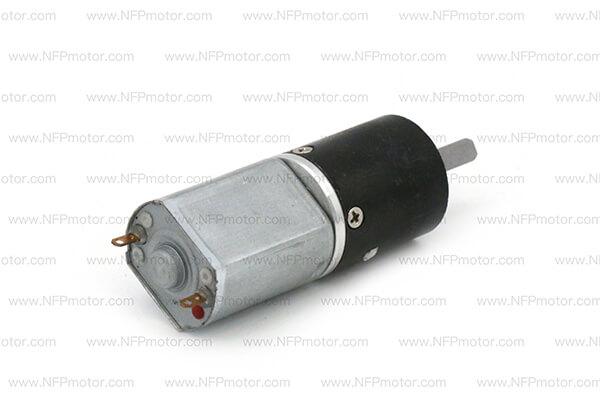

20mm Planetary Gear Motor Model NFP-GA20Y-130
$15.00
Discover exceptional performance with the 20mm Planetary Gear Motor, featuring both CW and CCW rotation. Ideal for various applications, order now!
Contact us for a quotation for production quantities, customizations and integration.
DC Geared Motor NFP-GA20Y-130-CE Specifications
First, the NFP-GA20Y-130-CE is a compact DC geared motor with a 20mm planetary gearbox. Also, it supports 12V DC and 24V DC power for small drive systems.
In addition, this motor provides a wide no-load speed range from 11rpm to 2,280rpm. Therefore, users can choose a low ratio for speed or a high ratio for stronger low-speed torque.
Moreover, the motor has a 4mm output shaft and a light body weight. As a result, it is useful for compact products that need steady output, small size, and high torque.
Main Product Features
- First, compact gear motor: The small gearbox helps save product space.
- In addition, voltage options: The motor supports 12V and 24V DC systems.
- Also, wide speed range: Users can choose 11rpm to 2,280rpm output speed.
- Next, high torque: The max torque is 7Kg.cm.
- Finally, 4mm output shaft: The shaft helps connect gears, wheels, and other drive parts.
Basic Motor Specifications
First, the table below shows the main motor data. Also, it helps users check rotation, voltage, speed, power, torque, current, shaft size, and weight before choosing a ratio.
| Motor Model | NFP-GA20Y-130-CE |
|---|---|
| Rotation | CW & CCW |
| Rated Voltage | 12V DC / 24V DC |
| No-load Speed | 11rpm – 2,280rpm |
| Output Power | 4.5W |
| Max Torque | 7Kg.cm |
| No-load Current | 0.09A / 0.18A |
| Output Shaft Diameter | 4mm |
| Weight | 59g – 69g |
As a result, this model gives a compact DC planetary gear motor solution for many small drive products. Moreover, the 4mm output shaft helps support stable mechanical connection.
Model: NFP-GA20Y-130-12100, 12V DC, 10,000RPM, 69g
First, this 12V DC version is useful for compact 12V drive systems that need stable output. Also, the OEM gearbox helps provide useful torque in a small motor body.
In addition, the motor uses high-quality materials and a one-time forming rotor. Therefore, it can support high conductivity, long wear life, stable speed, dust isolation, and high temperature resistance.
Moreover, lower ratios provide higher output speed. However, higher ratios provide lower speed and stronger torque for slow drive tasks.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 4.38:1 | 2280 rpm | 0.18A | 2009 rpm | 0.41A | 0.04kg.cm | 0.12kg.cm | 0.95A |
| 19:1 | 526 rpm | 0.18A | 463 rpm | 0.41A | 0.15kg.cm | 0.6kg.cm | 0.95A |
| 24:1 | 416 rpm | 0.18A | 366 rpm | 0.41A | 0.2kg.cm | 0.7kg.cm | 0.95A |
| 84:1 | 119 rpm | 0.18A | 104 rpm | 0.41A | 0.7kg.cm | 2.5kg.cm | 0.95A |
| 128:1 | 78 rpm | 0.18A | 68 rpm | 0.41A | 1kg.cm | 3.8kg.cm | 0.95A |
| 157:1 | 63 rpm | 0.18A | 56 rpm | 0.41A | 1.3kg.cm | 4.5kg.cm | 0.95A |
| 370:1 | 27 rpm | 0.18A | 23 rpm | 0.41A | 2kg.cm | 7.5kg.cm | 0.95A |
| 560:1 | 17 rpm | 0.18A | 15 rpm | 0.41A | 4.5kg.cm | 16kg.cm | 0.95A |
| 850:1 | 11 rpm | 0.18A | 10 rpm | 0.41A | 7kg.cm | 25kg.cm | 0.95A |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 12V version covers speeds from 11 rpm to 2280 rpm. Moreover, the 850:1 ratio gives the strongest rated torque and stall torque in this table.
Model: NFP-GA20Y-130-24100, 24V DC, 10,000RPM, 69g
Next, this 24V DC version is useful for 24V systems that need lower no-load current. Also, it provides the same wide ratio range as the 12V version.
In addition, the motor supports low noise, high efficiency, high conductivity, long wear life, stable speed, wear resistance, and high temperature resistance. Therefore, it can support steady output under suitable use.
However, users should check the selected torque value before final use. For example, the 157:1 row should be reviewed if the rated torque value looks higher than nearby ratios.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 4.38:1 | 2280 rpm | 0.09A | 2009 rpm | 0.21A | 0.04kg.cm | 0.12kg.cm | 0.95A |
| 19:1 | 526 rpm | 0.09A | 463 rpm | 0.21A | 0.15kg.cm | 0.6kg.cm | 0.95A |
| 24:1 | 416 rpm | 0.09A | 366 rpm | 0.21A | 0.2kg.cm | 0.7kg.cm | 0.95A |
| 84:1 | 119 rpm | 0.09A | 104 rpm | 0.21A | 0.7kg.cm | 2.5kg.cm | 0.95A |
| 128:1 | 78 rpm | 0.09A | 68 rpm | 0.21A | 1kg.cm | 3.8kg.cm | 0.95A |
| 157:1 | 63 rpm | 0.09A | 56 rpm | 0.21A | 13kg.cm | 4.5kg.cm | 0.95A |
| 370:1 | 27 rpm | 0.09A | 23 rpm | 0.21A | 2kg.cm | 7.5kg.cm | 0.95A |
| 560:1 | 17 rpm | 0.09A | 15 rpm | 0.21A | 4.5kg.cm | 16kg.cm | 0.95A |
| 850:1 | 11 rpm | 0.09A | 10 rpm | 0.21A | 7kg.cm | 25kg.cm | 0.95A |
Note: All reduced no-load speeds have a tolerance of ±15%.
In conclusion, the 24V version covers speeds from 11 rpm to 2280 rpm. Also, the 850:1 ratio gives the strongest stall torque in this table.
Miniature DC Gear Motor Outline Drawing
First, the outline drawing helps users check motor size, gearbox layout, shaft size, and mounting space. Therefore, it is useful before sample testing and product design.
In addition, the NFP-GA20Y-130-CE uses a compact planetary gearbox. As a result, it can provide useful torque in small spaces while keeping the motor easy to install.
Moreover, this motor supports 12V and 24V DC systems. Therefore, users can match it with battery-powered products, control boards, and compact drive modules.
Outline Drawing and Design Benefits
- First, compact body: The small gear motor layout helps save installation space.
- In addition, planetary gearbox: The gearbox helps transfer torque smoothly.
- Also, 4mm output shaft: The shaft helps connect drive parts firmly.
- Next, voltage choice: 12V and 24V versions support different systems.
- Finally, wide ratio range: Users can choose speed or torque based on the load.
Typical Applications
Finally, this miniature DC gear motor is useful for compact products that need stable output, small size, and useful torque. For example, it can work in robots, smart devices, automation systems, electric tools, and small drive modules.
- Robots
- Smart devices
- Automation systems
- Electric tools
- Small drive modules
- Battery-powered products
- Compact control systems
Selection Notes
First, users should choose voltage and ratio based on speed, torque, current, output shaft size, and product space. Also, users should confirm the rated torque before final testing.
- First, for higher speed: Choose a lower ratio such as 4.38:1, 19:1, or 24:1.
- In addition, for higher torque: Choose a higher ratio such as 370:1, 560:1, or 850:1.
- Also, for 12V systems: Choose the 12V DC version when the product uses a 12V control board.
- Next, for 24V systems: Choose the 24V DC version when the product uses a 24V power supply.
- Moreover, for compact builds: Check the 4mm output shaft and gearbox layout before final assembly.
- Finally, for stable use: Keep the motor within rated load for longer service life.
In short, the NFP-GA20Y-130-CE DC geared motor is a good fit for products that need 12V or 24V DC power, compact planetary gearbox, 4mm output shaft, wide ratio range, and stable low-speed torque.
