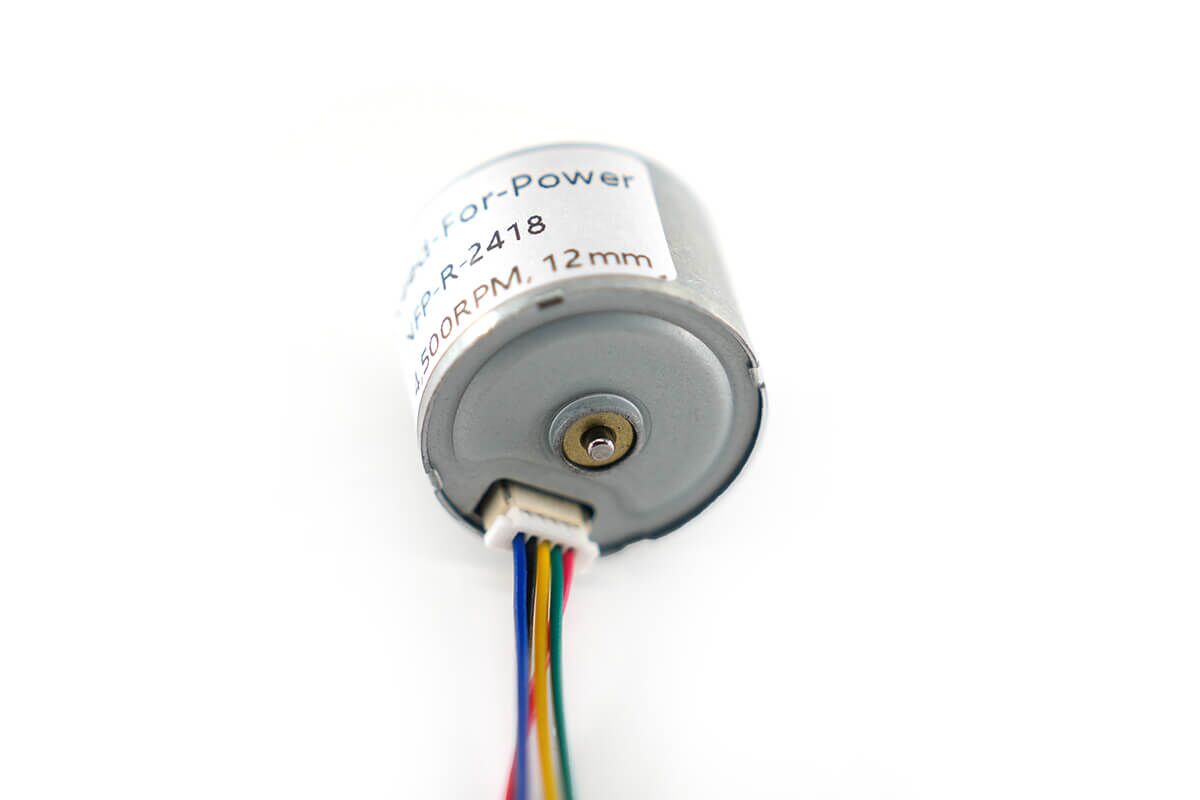

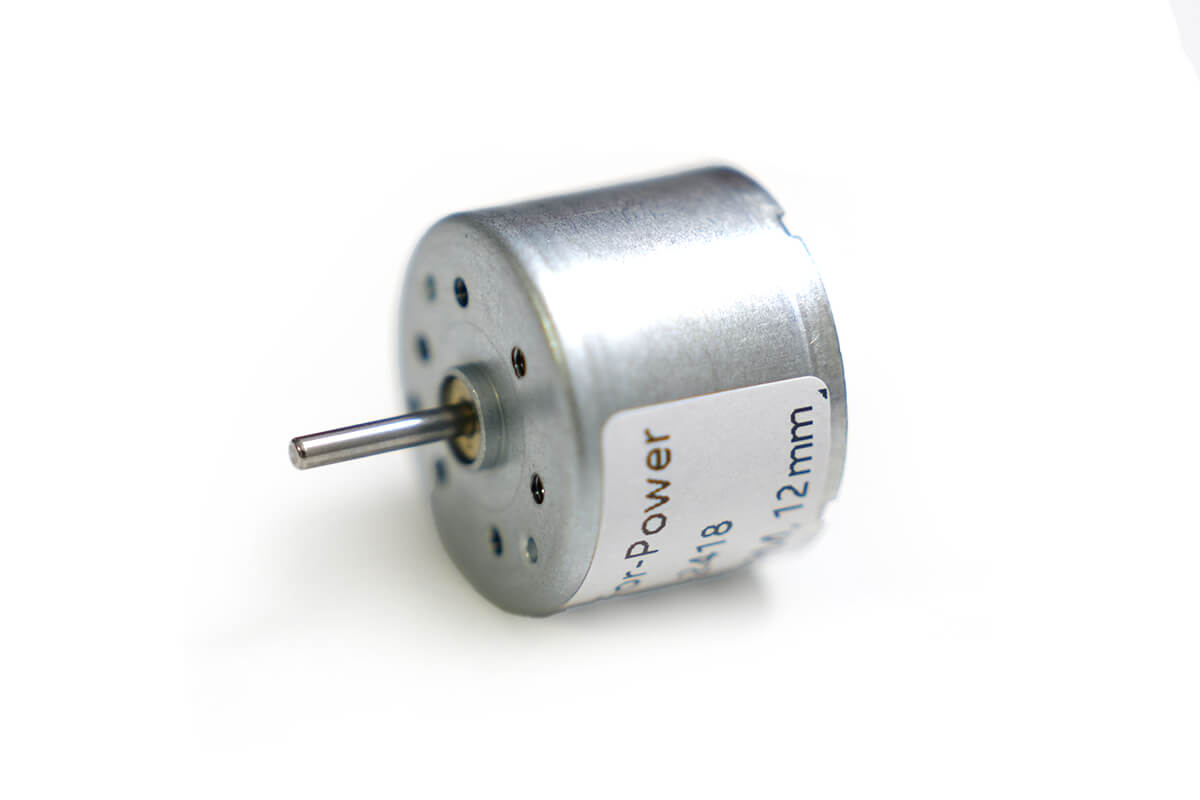

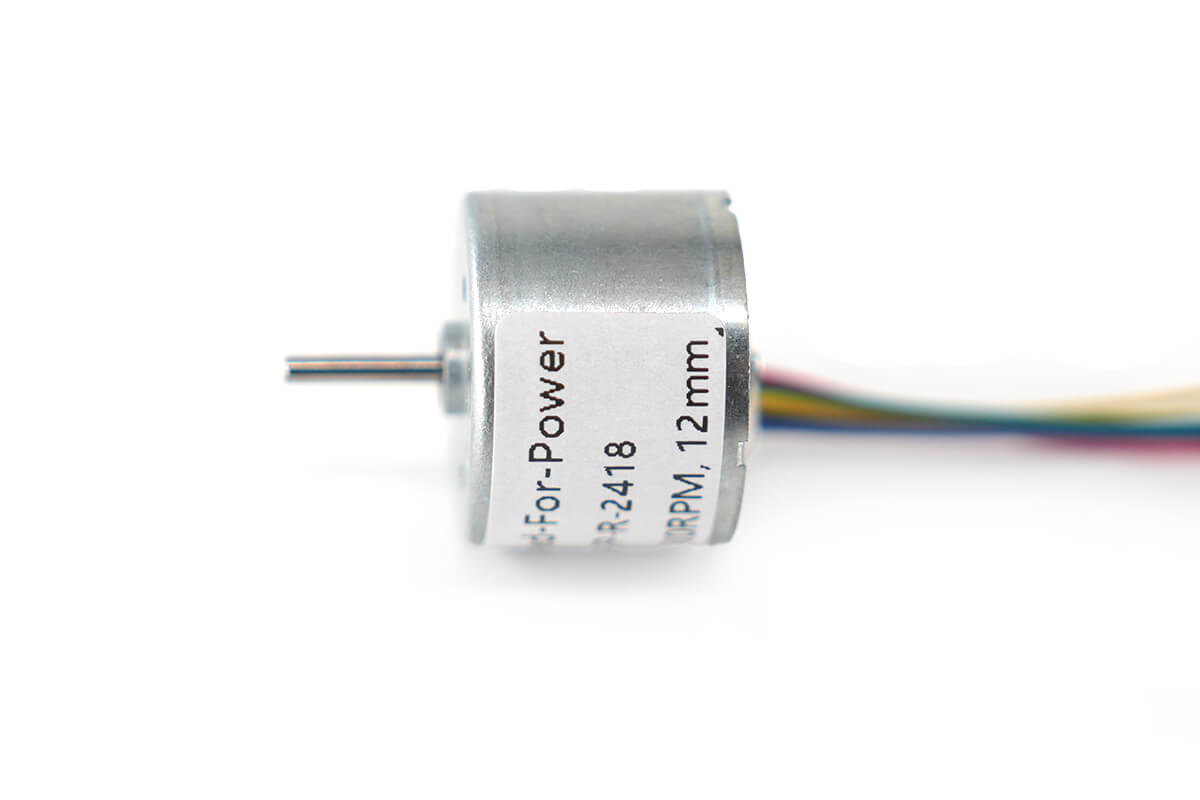

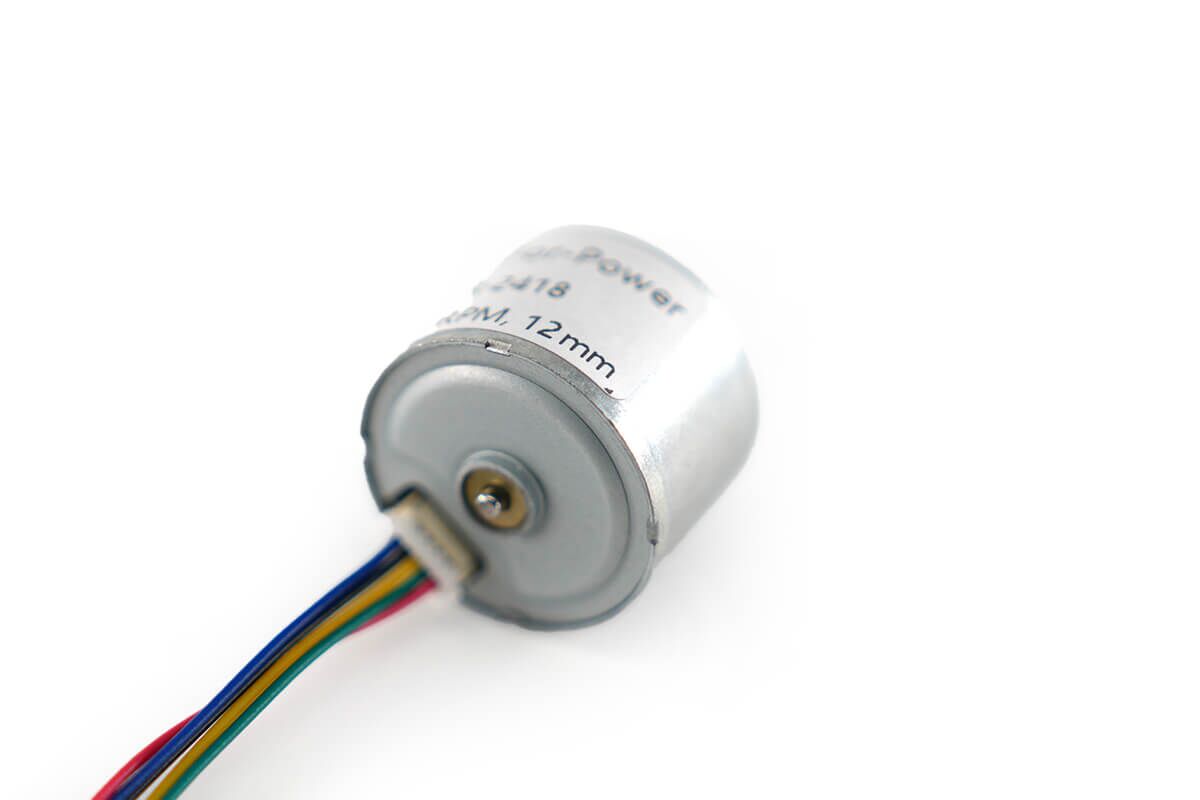

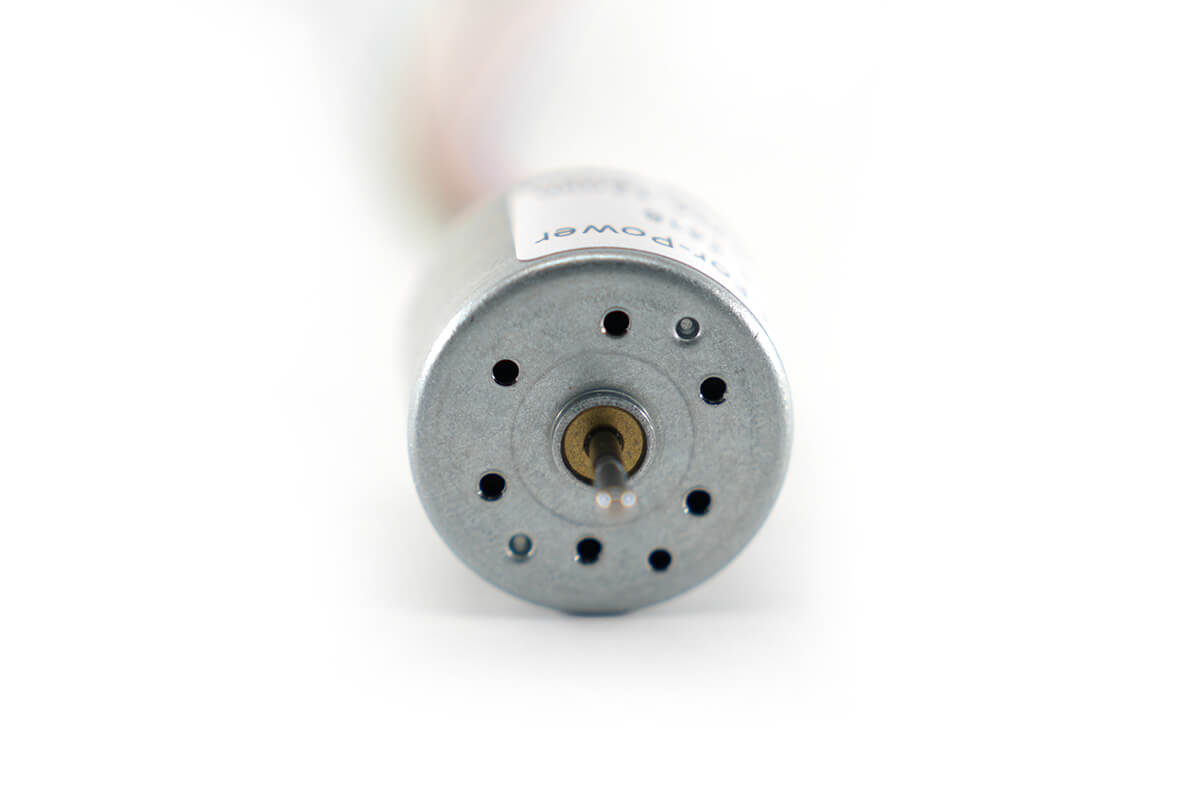

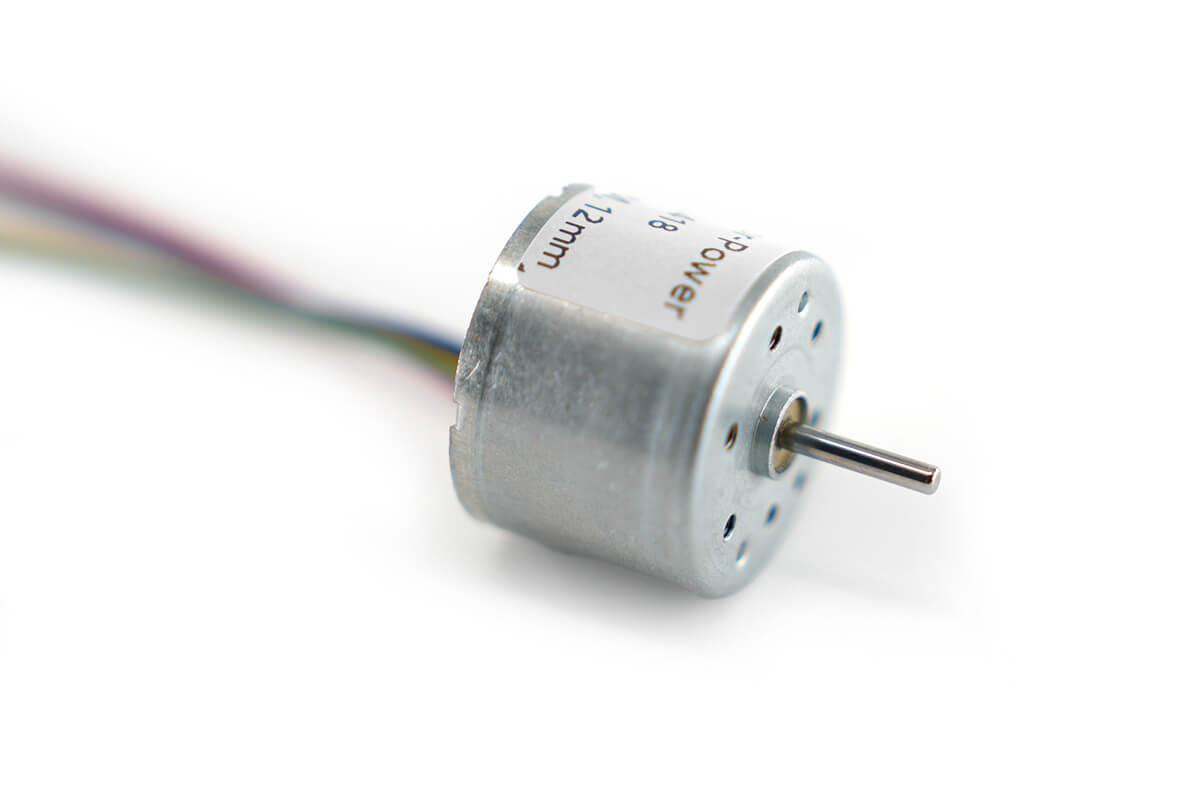

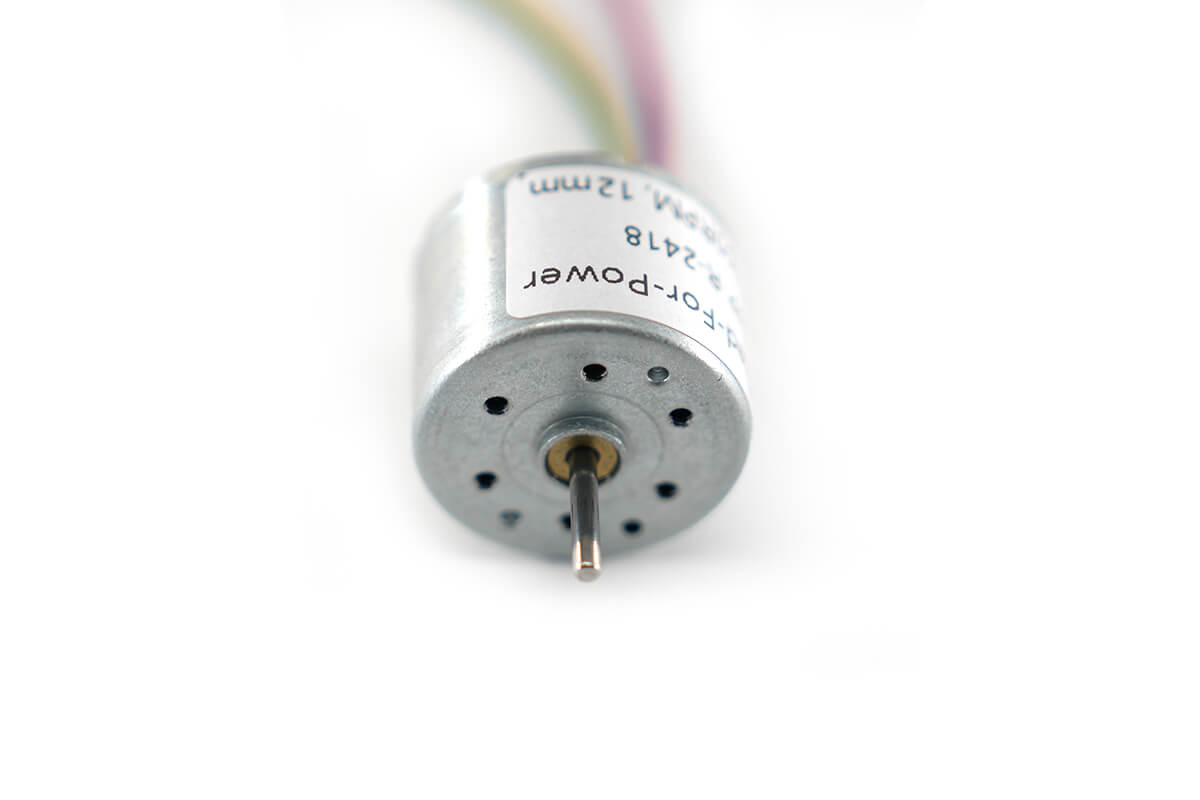

24mm Brushless DC Motor – 18mm Type Model NFP-R-2418

$15.00

(3 customer reviews)

Discover the power of the 24mm Brushless DC Motor, designed for compact applications needing low current and stable control. Enhance your projects today!

USDUSD
EUREUR
GBPGBP
JPYJPY
HKDHKD
Speed Controller (×$4.70)
portescap bldc motor controller with cover
Controller with Cover (×$5.45)
Product total
Options total
Grand total

High Efficiency Small Brushless Motor Data Sheet


The NFP-R-2418 is a small brushless DC motor for compact products that need long lifetime, low current, and stable control. It supports 12V or 24V DC power and can run in CW or CCW direction.

First, this BLDC motor includes a built-in Hall effect driver. Also, it supports speed signal feedback and PWM speed control. Therefore, it is useful for products that need controlled speed and reliable operation.

In addition, the motor can stop immediately when power is cut. As a result, it can support applications that need fast stop response and safer motion control.

Main Product Features

  • First, instant stop: The motor stops immediately when power is cut.
  • In addition, speed feedback: The FG signal line can output Hall signals.
  • Also, PWM speed control: The PWM line can connect to a 0-5V pulse width regulator.
  • Next, built-in Hall driver: The motor includes a Hall effect driver for brushless control.
  • Finally, five-wire control: The motor supports forward and reverse rotation.

Small Brushless DC Motor Specification Data

Next, the table below helps users check motor size, shaft data, voltage, speed, power, rotation, and weight. Therefore, it is easier to confirm whether this motor fits the final product design.

Model NFP-R-2418
Motor Diameter 24.4mm
Length 18mm
Shaft Diameter 2mm
Shaft Length 6.5mm / 12mm / 21mm
Rated Voltage 12V / 24V DC
No-load Speed 4,500rpm / 9,000rpm
Power 2W
Rotation CW / CCW
Weight 30g

Also, the motor offers three shaft length options: 6.5mm, 12mm, and 21mm. As a result, users can choose a shaft style based on the product structure and drive layout.

24V Brushless Motor Performance Data

In addition, the 24V performance table helps users review speed, current, torque, and stall data. Therefore, it can support early motor selection and power supply planning.

Voltage No-load Speed No-load Current Rated Torque Rated Speed Rated Current Stall Torque Stall Current
24V DC 9,000±10%rpm ≤0.07A 15g.cm 7,750±10%rpm ≤0.16A 150g.cm 0.43A

Also, the 24V DC version has low no-load current and stable rated speed. As a result, it can support compact products that need efficient brushless motor output.

Long Lifetime 12V 24V Brushless DC Motor Outline Drawing


First, BLDC motors usually offer longer service life than brushed motors because they do not use mechanical brushes for commutation. Also, this motor has low current use, high torque, and low noise.

In addition, the NFP-R-2418 supports a wide operating voltage range and different output speeds. Therefore, it can meet the needs of robots, electronic locks, automatic rotating devices, gimbals, and other compact products.

Outline Drawing and Design Benefits

  • First, compact body: The 24.4mm diameter and 18mm length help save product space.
  • In addition, long lifetime: The brushless structure helps reduce brush wear.
  • Also, low noise: BLDC operation can support quieter running.
  • Next, speed control: PWM control helps adjust the motor speed.
  • Finally, feedback output: The FG signal can provide Hall signal feedback.

NFP-R-2418 micro DC brushless motor dimension drawing

Wiring Method Of 2418 Small Brushless Motors


Next, the wiring method helps users connect the motor for rotation, braking, direction control, FG feedback, and PWM speed adjustment. Therefore, users should check the wire connection before power-on testing.

In addition, the FG signal line outputs Hall signals, with 6 signals in one basic pulse circle. Also, the PWM pulse width modulation line can connect to a 0-5V pulse width regulator.

Motor Application Conditions

First, the motor can rotate when directly powered with the correct wiring. Connect the positive pole to the red wire. Then, connect the negative pole to both the blue and black wires.

Also, the motor brakes immediately when power is cut. However, the connections must not be reversed.

Change CW/CCW Rotation Direction

Next, users can change the motor rotation direction through the wire connection. Connect the positive pole to the red wire, and connect the negative pole to the blue wire, black wire, and yellow wire.

  • First, rotation test: Connect the positive pole to the red wire.
  • Next, normal running: Connect the negative pole to both the blue and black wires.
  • Also, direction change: Connect the negative pole to the blue wire, black wire, and yellow wire.
  • In addition, PWM control: Connect the PWM line to a 0-5V pulse width regulator.
  • Finally, FG feedback: Use the FG signal line for Hall signal feedback.

NFP-R-2418 brushless motor connection mode wiring diagram

Typical Applications

Finally, the NFP-R-2418 brushless DC motor is suitable for compact products that need long lifetime, low current, speed control, and reversible rotation.

  • Robots
  • Electronic locks
  • Automatic rotating devices
  • Gimbals
  • Small automation equipment
  • Compact BLDC drive systems
  • Low-noise motor projects

In short, the NFP-R-2418 small brushless DC motor is a good fit for products that need 12V or 24V DC power, PWM speed control, FG feedback, CW/CCW rotation, and long lifetime BLDC motor performance.

Related Motor Models & Options

If you need higher output torque for heavy-duty applications, consider the 37mm Metal Gear Motor Model NFP-GM37-500 which offers enhanced mechanical reduction.

To properly drive and control this motor speed, you can pair it with the 25A 6V-50V 300W Sensorless Brushless DC Motor Driver Speed Controller NFP-BL50V300W.

For mounting and structural installation, use the 42GP Gear Motor Right Angle Bracket Holder Support to secure the motor in your setup.

If your project requires tactile haptic feedback instead of continuous rotation, check out the 36mm DC Brushless Vibration Motor – 26mm Type Model NFP-BL3626-SF.

For high-power brushed DC alternatives operating in a larger form factor, explore the 44mm Brushed DC Motor – 66mm Type Model NFP-RS-775.
