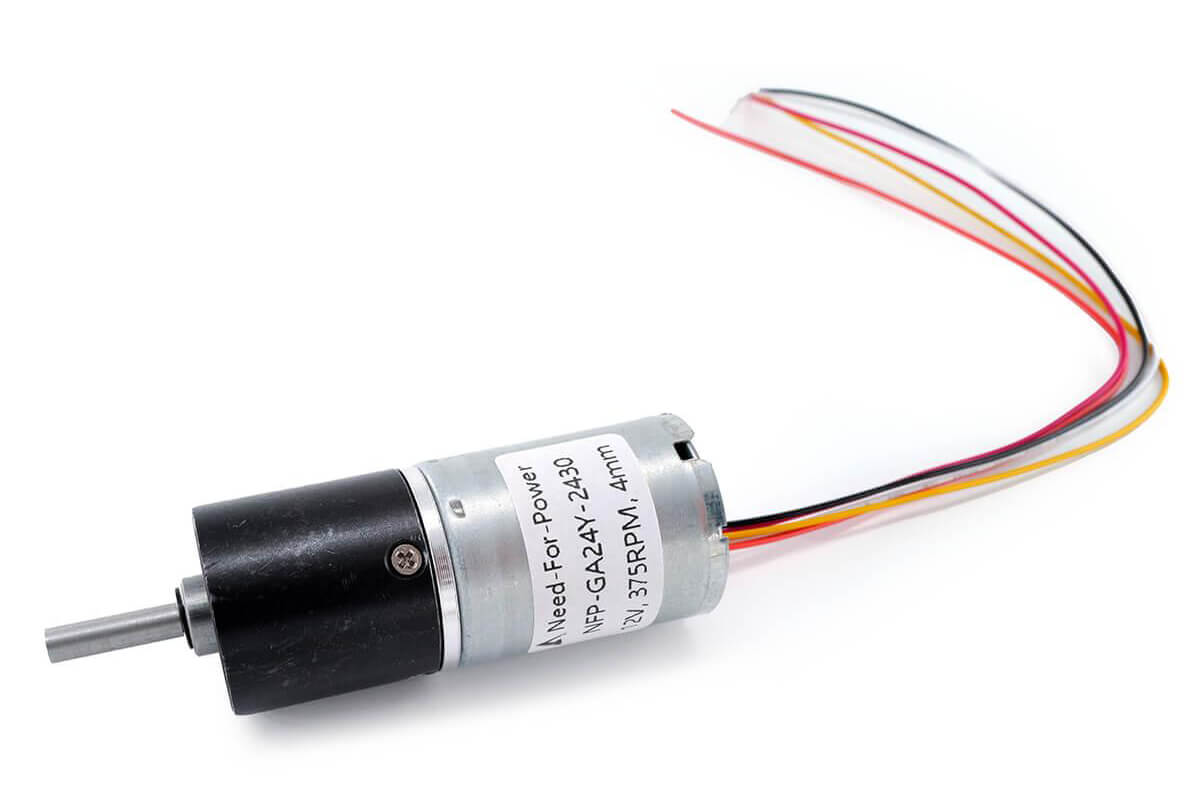

24mm Planetary Gear Motor Model NFP-GA24Y-2430

24mm Brushless Planetary Gear Motor Datasheet

First, the NFP-GA24Y-2430 is a 24mm brushless planetary gear motor for compact drive systems. Also, it supports 12V DC and 24V DC power for different control boards.

In addition, the brushless motor structure helps reduce wear and extend service life. Therefore, it is useful for products that need low noise, stable output, and long running time.

Moreover, the planetary gearbox provides high torque in a small body. As a result, users can choose a low ratio for higher speed or a high ratio for stronger low-speed torque.

Main Product Features

• First, brushless motor: The BLDC design helps reduce brush wear and service work.
• In addition, planetary gearbox: The gearbox helps provide stable torque output.
• Also, voltage options: The motor supports 12V and 24V DC systems.
• Next, high torque: The max torque is 21Kg.cm.
• Finally, shaft options: Users can choose 4mm or 6mm output shaft versions.

Basic Motor Specifications

First, the table below shows the main motor data. Also, it helps users check voltage, speed, current, torque, power, shaft size, and weight before choosing a ratio.

As a result, this model gives a compact brushless planetary gear motor solution for small drive products. Moreover, the shaft options help users match different couplers, gears, wheels, and drive parts.

Model: NFP-GA24Y-2430-1260, 12V DC, 6,000rpm

First, the 12V DC version is useful for compact 12V drive systems. Also, the table below helps users compare ratio, speed, current, torque, and stall data before sample testing.

In addition, lower ratios provide higher output speed. However, higher ratios provide lower speed and stronger torque for slow drive tasks.

Note: All reduced no-load speeds have a tolerance of ±15%.

As a result, the 12V version covers speeds from 12rpm to 1,500rpm. Moreover, the 500:1 ratio gives the strongest rated torque and stall torque in this table.

Model: NFP-GA24Y-2430-2460, 24V DC, 6,000rpm

Next, the 24V DC version is useful for 24V systems that need lower current. Also, it provides the same wide ratio range as the 12V version.

Therefore, users can choose this version for higher-voltage control boards. In addition, higher ratios provide strong torque for low-speed output tasks.

Note: All reduced no-load speeds have a tolerance of ±15%.

In conclusion, the 24V version covers speeds from 12rpm to 1,500rpm. Also, the 500:1 ratio gives the strongest rated torque and stall torque in this table.

Long Wear Life Brushless DC Electric Motor Outline Drawing

First, the outline drawings help users check motor size, gearbox layout, shaft size, and mounting space. Therefore, they are useful before sample testing and product design.

In addition, the brushless DC motor has no carbon brush wear. As a result, it can support longer life and lower service needs than a brushed motor under suitable use.

Moreover, the compact planetary gearbox provides stable torque output. Therefore, this motor can fit automation equipment, small machines, and other compact drive products.

Outline Drawing and Design Benefits

• First, 24mm motor body: The compact size helps save product space.
• In addition, brushless structure: The BLDC design helps reduce wear and service work.
• Also, planetary gearbox: The gearbox helps transfer torque smoothly.
• Next, shaft options: 4mm and 6mm shaft options help match different couplers.
• Finally, high torque output: Higher ratios provide strong slow-speed torque.

Also, the second drawing shows another shaft and gearbox layout. Therefore, users can compare both drawings before choosing the final mechanical setup.

Micro BLDC Planetary Geared Motor Connection Method

First, the wiring guide helps users connect power, speed signal, direction control, and speed control wires correctly. Therefore, users should check each wire before power-on.

In addition, the positive and negative power wires must not be reversed. As a result, correct wiring can help protect the motor and the control circuit.

Wiring Sequence

• First, red wire: Positive pole of motor power supply +. It cannot be wrongly connected.
• In addition, black wire: Negative pole of motor power supply −. It cannot be wrongly connected.
• Also, yellow wire: FFG speed signal output. The motor outputs 18 square wave pulses per revolution for external speed detection.
• Next, orange wire: Forward and reverse control wire. The motor runs CCW when the port is not connected.
• Moreover, orange wire low level: The motor runs CW when the port is connected to low level ≤0.6V.
• Finally, white wire: Speed control wire. It supports reverse speed regulation through PWM mode and can connect to the negative pole of the power supply for full speed.

Note: The positive and negative poles of the power supply must not be connected wrongly.

Typical Applications

Finally, this 24mm brushless planetary gear motor is useful for compact products that need low noise, high torque, and long wear life. For example, it can work in automation equipment, robots, smart devices, electric tools, and compact drive modules.

• Automation equipment
• Robots
• Smart devices
• Electric tools
• Small machines
• Compact drive modules
• Low-noise motion systems

Selection Notes

First, users should choose voltage, ratio, shaft size, and wiring method based on speed, torque, current, and product space. Also, users should confirm the driver control method before testing.

• First, for higher speed: Choose a lower ratio such as 4:1, 16:1, or 25:1.
• In addition, for higher torque: Choose a higher ratio such as 320:1, 400:1, or 500:1.
• Also, for 12V systems: Choose the 12V DC version when the product uses a 12V control board.
• Next, for 24V systems: Choose the 24V DC version when the product uses a 24V power supply.
• Moreover, for speed feedback: Use the yellow FFG wire to detect 18 square wave pulses per motor revolution.
• Finally, for speed control: Use the white wire with PWM mode based on the control design.

In short, the NFP-GA24Y-2430 24mm brushless planetary gear motor is a good fit for products that need 12V or 24V DC power, BLDC long wear life, compact planetary gearbox, high torque, speed feedback, and stable low-speed output.

Keywords: miniature planetary gearbox, 24V DC planetary gear motor, brushless gear motor
